HF1-10-8 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> filter> HF1-10-8

HF1-10-8: DescriptionSwitched Capacitor Filter, 2 Func, Resistor Programmable, Universal, CMOS, CDIP20; CategoryAnalog mixed-signal IC filter; File Size136KB，3 Pages; ManufacturerHarris; Websitehttp://www.harris.com/

Download Datasheet Parametric Compare View All

HF1-10-8 Overview

Switched Capacitor Filter, 2 Func, Resistor Programmable, Universal, CMOS, CDIP20

HF1-10-8 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	DIP, DIP20,.3
Reach Compliance Code	unknown
ECCN code	EAR99
Active filter type	SWITCHED CAPACITOR FILTER
Center frequency or cutoff frequency maximum range	20 kHz
Center frequency or cutoff frequency minimum range	0.05 kHz
JESD-30 code	R-GDIP-T20
JESD-609 code	e0
Maximum negative supply voltage (Vsup)	-5.5 V
Negative supply voltage minimum (Vsup)	-4.5 V
Nominal Negative Supply Voltage (Vsup)	-5 V
Number of functions	2
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Order	2ND
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP20,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
poles and zeros	2 AND 0
Certification status	Not Qualified
response	UNIVERSAL
Filter level	38535Q/M;38534H;883B
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
transfer characteristics	RESISTOR PROGRAMMABLE
Base Number Matches	1

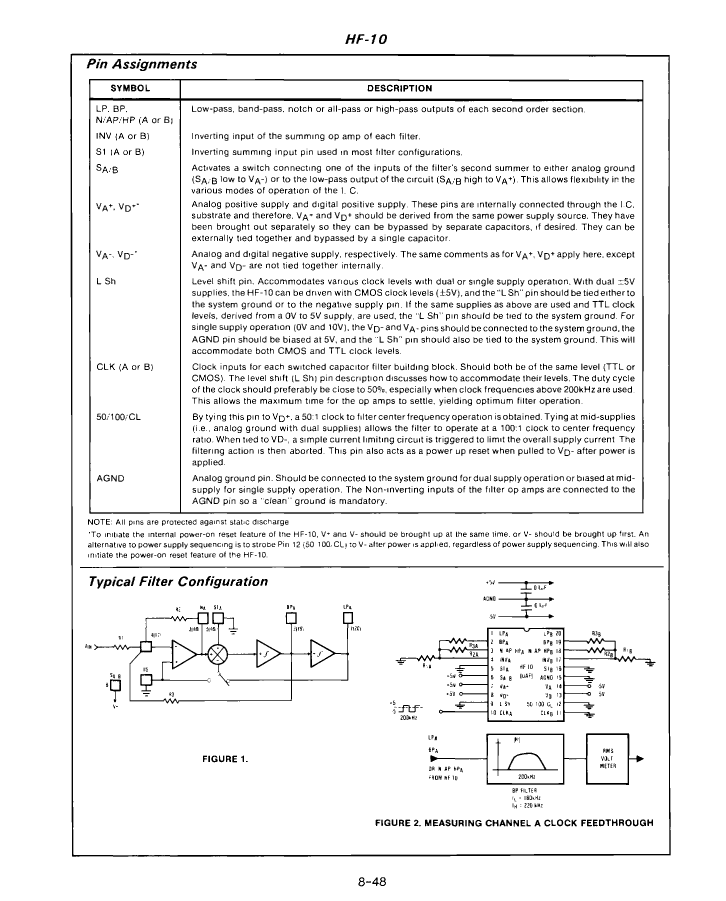

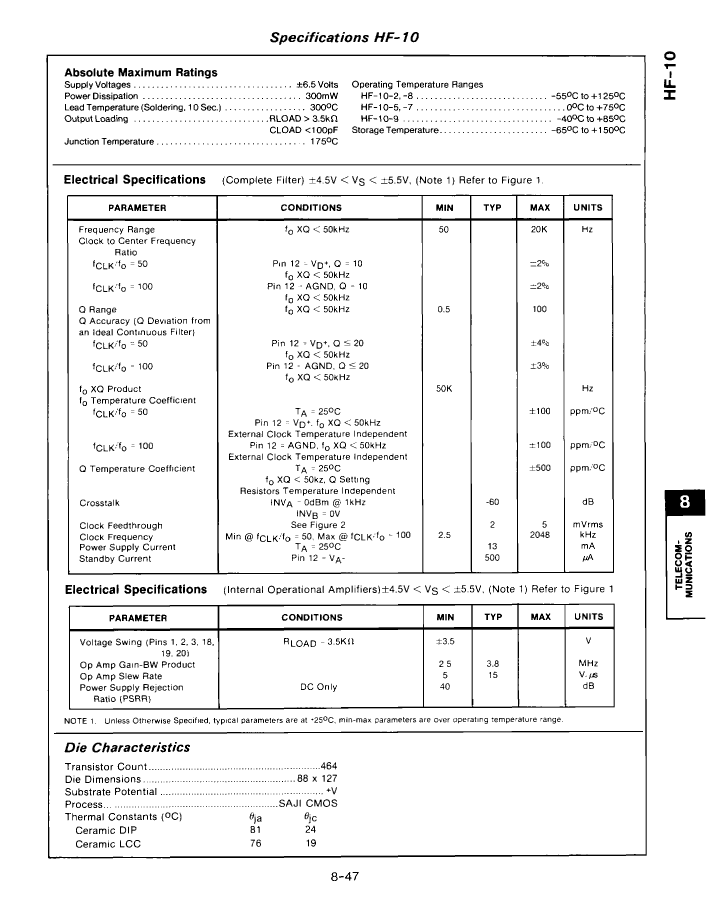

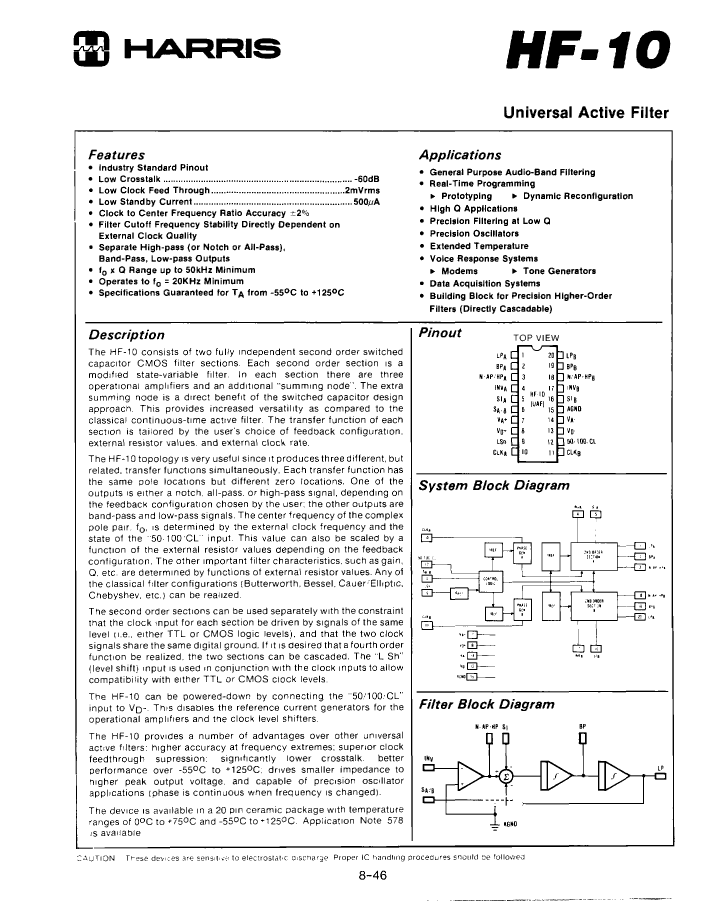

Preview

Download Datasheet

View All

HF1-10-8 Related Products

	HF1-10-8	HF1-10-2	HF1-10-7
Description	Switched Capacitor Filter, 2 Func, Resistor Programmable, Universal, CMOS, CDIP20	Switched Capacitor Filter, 2 Func, Resistor Programmable, Universal, CMOS, CDIP20	Switched Capacitor Filter, 2 Func, Resistor Programmable, Universal, CMOS, CDIP20
Is it Rohs certified?	incompatible	incompatible	incompatible
package instruction	DIP, DIP20,.3	DIP, DIP20,.3	DIP, DIP20,.3
Reach Compliance Code	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99
Active filter type	SWITCHED CAPACITOR FILTER	SWITCHED CAPACITOR FILTER	SWITCHED CAPACITOR FILTER
Center frequency or cutoff frequency maximum range	20 kHz	20 kHz	20 kHz
Center frequency or cutoff frequency minimum range	0.05 kHz	0.05 kHz	0.05 kHz
JESD-30 code	R-GDIP-T20	R-GDIP-T20	R-GDIP-T20
JESD-609 code	e0	e0	e0
Maximum negative supply voltage (Vsup)	-5.5 V	-5.5 V	-5.5 V
Negative supply voltage minimum (Vsup)	-4.5 V	-4.5 V	-4.5 V
Nominal Negative Supply Voltage (Vsup)	-5 V	-5 V	-5 V
Number of functions	2	2	2
Number of terminals	20	20	20
Maximum operating temperature	125 °C	125 °C	75 °C
Minimum operating temperature	-55 °C	-55 °C	-
Order	2ND	2ND	2ND
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED
encapsulated code	DIP	DIP	DIP
Encapsulate equivalent code	DIP20,.3	DIP20,.3	DIP20,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
poles and zeros	2 AND 0	2 AND 0	2 AND 0
Certification status	Not Qualified	Not Qualified	Not Qualified
response	UNIVERSAL	UNIVERSAL	UNIVERSAL
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	NO	NO	NO
technology	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	COMMERCIAL EXTENDED
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
transfer characteristics	RESISTOR PROGRAMMABLE	RESISTOR PROGRAMMABLE	RESISTOR PROGRAMMABLE
Base Number Matches	1	1	1
