HM2P70PN511CE9 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> HM2P70PN511CE9

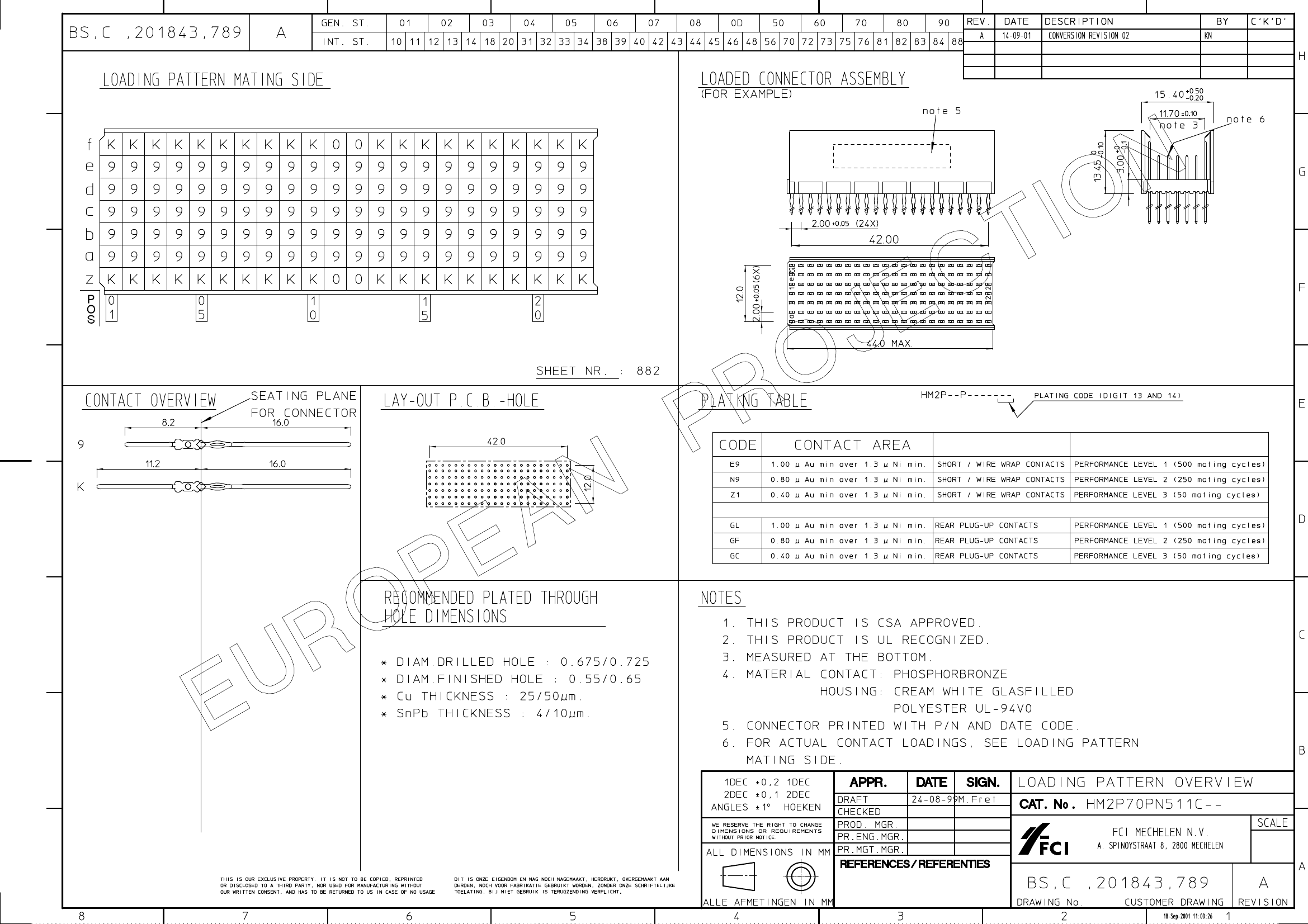

HM2P70PN511CE9: DescriptionBoard Connector, 150 Contact(s), 7 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit/Wire Wrap Terminal, Cream Insulator, Receptacle; CategoryThe connector The connector; File Size180KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

HM2P70PN511CE9 Overview

Board Connector, 150 Contact(s), 7 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit/Wire Wrap Terminal, Cream Insulator, Receptacle

HM2P70PN511CE9 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	40 GROUND SHIELD CONTACTS IN 2 ROWS ALSO AVAILABLE
body width	0.606 inch
subject depth	0.53 inch
body length	1.732 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	750VAC V
Durability	500 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.3614 N
Insulation resistance	10000000000 Ω
Insulator color	CREAM
insulator material	GLASS FILLED POLYESTER
MIL compliance	NO
Manufacturer's serial number	HM
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	7
Number of rows loaded	7
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	39u inch
Rated current (signal)	1.5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.63 inch
Terminal pitch	2 mm
Termination type	PRESS FIT/WIRE WRAP
Total number of contacts	150
UL Flammability Code	94V-0
Evacuation force-minimum value	.07228 N
Base Number Matches	1

Preview

Download Datasheet

View All

PDM: Rev:A

STATUS:

Released

Printed: Apr 09, 2002

HM2P70PN511CE9 Related Products

	HM2P70PN511CE9	HM2P70PN511CN9	HM2P70PN511CZ1
Description	Board Connector, 150 Contact(s), 7 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit/Wire Wrap Terminal, Cream Insulator, Receptacle	Board Connector, 150 Contact(s), 7 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit/Wire Wrap Terminal, Cream Insulator, Receptacle	Board Connector, 150 Contact(s), 7 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit/Wire Wrap Terminal, Cream Insulator, Receptacle
Reach Compliance Code	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99
Other features	40 GROUND SHIELD CONTACTS IN 2 ROWS ALSO AVAILABLE	40 GROUND SHIELD CONTACTS IN 2 ROWS ALSO AVAILABLE	40 GROUND SHIELD CONTACTS IN 2 ROWS ALSO AVAILABLE
body width	0.606 inch	0.606 inch	0.606 inch
subject depth	0.53 inch	0.53 inch	0.53 inch
body length	1.732 inch	1.732 inch	1.732 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI
Contact point gender	MALE	MALE	MALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	20 mΩ	20 mΩ	20 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
DIN compliance	NO	NO	NO
Dielectric withstand voltage	750VAC V	750VAC V	750VAC V
Durability	500 Cycles	250 Cycles	50 Cycles
Filter function	NO	NO	NO
IEC compliance	NO	NO	NO
maximum insertion force	.3614 N	.3614 N	.3614 N
Insulation resistance	10000000000 Ω	10000000000 Ω	10000000000 Ω
Insulator color	CREAM	CREAM	CREAM
insulator material	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER
MIL compliance	NO	NO	NO
Manufacturer's serial number	HM	HM	HM
Plug contact pitch	0.079 inch	0.079 inch	0.079 inch
Match contact row spacing	0.079 inch	0.079 inch	0.079 inch
Mixed contacts	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE
PCB row number	7	7	7
Number of rows loaded	7	7	7
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	2.0066 mm	2.0066 mm	2.0066 mm
Plating thickness	39u inch	31u inch	16u inch
Rated current (signal)	1.5 A	1.5 A	1.5 A
Guideline	UL, CSA	UL, CSA	UL, CSA
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.63 inch	0.63 inch	0.63 inch
Terminal pitch	2 mm	2 mm	2 mm
Termination type	PRESS FIT/WIRE WRAP	PRESS FIT/WIRE WRAP	PRESS FIT/WIRE WRAP
Total number of contacts	150	150	150
UL Flammability Code	94V-0	94V-0	94V-0
Evacuation force-minimum value	.07228 N	.07228 N	.07228 N
Base Number Matches	1	1	1
