7427PCQM datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 7427PCQM

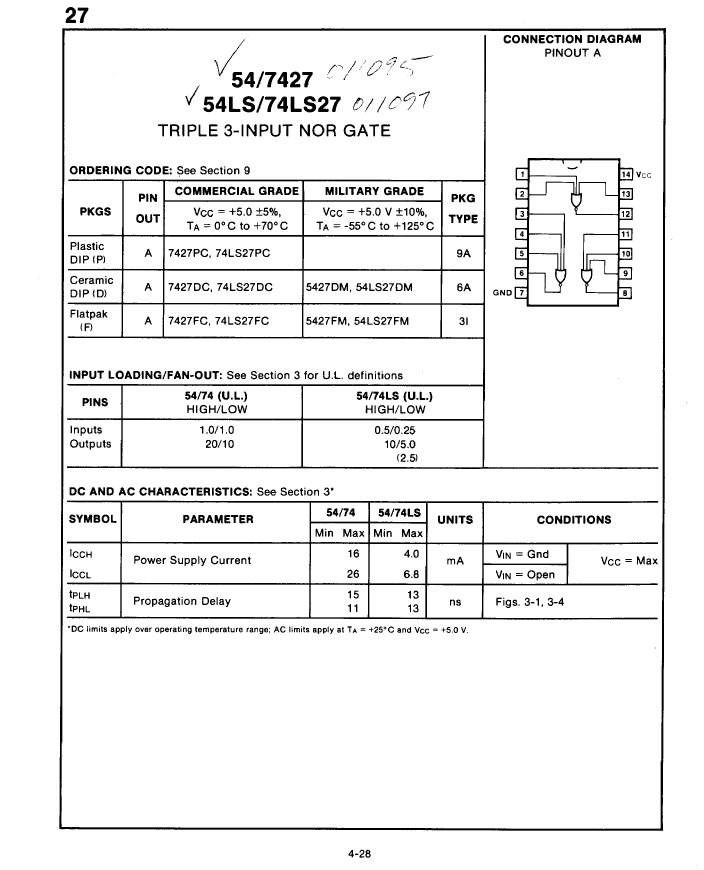

7427PCQM: DescriptionNOR Gate, TTL/H/L Series, 3-Func, 3-Input, TTL, PDIP14, PLASTIC, DIP-14; Categorylogic logic; File Size42KB，1 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

7427PCQM Overview

NOR Gate, TTL/H/L Series, 3-Func, 3-Input, TTL, PDIP14, PLASTIC, DIP-14

7427PCQM Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
package instruction	DIP, FL14,.3
Reach Compliance Code	compliant
series	TTL/H/L
JESD-30 code	R-PDIP-T14
JESD-609 code	e0
Logic integrated circuit type	NOR GATE
MaximumI(ol)	0.016 A
Humidity sensitivity level	2A
Number of functions	3
Number of entries	3
Number of terminals	14
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	FL14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	250
power supply	5 V
Maximum supply current (ICC)	26 mA
Prop。Delay @ Nom-Sup	15 ns
propagation delay (tpd)	15 ns
Certification status	Not Qualified
Schmitt trigger	NO
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	30
Base Number Matches	1

Preview

Download Datasheet

View All

7427PCQM Related Products

	7427PCQM	7427PCQR	7427FCQR	7427FCQM	7427DCQR	7427DCQM
Description	NOR Gate, TTL/H/L Series, 3-Func, 3-Input, TTL, PDIP14, PLASTIC, DIP-14	NOR Gate, TTL/H/L Series, 3-Func, 3-Input, TTL, PDIP14, PLASTIC, DIP-14	NOR Gate, TTL/H/L Series, 3-Func, 3-Input, TTL, PDFP14, DFP-14	NOR Gate, TTL/H/L Series, 3-Func, 3-Input, TTL, PDFP14, DFP-14	NOR Gate, TTL/H/L Series, 3-Func, 3-Input, TTL, CDIP14, CERAMIC, DIP-14	NOR Gate, TTL/H/L Series, 3-Func, 3-Input, TTL, CDIP14, CERAMIC, DIP-14
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	DIP, FL14,.3	DIP, FL14,.3	DFP, FL14,.3	DFP, FL14,.3	DIP, DIP14,.3	DIP, FL14,.3
Reach Compliance Code	compliant	unknown	compliant	compliant	compliant	compliant
series	TTL/H/L	TTL/H/L	TTL/H/L	TTL/H/L	TTL/H/L	TTL/H/L
JESD-30 code	R-PDIP-T14	R-PDIP-T14	R-PDFP-F14	R-PDFP-F14	R-CDIP-T14	R-CDIP-T14
JESD-609 code	e0	e0	e0	e0	e0	e0
Logic integrated circuit type	NOR GATE	NOR GATE	NOR GATE	NOR GATE	NOR GATE	NOR GATE
MaximumI(ol)	0.016 A	0.016 A	0.016 A	0.016 A	0.016 A	0.016 A
Humidity sensitivity level	2A	2A	2A	2A	2A	2A
Number of functions	3	3	3	3	3	3
Number of entries	3	3	3	3	3	3
Number of terminals	14	14	14	14	14	14
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	DIP	DFP	DFP	DIP	DIP
Encapsulate equivalent code	FL14,.3	FL14,.3	FL14,.3	FL14,.3	DIP14,.3	FL14,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	FLATPACK	FLATPACK	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	250	250	250	250	250	250
power supply	5 V	5 V	5 V	5 V	5 V	5 V
Maximum supply current (ICC)	26 mA	26 mA	26 mA	26 mA	26 mA	26 mA
Prop。Delay @ Nom-Sup	15 ns	15 ns	15 ns	15 ns	15 ns	15 ns
propagation delay (tpd)	15 ns	15 ns	15 ns	15 ns	15 ns	15 ns
Schmitt trigger	NO	NO	NO	NO	NO	NO
Maximum supply voltage (Vsup)	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V
Minimum supply voltage (Vsup)	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	YES	YES	NO	NO
technology	TTL	TTL	TTL	TTL	TTL	TTL
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	FLAT	FLAT	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	30	30	30	30	30	30
Base Number Matches	1	1	1	1	1	1
