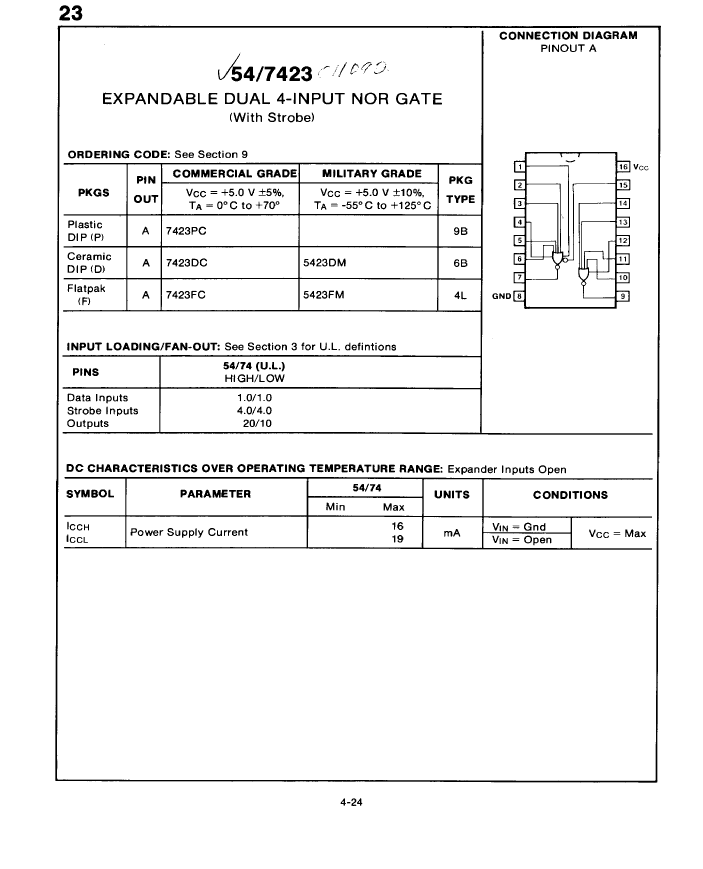

NOR Gate, TTL/H/L Series, 2-Func, 4-Input, TTL, PDIP14, PLASTIC, DIP-14

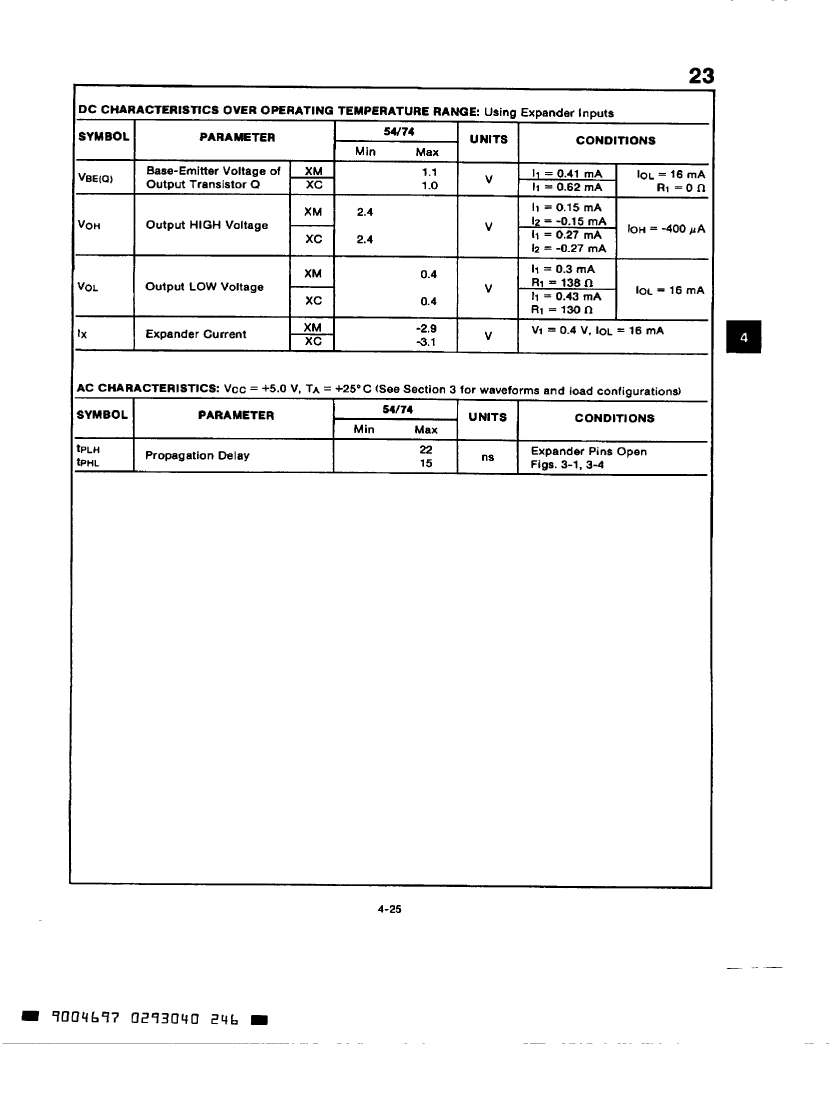

| Parameter Name | Attribute value |
| Is it lead-free? | Contains lead |
| Is it Rohs certified? | incompatible |
| package instruction | DIP, DIP16,.3 |
| Reach Compliance Code | compliant |
| series | TTL/H/L |
| JESD-30 code | R-PDIP-T14 |
| JESD-609 code | e0 |
| Logic integrated circuit type | NOR GATE |
| MaximumI(ol) | 0.016 A |
| Humidity sensitivity level | 2A |
| Number of functions | 2 |
| Number of entries | 4 |
| Number of terminals | 14 |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | DIP |
| Encapsulate equivalent code | DIP16,.3 |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| Peak Reflow Temperature (Celsius) | 250 |
| Prop。Delay @ Nom-Sup | 22 ns |
| propagation delay (tpd) | 22 ns |
| Certification status | Not Qualified |
| Schmitt trigger | NO |
| Maximum supply voltage (Vsup) | 5.25 V |
| Minimum supply voltage (Vsup) | 4.75 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | NO |
| technology | TTL |
| Temperature level | COMMERCIAL |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | 30 |
| Base Number Matches | 1 |
| 7423PC | 7423FC | 7423DC | |
|---|---|---|---|
| Description | NOR Gate, TTL/H/L Series, 2-Func, 4-Input, TTL, PDIP14, PLASTIC, DIP-14 | NOR Gate, TTL/H/L Series, 2-Func, 4-Input, TTL, PDFP14, DFP-14 | NOR Gate, TTL/H/L Series, 2-Func, 4-Input, TTL, CDIP14, CERAMIC, DIP-14 |
| Is it lead-free? | Contains lead | Contains lead | Contains lead |
| Is it Rohs certified? | incompatible | incompatible | incompatible |
| package instruction | DIP, DIP16,.3 | DFP, FL16,.3 | DIP, DIP16,.3 |
| Reach Compliance Code | compliant | compliant | compliant |
| series | TTL/H/L | TTL/H/L | TTL/H/L |
| JESD-30 code | R-PDIP-T14 | R-PDFP-F14 | R-CDIP-T14 |
| JESD-609 code | e0 | e0 | e0 |
| Logic integrated circuit type | NOR GATE | NOR GATE | NOR GATE |
| MaximumI(ol) | 0.016 A | 0.016 A | 0.016 A |
| Humidity sensitivity level | 2A | 2A | 2A |
| Number of functions | 2 | 2 | 2 |
| Number of entries | 4 | 4 | 4 |
| Number of terminals | 14 | 14 | 14 |
| Maximum operating temperature | 70 °C | 70 °C | 70 °C |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | CERAMIC, METAL-SEALED COFIRED |
| encapsulated code | DIP | DFP | DIP |
| Encapsulate equivalent code | DIP16,.3 | FL16,.3 | DIP16,.3 |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | IN-LINE | FLATPACK | IN-LINE |
| Peak Reflow Temperature (Celsius) | 250 | 250 | 250 |
| Prop。Delay @ Nom-Sup | 22 ns | 22 ns | 22 ns |
| propagation delay (tpd) | 22 ns | 22 ns | 22 ns |
| Certification status | Not Qualified | Not Qualified | Not Qualified |
| Schmitt trigger | NO | NO | NO |
| Maximum supply voltage (Vsup) | 5.25 V | 5.25 V | 5.25 V |
| Minimum supply voltage (Vsup) | 4.75 V | 4.75 V | 4.75 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V |
| surface mount | NO | YES | NO |
| technology | TTL | TTL | TTL |
| Temperature level | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE | FLAT | THROUGH-HOLE |
| Terminal pitch | 2.54 mm | 1.27 mm | 2.54 mm |
| Terminal location | DUAL | DUAL | DUAL |
| Maximum time at peak reflow temperature | 30 | 30 | 30 |
| Base Number Matches | 1 | 1 | 1 |
