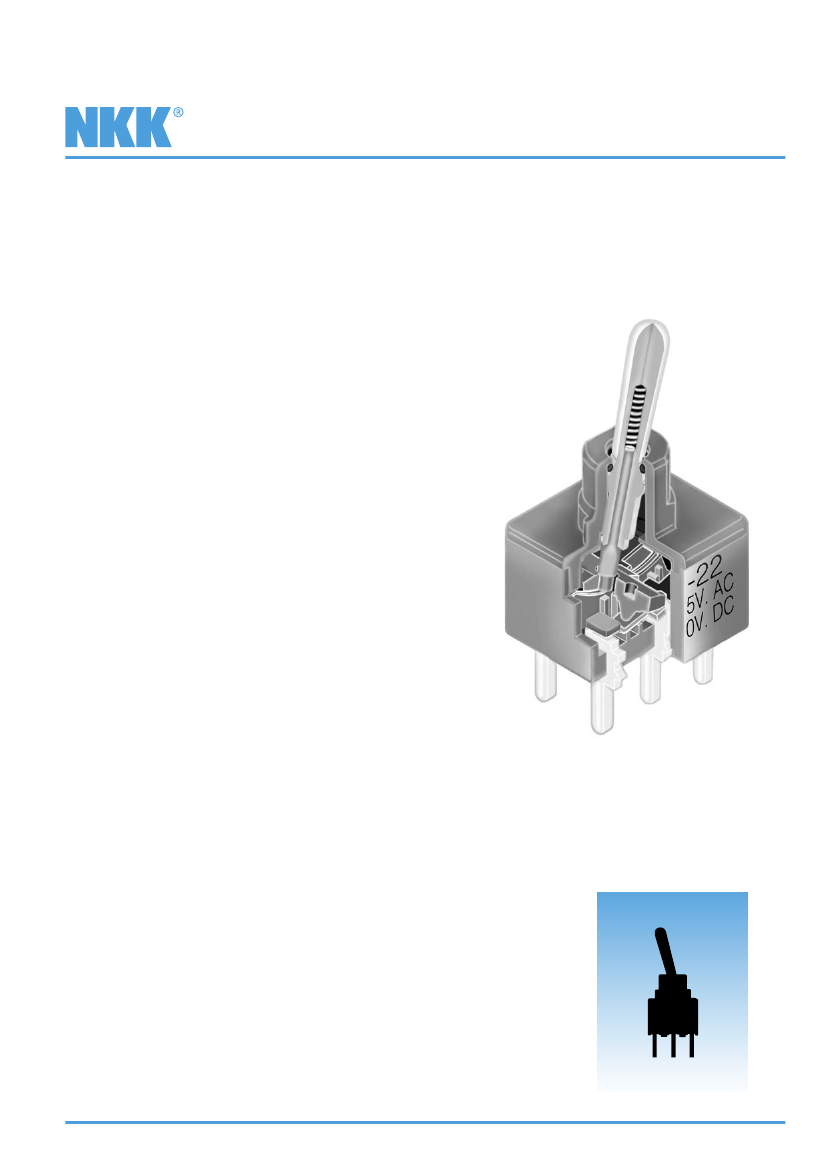

Process Sealed Miniature Toggles
Series M2
Distinctive Characteristics
Antijamming actuator design protects against mechanism damage from
downward force on the toggle.
Single unit construction of the bushing and top of the housing
gives protection from cleaning fluids orother liquids.
O-ring surrounding actuator at top of bushing interior
prevents liquids from reaching switch mechanism.
Ultrasonic welding of upper and lower housing
seals out contaminants and allows automated
soldering and cleaning.
Terminals are epoxy sealed to prevent entry of
flux, solvents, and other contaminants.
Bracketed models have crimped legs to ensure
secure PC mounting and prevent dislodging
during automated soldering.
Logic level and power capabilities are available to suit
varying applications.
Actual Size
NKK Switches • email: sales@nkkswitches.com • Phone (480) 991-0942 • Fax (480) 998-1435 • www.nkkswitches.com
03-07
Process Sealed Miniature Toggles
Series M2
General Specifications
Electrical Capacity (Resistive Load)
Power Level (code W):
Logic Level (code G):
Logic/Power Level (code A):
6A @ 125V AC or 3A @ 250V AC;
4A @ 30V DC (On-On circuit) & 3A @ 30V DC (all other circuits)
0.4VA maximum @ 28V AC/DC maximum
(Applicable Range 0.1mA ~ 0.1A @ 20mV ~ 28V)
Combines W & G ratings
Note: Find additional explanation of dual rating & operating range in Supplement section.
Other Ratings
Contact Resistance:
Insulation Resistance:
Dielectric Strength:
Mechanical Life:
Electrical Life:
Contact Timing:
Angle of Throw:
10 milliohms maximum for silver; 20 milliohms maximum for gold
1,000 megohms minimum @ 500V DC
1,000V AC minimum between contacts for 1 minute minimum;
1,500V AC minimum between contacts & case for 1 minute minimum
100,000 operations minimum
25,000 operations minimum for silver; 50,000 operations minimum for gold
Nonshorting (break-before-make)
26°
Materials & Finishes
Toggle/Lever:
Support Bracket:
Bushing/Housing:
Sealing Ring:
Base:
Movable Contacts:
Stationary Contacts:
Terminals:
Brass with chrome plating
Brass with tin plating
Glass fiber reinforced polyamide (UL94V-0)
Nitrile butadiene rubber
Glass fiber reinforced polyamide (UL94V-0)
Silver alloy with silver plating (code W); copper or phosphor bronze with gold plating (code G);
or silver alloy with gold plating (code A)
Silver alloy with silver plating (code W); copper or brass with gold plating (code G);
or silver alloy with gold plating (code A)
Copper or brass with silver or gold plating
Environmental Data
Operating Temp Range:
Humidity:
Vibration:
Shock:
–30°C through +85°C (–22°F through +185°F)
90 ~ 95% humidity for 96 hours @ 40°C (104°F)
10 ~ 55Hz with peak-to-peak amplitude of 1.5mm traversing the frequency range
& returning in 1 minute; 3 right angled directions for 2 hours
50G (490m/s
2
) acceleration (tested in 6 right angled directions, with 5 shocks in each direction)
PCB Processing
Soldering:
Cleaning:
Wave Soldering Recommended: See Profile B in Supplement section.
Manual Soldering: See Profile B in Supplement section.
Automated cleaning. See Cleaning specifications in Supplement section.
Standards & Certifications
Flammability Standards:
UL Recognized:
C-UL Recognized:
R
CSA Certified:
UL94V-0 rated bushing/housing & base
All models recognized at 6A @ 125V AC, 3A @ 250V AC, & 4A @ 30V DC or 0.4A @ 28V DC;
UL File No. WOYR2.E44145; add “/U” to end of part number to order UL mark on switch.
All models recognized at 6A @ 125V AC, 3A @ 250V AC, & 4A @ 30V DC or 0.4A @ 28V DC;
C-UL File No. WOYR8.E44145; add “/C-UL” to end of part number to order C-UL mark on switch.
All models certified at 6A @ 125V AC, 3A @ 250V AC, & 4A @ 30V DC;
CSA File No. 023535-0-000; add “/C” to end of part number to order CSA mark on switch.
NKK Switches • email: sales@nkkswitches.com • Phone (480) 991-0942 • Fax (480) 998-1435 • www.nkkswitches.com
03-07
Process Sealed Miniature Toggles
TYPICAL SWITCH ORDERING EXAMPLE
Series M2
03
M2T
1
2
S
A5
G
POLES
1
2
SPDT
DPDT
A5
BUSHING
.250” (6.35mm)
Double Flatted
03
13
30
40
05
PC TERMINALS
Straight
Straight with
.460” (11.7mm) Bracket
.150” (3.81mm) Right Angle
.150” (3.81mm) Vertical
.425” (10.8mm) Extended PC
.750” (19.05mm) Extended PC
.964” (24.5mm) Extended PC
CIRCUITS
2
3
5
8
9
ON
ON
ON
(ON)
ON
NONE
OFF
NONE
OFF
OFF
ON
ON
(ON)
(ON)
(ON)
CONTACT MATERIALS & RATINGS
W
G
A
Silver; Rated
6A @ 125V AC & 3A @ 250V AC
Gold; Rated
0.4VA max @ 28V AC/DC max
Gold over Silver; Rated 6A @
125V AC & 0.4VA max @ 28V
AC/DC max
06
07
( ) = Momentary
ACTUATORS
S
S4
.500” (12.7mm)
Bat Lever
.300” (7.62mm)
Bat Lever
IMPORTANT:
Switches are supplied without UL,
C-UL & CSA marking unless speci-
fied. Specific models & ratings noted
on General Specifications page.
DESCRIPTION FOR TYPICAL ORDERING EXAMPLE
M2T12SA5G03
.500” (12.7mm Bat Lever)
.250” (6.35mm) Bushing
with Double Flat
Gold Contacts
with 0.4VA Rating
SPDT
ON-NONE-ON Circuit
Straight PC Terminals
NKK Switches • email: sales@nkkswitches.com • Phone (480) 991-0942 • Fax (480) 998-1435 • www.nkkswitches.com
03-07
Process Sealed Miniature Toggles
POLES & CIRCUITS
Toggle Position
( ) = Momentary
Pole
Model
M2T12
M2T13
M2T15
M2T18
M2T19
M2T22
M2T23
M2T25
M2T28
M2T29
Down
Center
Up
Connected Terminals
Down
Center
Up
Note:
Series M2
Throw & Schematics
Terminal numbers are not
actually on the switch.
SP
ON
ON
ON
(ON)
ON
ON
ON
ON
(ON)
ON
NONE
OFF
NONE
OFF
OFF
NONE
OFF
NONE
OFF
OFF
ON
ON
(ON)
(ON)
(ON)
ON
ON
(ON)
(ON)
(ON)
2 (COM)
2-3
OPEN
2-1
SPDT
3
1
2
(COM)
1
6
5
4
DP
2-3 5-6
OPEN
2-1 5-4
DPDT
3
ACTUATORS
S
.500” (12.7mm)
Bat Lever
(2.8) Dia
.110
(12.7)
.500
26°
S4
.300” (7.62mm)
Bat Lever
(2.7) Dia
.106
(7.62)
.300
26°
Material:
Chrome over brass
Material:
Chrome over brass
Standard Combinations:
S Bat Lever with straight terminals
(code 03) with silver or gold contacts.
Standard Combinations:
S4 Bat Lever with bracketed terminals
(codes 13, 30, 40) with silver or gold contacts.
BUSHING
A5
.250” (6.35mm) Double Flatted
(6.8)
.268
(6.2)
.244
(5.2)
.205
(6.35)
.250
CONTACT MATERIALS & RATINGS
W
G
Silver over Silver
Power Level
6A @ 125V AC & 3A @ 250V AC
Gold over Brass or Copper
Logic Level
0.4VA maximum @ 28V AC/DC maximum
Complete explanation of operating range in Supplement section.
A
Gold over Silver
Power Level
or Logic Level
6A @ 125V AC
or 0.4VA maximum @ 28V AC/DC maximum
Note: This dual rated option is suitable when two or more identical switches are used in logic and in power circuits
within the same application. See Supplement section for complete explanation of dual rating and operating range.
NKK Switches • email: sales@nkkswitches.com • Phone (480) 991-0942 • Fax (480) 998-1435 • www.nkkswitches.com
03-07
Process Sealed Miniature Toggles

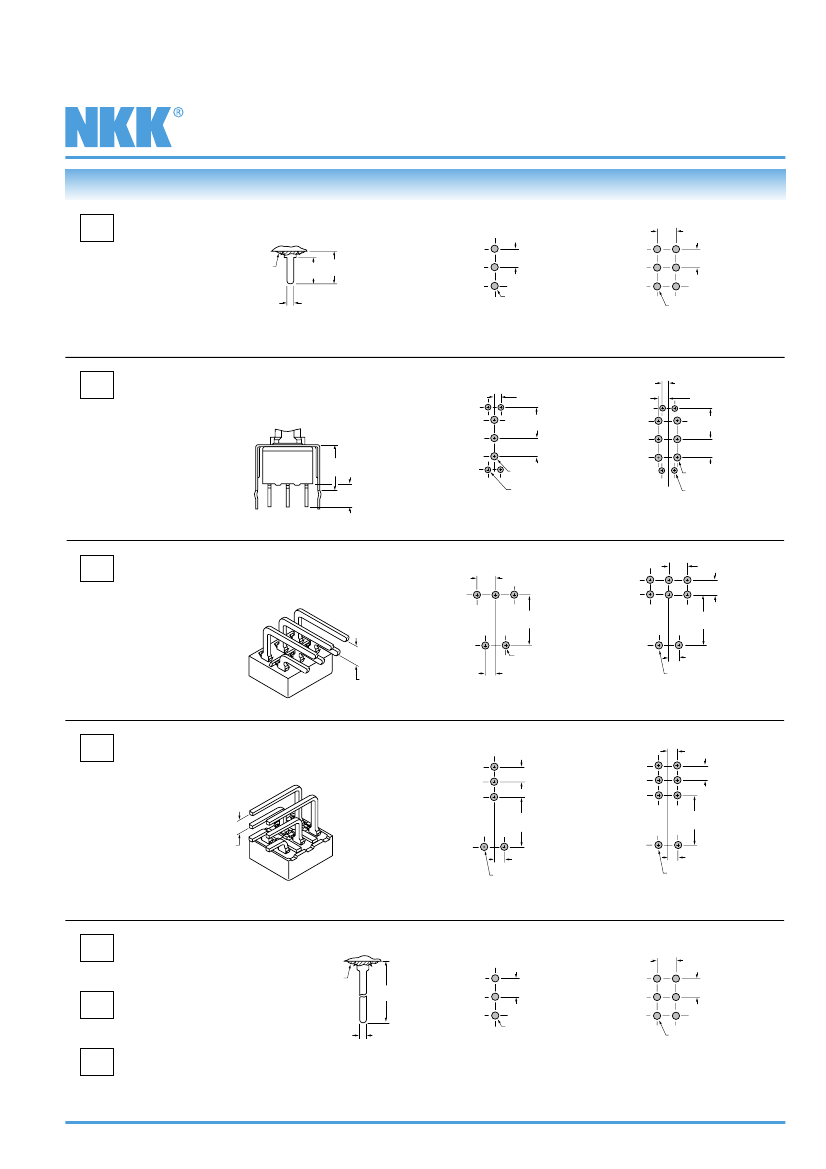

PC TERMINALS
03
Straight
Epoxy Seal
(4.8) (5.9)
.189 .232
(1.17)
.046
Thk = (0.8)
.031
Series M2
3
(4.8)
.189
3
2
1
6
5
4
(4.7) Typ
.185
(1.8) Dia Typ
.073
2
1
(4.7) Typ
.185
(1.8) Dia Typ
.073
Single Pole
Double Pole
(1.6) Typ
.063
(2.4) Typ
.095
3
2
1
6
5
4
13
Straight with
.460” (11.7mm) Bracket
3
2
1
(1.6) Typ
.063
(7.9) Typ
.311
(4.7) Typ
.185
(1.8) Dia Typ
.073
(1.5) Dia Typ
.059
(7.9) Typ
.311
(4.7) Typ
.185
(1.8) Dia Typ
.073
(1.5) Dia Typ
.059
(11.7)
.460
(5.9)
.232
C
L
Single Pole
Double Pole
(4.7) Typ
.185
(3.81)
.150
(12.7)
.500
(2.54) Typ
.100
(1.8) Dia Typ
.073
30
.150” (3.81mm) Right Angle
3
2
(4.7) Typ
.185
1
6
3
5
2
4
1
(12.7)
.500
(1.8) Dia Typ
.073
(2.54) Typ
.100
(3.81)
.150
Single Pole
Double Pole
40
.150” (3.81mm) Vertical
3
2
1
3
6
5
4
(2.4) Typ
.094
(3.81) Typ
.150
(3.81) Typ
.150
2
1
(12.7)
.500
(3.81)
.150
(2.54) Typ
.100
(1.8) Dia Typ
.073
(12.7)
.500
(2.54) Typ
.100
(1.8) Dia Typ
.073
Single Pole
Double Pole
05
06
07
.425” (10.8mm)
Extended PC
Epoxy Seal
3
3
(4.8)
.189
6
5
4
.750” (19.05mm)
Extended PC
.964” (24.5mm)
Extended PC
Thk = (0.8)
.031
A
(1.27)
.050
2
1
(4.7) Typ
.185
(1.8) Dia Typ
.073
2
1
(4.7) Typ
.185
(1.8) Dia Typ
.073
Single Pole
Double Pole
Dimension A = terminal lengths as shown beside the terminal codes at the left.
NKK Switches • email: sales@nkkswitches.com • Phone (480) 991-0942 • Fax (480) 998-1435 • www.nkkswitches.com
03-07
