HMCAD1101 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> converter> HMCAD1101

HMCAD1101: Description8-CH 14-BIT PROPRIETARY METHOD ADC, SERIAL ACCESS, PQCC64; CategoryAnalog mixed-signal IC converter; File Size1MB，24 Pages; ManufacturerADI; Websitehttps://www.analog.com; Environmental Compliance

Download Datasheet Parametric View All

HMCAD1101 Overview

8-CH 14-BIT PROPRIETARY METHOD ADC, SERIAL ACCESS, PQCC64

HMCAD1101 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	HQCCN,
Reach Compliance Code	unknown
ECCN code	3A991.C.3
Maximum analog input voltage	2 V
Minimum analog input voltage	-2 V
Maximum conversion time	0.015 µs
Converter type	ADC, PROPRIETARY METHOD
JESD-30 code	S-PQCC-N64
JESD-609 code	e3
length	9 mm
Humidity sensitivity level	2A
Number of analog input channels	8
Number of digits	14
Number of functions	1
Number of terminals	64
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output bit code	OFFSET BINARY, 2'S COMPLEMENT BINARY
Output format	SERIAL
Package body material	PLASTIC/EPOXY
encapsulated code	HQCCN
Package shape	SQUARE
Package form	CHIP CARRIER, HEAT SINK/SLUG
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Sampling rate	65 MHz
Sample and hold/Track and hold	TRACK
Maximum seat height	0.95 mm
Nominal supply voltage	1.8 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Matte Tin (Sn)
Terminal form	NO LEAD
Terminal pitch	0.5 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	40
width	9 mm
Base Number Matches	1

Preview

Download Datasheet

View All

HMCAD1101

v04.0114

Octal 13/12-Bit 65 MSPS

a/D cOnverter

Features

• 65 MSPS Maximum Sampling Rate

• Ultra Low Power Dissipation

51 mW/Channel at 65MSPS

• 72.2 dB SNR at 8 MHz FIN

• 0.5 µs Startup from Sleep

15 µs from Power Down

• Reduced Power Dissipation Modes Available

• Internal Reference Circuitry

with No External Components Required

typical applications

• Medical Imaging

• Wireless Infrastructure

• Test and Measurement

• Instrumentation

Pin compatible Parts

• HMCAD1102

• HMCAD1100 - AC specifications are also

valid for HMCAD1101

A / D Converters - sMt

• Coarse and Fine Gain Control

• Internal Offset Correction

• 1.8V Supply Voltage

• Serial LVDS Output

• 12 and 14-bit Output Available

• 64 Lead 9 x 9 mm SMT Package

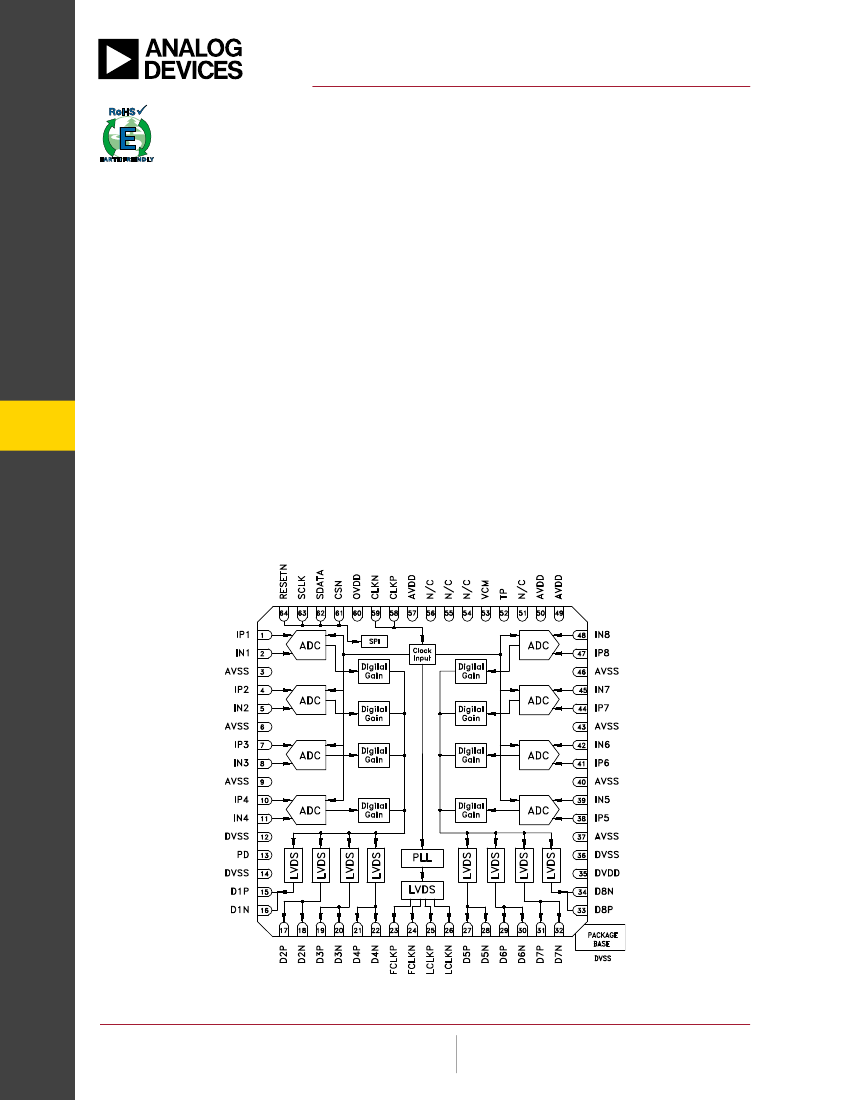

Functional Diagram

Figure 1.

Functional Block Diagram

Information furnished by Analog Devices is believed to be accurate and reliable. However, no

For price, delivery, and

Drive,

orders: Analog Devices, Inc.,

For price, delivery and to place orders:

infringements of patents or

Corporation, 2 Elizabeth

to place

Chelmsford, MA 01824

responsibility is assumed by Analog Devices for its use, nor for any

Hittite Microwave

other

One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106

rights of third parties that may result from its use. Specifications subject to change without notice. No

+1 978-250-3343 tel • +1 978-250-3373 fax •

Phone: 781-329-4700 • Order online at www.analog.com

Order On-line at www.hittite.com

license is granted by implication or otherwise under any patent or patent rights of Analog Devices.

Application Support:

Trademarks and registered trademarks are the property of

Application Support: adcsupport@hittite.com

Phone: 1-800-ANALOG-D

their respective owners.

0-1
