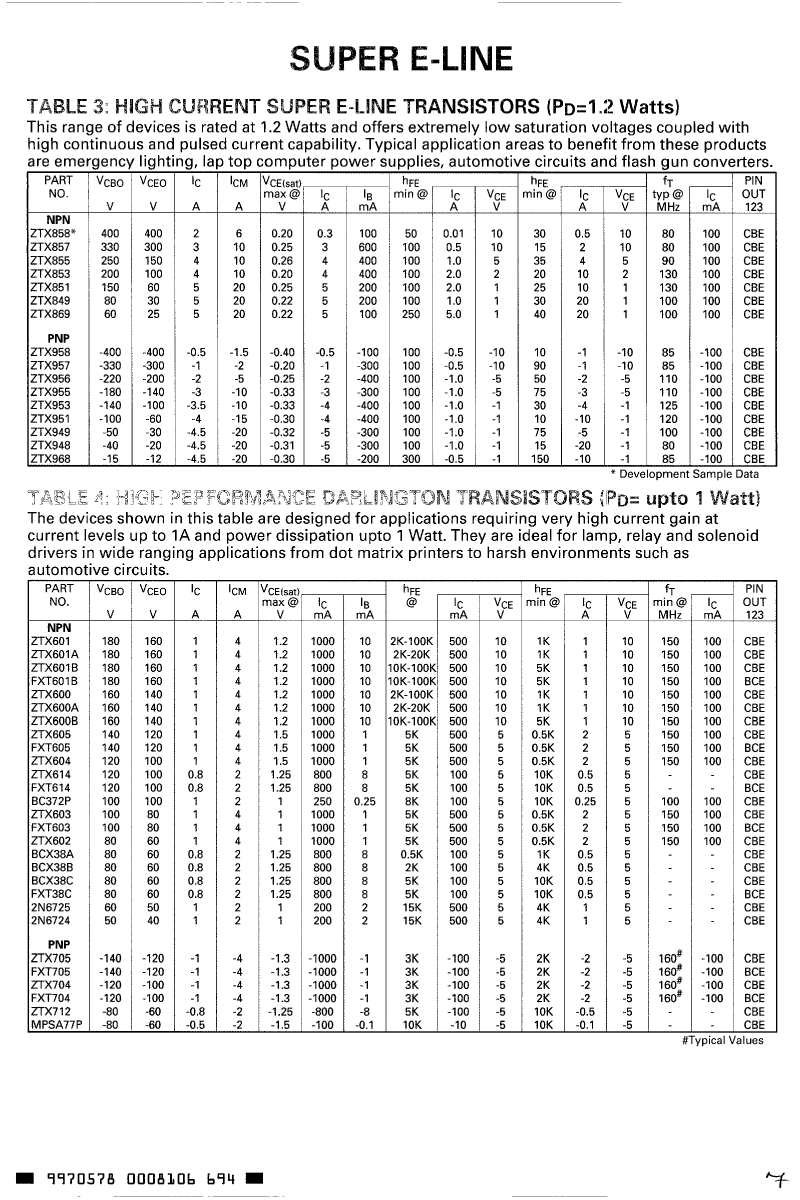

Small Signal Bipolar Transistor, 1A I(C), 140V V(BR)CEO, 1-Element, NPN, Silicon, TO-92, TO-92 COMPATIBLE, E-LINE PACKAGE-3
| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| package instruction | TO-92 COMPATIBLE, E-LINE PACKAGE-3 |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Maximum collector current (IC) | 1 A |
| Collector-based maximum capacity | 15 pF |
| Collector-emitter maximum voltage | 140 V |
| Configuration | DARLINGTON |
| Minimum DC current gain (hFE) | 1000 |
| JEDEC-95 code | TO-92 |
| JESD-30 code | O-PBCY-W3 |
| JESD-609 code | e0 |
| Number of components | 1 |
| Number of terminals | 3 |
| Maximum operating temperature | 200 °C |
| Package body material | PLASTIC/EPOXY |
| Package shape | ROUND |
| Package form | CYLINDRICAL |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| Polarity/channel type | NPN |
| Maximum power consumption environment | 2.5 W |
| Maximum power dissipation(Abs) | 1 W |
| Certification status | Not Qualified |
| Guideline | CECC |
| surface mount | NO |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | WIRE |
| Terminal location | BOTTOM |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| transistor applications | SWITCHING |
| Transistor component materials | SILICON |
| Nominal transition frequency (fT) | 250 MHz |
| VCEsat-Max | 1.2 V |
| Base Number Matches | 1 |
| ZTX600 | BCX38B | FXT603 | MPSA77P | ZTX600A | ZTX614 | FXT704 | ZTX601A | ZTX600B | ZTX858 | |
|---|---|---|---|---|---|---|---|---|---|---|
| Description | Small Signal Bipolar Transistor, 1A I(C), 140V V(BR)CEO, 1-Element, NPN, Silicon, TO-92, TO-92 COMPATIBLE, E-LINE PACKAGE-3 | Small Signal Bipolar Transistor, 0.8A I(C), 60V V(BR)CEO, 1-Element, NPN, Silicon, TO-92 COMPATIBLE, E-LINE PACKAGE-3 | Small Signal Bipolar Transistor, 1A I(C), 80V V(BR)CEO, 1-Element, NPN, Silicon, TO-92 COMPATIBLE, E-LINE PACKAGE-3 | Small Signal Bipolar Transistor, 0.5A I(C), 60V V(BR)CEO, 1-Element, PNP, Silicon, TO-92 COMPATIBLE, 3 PIN | Small Signal Bipolar Transistor, 1A I(C), 140V V(BR)CEO, 1-Element, NPN, Silicon, TO-92, TO-92 COMPATIBLE, E-LINE PACKAGE-3 | Small Signal Bipolar Transistor, 0.8A I(C), 100V V(BR)CEO, 1-Element, NPN, Silicon, TO-92 COMPATIBLE, 3 PIN | Small Signal Bipolar Transistor, 1A I(C), 100V V(BR)CEO, 1-Element, PNP, Silicon, TO-92 COMPATIBLE, 3 PIN | Small Signal Bipolar Transistor, 1A I(C), 160V V(BR)CEO, 1-Element, NPN, Silicon, TO-92, TO-92 COMPATIBLE, E-LINE PACKAGE-3 | Small Signal Bipolar Transistor, 1A I(C), 140V V(BR)CEO, 1-Element, NPN, Silicon, TO-92, TO-92 COMPATIBLE, E-LINE PACKAGE-3 | Power Bipolar Transistor, 2A I(C), 400V V(BR)CEO, 1-Element, NPN, Silicon, Plastic/Epoxy, 3 Pin, TO-92 COMPATIBLE, E-LINE PACKAGE-3 |
| Is it Rohs certified? | incompatible | conform to | incompatible | incompatible | incompatible | conform to | incompatible | incompatible | incompatible | incompatible |
| package instruction | TO-92 COMPATIBLE, E-LINE PACKAGE-3 | TO-92 COMPATIBLE, E-LINE PACKAGE-3 | TO-92 COMPATIBLE, E-LINE PACKAGE-3 | CYLINDRICAL, O-PBCY-W3 | TO-92 COMPATIBLE, E-LINE PACKAGE-3 | TO-92 COMPATIBLE, 3 PIN | CYLINDRICAL, O-PBCY-W3 | TO-92 COMPATIBLE, E-LINE PACKAGE-3 | TO-92 COMPATIBLE, E-LINE PACKAGE-3 | IN-LINE, R-PSIP-W3 |
| Reach Compliance Code | unknown | not_compliant | unknown | unknown | unknown | not_compliant | unknown | unknown | unknown | unknown |
| Maximum collector current (IC) | 1 A | 0.8 A | 1 A | 0.5 A | 1 A | 0.8 A | 1 A | 1 A | 1 A | 2 A |
| Collector-emitter maximum voltage | 140 V | 60 V | 80 V | 60 V | 140 V | 100 V | 100 V | 160 V | 140 V | 400 V |
| Configuration | DARLINGTON | DARLINGTON | DARLINGTON | DARLINGTON | DARLINGTON | DARLINGTON | DARLINGTON | DARLINGTON | DARLINGTON | SINGLE |
| Minimum DC current gain (hFE) | 1000 | 4000 | 500 | 10000 | 1000 | 10000 | 2000 | 1000 | 5000 | 30 |
| JESD-30 code | O-PBCY-W3 | O-PBCY-T3 | O-PBCY-T3 | O-PBCY-W3 | O-PBCY-W3 | O-PBCY-W3 | O-PBCY-W3 | O-PBCY-W3 | O-PBCY-W3 | R-PSIP-W3 |
| JESD-609 code | e0 | e3 | e0 | e0 | e0 | e3 | e0 | e0 | e0 | e0 |
| Number of components | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Maximum operating temperature | 200 °C | 200 °C | 200 °C | 200 °C | 200 °C | 200 °C | 200 °C | 200 °C | 200 °C | 200 °C |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| Package shape | ROUND | ROUND | ROUND | ROUND | ROUND | ROUND | ROUND | ROUND | ROUND | RECTANGULAR |
| Package form | CYLINDRICAL | CYLINDRICAL | CYLINDRICAL | CYLINDRICAL | CYLINDRICAL | CYLINDRICAL | CYLINDRICAL | CYLINDRICAL | CYLINDRICAL | IN-LINE |
| Polarity/channel type | NPN | NPN | NPN | PNP | NPN | NPN | PNP | NPN | NPN | NPN |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| surface mount | NO | NO | NO | NO | NO | NO | NO | NO | NO | NO |
| Terminal surface | Tin/Lead (Sn/Pb) | Matte Tin (Sn) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Matte Tin (Sn) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | WIRE | THROUGH-HOLE | THROUGH-HOLE | WIRE | WIRE | WIRE | WIRE | WIRE | WIRE | WIRE |
| Terminal location | BOTTOM | BOTTOM | BOTTOM | BOTTOM | BOTTOM | BOTTOM | BOTTOM | BOTTOM | BOTTOM | SINGLE |
| transistor applications | SWITCHING | SWITCHING | AMPLIFIER | SWITCHING | SWITCHING | SWITCHING | SWITCHING | SWITCHING | SWITCHING | SWITCHING |
| Transistor component materials | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON |
| VCEsat-Max | 1.2 V | 1.25 V | 1 V | 1.5 V | 1.2 V | 1.25 V | 1.3 V | 1.2 V | 1.2 V | 0.2 V |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | - |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | NOT SPECIFIED | - | NOT SPECIFIED | NOT SPECIFIED | 260 | - | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | - | NOT SPECIFIED | NOT SPECIFIED | 40 | - | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Nominal transition frequency (fT) | 250 MHz | - | 150 MHz | - | 250 MHz | - | 160 MHz | 250 MHz | 250 MHz | 80 MHz |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 | 1 | - | - | - | - |
