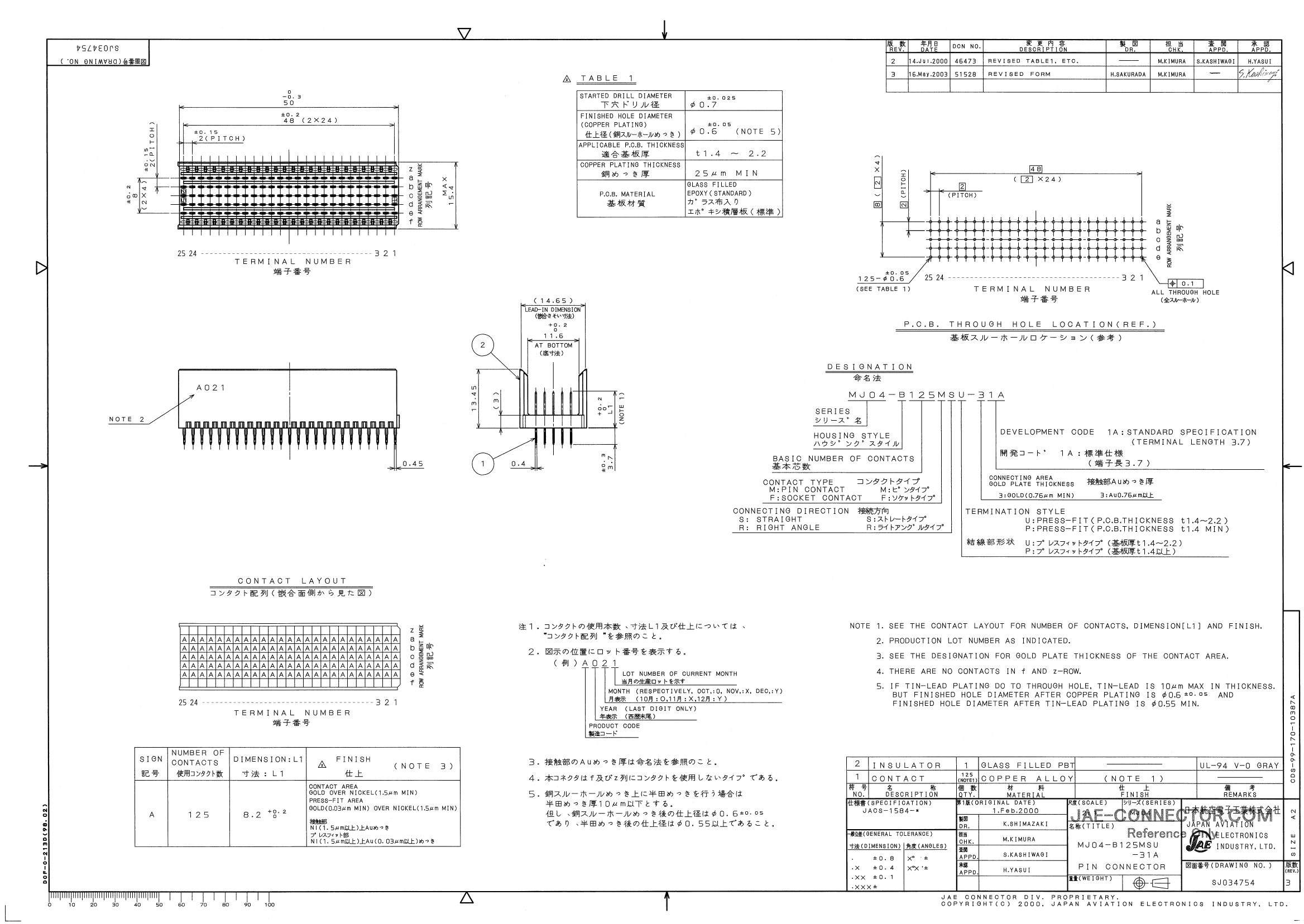

Board Connector, 125 Contact(s), 5 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Gray Insulator, Receptacle
| Parameter Name | Attribute value |
| Is it Rohs certified? | conform to |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Other features | CONFORMED TO IEC61076-4-101 |
| body width | 0.606 inch |
| subject depth | 0.53 inch |
| body length | 1.969 inch |
| Body/casing type | RECEPTACLE |
| Connector type | BOARD CONNECTOR |
| Contact to complete cooperation | NOT SPECIFIED |
| Contact point gender | MALE |
| Contact material | NOT SPECIFIED |
| contact mode | RECTANGULAR |
| Contact resistance | 20 mΩ |
| Contact style | SQ PIN-SKT |
| DIN compliance | NO |
| Dielectric withstand voltage | 750VAC V |
| Durability | 250 Cycles |
| Filter function | NO |
| IEC compliance | NO |
| maximum insertion force | .7228 N |
| Insulation resistance | 10000000000 Ω |
| Insulator color | GRAY |
| insulator material | GLASS FILLED POLYBUTYLENE TEREPHTHALATE |
| MIL compliance | NO |
| Plug contact pitch | 0.079 inch |
| Match contact row spacing | 0.079 inch |
| Plug information | MULTIPLE MATING PARTS AVAILABLE |
| Mixed contacts | NO |
| Installation method | STRAIGHT |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 5 |
| Number of rows loaded | 5 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Options | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR |
| PCB contact row spacing | 2.0066 mm |
| Plating thickness | 30u inch |
| Rated current (signal) | 1 A |
| Guideline | UL |
| reliability | COMMERCIAL |
| Terminal length | 0.146 inch |
| Terminal pitch | 2 mm |
| Termination type | PRESS FIT |
| Total number of contacts | 125 |
| UL Flammability Code | 94V-0 |
| Evacuation force-minimum value | .1946 N |
| Base Number Matches | 1 |
| MJ04-B125MSU-31A | MJ04-B125FSU-31A | MJ04-B125MRP-31A | MJ04-B125FSP-31A | MJ04-B125FRU-31A | MJ04-B125MRU-31A | |
|---|---|---|---|---|---|---|
| Description | Board Connector, 125 Contact(s), 5 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Gray Insulator, Receptacle | Board Connector, 125 Contact(s), 5 Row(s), Female, Straight, Press Fit Terminal, | Board Connector, 125 Contact(s), 5 Row(s), Male, Right Angle, Press Fit Terminal, | Board Connector, 125 Contact(s), 5 Row(s), Female, Straight, Press Fit Terminal, | Board Connector, 125 Contact(s), 5 Row(s), Female, Right Angle, Press Fit Terminal, | Board Connector, 125 Contact(s), 5 Row(s), Male, Right Angle, Press Fit Terminal, |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| Connector type | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR |
| Contact to complete cooperation | NOT SPECIFIED | GOLD (30) OVER NICKEL | GOLD (30) OVER NICKEL | GOLD (30) OVER NICKEL | GOLD (30) OVER NICKEL | GOLD (30) OVER NICKEL |
| Contact point gender | MALE | FEMALE | MALE | FEMALE | FEMALE | MALE |
| DIN compliance | NO | NO | NO | NO | NO | NO |
| Filter function | NO | NO | NO | NO | NO | NO |
| IEC compliance | NO | NO | NO | NO | NO | NO |
| MIL compliance | NO | NO | NO | NO | NO | NO |
| Plug information | MULTIPLE MATING PARTS AVAILABLE | MULTIPLE MATING PARTS AVAILABLE | MULTIPLE MATING PARTS AVAILABLE | MULTIPLE MATING PARTS AVAILABLE | MULTIPLE MATING PARTS AVAILABLE | MULTIPLE MATING PARTS AVAILABLE |
| Mixed contacts | NO | NO | NO | NO | NO | NO |
| Installation method | STRAIGHT | STRAIGHT | RIGHT ANGLE | STRAIGHT | RIGHT ANGLE | RIGHT ANGLE |
| Installation type | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD |
| Number of rows loaded | 5 | 5 | 5 | 5 | 5 | 5 |
| Options | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE |
| Terminal pitch | 2 mm | 2 mm | 2 mm | 2 mm | 2 mm | 2 mm |
| Termination type | PRESS FIT | PRESS FIT | PRESS FIT | PRESS FIT | PRESS FIT | PRESS FIT |
| Total number of contacts | 125 | 125 | 125 | 125 | 125 | 125 |
| UL Flammability Code | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 |
| Base Number Matches | 1 | 1 | 1 | 1 | - | - |
| Contact completed and terminated | - | GOLD (1) OVER NICKEL | GOLD (1) OVER NICKEL | GOLD (1) OVER NICKEL | GOLD (1) OVER NICKEL | GOLD (1) OVER NICKEL |
| JESD-609 code | - | e4 | e4 | e4 | e4 | e4 |
| Manufacturer's serial number | - | MJ04 | MJ04 | MJ04 | MJ04 | MJ04 |
