XZMD64W-9 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> XZMD64W-9

XZMD64W-9: DescriptionSingle Color LED, Red, Water Clear, T-3/4, 1.78mm, ROHS COMPLIANT, SMT, 2 PIN; CategoryLED optoelectronic/LED photoelectric; File Size212KB，4 Pages; ManufacturerSUNLED; Websitehttp://www.sunled.com/; Environmental Compliance

Download Datasheet Parametric View All

XZMD64W-9 Overview

Single Color LED, Red, Water Clear, T-3/4, 1.78mm, ROHS COMPLIANT, SMT, 2 PIN

XZMD64W-9 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT, SMT, 2 PIN
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	HIGH RELIABILITY
color	RED
Configuration	SINGLE
Maximum forward current	0.03 A
Lens type	WATER CLEAR
Nominal luminous intensity	995.0 mcd
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	2.92 mm
method of packing	TAPE AND REEL
peak wavelength	640 nm
shape	ROUND
size	1.78 mm
surface mount	YES
T code	T-3/4
Terminal pitch	5.05 mm
perspective	20 deg
Base Number Matches	1

Preview

Download Datasheet

View All

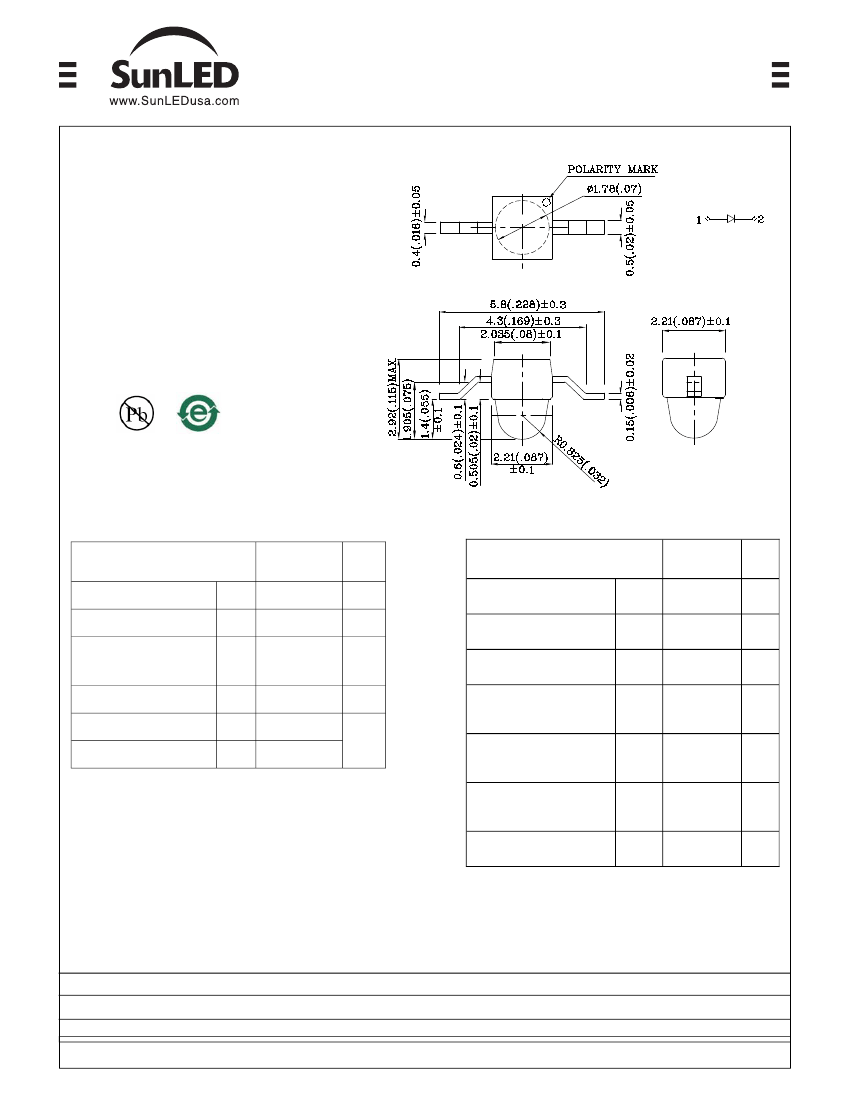

Part Number:

XZMD64W-9

SUBMINIATURE SOLID STATE LAMP

PRELIMINARY SPEC

Features

●SUBMINIATURE

PACKAGE.

●WIDE

VIEWING ANGLE.

Z-BEND LEAD.

●LONG

LIFE-SOLID STATE RELIABILITY.

●LOW

PACKAGE PROFILE.

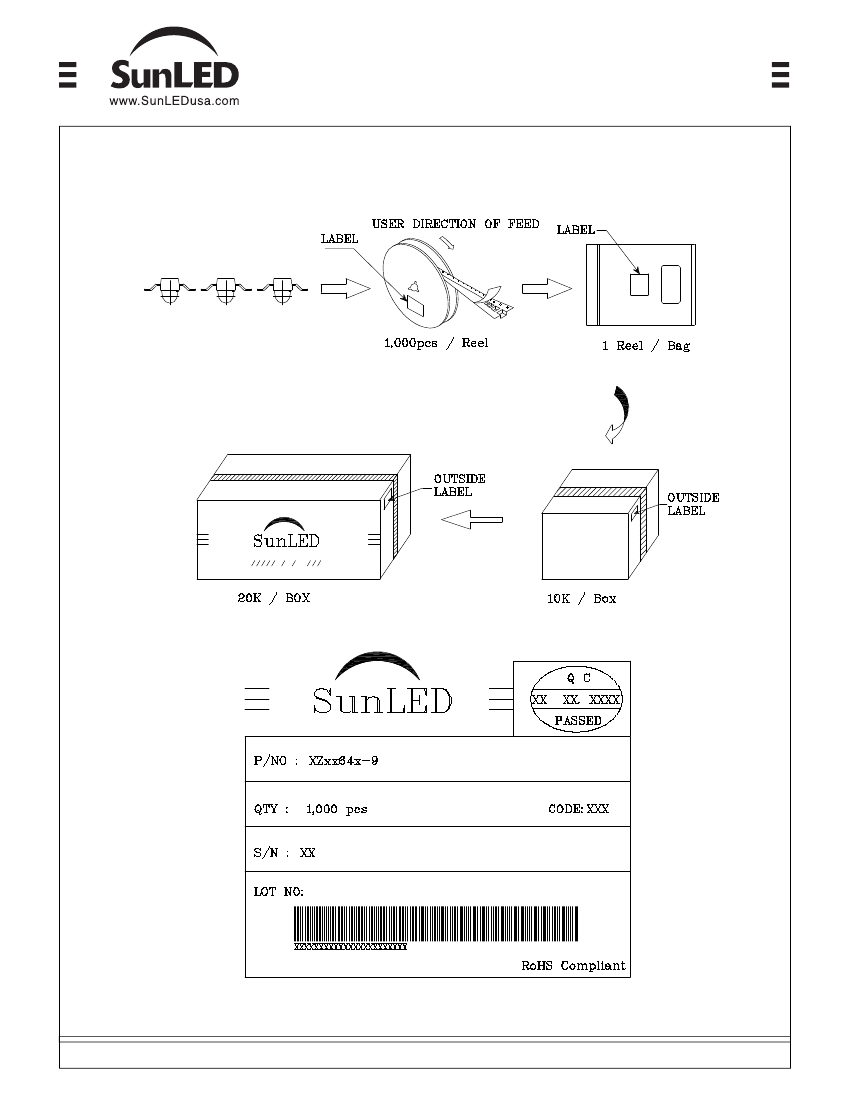

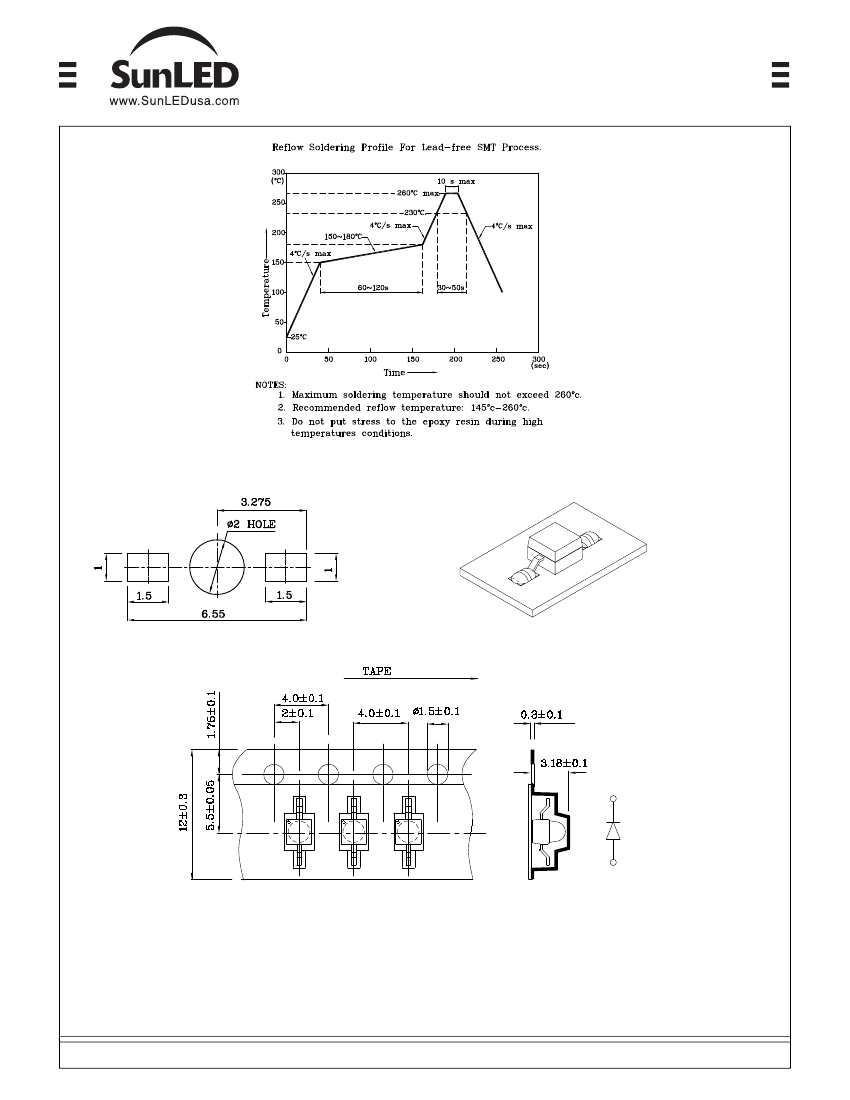

●PACKAGE

: 1000PCS / REEL.

●MOISTURE

SENSITIVITY LEVEL : LEVEL 3.

●RoHS

COMPLIANT.

Notes:

1. All dimensions are in millimeters (inches).

2. Tolerance is ± 0.25(0.01") unless otherwise noted.

3.Specifications are subject to change without notice.

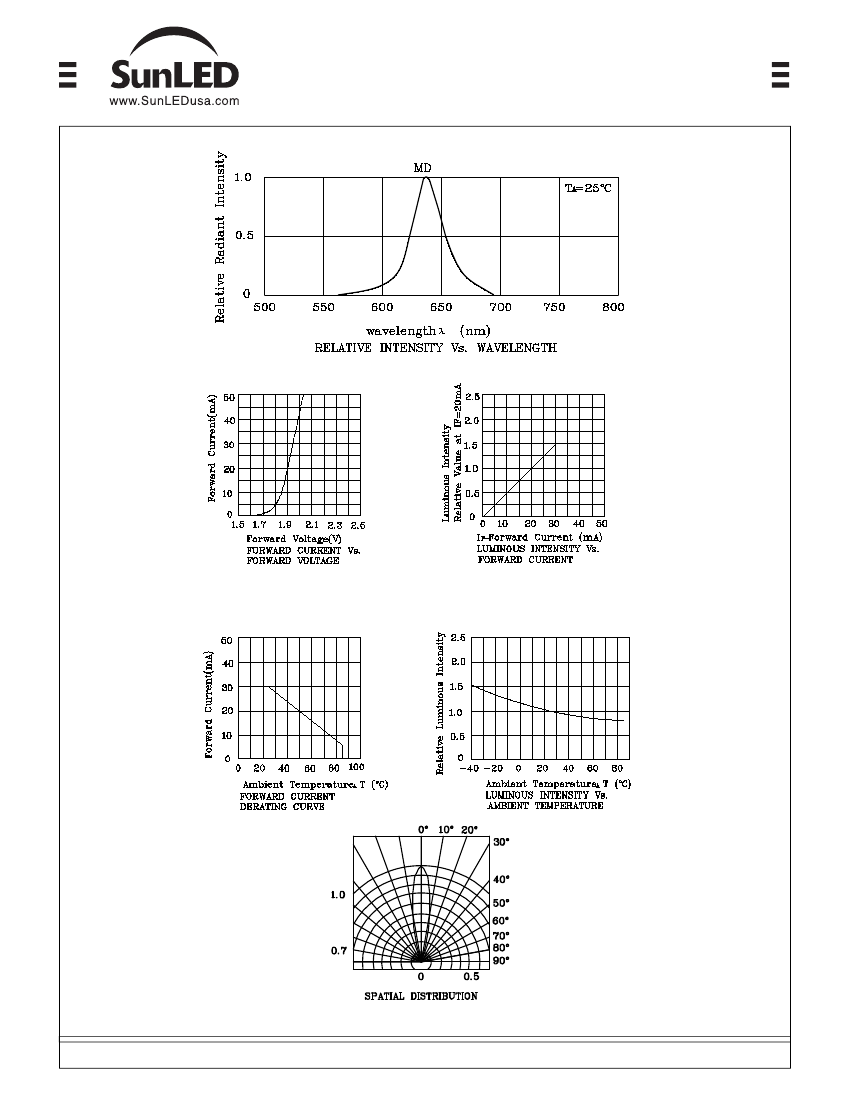

Operating Characteristics

=25°C)

Forward Voltage (Typ.)

=20mA)

Forward Voltage (Max.)

=20mA)

Reverse Current (Max.)

=5V)

Wavelength of Peak

Emission (Typ.)

=20mA)

Wavelength of Dominant

Emission (Typ.)

=20mA)

Spectral Line Full Width

At Half-Maximum (Typ.)

=20mA)

Capacitance (Typ.)

=0V, f=1MHz)

Absolute Maximum Ratings

=25°C)

Reverse Voltage

Forward Current

Forward Current (Peak)

1/10 Duty Cycle

0.1ms Pulse Width

Power Dissipation

Operating Temperature

Storage Temperature

Tstg

(InGaAlP)

185

-40 ~ +85

Unit

(InGaAlP)

1.9

2.5

Unit

640

°C

-40 ~ +85

628

Δλ

Part

Number

Emitting

Color

Emitting

Material

Lens-color

Luminous

Intensity

(IF=20mA)

mcd

min.

typ.

1590

Wavelength

Viewing

Angle

1/2

XZMD64W-9

Red

InGaAlP

Water Clear

650

640

20°

Published Date : JAN 19,2008

Drawing No : XDSA6487

Checked : B.L.LIU

P.1/4
