Amphenol

RF Interconnects

Fakra & Fakra II

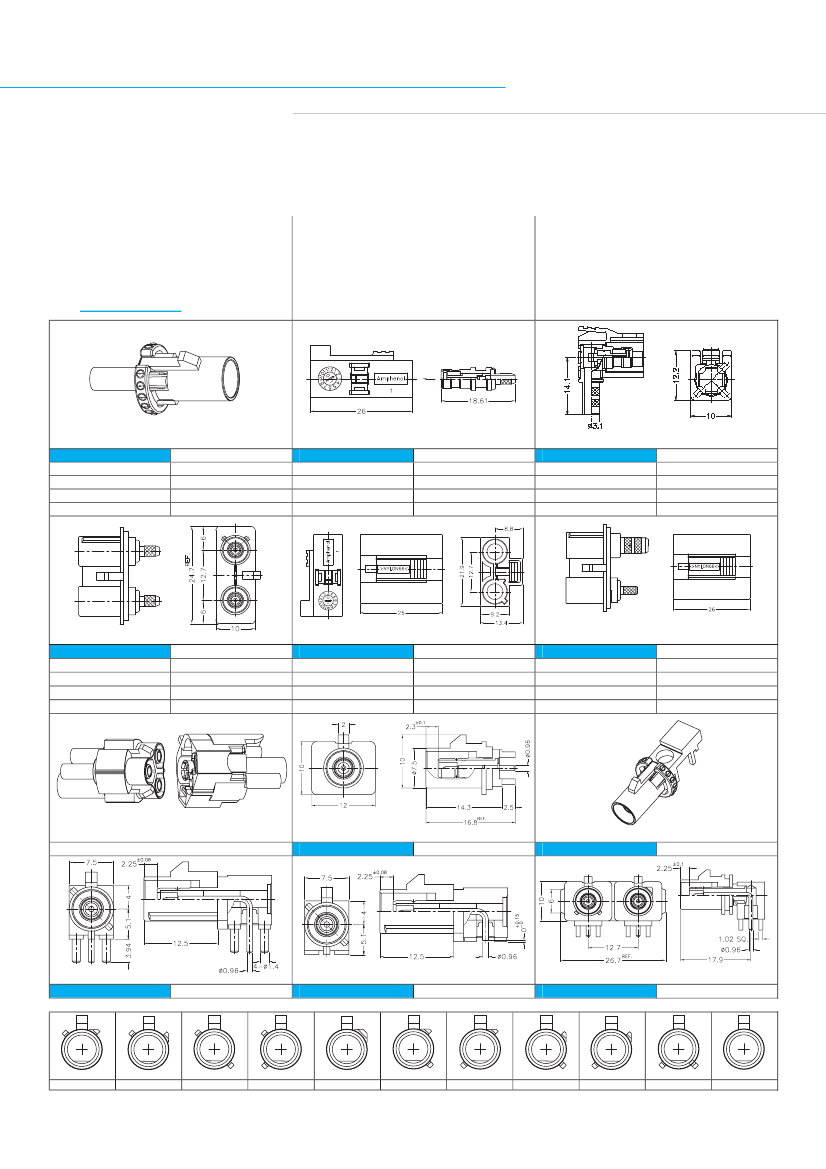

50Ω High Performance Cost Effective SMB for the Automotor Ind.

An Interconnection System designed to address the growing need for reliable electrical and mechanical RF interconnection within the automotive

environment. Specifically for Telematic applications such as GPS, Satellite Radio, Vehicle Internet Access, Remote Vehicle Diagnosis and

Bluetooth. Straight Cable Type Terminations are Crimp/Crimp while Right Angle Cable Types are Solder/Crimp.

Fakra incorporates machined components Fakra II (2

Generation) consists Die-Cast as well as Stamped & Formed Components

Electrical

Impedance

Frequency Range

VSWR

Insertion Loss

Performance Spec

- 50Ω

- DC-4GHz

- 1.5 max (4GHz)

- <0.3dB up to 4GHz

- SAE/USCAR-17, 18

Materials

Jack/2 Gen PCB Plug - Nylon 6/6

Plug/PCB Plug

- PBT+15%GF

Body

- Brass

- PBT+15%GF

2 Locking Clip

Female Contact

- Beryllium Copper

Male Contact

- Brass

Barrel

- Brass

Features and Benefits

Temperature

Durability

Vibration/Shock

- -40°C ~ 115°C

- 100 min

- Mil-STD-202

Applications

GPS, Satellite Radio, Vehicle Internet Access,

Remote Vehicle Diagnosis and Bluetooth

Visit

www.amphenolrf.com

for more information

Single Straight Cable Plug

Part Number

Description

FA1-NxSP-C01-1

RG174/188/316

FA1-NxSP-C04-1

RG58/141

Gen RG174/188/316

2FA1-NxSP-C01-1

Gen RG58/141

2FA1-NxSP-C04-1

Single Straight Cable Jack

Part Number

Description

FA1-NxSJ-C01-0

RG174/188/316

FA1-NxSJ-C04-0

RG58/141

Gen RG174/188/316

2FA1-NxSJ-C01-0

Gen RG58/141

2FA1-NxSJ-C04-0

Right Angle Single Cable Jack

Part Number

Description

FA1-NxRJ-C01-0

RG174/188/316

FA1-NxRJ-C04-0

RG58/141

Gen RG174/188/316

2FA1-NxRJ-C01-0

Gen RG58/141

2FA1-NxRJ-C04-0

Dual Straight Cable Plugs

Part Number

Description

FA2-NxSP-C01-9

RG174/188/316

FA2-NxSP-C04-9

RG58/141

Gen RG174/188/316

2FA2-NxSP-C01-9

Gen RG58/141

2FA2-NxSP-C04-9

Dual Straight Cable Jacks

Part Number

Description

FA2-NxSJ-C01-0

RG174/188/316

FA2-NxSJ-C04-0

RG58/141

Gen RG174/188/316

2FA2-NxSJ-C01-0

Gen RG58/141

2FA2-NxSJ-C04-0

Plug

Jack

Combo Straight for RG58 & RG174

Part Number

Description

FA2-NxSP-C00-9

Plug

2FA2-NxSP-C00-9

2 Gen Plug

FA2-NxSJ-C00-6

Jack

2FA2-NxSJ-C00-0

2 Gen Jack

Plug

Jack

Tri Straight Cable

Part Numbers upon request

PCB Vertical Plug

Part Number

FA1-NxSP-PCB-2

PCB Straight SMT Plug

Part Number

FA1-NxSP-PCB-X

PCB Right Angle Plug

PCB Right Angle SMT Plug

PCB Dual Right Angle Plug

Part Number

FA1-NxRP-PCB-10

Part Number

FA1-NxRP-PCB-11

Part Number

FC2-NKERP-PCB-S

Mechanical And Colour Coding

Replace x with code indicated below code diagram for appropriate solution (Keying from Plug side)

Deep Black

RF/ARFA

Signal White

Signal Blue

Bordeaux

Leaf Green

Brown

Blue Grey

Violet

Beige

Curry Yellow

White/Blue

W/Z

Further variations available upon request. Dimensions in mm

U-11
