FA1-NESJ-C07-0 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> FA1-NESJ-C07-0

FA1-NESJ-C07-0: DescriptionRF Connector, 1 Contact(s), Cable Mount, Crimp Terminal, Jack; CategoryThe connector The connector; File Size201KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

FA1-NESJ-C07-0 Overview

RF Connector, 1 Contact(s), Cable Mount, Crimp Terminal, Jack

FA1-NESJ-C07-0 Parametric

Parameter Name	Attribute value
Objectid	316165879
Reach Compliance Code	unknown
ECCN code	EAR99
YTEOL	6.76
body width	0.362 inch
subject depth	1.024 inch
body length	0.535 inch
Body/casing type	JACK
Characteristic impedance	50 Ω
Connector type	RF SMB CONNECTOR
Contact point gender	FEMALE
Contact style	COAX
Coupling type	SNAP
Dielectric withstand voltage	1131VAC V
Durability	100 Cycles
Filter function	NO
insulator material	POLYTETRAFLUOROETHYLENE
Installation method	STRAIGHT
Installation type	CABLE
Number of ports	1
Maximum operating frequency	6 GHz
Maximum operating temperature	115 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
Panel mounting	NO
Shell surface	NICKEL
Shell material	BRASS
Termination type	CRIMP
Total number of contacts	1
voltage standing wave ratio	1.5

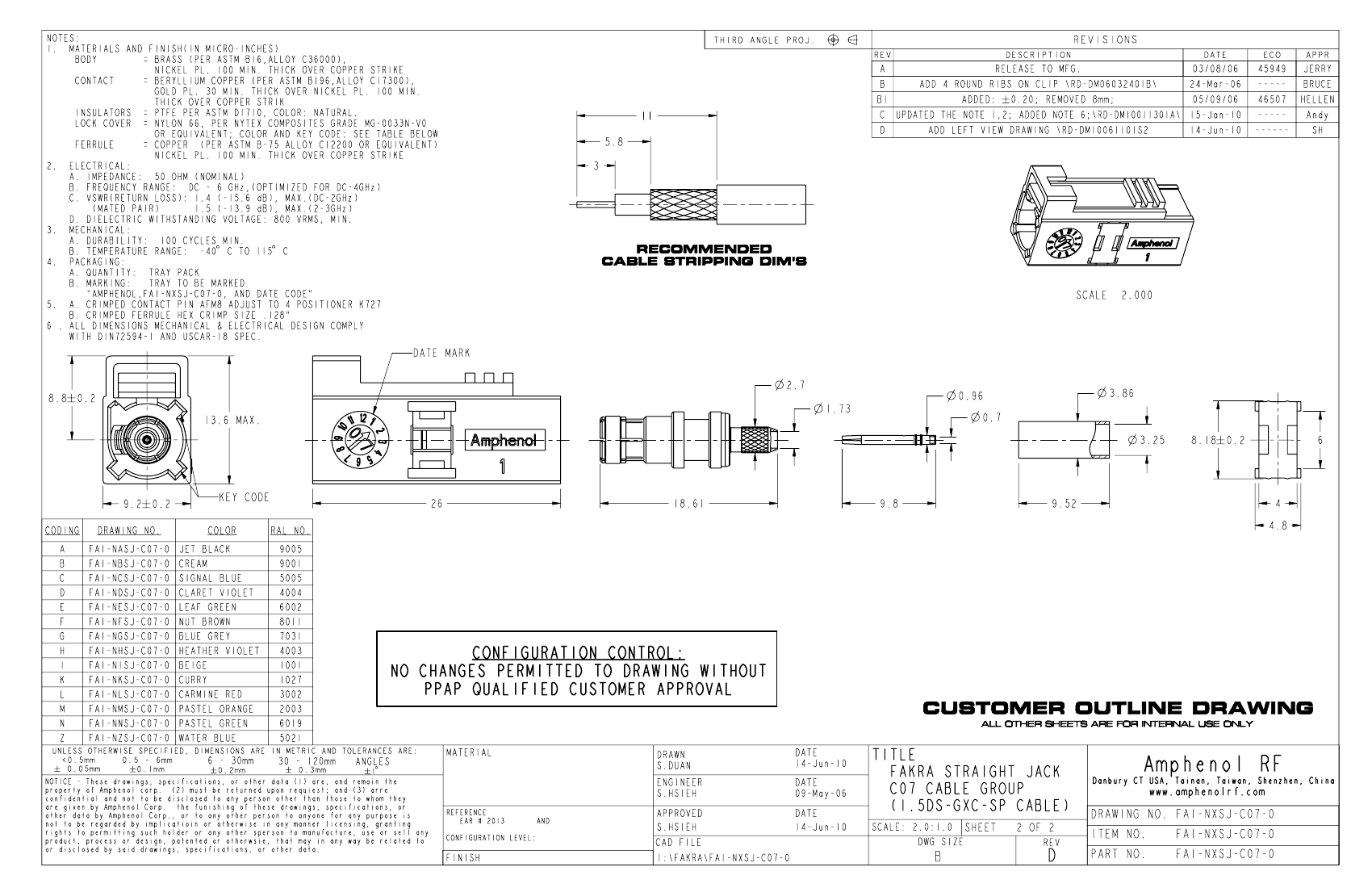

Preview

Download Datasheet

View All

FA1-NESJ-C07-0 Related Products

	FA1-NESJ-C07-0	FA1-NASJ-C07-0	FA1-NDSJ-C07-0	FA1-NISJ-C07-0	FA1-NKSJ-C07-0	FA1-NLSJ-C07-0	FA1-NMSJ-C07-0	FA1-NZSJ-C07-0
Description	RF Connector, 1 Contact(s), Cable Mount, Crimp Terminal, Jack	RF Connector, 1 Contact(s), Cable Mount, Crimp Terminal, Jack	RF Connector, 1 Contact(s), Cable Mount, Crimp Terminal, Jack	RF Connector, 1 Contact(s), Cable Mount, Crimp Terminal, Jack	RF Connector, 1 Contact(s), Cable Mount, Crimp Terminal, Jack	RF Connector, 1 Contact(s), Cable Mount, Crimp Terminal, Jack	RF Connector, 1 Contact(s), Cable Mount, Crimp Terminal, Jack	RF Connector, 1 Contact(s), Cable Mount, Crimp Terminal, Jack
Objectid	316165879	316165875	316165878	316165883	316165884	316165885	316165886	316165888
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
YTEOL	6.76	6.76	6.76	6.76	6.76	6.76	6.76	6.76
body width	0.362 inch	0.362 inch	0.362 inch	0.362 inch	0.362 inch	0.362 inch	0.362 inch	0.362 inch
subject depth	1.024 inch	1.024 inch	1.024 inch	1.024 inch	1.024 inch	1.024 inch	1.024 inch	1.024 inch
body length	0.535 inch	0.535 inch	0.535 inch	0.535 inch	0.535 inch	0.535 inch	0.535 inch	0.535 inch
Body/casing type	JACK	JACK	JACK	JACK	JACK	JACK	JACK	JACK
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω
Connector type	RF SMB CONNECTOR	RF SMB CONNECTOR	RF SMB CONNECTOR	RF SMB CONNECTOR	RF SMB CONNECTOR	RF SMB CONNECTOR	RF SMB CONNECTOR	RF SMB CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact style	COAX	COAX	COAX	COAX	COAX	COAX	COAX	COAX
Coupling type	SNAP	SNAP	SNAP	SNAP	SNAP	SNAP	SNAP	SNAP
Dielectric withstand voltage	1131VAC V	1131VAC V	1131VAC V	1131VAC V	1131VAC V	1131VAC V	1131VAC V	1131VAC V
Durability	100 Cycles	100 Cycles	100 Cycles	100 Cycles	100 Cycles	100 Cycles	100 Cycles	100 Cycles
Filter function	NO	NO	NO	NO	NO	NO	NO	NO
insulator material	POLYTETRAFLUOROETHYLENE	POLYTETRAFLUOROETHYLENE	POLYTETRAFLUOROETHYLENE	POLYTETRAFLUOROETHYLENE	POLYTETRAFLUOROETHYLENE	POLYTETRAFLUOROETHYLENE	POLYTETRAFLUOROETHYLENE	POLYTETRAFLUOROETHYLENE
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE
Number of ports	1	1	1	1	1	1	1	1
Maximum operating frequency	6 GHz	6 GHz	6 GHz	6 GHz	6 GHz	6 GHz	6 GHz	6 GHz
Maximum operating temperature	115 °C	115 °C	115 °C	115 °C	115 °C	115 °C	115 °C	115 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	NO	NO	NO	NO	NO	NO	NO	NO
Shell surface	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL
Shell material	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS
Termination type	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP
Total number of contacts	1	1	1	1	1	1	1	1
voltage standing wave ratio	1.5	1.5	1.5	1.5	1.5	1.5	1.5	1.5
