HM2P71PDA1L1N9 datasheet, PDF - EEWORLD Datasheet

HM2P71PDA1L1N9: DescriptionBoard Connector, 133 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal; CategoryThe connector The connector; File Size133KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

HM2P71PDA1L1N9 Overview

Board Connector, 133 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal

Parameter Name	Attribute value
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	38 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE
Connector type	BOARD CONNECTOR
Contact completed and terminated	GOLD (31) OVER NICKEL
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	HM2
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	7
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	133
UL Flammability Code	94V-0
Base Number Matches	1

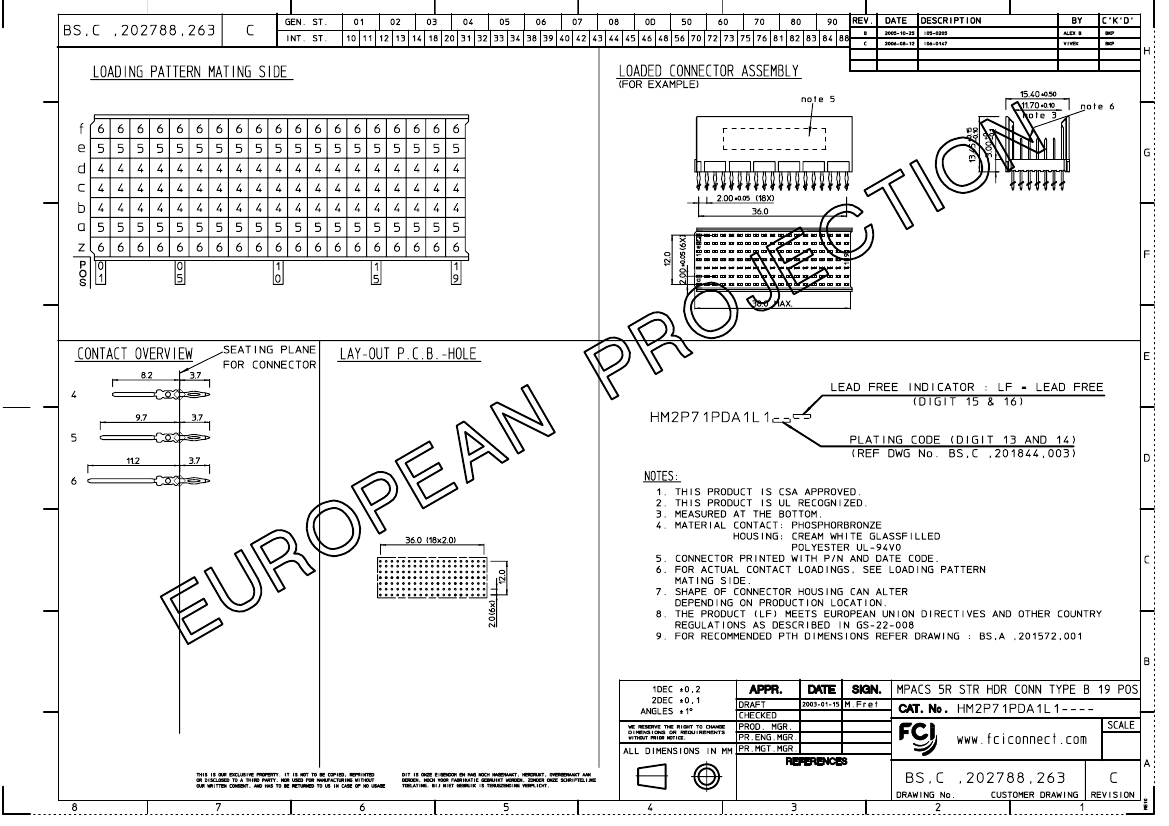

PDM: Rev:C

STATUS:

Released

Printed: Dec 03, 2007

.

	HM2P71PDA1L1N9	HM2P71PDA1L1N9LF
Description	Board Connector, 133 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal	Board Connector, 133 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE
Reach Compliance Code	compliant	compliant
Other features	38 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE	38 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	MALE	MALE
DIN compliance	NO	NO
Filter function	NO	NO
IEC compliance	NO	NO
MIL compliance	NO	NO
Mixed contacts	NO	NO
Installation method	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD
Number of rows loaded	7	7
Options	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2 mm	2 mm
Termination type	PRESS FIT	PRESS FIT
Total number of contacts	133	133
UL Flammability Code	94V-0	94V-0
Base Number Matches	1	1
