HM2P09PDM285Z1 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> HM2P09PDM285Z1

Preview

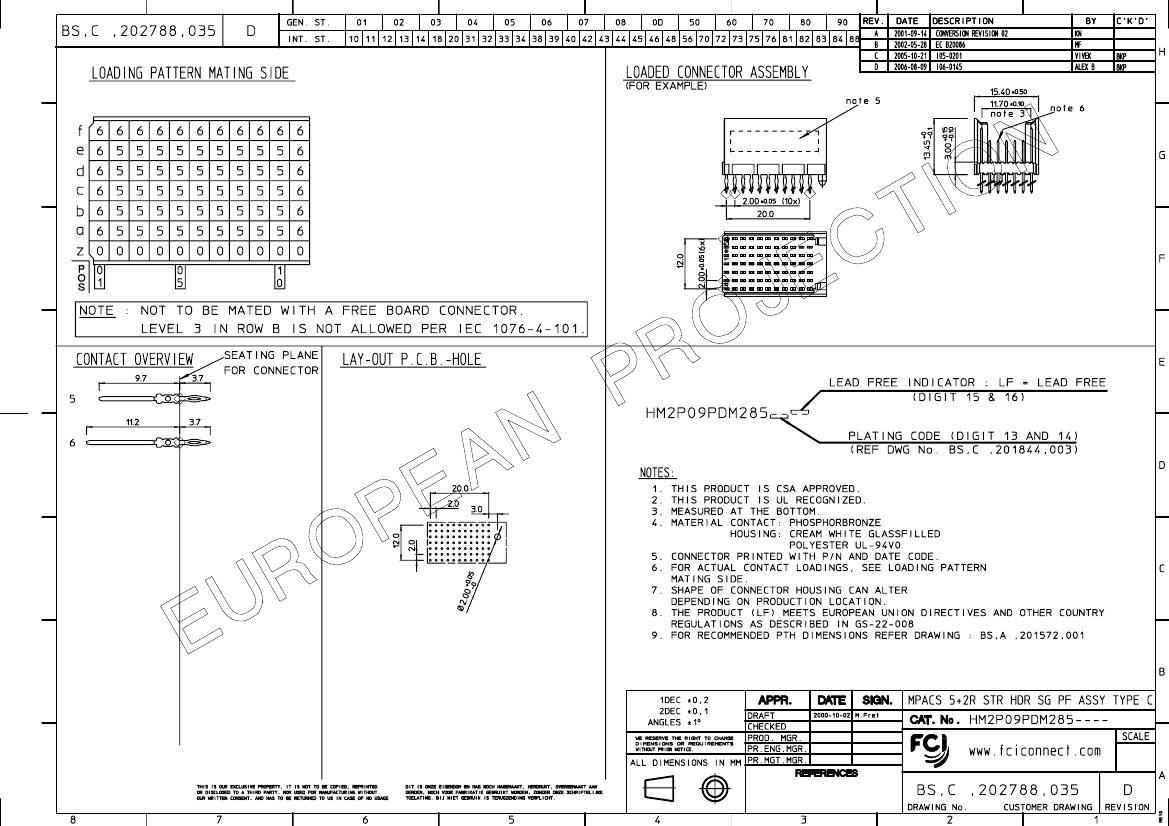

HM2P09PDM285Z1: DescriptionBoard Connector, 66 Contact(s), 6 Row(s), Male, Straight, Press Fit Terminal; CategoryThe connector The connector; File Size128KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

HM2P09PDM285Z1 Overview

Board Connector, 66 Contact(s), 6 Row(s), Male, Straight, Press Fit Terminal

HM2P09PDM285Z1 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
Other features	11 GROUND SHIELD CONTACTS IN 1 ROW AVAILABLE
Connector type	BOARD CONNECTOR
Contact completed and terminated	GOLD (16) OVER NICKEL
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	HM2
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	6
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	66
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

PDM: Rev:D

STATUS:

Released

Printed: Dec 03, 2007

.

HM2P09PDM285Z1 Related Products

	HM2P09PDM285Z1	HM2P09PDM285E9LF	HM2P09PDM285E9	HM2P09PDM285N9LF	HM2P09PDM285Z1LF
Description	Board Connector, 66 Contact(s), 6 Row(s), Male, Straight, Press Fit Terminal	Board Connector, 66 Contact(s), 6 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE	Board Connector, 66 Contact(s), 6 Row(s), Male, Straight, Press Fit Terminal	Board Connector, 66 Contact(s), 6 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE	Board Connector, 66 Contact(s), 6 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant
Other features	11 GROUND SHIELD CONTACTS IN 1 ROW AVAILABLE	11 GROUND SHIELD CONTACTS IN 1 ROW AVAILABLE	11 GROUND SHIELD CONTACTS IN 1 ROW AVAILABLE	11 GROUND SHIELD CONTACTS IN 1 ROW AVAILABLE	11 GROUND SHIELD CONTACTS IN 1 ROW AVAILABLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	MALE	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	6	6	6	6	6
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2 mm	2 mm	2 mm	2 mm	2 mm
Termination type	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT
Total number of contacts	66	66	66	66	66
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0
Base Number Matches	1	1	1	1	1
Contact completed and terminated	GOLD (16) OVER NICKEL	GOLD (39) OVER NICKEL	GOLD (39) OVER NICKEL	-	GOLD (16) OVER NICKEL
JESD-609 code	e4	e4	e4	-	e4
Manufacturer's serial number	HM2	HM2	HM2	-	HM2
package instruction	-	LEAD FREE	-	LEAD FREE	LEAD FREE
