WT-T169USD-K852 datasheet, PDF

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> WT-T169USD-K852

WT-T169USD-K852: DescriptionVisible LED; CategoryLED optoelectronic/LED photoelectric; File Size1MB，9 Pages; ManufacturerWeitron Technology; Websitehttp://weitron.com.tw/

Download Datasheet Parametric View All

WT-T169USD-K852 Overview

Visible LED

WT-T169USD-K852 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Base Number Matches	1

Preview

Download Datasheet

View All

WT-T169USD-K852

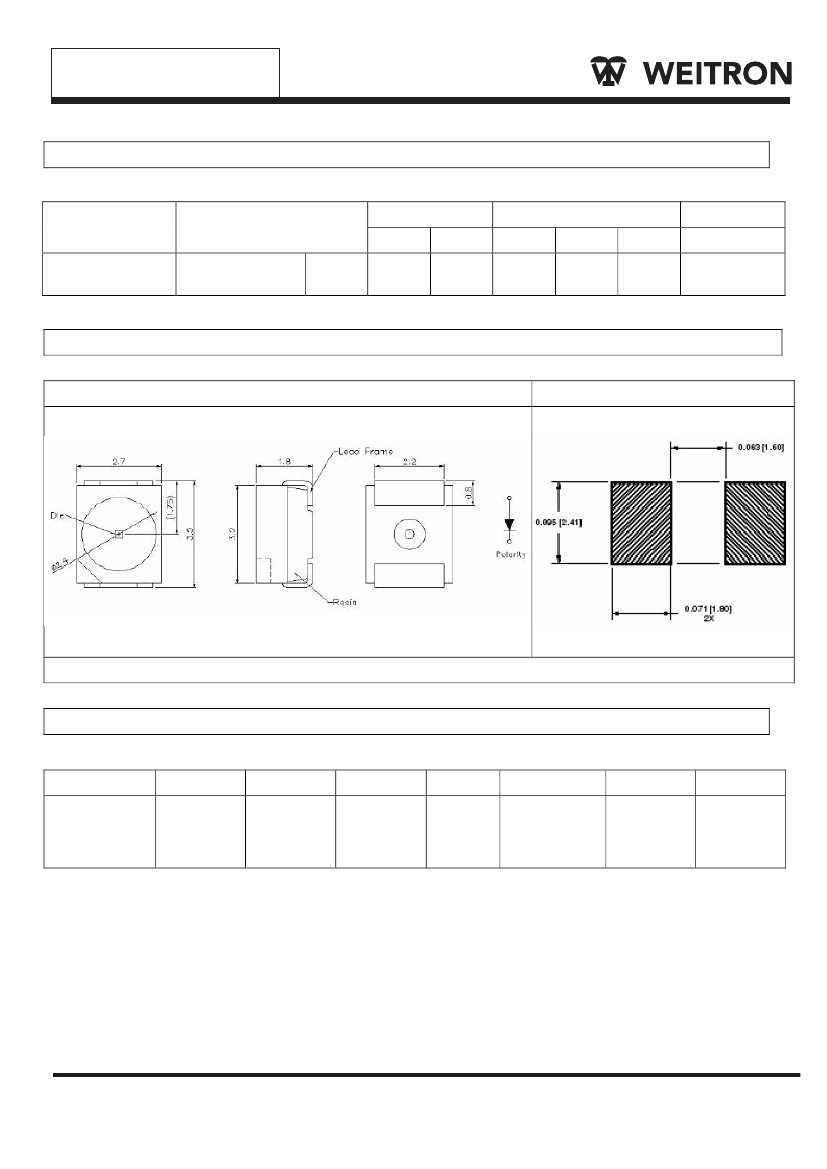

PLCC2 tLED

Product Specifications

Specification

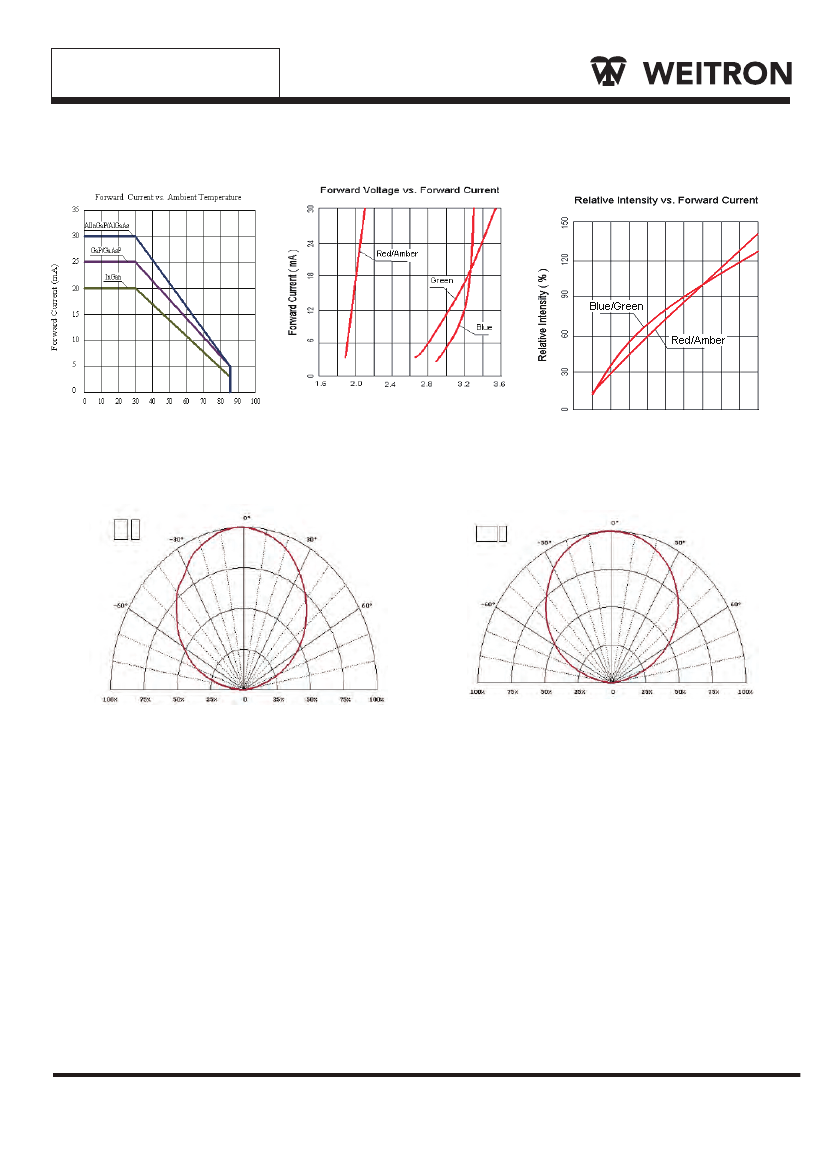

R:112.5-180 mcd

S:180-285 mcd

T: 285-360 mcd

@20mA/ Ta= 25 ;

tolerance: + 10%

Material

Quantity

620-635 nm

@20mA/ Ta= 25 C;

Tolerance: + 0.5nm

1.6-2.4V

@20mA/ Ta= 25 C ;

Tolerance: + 0.05V

Resin

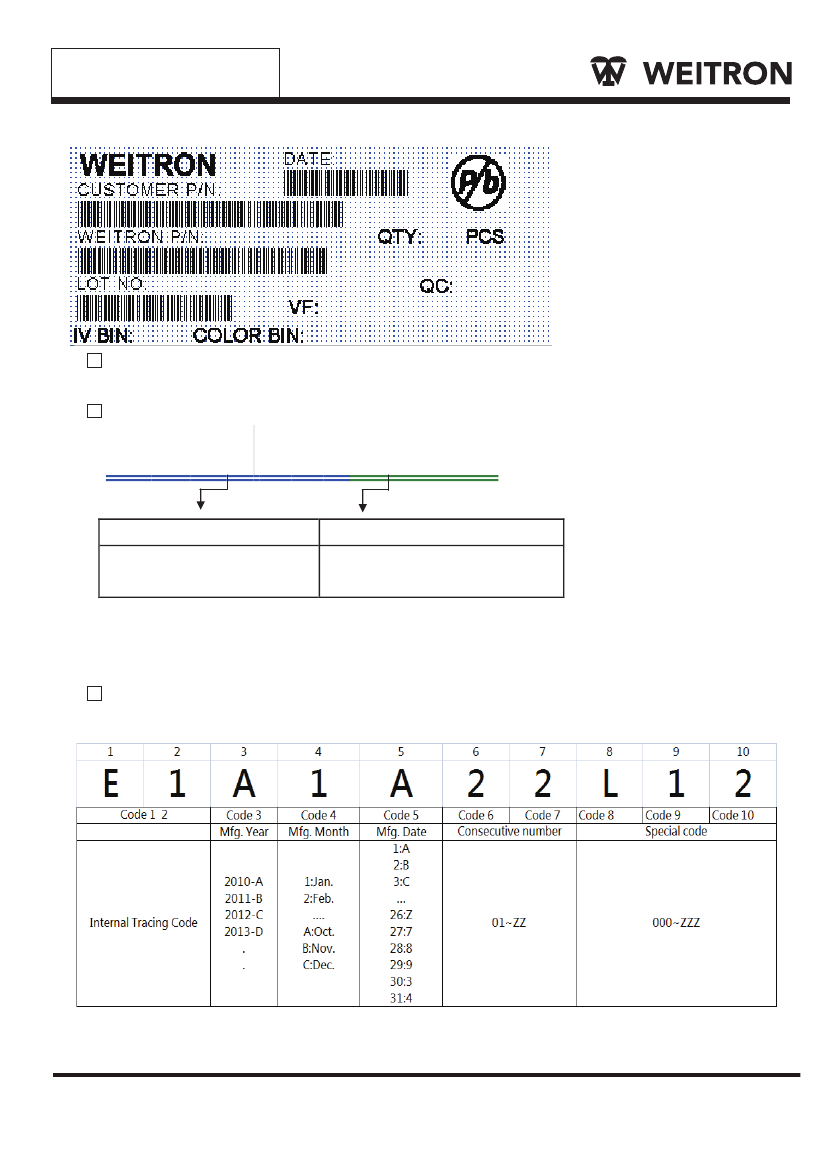

Carrier tape

Reel

Label

Packing bag

Carton

ESD

MSL

Others:

< 100 µA @ V

= 5 V

Water Clear

EIA 481-1A specs

WT standard

220x240mm

WT standard

HBM±8000V

JEDECL2a

Silicon Resin

Conductive black tape

Conductive black

Paper

Aluminum laminated bag/ no-zipper

Paper

One reel per bag

Non-specified

2000pcs per reel

Each immediate box consists of 5 reels. The 5 reels may not necessarily have the same lot number or the same bin

combinations of Iv,

and Vf. Each reel has a label identifying its specification; the immediate box consists of a product

label as well.

ATTENTION: Electrostatic Discharge (ESD) protection

The symbol to the left denotes that ESD precaution is needed. ESD protection for GaP and AlGaAs based

chips is necessary even though they are relatively safe in the presence of low static-electric discharge. Parts

built with AlInGaP, GaN, or/and InGaN based chips are

STATIC SENSITIVE devices.

ESD precaution must

be taken during design and assembly.

If manual work or processing is needed, please ensure the device is adequately protected from ESD during the process.

WEITRON

http://www.weitron.com.tw

1/9

13-Jun-2011
