M37221M4H/M6H/M8H/MAH–XXXSP/FP M37221EASP/FP
SINGLE-CHIP 8-BIT CMOS MICROCOMPUTER for VOLTAGE SYNTHESIZER
with ON-SCREEN DISPLAY CONTROLLER
REJ03B0134-0100Z
Rev.1.00
Oct 01, 2002
1. DESCRIPTION
The M37221M4H/M6H/M8H/MAH-XXXSP/FP are single-chip micro-
computers designed with CMOS silicon gate technology. They have
a OSD, I
2
C-BUS interface, and PWM, making them perfect for TV
channel selection system.
The M37221EASP/FP have a built-in PROM that can be written elec-
trically.
●OSD
function
Display characters .................................... 24 characters 5 2 lines
(3 lines or more can be displayed by software)
Kinds of characters ........................................................ 256 kinds
Character display area .............................................. 12
✕
16 dots
Kinds of character sizes ..................................................... 3 kinds
Kinds of character colors .................................. 8 colors (R, G, B)
Coloring unit ................... character, character background, raster
Display position .............................................................................
Horizontal: 64 levels
Vertical: 128 levels
Attribute .............................................................................. border
2. FEATURES
●
Number
of basic instructions ..................................................... 71
●
Memory size
ROM ............. 16K bytes (M37221M4H-XXXSP/FP)
24K bytes (M37221M6H-XXXSP/FP)
32K bytes (M37221M8H-XXXSP/FP)
40K bytes (M37221MAH-XXXSP/FP, M37221EASP/FP)
RAM ............. 384 bytes (M37221M4H-XXXSP/FP)
448 bytes (M37221M6H-XXXSP/FP)
576 bytes (M37221M8H-XXXSP/FP)
704 bytes (M37221MAH-XXXSP/FP, M37221EASP/FP)
(ROM correction memory included)
●
The minimum instruction execution time
......................................... 0.5
µs
(at 8 MHz oscillation frequency)
●
Power source voltage .................................................. 5 V ± 10 %
●
Subroutine nesting
maximum 96 levels (M37221M4H/M6H-XXXSP/FP)
maximum 128 levels (M37221M8H/MAH-XXXSP/FP, M37221EASP/FP)
●
Interrupts ........................................................ 14 types, 14 vectors
●
8-bit timers ................................................................................... 4
●
Programmable I/O ports
(Ports P0, P1, P2, P3
0
–P3
2
) ..................................................... 27
●
Input ports (Ports P3
3
, P3
4
) ......................................................... 2
●
Output ports (Ports P5
2
–P5
5
) ...................................................... 4
●
LED drive ports ............................................................................ 4
●
Serial I/O ............................................................. 8-bit
✕
1 channel
●
Multi-master I
2
C-BUS interface ............................... 1 (2 systems)
●
A-D comparator (6-bit resolution) ................................. 6 channels
●
D-A converter (6-bit resolution) .................................................... 2
Note:
Only M37221EASP/FP has D-A converter.
output circuit .......................................... 14-bit
✕
1, 8-bit
✕
6
●
Power dissipation .............................. High-speed mode : 165 mW
(at V
CC
=5.5V, 8 MHz oscillation frequency, and OSD on)
●
ROM correction function ................................................. 2 vectors
●
PWM
3. APPLICATION
TV
Rev.1.00 Oct 01, 2002
REJ03B0134-0100Z
page 1 of 110
M37221M4H/M6H/M8H/MAH–XXXSP/FP M37221EASP/FP
TABLE OF CONTENTS
1. DESCRIPTION ............................................................... 1
2. FEATURES .................................................................... 1
3. APPLICATION ................................................................ 1
4. PIN CONFIGURATION .................................................. 3

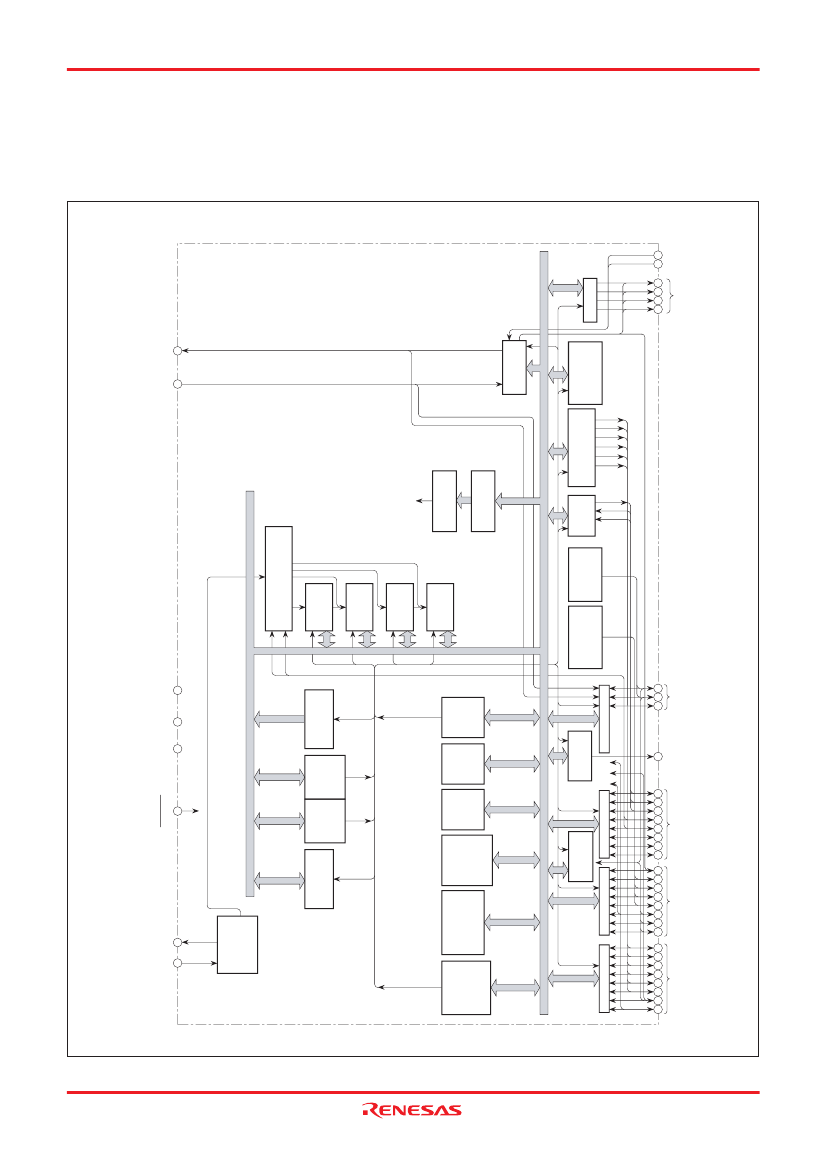

5. FUNCTIONAL BLOCK DIAGRAM ................................. 5
6. PERFORMANCE OVERVIEW ....................................... 6
7. PIN DESCRIPTION ........................................................ 8
8. FUNCTIONAL DESCRIPTION ..................................... 12
8.1 CENTRAL PROCESSING UNIT (CPU) ......... 12
8.2 MEMORY ....................................................... 13
8.3 INTERRUPTS ................................................ 19
8.4 TIMERS .......................................................... 24
8.5 SERIAL I/O ..................................................... 27
8.6 MULTI-MASTER I
2
C-BUS INTERFACE ........ 31
8.7 PWM OUTPUT FUNCTION ........................... 44
8.8 A-D COMPARATOR ....................................... 49
8.9 D-A CONVERTER .......................................... 51
8.10 ROM CORRECTION FUNCTION ................ 53
8.11 OSD FUNCTIONS ........................................ 54
8.11.1 Display Position .............................. 58
8.11.2 Character Size ................................ 62
8.11.3 Clock for OSD ................................. 64
8.11.4 Memory for OSD ............................. 65
8.11.5 Color Register ................................. 68
8.11.6 Border ............................................. 70
8.11.7 Multiline Display .............................. 71
8.11.8 OSD Output Pin Control ................. 72
8.11.9 Raster Coloring Function ................ 73
8.12 SOFTWARE RUNAWAY DETECT FUNCTION ... 74
8.13 RESET CIRCUIT .......................................... 75
8.14 CLOCK GENERATING CIRCUIT ................. 76
8.15 DISPLAY OSCILLATION CIRCUIT .............. 77
8.16 AUTO-CLEAR CIRCUIT ............................... 77
8.17 ADDRESSING MODE .................................. 77
8.18 MACHINE INSTRUCTIONS ......................... 77
9. PROGRAMMING NOTES ............................................ 77
10. ABSOLUTE MAXIMUM RATINGS ............................. 78
11. RECOMMENDED OPERATING CONDITIONS ......... 78
12. ELECTRIC CHARACTERISTICS .............................. 79
13. A-D COMPARISON CHARACTERISTICS ................. 81
14. D-A CONVERSION CHARACTERISTICS ................. 81
15. MULTI-MASTER I
2
C-BUS BUS LINE CHARACTERISTICS .... 81
16. PROM PROGRAMMING METHOD ........................... 82
17. DATA REQUIRED FOR MASK ORDERS .................. 83
18. ONE TIME PROM VERSION M37221EASP/FP MARKING ..... 84
19. APPENDIX ................................................................. 85
20. PACKAGE OUTLINE ................................................ 110
