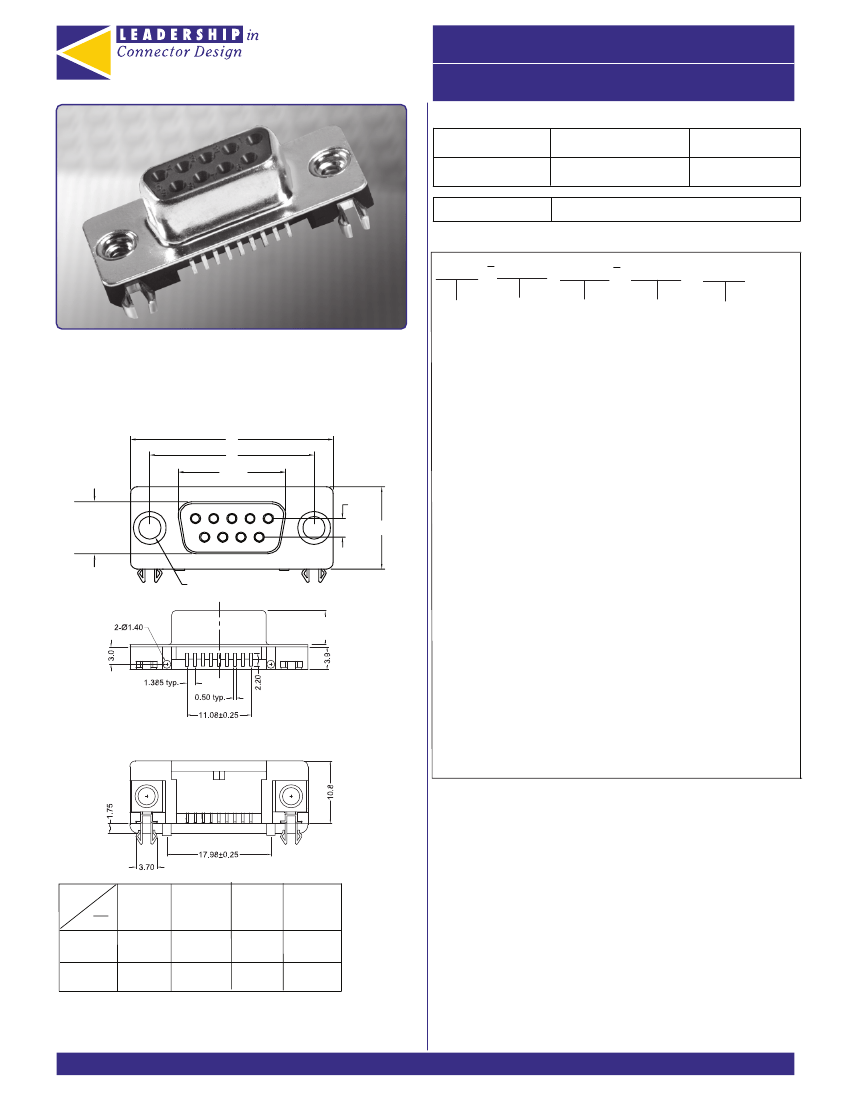

D Subminiature Connector, 9 Contact(s), Male, 0.109 inch Pitch, Surface Mount Terminal, #4-40, Plug, ROHS COMPLIANT
| Parameter Name | Attribute value |
| package instruction | ROHS COMPLIANT |
| Reach Compliance Code | compliant |
| Other features | ROHS COMPLIANT |
| body width | 0.494 inch |
| subject depth | 0.154 inch |
| body length | 1.213 inch |
| Body/casing type | PLUG |
| Connector type | D SUBMINIATURE CONNECTOR |
| Contact to complete cooperation | GOLD (15) |
| Contact completed and terminated | GOLD (15) |
| Contact point gender | MALE |
| Contact material | PHOSPHOR BRONZE |
| contact mode | STAGGERED |
| Contact resistance | 13 mΩ |
| Contact style | RND PIN-SKT |
| DIN compliance | NO |
| Dielectric withstand voltage | 1400VAC V |
| empty shell | NO |
| Filter function | NO |
| IEC compliance | NO |
| Insulation resistance | 1000000000 Ω |
| insulator material | THERMOPLASTIC |
| JESD-609 code | e4 |
| MIL compliance | NO |
| Manufacturer's serial number | K20XHT |
| Plug contact pitch | 0.109 inch |
| Match contact row spacing | 0.112 inch |
| Plug information | MULTIPLE MATING PARTS AVAILABLE |
| Mixed contacts | NO |
| Installation option 1 | #4-40 |
| Installation option 2 | THREADED INSERT |
| Installation method | RIGHT ANGLE |
| Installation type | BOARD |
| PCB row number | 1 |
| Number of rows loaded | 2 |
| Maximum operating temperature | 105 °C |
| Minimum operating temperature | -55 °C |
| Options | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR |
| Plating thickness | 15u inch |
| Rated current (signal) | 2 A |
| Guideline | UL, CSA |
| reliability | COMMERCIAL |
| Shell surface | NICKEL |
| Shell material | STEEL |
| Housing size | 1/E |
| Terminal pitch | 1.3716 mm |
| Termination type | SURFACE MOUNT |
| Total number of contacts | 9 |
| Base Number Matches | 1 |
