Product Specifications
FHD-XX1B-0165F
FHD-XX1B-
l
DLX® Mini-MST, Fiber Optic Hardened Drop Cable, DLX-DLX, locatable flat, 165 ft
Hardened connectors are factory-terminated and environmentally sealed for use in
optical drop cable deployments
l
Hardened drop cables incorporate hardened connector technology that is designed
to withstand the rugged outside plant environment
l
Hardened drop cables simplify installation and maintenance by reducing splicing
requirements in the distribution portion of the network
Product Classification
Brand
Product Series
Product Type
Regional Availability
DLX®
FHD
Fiber drop cable assembly
Australia/New Zealand
|
Latin America
|
North America
Construction Materials
Jacket Material
Fiber Type
Total Fibers, quantity
Jacket Color
Fiber Mode
Locatable - Flat
G.652.D
1
Black
Singlemode
Dimensions
Cable Weight
Cord Length
Height Over Jacket
Width Over Jacket
36.0 kg/km
50.29 m
|
165.00 ft
5 mm | 0 in
8 mm | 0 in
Environmental Specifications
Environmental Space
Operating Temperature
Qualification Standards
Storage Temperature
Outdoor, buried
-25 °C to +70 °C (-13 °F to +158 °F)
NEMA type 6, 10 ft waterhead
|
Telcordia GR-20
|
Telcordia GR-3120
-40 °C to +70 °C (-40 °F to +158 °F)
General Specifications
Interface, connector A
Interface, connector B
Color, boot A
Color, boot B
Color, connector A
Color, connector B
Connector A, quantity
Connector B, quantity
Package Quantity
Hardened mini-size (DLX) SC/APC plug
Hardened mini-size (DLX) SC/APC plug
Black
Black
Black
Black
1
1
1
©2018 CommScope, Inc. All rights reserved. All trademarks identified by ® or ™ are registered trademarks, respectively, of CommScope.
All specifications are subject to change without notice. See www.commscope.com for the most current information. Revised: April 10, 2018
page 1 of 2
May 14, 2018
Product Specifications
FHD-XX1B-0165F
FHD-XX1B-
Transmission Standards
Interface Feature, connector A
Interface Feature, connector B
IEC 61753-1
APC
APC
|
IEC 61754-4
|
IEC 61755
Mechanical Specifications
Cable Crush Resistance, maximum
Minimum Bend Radius, loaded
Minimum Bend Radius, unloaded
Tensile load, long term, maximum
Tensile load, short term, maximum
22 N/mm
100 mm
150 mm
450 N
1300 N
Optical Performance
Insertion Loss, maximum, connector A 0.40 dB
Insertion Loss, maximum, connector B 0.40 dB
Return Loss, minimum, connector A
Return Loss, minimum, connector B
60.00 dB
60.00 dB

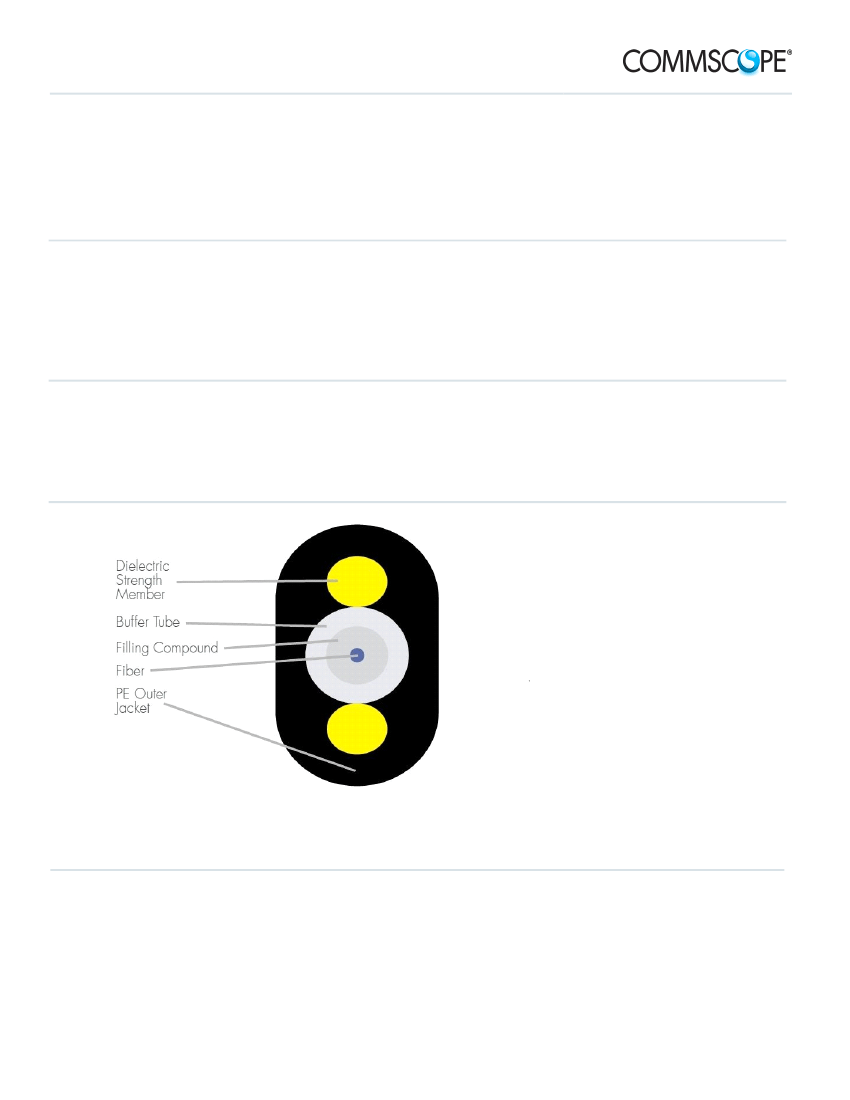

Outline Drawing
Outline Drawing
Used as an image placeholder
Regulatory Compliance/Certifications
Agency
RoHS 2011/65/EU
Classification
Compliant
©2018 CommScope, Inc. All rights reserved. All trademarks identified by ® or ™ are registered trademarks, respectively, of CommScope.
All specifications are subject to change without notice. See www.commscope.com for the most current information. Revised: April 10, 2018
page 2 of 2
May 14, 2018
