SL22207-D2P: DescriptionBoard Connector, 40 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Plug; CategoryThe connector The connector; File Size63KB，2 Pages; ManufacturerFOXCONN; Websitehttp://www.fit-foxconn.com/

Download Datasheet Parametric View All

SL22207-D2P Overview

Board Connector, 40 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Plug

SL22207-D2P Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.244 inch
subject depth	0.335 inch
body length	2.176 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	TIN/LEAD
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED THERMOPLASTIC
Manufacturer's serial number	SL22
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	15u inch
polarization key	POLARIZED KEY
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.105 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	40
Base Number Matches	1

SL22207-D2P Preview

Download Datasheet

View All

SPECIFICATIONS

Friction Header Connector

SL22 Series

Vertical T/H Type

2.54mmX2.54mm Grid

[.100"X.100"] Pitch Dual

Row Receptacle

Mechanical

Contact Retention Force:

0.9kg min

Electrical

Voltage Rating:

125V

Current Rating:

3.0A

Contact Resistance:

20m

Ω

max.

Dielectric Withstanding Voltage:

500V AC

Insulation Resistance:

1000M

Ω

min.

Physical

Housing:

Thermoplastic, Glass Filled , UL94V-0 rated

Contact:

Copper alloy

Plating:

See “ORDERING INFORMATION”

Operating Temperature:

-40

℃

to +105

℃

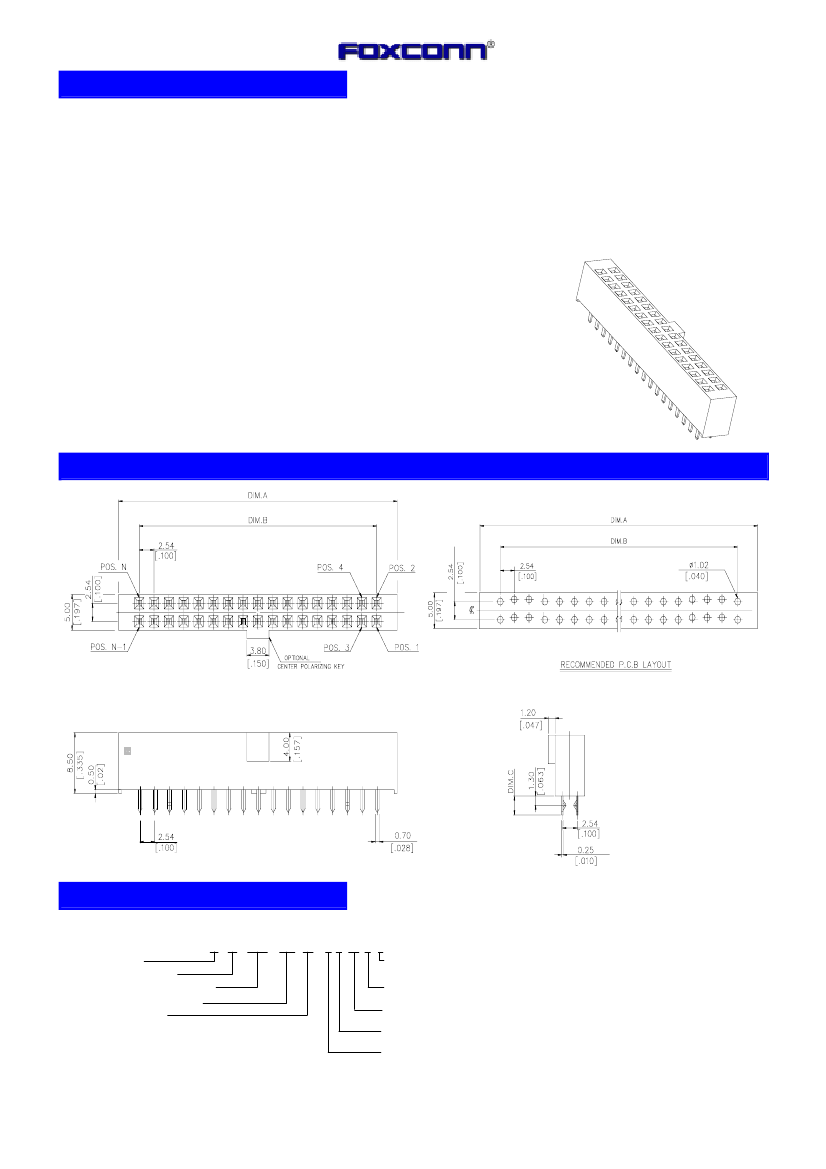

DRAWING

ORDERING I NF OR MATI ON

PRODUCT NO. : S L 2 2 * * * - * * ** * *

Socket Conn.

Regular Solder Type

Termination & Contact Type

No. Of Single Row Pos.

PLATING CODE

Tail Length(See Attachment.)

Dim C

NONE:STANDARD

P:CENTER POLARIZING KEY

P4: PIN #5 OMITTED AND PLUGGED

D2: PIN #20 OMITTED AND PLUGGED

See Attachment

1 = Gold Flash On Contact Area

100 u" MIN. Tin/Lead On Tail.

7 = 15u" MIN. Gold On Contact Area

100 u" MIN. Tin/Lead On Tail.

F = Gold Flash On Contact Area

100u" MIN.Tin On Tail With Rohs Compliance.

V = 15u" MIN. Gold On Contact Area

100u" MIN.Tin On Tail With Rohs Compliance.

NONE:BLACK COLOR

W:IVORY COLOR

NONE:NO KINKED

K:THE 5TH ,6TH ,(N-4)&(N-5) PINS

ARE KINKED

All specification & dimensions are subject to change, please call your nearest Foxconn sales representative for update information.
