BBS-120-T-G datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> BBS-120-T-G

BBS-120-T-G: DescriptionBoard Connector, 20 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle, ROHS COMPLIANT; CategoryThe connector The connector; File Size159KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

BBS-120-T-G Overview

Board Connector, 20 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle, ROHS COMPLIANT

BBS-120-T-G Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.1 inch
subject depth	0.585 inch
body length	2 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN OVER NICKEL (50)
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	BRASS/PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	RND PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insulator color	BLACK
insulator material	GLASS FILLED POLYESTER
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	BBS
Plug contact pitch	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.125 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	20
Base Number Matches	1

Preview

Download Datasheet

View All

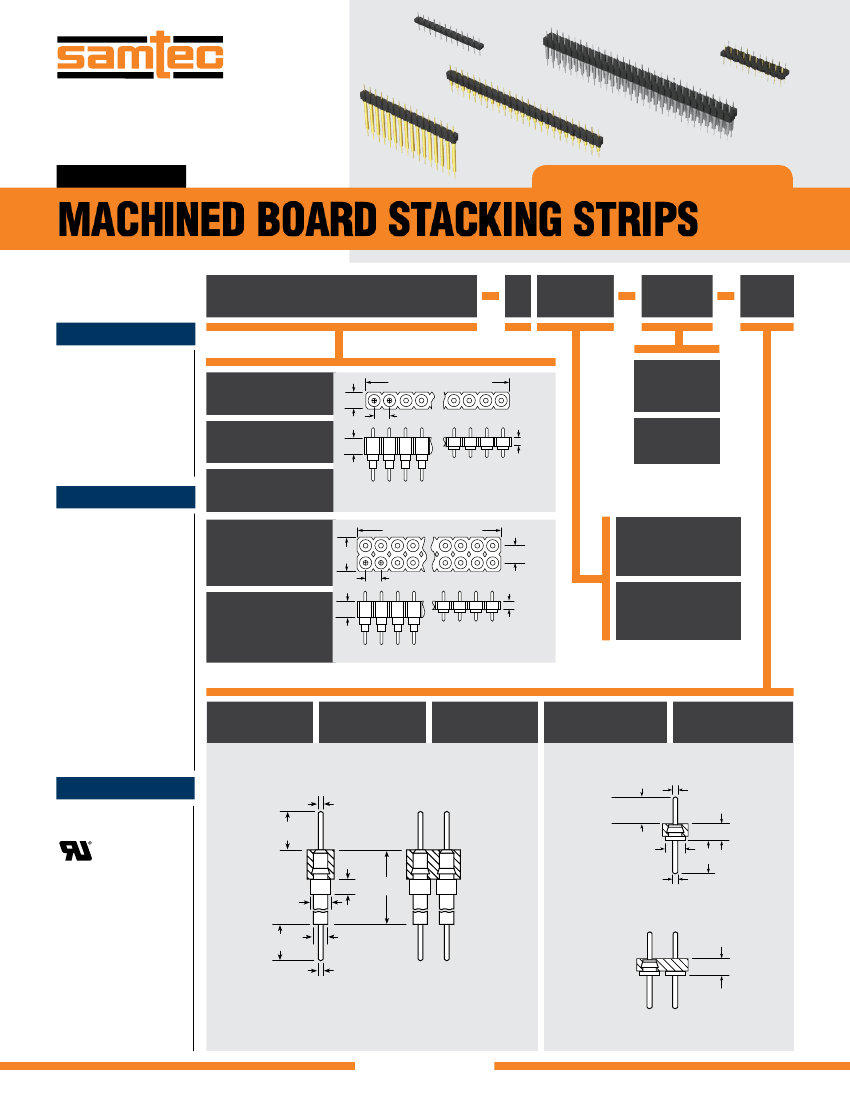

F-219 (Rev 21OCT19)

BDL–110–G–F

BBL–112–T–E

BBD–130–T–B

BHS–125–G–A

(2.54 mm) .100"

BBS–116–G–C

BBS, BBL, BHS, BBD, BDL SERIES

MACHINED BOARD STACKING STRIPS

Mates with:

SS, SD, HSS, SL, SDL,

ESS, ESD

TYPE

STRIP

NO. PINS

PER ROW

PLATING

OPTION

LEAD

STYLE

FEATURES

•

Low-profile design

achieves (3.89 mm)

.153" board spacings

when mated with SL

Series.

•

Approach the reliability

of a permanent

connection with the

flexibility of a separable

connection.

= Standard Single Row

BBS

BBL

(2.54) .100 x No. of Positions

(2.54)

.100

(2.54) .100 TYP

(1.27)

.050

= 20 µ" (0.51 µm)

Gold

–G

–T

= Tin

= Low-Profile Single Row

(2.54)

.100

SPECIFICATIONS

For complete specifications

see www.samtec.com?BBS,

www.samtec.com?BBL,

www.samtec.com?BHS

www.samtec.com?BBD or

www.samtec.com?BDL

Insulator Material:

Black Glass Filled Polyester

(BBS, BBD)

Black High Temp Nylon

(BDL)

Black Liquid Crystal Polymer

(BHS, BBL)

Temperature Range:

-55 °C to +125 °C

Terminal Material:

Phosphor Bronze or Brass

Plating:

Au or Sn over 50 µ" (1.27 µm) Ni

RoHS Compliant:

Yes

Lead-Free Solderable:

Wave only

(BBS, BBD, BBL, BDL)

Wave, or reflow with

all Au (BHS)

= High Temp Single Row

BHS

BBL body available with

Styles –E & –F only.

BBS

BHS

BBL

(2.54) .100 x No. of Positions

= Standard Double Row

BBD

BDL

(5.08)

.200

(2.54) .100 TYP

(2.54)

.100

(1.27)

.050

01 thru 32

= BBS & BBL

(2.54)

.100

01 thru 36

BDL body available with

Styles –E & –F only.

= BBD, BDL & BHS

= Low-Profile Double Row

BBD

BDL

Z = (5.33 mm) .210"

–A

Z = (8.51 mm) .335"

–B

Z = (14.86 mm) .585"

–C

Z = (1.78 mm) .070"

–E

Z = (2.16 mm) .085"

–F

RECOGNITIONS

For complete scope

of recognitions see

www.samtec.com/quality

(3.18)

.125

(0.46)

.018

DIA

Style E: Style F:

(2.67)

(3.18)

.105

.125

(1.78)

.070

DIA

(0.46)

.018

DIA

(0.46)

.018

DIA

(3.18)

.125

FILE NO. E111594

(1.27)

.050

(1.78)

.070

DIA

(1.27)

.050

DIA

(0.46)

.018

DIA

BBL

Series

(3.18)

.125

BBS and BHS

Series

Note:

Some lengths, styles and

options are non-standard,

non-returnable.

BBD

Series

BDL

Series

Due to technical progress, all designs, specifications and components are subject to change without notice.

All parts within this catalog are built to Samtec’s specifications.

Customer specific requirements must be approved by Samtec and identified in a Samtec customer-specific drawing to apply.

WWW.SAMTEC.COM
