SG-615P-FREQ-OUT23-B-TEMP1 datasheet, PDF

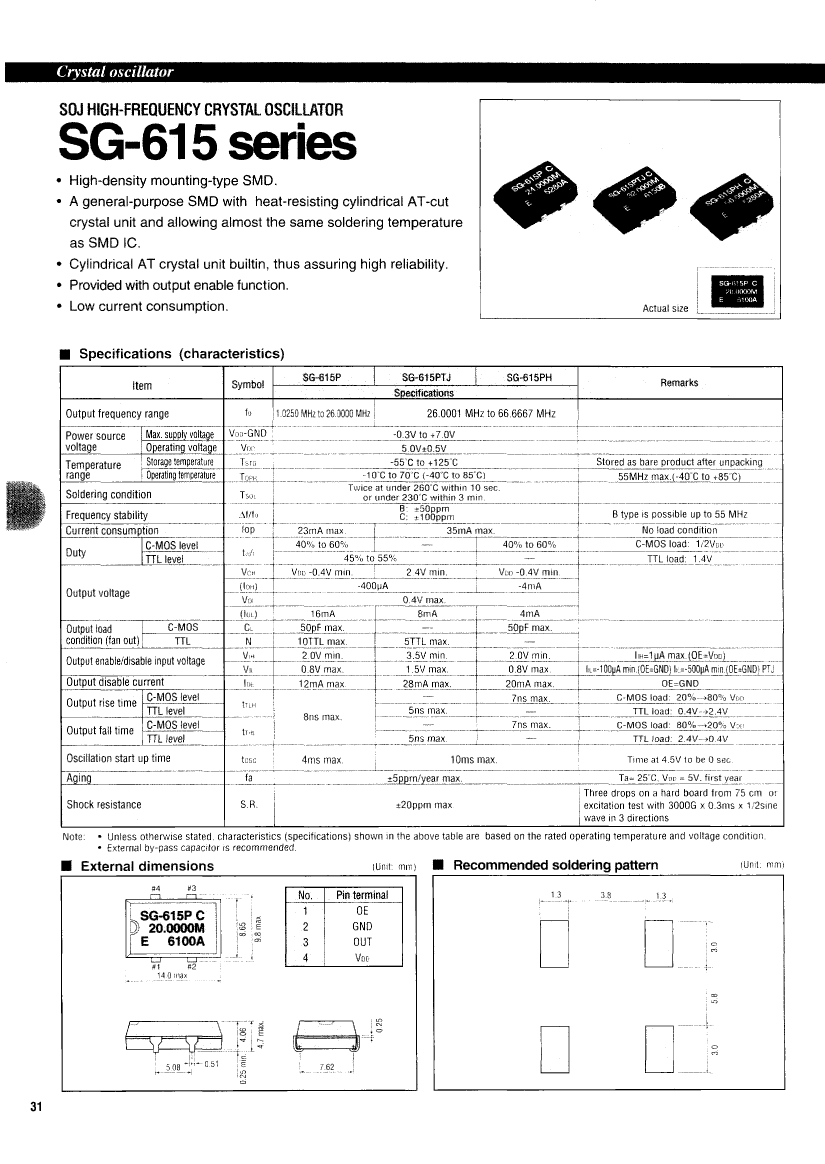

SG-615P-FREQ-OUT23-B-TEMP1: DescriptionCRYSTAL OSCILLATOR, CLOCK, 1.025 MHz - 26 MHz, CMOS/TTL OUTPUT, SO-4; CategoryPassive components oscillator; File Size82KB，1 Pages; ManufacturerSeiko Epson Corporation

Download Datasheet Parametric View All

SG-615P-FREQ-OUT23-B-TEMP1 Overview

CRYSTAL OSCILLATOR, CLOCK, 1.025 MHz - 26 MHz, CMOS/TTL OUTPUT, SO-4

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	SYMMETRY 55/45 POSSIBLE
maximum descent time	8 ns
Frequency Adjustment - Mechanical	NO
frequency stability	50%
Installation features	SURFACE MOUNT
Maximum operating frequency	26 MHz
Minimum operating frequency	1.025 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
Oscillator type	CMOS/TTL
Output load	10 TTL, 50 PF
physical size	14mm x 8.65mm x 4.06mm
longest rise time	8 ns
Nominal supply voltage	5 V
surface mount	YES
maximum symmetry	60/40 %
Base Number Matches	1
