PML2852-50A-T: DescriptionOT PLD, PQCC84; CategoryProgrammable logic devices Programmable logic; File Size657KB，20 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

PML2852-50A-T Overview

OT PLD, PQCC84

PML2852-50A-T Parametric

Parameter Name	Attribute value
package instruction	QCCJ,
Reach Compliance Code	unknown
Other features	52 FLIP FLOPS
JESD-30 code	S-PQCC-J84
length	29.3116 mm
Dedicated input times	29
Number of I/O lines	24
Number of terminals	84
Maximum operating temperature	75 °C
Minimum operating temperature
organize	29 DEDICATED INPUTS, 24 I/O
Output function	MIXED
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Package shape	SQUARE
Package form	CHIP CARRIER
Programmable logic type	OT PLD
Certification status	Not Qualified
Maximum seat height	4.57 mm
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL EXTENDED
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
width	29.3116 mm
Base Number Matches	1

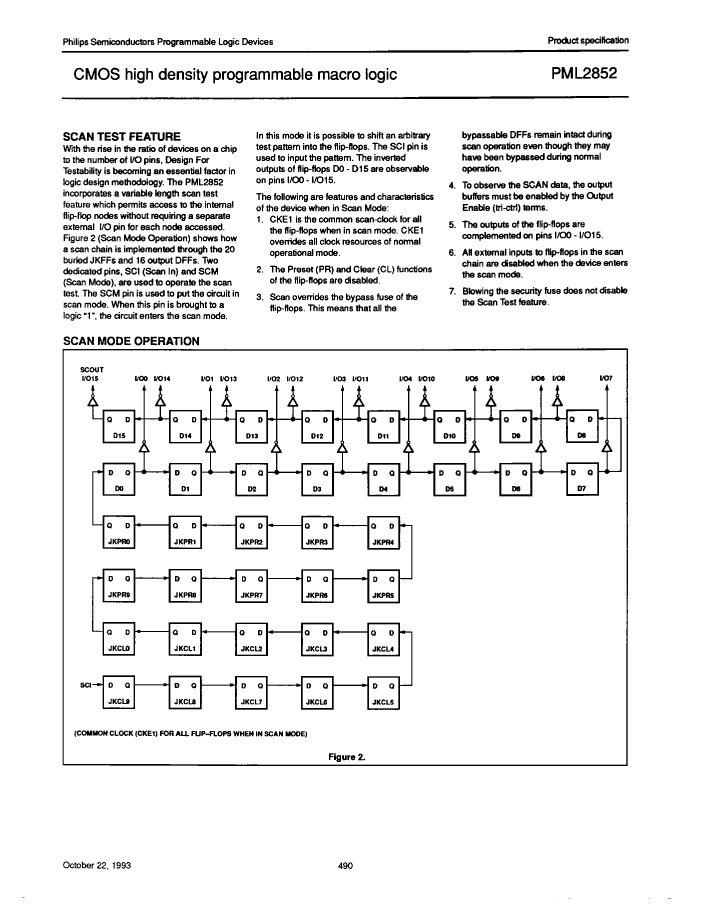

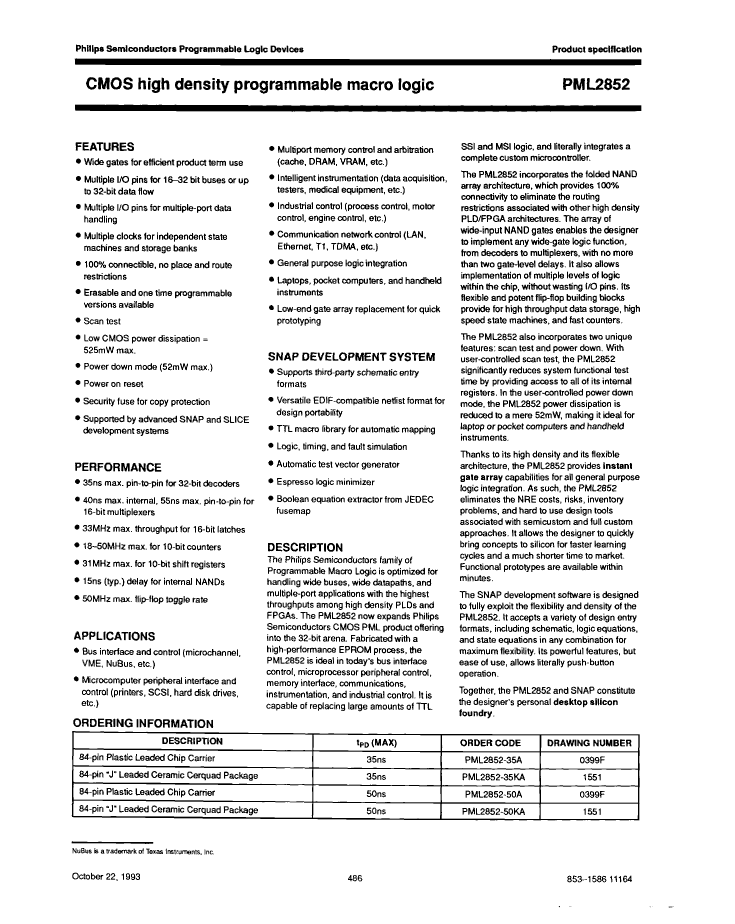

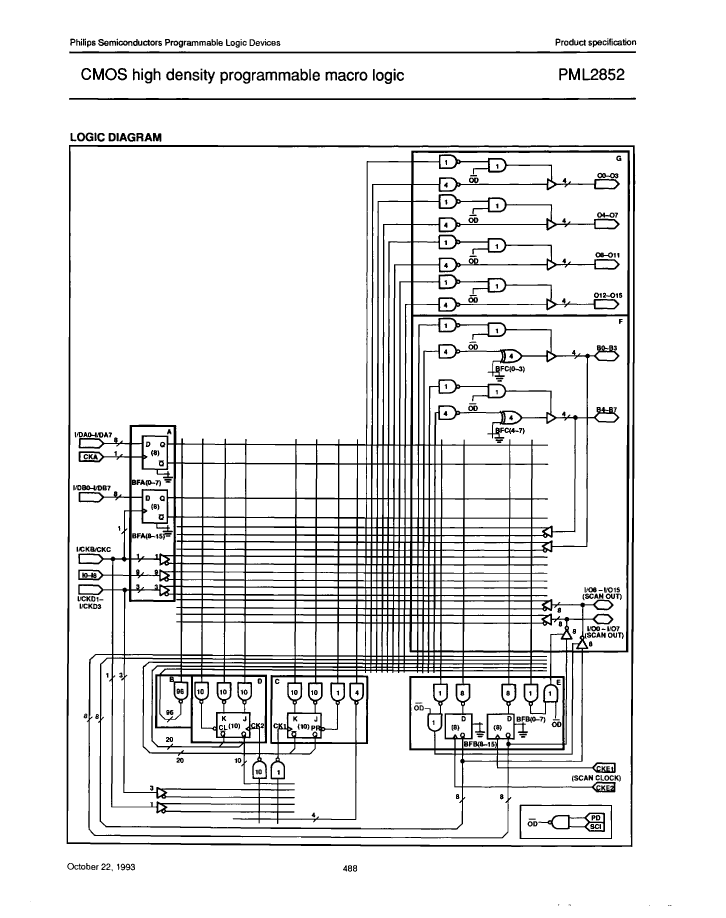

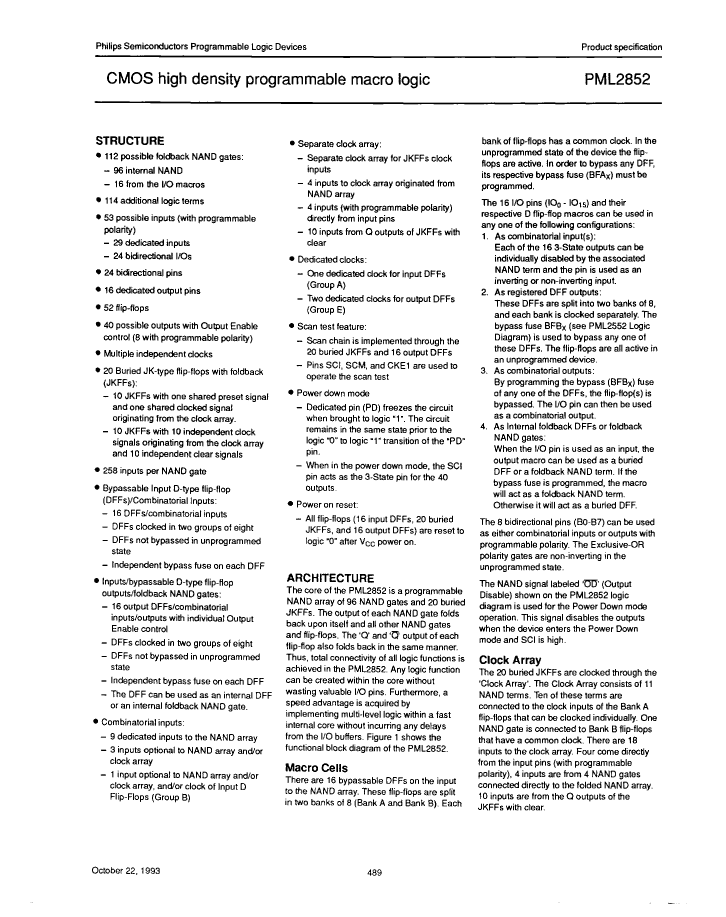

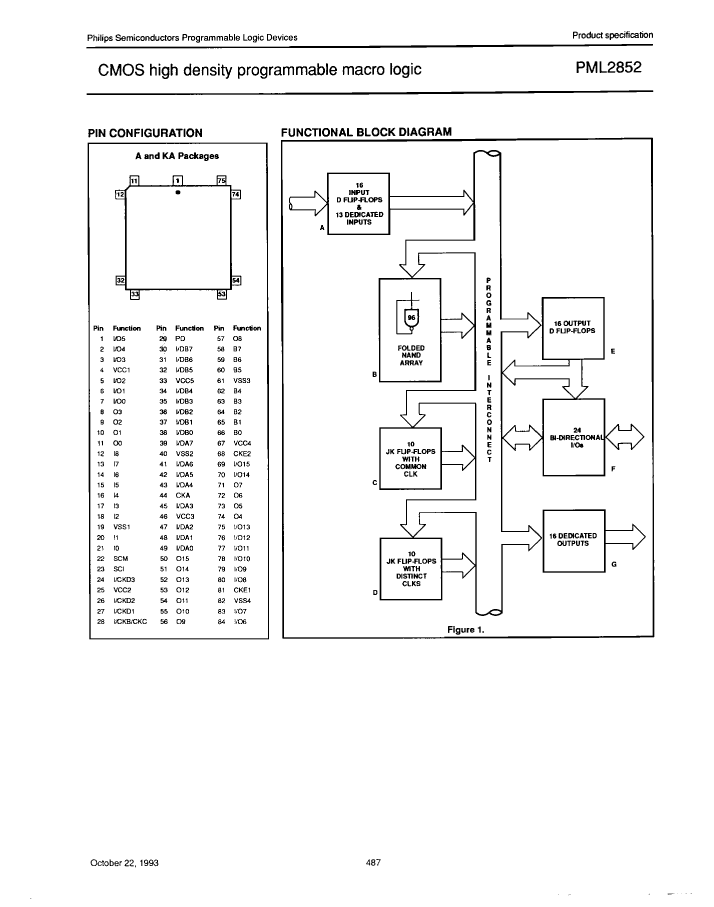

Preview

Download Datasheet

View All

PML2852-50A-T Related Products

	PML2852-50A-T	PML2852-35A-T	PML2852-35A	PML2852-50A	PML2852-35KA-T	PML2852-35KA	PML2852-50KA-T	PML2852-50KA
Description	OT PLD, PQCC84	OT PLD, PQCC84	OT PLD, PQCC84	OT PLD, PQCC84	OT PLD, CQCC84	OT PLD, CQCC84	OT PLD, CQCC84	OT PLD, CQCC84
package instruction	QCCJ,	QCCJ,	QCCJ,	QCCJ,	QCCJ,	QCCJ,	QCCJ,	QCCJ,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	52 FLIP FLOPS	52 FLIP FLOPS	52 FLIP FLOPS	52 FLIP FLOPS	52 FLIP FLOPS	52 FLIP FLOPS	52 FLIP FLOPS	52 FLIP FLOPS
JESD-30 code	S-PQCC-J84	S-PQCC-J84	S-PQCC-J84	S-PQCC-J84	S-CQCC-J84	S-CQCC-J84	S-CQCC-J84	S-CQCC-J84
length	29.3116 mm	29.3116 mm	29.3116 mm	29.3116 mm	29.145 mm	29.145 mm	29.145 mm	29.145 mm
Dedicated input times	29	29	29	29	29	29	29	29
Number of I/O lines	24	24	24	24	24	24	24	24
Number of terminals	84	84	84	84	84	84	84	84
Maximum operating temperature	75 °C	75 °C	75 °C	75 °C	75 °C	75 °C	75 °C	75 °C
organize	29 DEDICATED INPUTS, 24 I/O	29 DEDICATED INPUTS, 24 I/O	29 DEDICATED INPUTS, 24 I/O	29 DEDICATED INPUTS, 24 I/O	29 DEDICATED INPUTS, 24 I/O	29 DEDICATED INPUTS, 24 I/O	29 DEDICATED INPUTS, 24 I/O	29 DEDICATED INPUTS, 24 I/O
Output function	MIXED	MIXED	MIXED	MIXED	MIXED	MIXED	MIXED	MIXED
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCJ	QCCJ	QCCJ	QCCJ	QCCJ	QCCJ	QCCJ	QCCJ
Package shape	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE
Package form	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER
Programmable logic type	OT PLD	OT PLD	OT PLD	OT PLD	OT PLD	OT PLD	OT PLD	OT PLD
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	4.57 mm	4.57 mm	4.57 mm	4.57 mm	4.83 mm	4.83 mm	4.83 mm	4.83 mm
Maximum supply voltage	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V
Minimum supply voltage	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED
Terminal form	J BEND	J BEND	J BEND	J BEND	J BEND	J BEND	J BEND	J BEND
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD
width	29.3116 mm	29.3116 mm	29.3116 mm	29.3116 mm	29.145 mm	29.145 mm	29.145 mm	29.145 mm
Base Number Matches	1	1	1	1	1	1	1	1
