T707033054BY datasheet, PDF - EEWORLD Datasheet

T707033054BY: DescriptionSilicon Controlled Rectifier, 475A I(T)RMS, 475000mA I(T), 300V V(DRM), 300V V(RRM), 1 Element, CASE T70, 3 PIN; CategoryAnalog mixed-signal IC Trigger device; File Size535KB，5 Pages; ManufacturerPOWEREX; Websitehttp://www.pwrx.com/Home.aspx

Download Datasheet Parametric View All

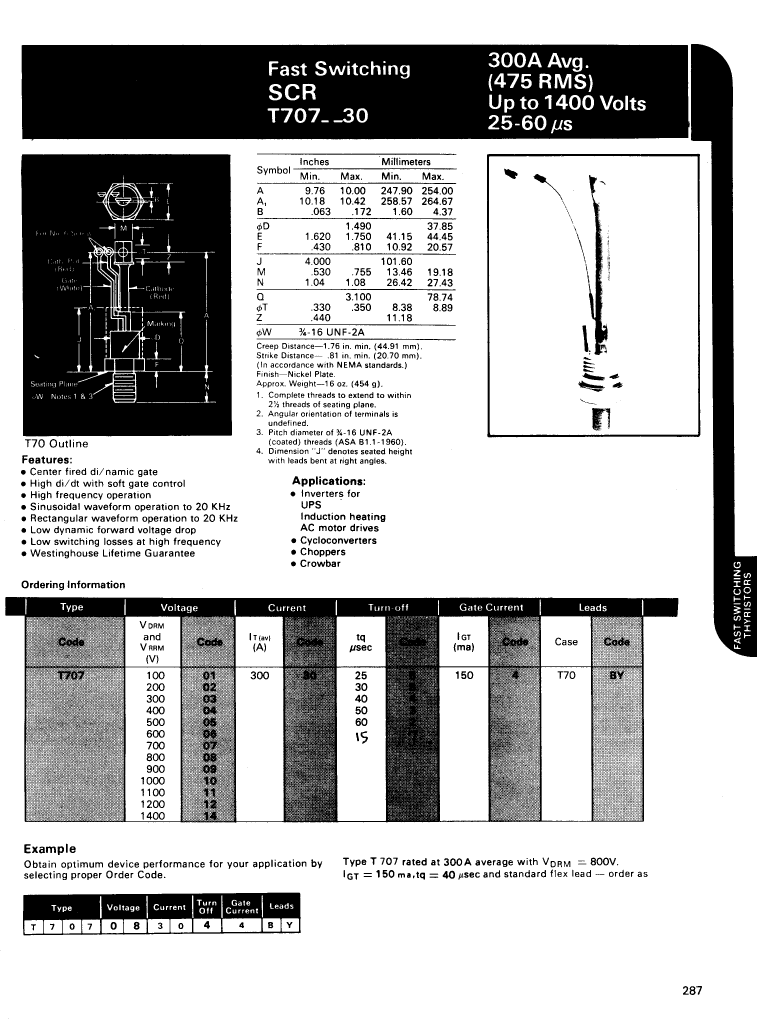

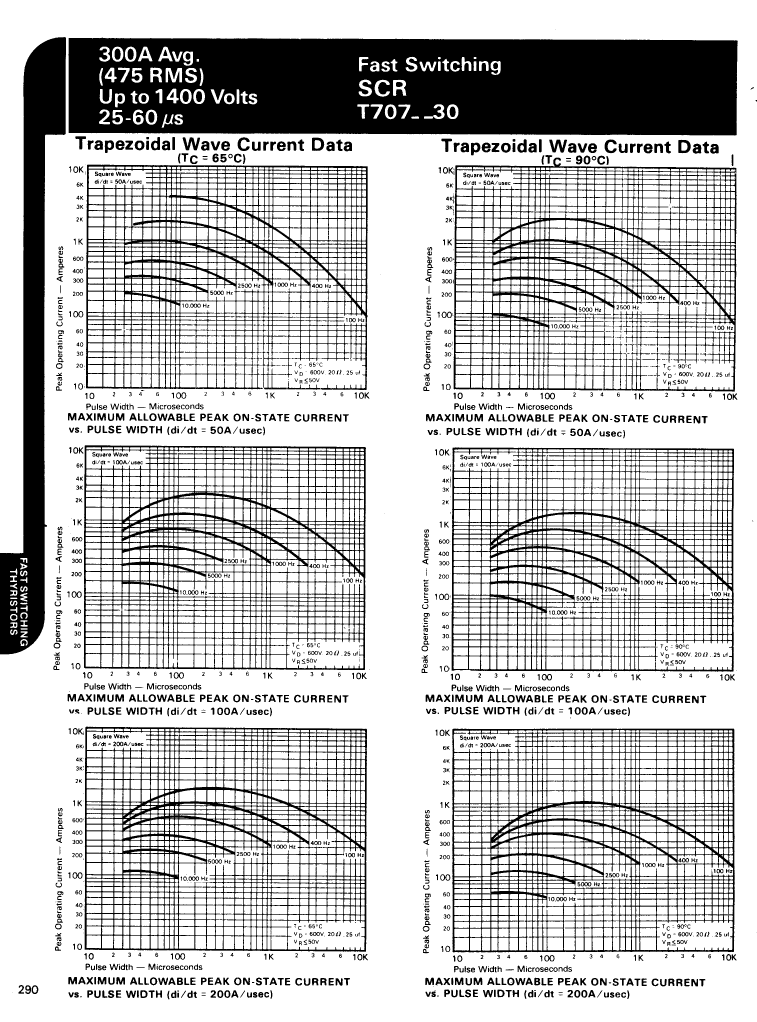

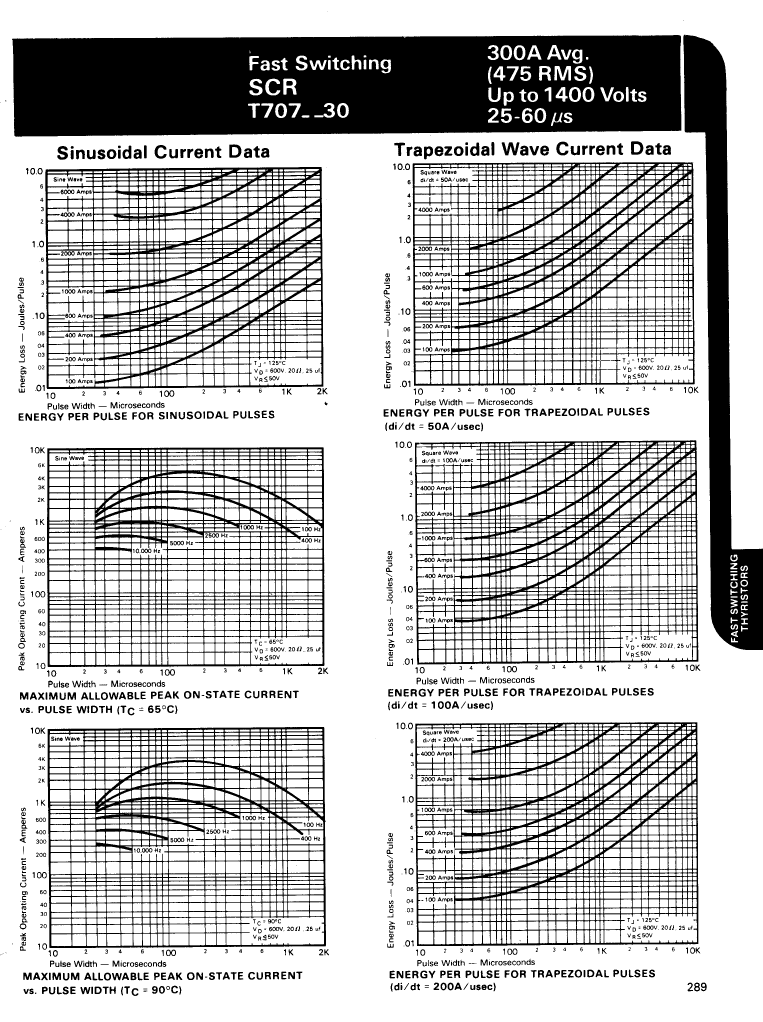

T707033054BY Overview

Silicon Controlled Rectifier, 475A I(T)RMS, 475000mA I(T), 300V V(DRM), 300V V(RRM), 1 Element, CASE T70, 3 PIN

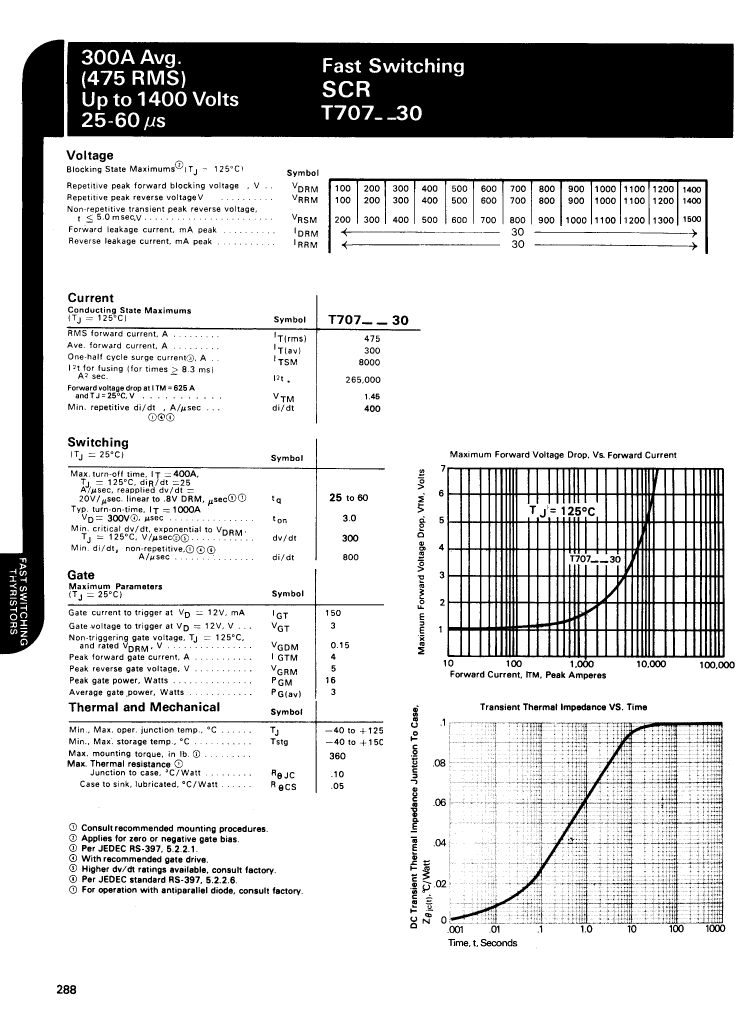

Parameter Name	Attribute value
package instruction	POST/STUD MOUNT, O-XUPM-D3
Contacts	3

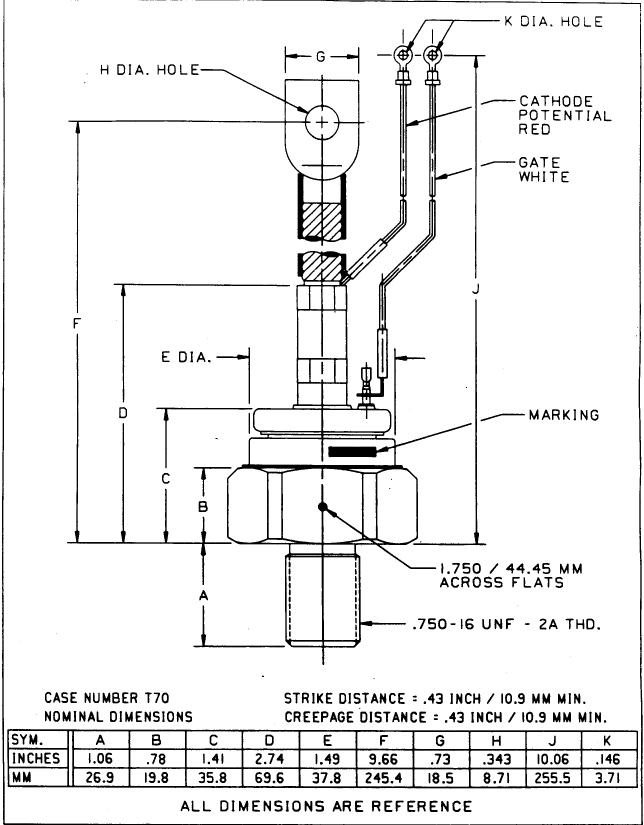

Manufacturer packaging code	CASE T70
Reach Compliance Code	unknown
ECCN code	EAR99
Configuration	SINGLE
Critical rise rate of minimum off-state voltage	300 V/us
Maximum DC gate trigger current	150 mA
Maximum DC gate trigger voltage	3 V
JESD-30 code	O-XUPM-D3
Maximum leakage current	30 mA
On-state non-repetitive peak current	8000 A
Number of components	1
Number of terminals	3
Maximum on-state current	475000 A
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package body material	UNSPECIFIED
Package shape	ROUND
Package form	POST/STUD MOUNT
Certification status	Not Qualified
Maximum rms on-state current	475 A
Off-state repetitive peak voltage	300 V
Repeated peak reverse voltage	300 V
surface mount	NO
Terminal surface	NICKEL
Terminal form	SOLDER LUG
Terminal location	UPPER
Trigger device type	SCR
Base Number Matches	1
