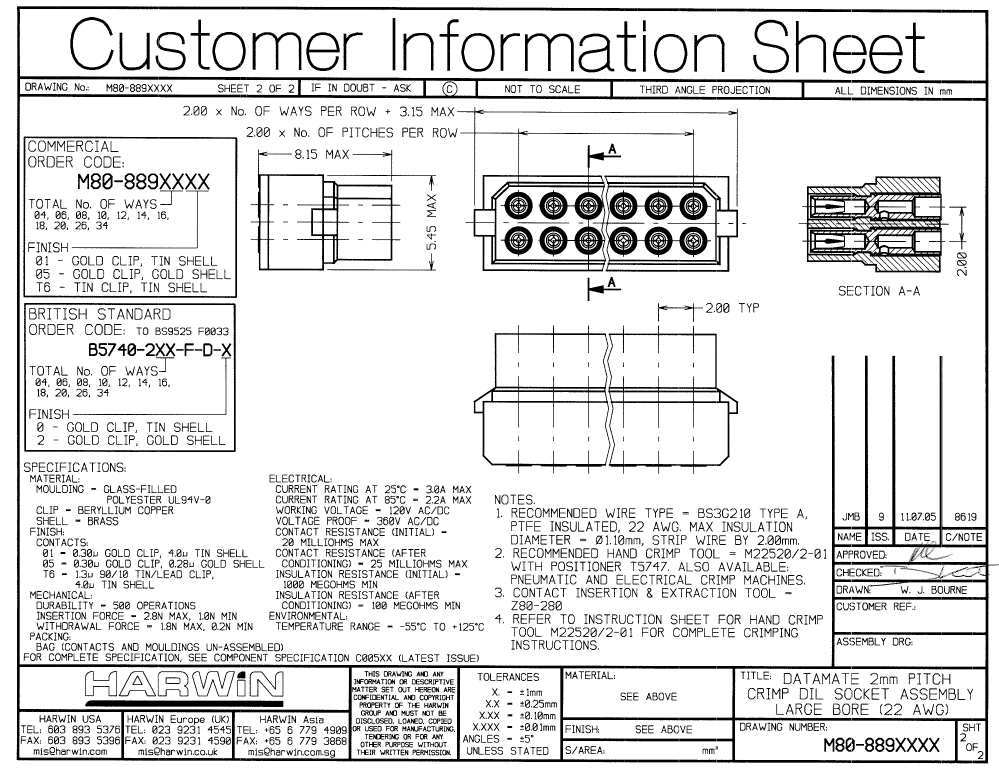

PDF
Preview

B5740-216-F-D-0

Description
Board Connector, 16 Contact(s), 2 Row(s), Female, 0.079 inch Pitch, Crimp Terminal, Locking, Black Insulator, Socket, ROHS COMPLIANT
CategoryThe connector    The connector
File Size85KB，1 Pages
ManufacturerHarwin
Websitehttp://www.harwin.com/
Environmental Compliance
Download Datasheet Parametric Compare View All

B5740-216-F-D-0 Overview

Board Connector, 16 Contact(s), 2 Row(s), Female, 0.079 inch Pitch, Crimp Terminal, Locking, Black Insulator, Socket, ROHS COMPLIANT

B5740-216-F-D-0 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
package instructionROHS COMPLIANT
Reach Compliance Codecompliant
ECCN codeEAR99
body width0.215 inch
subject depth0.321 inch
body length0.754 inch
Body/casing typeSOCKET
Connector typeBOARD CONNECTOR
Contactor designPREASSEM CONN
Contact to complete cooperationGOLD
Contact completed and terminatedTIN
Contact point genderFEMALE
Contact materialBERYLLIUM COPPER
contact modeRECTANGULAR
Contact resistance25 mΩ
Contact styleRND PIN-SKT
DIN complianceNO
Durability500 Cycles
Filter functionNO
IEC complianceNO
Insulation resistance100000000 Ω
Insulator colorBLACK
insulator materialGLASS FILLED POLYBUTYLENE TEREPHTHALATE
JESD-609 codee3
MIL complianceNO
Manufacturer's serial numberB5740
Plug contact pitch0.079 inch
Match contact row spacing0.079 inch
Mixed contactsNO
Installation option 1LOCKING
Installation typeCABLE
Number of rows loaded2
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
OptionsGENERAL PURPOSE
polarization keyPOLARIZED HOUSING
Rated current (signal)3 A
GuidelineUL
reliabilityCOMMERCIAL
Termination typeCRIMP
Total number of contacts16
UL Flammability Code94V-0
Maximum wire diameter22 AWG
Minimum wire diameter22 AWG
Base Number Matches1

Preview

Download Datasheet

B5740-216-F-D-0 Related Products

B5740-216-F-D-0 B5740-208-F-D-0 B5740-206-F-D-0 B5740-204-F-D-0 B5740-212-F-D-0 B5740-214-F-D-0 B5740-220-F-D-0 B5740-226-F-D-0 B5740-234-F-D-0 B5740-218-F-D-0
Description Board Connector, 16 Contact(s), 2 Row(s), Female, 0.079 inch Pitch, Crimp Terminal, Locking, Black Insulator, Socket, ROHS COMPLIANT Board Connector, 8 Contact(s), 2 Row(s), Female, 0.079 inch Pitch, Crimp Terminal, Locking, Black Insulator, Socket, ROHS COMPLIANT Board Connector, 6 Contact(s), 2 Row(s), Female, 0.079 inch Pitch, Crimp Terminal, Locking, Black Insulator, Socket, ROHS COMPLIANT Board Connector, 4 Contact(s), 2 Row(s), Female, 0.079 inch Pitch, Crimp Terminal, Locking, Black Insulator, Socket, ROHS COMPLIANT Board Connector, 12 Contact(s), 2 Row(s), Female, 0.079 inch Pitch, Crimp Terminal, Locking, Black Insulator, Socket, ROHS COMPLIANT Board Connector, 14 Contact(s), 2 Row(s), Female, 0.079 inch Pitch, Crimp Terminal, Locking, Black Insulator, Socket, ROHS COMPLIANT Board Connector, 20 Contact(s), 2 Row(s), Female, 0.079 inch Pitch, Crimp Terminal, Locking, Black Insulator, Socket, ROHS COMPLIANT Board Connector, 26 Contact(s), 2 Row(s), Female, 0.079 inch Pitch, Crimp Terminal, Locking, Black Insulator, Socket, ROHS COMPLIANT Board Connector, 34 Contact(s), 2 Row(s), Female, 0.079 inch Pitch, Crimp Terminal, Locking, Black Insulator, Socket, ROHS COMPLIANT Board Connector, 18 Contact(s), 2 Row(s), Female, 0.079 inch Pitch, Crimp Terminal, Locking, Black Insulator, Socket, ROHS COMPLIANT
Is it lead-free? Lead free Lead free Lead free Lead free Lead free Lead free Lead free Lead free Lead free Lead free
Is it Rohs certified? conform to conform to conform to conform to conform to conform to conform to conform to conform to conform to
package instruction ROHS COMPLIANT ROHS COMPLIANT ROHS COMPLIANT ROHS COMPLIANT ROHS COMPLIANT ROHS COMPLIANT ROHS COMPLIANT ROHS COMPLIANT ROHS COMPLIANT ROHS COMPLIANT
Reach Compliance Code compliant compliant compliant compliant compliant compliant compliant compliant compliant compliant
ECCN code EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99
body width 0.215 inch 0.215 inch 0.215 inch 0.215 inch 0.215 inch 0.215 inch 0.215 inch 0.215 inch 0.215 inch 0.215 inch
subject depth 0.321 inch 0.321 inch 0.321 inch 0.321 inch 0.321 inch 0.321 inch 0.321 inch 0.321 inch 0.321 inch 0.321 inch
body length 0.754 inch 0.439 inch 0.36 inch 0.281 inch 0.596 inch 0.675 inch 0.911 inch 1.148 inch 1.463 inch 0.833 inch
Body/casing type SOCKET SOCKET SOCKET SOCKET SOCKET SOCKET SOCKET SOCKET SOCKET SOCKET
Connector type BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR
Contactor design PREASSEM CONN PREASSEM CONN PREASSEM CONN PREASSEM CONN PREASSEM CONN PREASSEM CONN PREASSEM CONN PREASSEM CONN PREASSEM CONN PREASSEM CONN
Contact to complete cooperation GOLD NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED GOLD GOLD GOLD GOLD GOLD NOT SPECIFIED
Contact completed and terminated TIN TIN TIN TIN TIN TIN TIN TIN TIN TIN
Contact point gender FEMALE FEMALE FEMALE FEMALE FEMALE FEMALE FEMALE FEMALE FEMALE FEMALE
Contact material BERYLLIUM COPPER NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED BERYLLIUM COPPER BERYLLIUM COPPER BERYLLIUM COPPER BERYLLIUM COPPER BERYLLIUM COPPER NOT SPECIFIED
contact mode RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Contact resistance 25 mΩ 25 mΩ 25 mΩ 25 mΩ 25 mΩ 25 mΩ 25 mΩ 25 mΩ 25 mΩ 25 mΩ
Contact style RND PIN-SKT RND PIN-SKT RND PIN-SKT RND PIN-SKT RND PIN-SKT RND PIN-SKT RND PIN-SKT RND PIN-SKT RND PIN-SKT RND PIN-SKT
DIN compliance NO NO NO NO NO NO NO NO NO NO
Durability 500 Cycles 500 Cycles 500 Cycles 500 Cycles 500 Cycles 500 Cycles 500 Cycles 500 Cycles 500 Cycles 500 Cycles
Filter function NO NO NO NO NO NO NO NO NO NO
IEC compliance NO NO NO NO NO NO NO NO NO NO
Insulation resistance 100000000 Ω 100000000 Ω 100000000 Ω 100000000 Ω 100000000 Ω 100000000 Ω 100000000 Ω 100000000 Ω 100000000 Ω 100000000 Ω
Insulator color BLACK BLACK BLACK BLACK BLACK BLACK BLACK BLACK BLACK BLACK
insulator material GLASS FILLED POLYBUTYLENE TEREPHTHALATE GLASS FILLED POLYBUTYLENE TEREPHTHALATE GLASS FILLED POLYBUTYLENE TEREPHTHALATE GLASS FILLED POLYBUTYLENE TEREPHTHALATE GLASS FILLED POLYBUTYLENE TEREPHTHALATE GLASS FILLED POLYBUTYLENE TEREPHTHALATE GLASS FILLED POLYBUTYLENE TEREPHTHALATE GLASS FILLED POLYBUTYLENE TEREPHTHALATE GLASS FILLED POLYBUTYLENE TEREPHTHALATE GLASS FILLED POLYBUTYLENE TEREPHTHALATE
JESD-609 code e3 e3 e3 e3 e3 e3 e3 e3 e3 e3
MIL compliance NO NO NO NO NO NO NO NO NO NO
Plug contact pitch 0.079 inch 0.079 inch 0.079 inch 0.079 inch 0.079 inch 0.079 inch 0.079 inch 0.079 inch 0.079 inch 0.079 inch
Match contact row spacing 0.079 inch 0.079 inch 0.079 inch 0.079 inch 0.079 inch 0.079 inch 0.079 inch 0.079 inch 0.079 inch 0.079 inch
Mixed contacts NO NO NO NO NO NO NO NO NO NO
Installation option 1 LOCKING LOCKING LOCKING LOCKING LOCKING LOCKING LOCKING LOCKING LOCKING LOCKING
Installation type CABLE CABLE CABLE CABLE CABLE CABLE CABLE CABLE CABLE CABLE
Number of rows loaded 2 2 2 2 2 2 2 2 2 2
Maximum operating temperature 125 °C 125 °C 125 °C 125 °C 125 °C 125 °C 125 °C 125 °C 125 °C 125 °C
Minimum operating temperature -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C
Options GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE
polarization key POLARIZED HOUSING POLARIZED HOUSING POLARIZED HOUSING POLARIZED HOUSING POLARIZED HOUSING POLARIZED HOUSING POLARIZED HOUSING POLARIZED HOUSING POLARIZED HOUSING POLARIZED HOUSING
Rated current (signal) 3 A 3 A 3 A 3 A 3 A 3 A 3 A 3 A 3 A 3 A
Guideline UL UL UL UL UL UL UL UL UL UL
reliability COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL
Termination type CRIMP CRIMP CRIMP CRIMP CRIMP CRIMP CRIMP CRIMP CRIMP CRIMP
Total number of contacts 16 8 6 4 12 14 20 26 34 18
UL Flammability Code 94V-0 94V-0 94V-0 94V-0 94V-0 94V-0 94V-0 94V-0 94V-0 94V-0
Maximum wire diameter 22 AWG 22 AWG 22 AWG 22 AWG 22 AWG 22 AWG 22 AWG 22 AWG 22 AWG 22 AWG
Minimum wire diameter 22 AWG 22 AWG 22 AWG 22 AWG 22 AWG 22 AWG 22 AWG 22 AWG 22 AWG 22 AWG
Manufacturer's serial number B5740 - - - B5740 B5740 B5740 B5740 B5740 -
Base Number Matches 1 1 1 1 1 1 1 1 1 -
