9008-417-501/P012 datasheet, PDF

9008-417-501/P012: DescriptionBoard Connector, 34 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Surface Mount Terminal, Black Insulator, Plug; CategoryThe connector The connector; File Size173KB，1 Pages; ManufacturerMethode Electronics Inc.

Download Datasheet Parametric View All

9008-417-501/P012 Overview

Board Connector, 34 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Surface Mount Terminal, Black Insulator, Plug

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	W/PICK & PLACE PAD
body width	0.198 inch
subject depth	0.295 inch
body length	1.7 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN/LEAD OVER NICKEL
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1500VAC V
maximum insertion force	2.78 N
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYCARBONATE
Manufacturer's serial number	9000
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.969 mm
Plating thickness	30u inch
polarization key	POLAR PIN POSITION
Rated current (signal)	3 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length
Terminal pitch	2.54 mm
Termination type	SURFACE MOUNT
Total number of contacts	34
Evacuation force-minimum value	.556 N
Base Number Matches	1

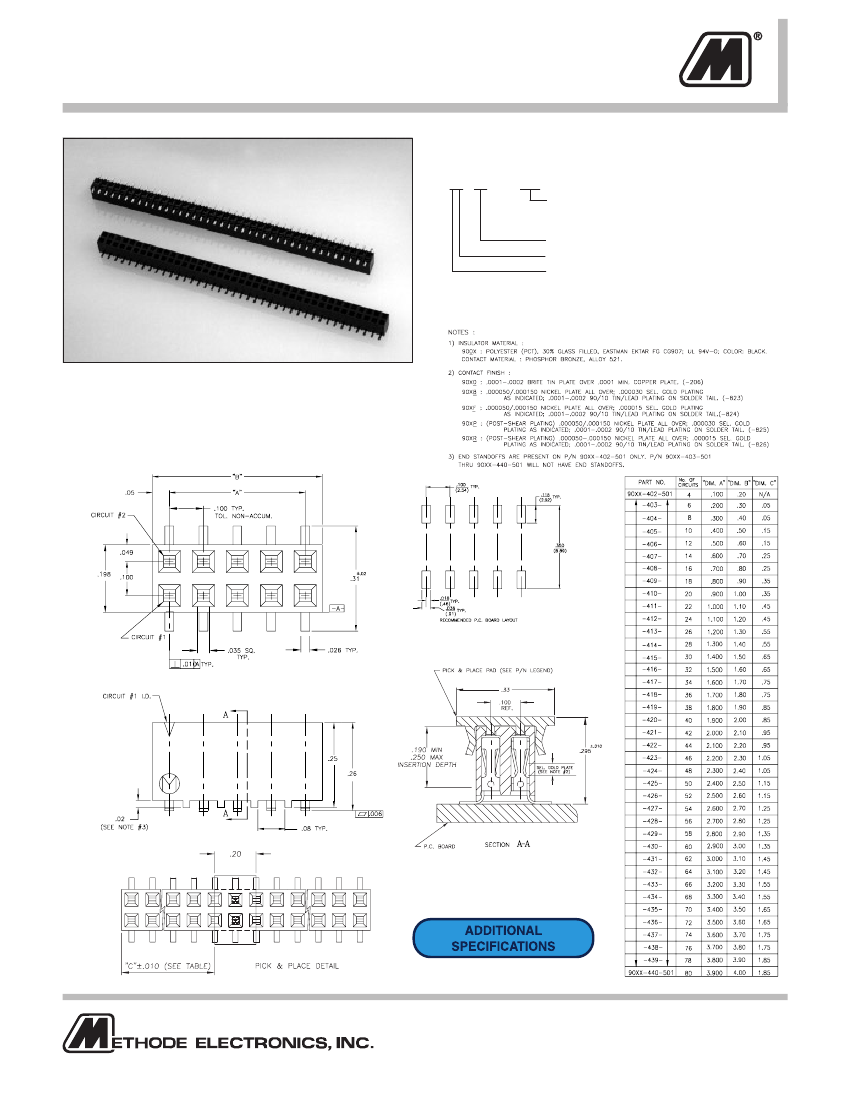

.100” (2.54mm) Surface Mount

Dual Row Vertical Connectors

9000 SERIES “POST/BOXE”

PART NUMBER LEGEND

90XX-4XX-501/PXXX

PACKAGING OPTION

PO12 = W/PICK & PLACE PAD AND TAPE & REEL

PACKAGING

NUMBER OF POSITIONS PER ROW

(SEE TABLE)

CONTACT FINISH

(SEE NOTE 2)

INSULATOR MATERIAL

(SEE NOTE 1)

MATING HEADERS: 9100 SERIES

Connector Products

1700 Hicks Road • Rolling Meadows, IL 60008 USA

Telephone: 847.392.3500 • Fax: 847.392.9404

email: mcpsales@methode.com • Web Page: www.methode.com
