MPS2907-18 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> MPS2907-18

Preview

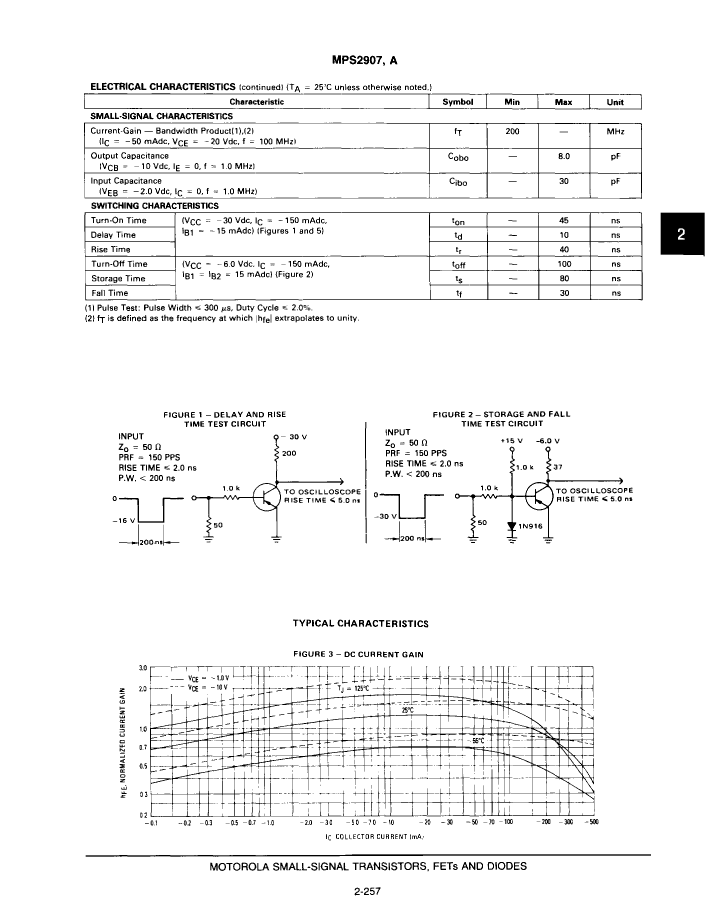

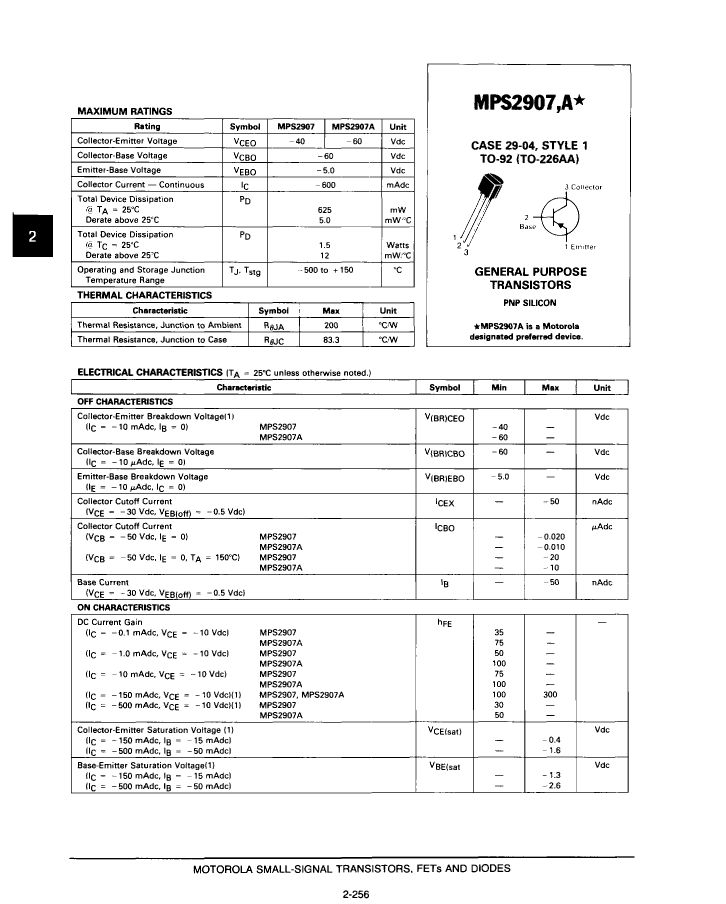

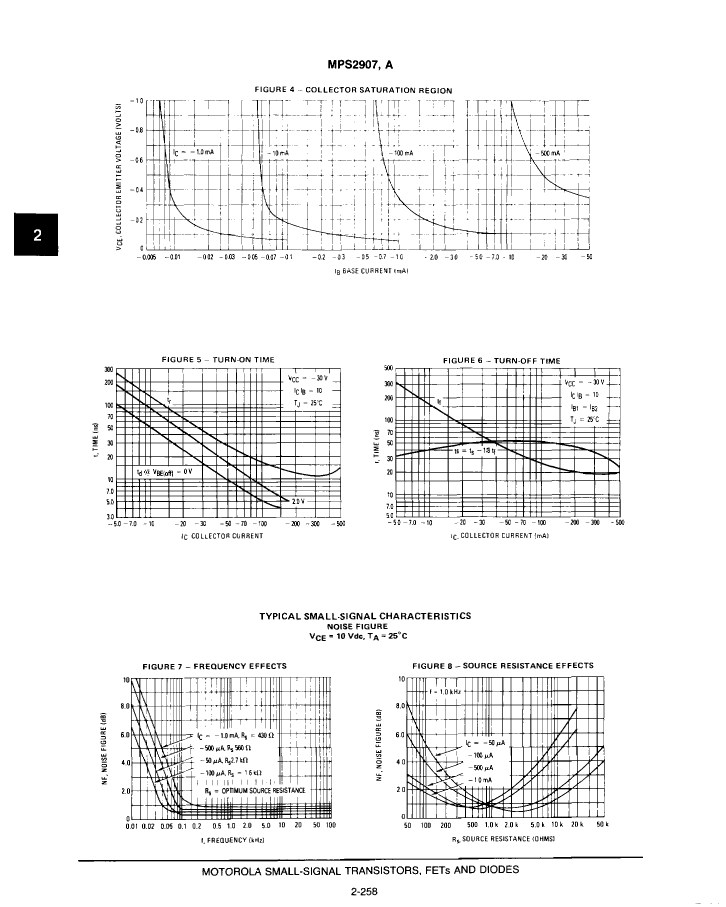

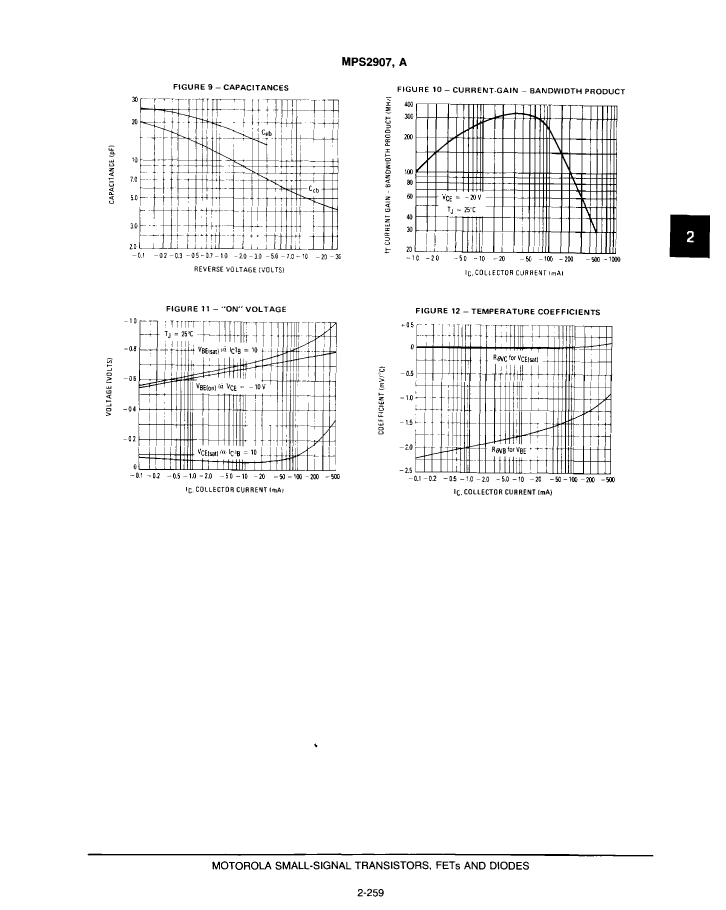

MPS2907-18: DescriptionSmall Signal Bipolar Transistor, 0.6A I(C), 40V V(BR)CEO, 1-Element, PNP, Silicon; CategoryDiscrete semiconductor The transistor; File Size128KB，4 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

MPS2907-18 Overview

Small Signal Bipolar Transistor, 0.6A I(C), 40V V(BR)CEO, 1-Element, PNP, Silicon

MPS2907-18 Parametric

Parameter Name	Attribute value
package instruction	CYLINDRICAL, O-PBCY-T3
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum collector current (IC)	0.6 A
Collector-based maximum capacity	8 pF
Collector-emitter maximum voltage	40 V
Configuration	SINGLE
Minimum DC current gain (hFE)	75
JESD-30 code	O-PBCY-T3
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	CYLINDRICAL
Polarity/channel type	PNP
Maximum power consumption environment	1.5 W
Certification status	Not Qualified
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	BOTTOM
Transistor component materials	SILICON
Nominal transition frequency (fT)	200 MHz
Maximum off time (toff)	100 ns
Maximum opening time (tons)	45 ns
VCEsat-Max	1.6 V
Base Number Matches	1

Preview

Download Datasheet

View All

MPS2907-18 Related Products

	MPS2907-18	MPS2907-5	MPS2907A5	MPS2907A18
Description	Small Signal Bipolar Transistor, 0.6A I(C), 40V V(BR)CEO, 1-Element, PNP, Silicon	600mA, 40V, PNP, Si, SMALL SIGNAL TRANSISTOR	600mA, 60V, PNP, Si, SMALL SIGNAL TRANSISTOR	600mA, 60V, PNP, Si, SMALL SIGNAL TRANSISTOR
package instruction	CYLINDRICAL, O-PBCY-T3	CYLINDRICAL, O-PBCY-T3	CYLINDRICAL, O-PBCY-T3	CYLINDRICAL, O-PBCY-T3
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
Maximum collector current (IC)	0.6 A	0.6 A	0.6 A	0.6 A
Collector-based maximum capacity	8 pF	8 pF	8 pF	8 pF
Collector-emitter maximum voltage	40 V	40 V	60 V	60 V
Configuration	SINGLE	SINGLE	SINGLE	SINGLE
Minimum DC current gain (hFE)	75	75	100	100
JESD-30 code	O-PBCY-T3	O-PBCY-T3	O-PBCY-T3	O-PBCY-T3
Number of components	1	1	1	1
Number of terminals	3	3	3	3
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	ROUND	ROUND	ROUND	ROUND
Package form	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL
Polarity/channel type	PNP	PNP	PNP	PNP
Maximum power consumption environment	1.5 W	1.5 W	1.5 W	1.5 W
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	BOTTOM	BOTTOM	BOTTOM	BOTTOM
Transistor component materials	SILICON	SILICON	SILICON	SILICON
Nominal transition frequency (fT)	200 MHz	200 MHz	200 MHz	200 MHz
Maximum off time (toff)	100 ns	100 ns	100 ns	100 ns
Maximum opening time (tons)	45 ns	45 ns	45 ns	45 ns
VCEsat-Max	1.6 V	1.6 V	1.6 V	1.6 V
Base Number Matches	1	-	1	1
