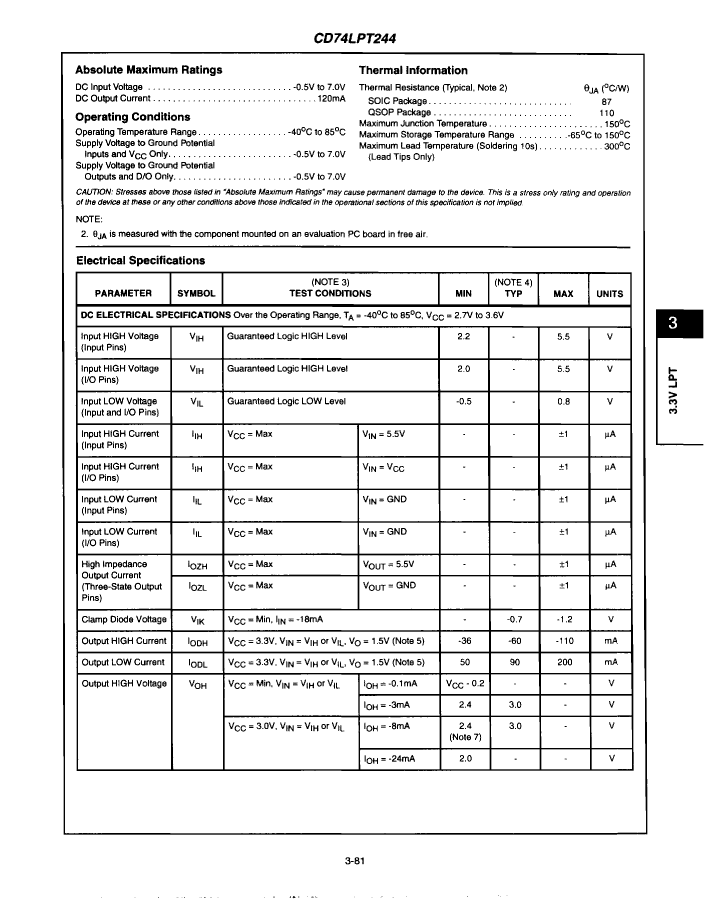

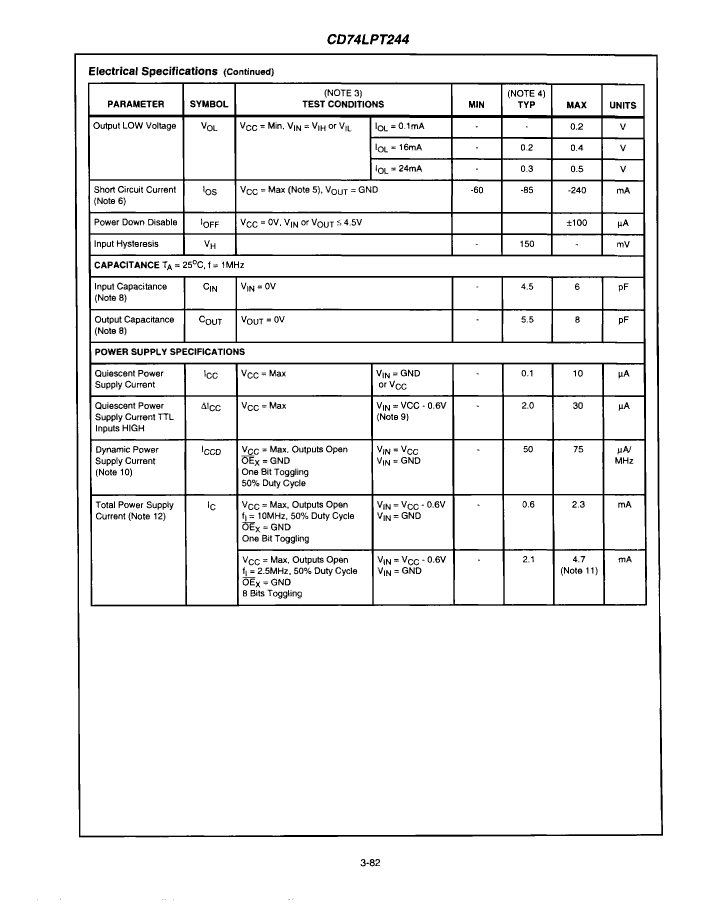

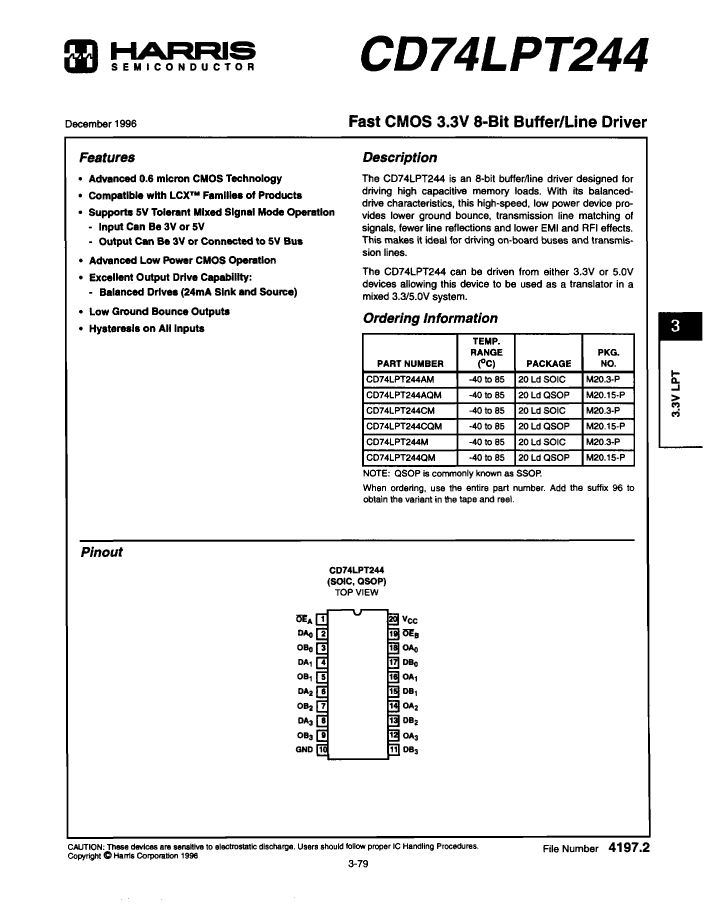

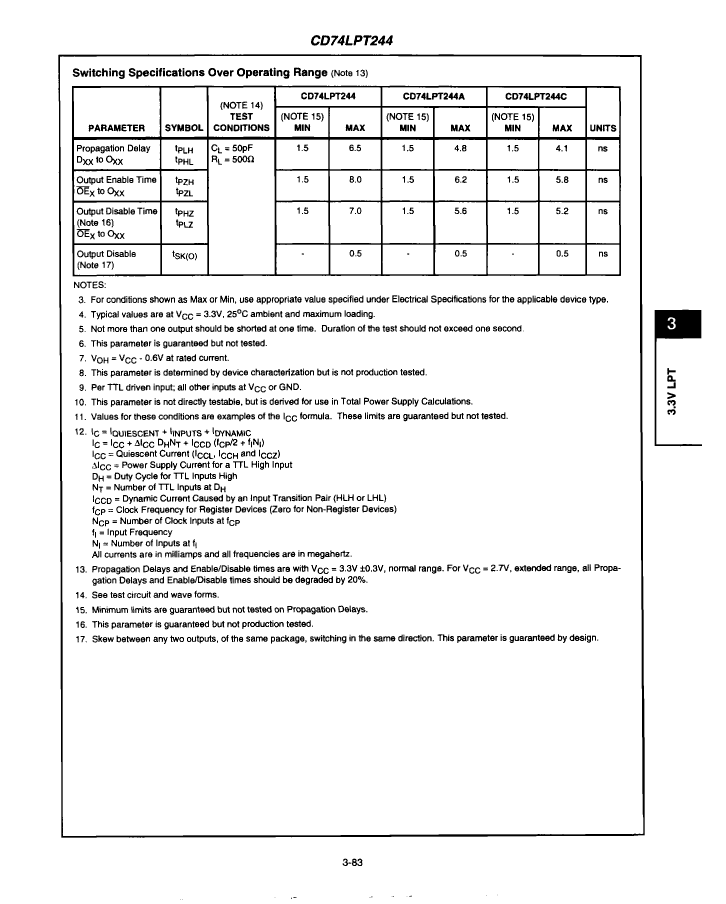

CD74LPT244M96: DescriptionBus Driver, LPT Series, 2-Func, 4-Bit, True Output, CMOS, PDSO20; Categorylogic logic; File Size143KB，6 Pages; ManufacturerHarris; Websitehttp://www.harris.com/

Download Datasheet Parametric View All

CD74LPT244M96 Overview

Bus Driver, LPT Series, 2-Func, 4-Bit, True Output, CMOS, PDSO20

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknown
series	LPT
JESD-30 code	R-PDSO-G20
Load capacitance (CL)	50 pF
Logic integrated circuit type	BUS DRIVER
Number of digits	4
Number of functions	2
Number of ports	2
Number of terminals	20
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
propagation delay (tpd)	6.5 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	2.7 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal location	DUAL
Base Number Matches	1
