HA13442S: DescriptionBRUSHLESS DC MOTOR CONTROLLER, 2 A, PSFM23; CategoryOther integrated circuit (IC) The signal circuit; File Size146KB，6 Pages; ManufacturerHitachi （Renesas ）; Websitehttp://www.renesas.com/eng/

Download Datasheet Parametric Compare View All

HA13442S Overview

BRUSHLESS DC MOTOR CONTROLLER, 2 A, PSFM23

HA13442S Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Hitachi （Renesas ）
package instruction	, SIP23,50
Reach Compliance Code	unknow
ECCN code	EAR99
Analog Integrated Circuits - Other Types	BRUSHLESS DC MOTOR CONTROLLER
JESD-30 code	R-PSFM-G23
JESD-609 code	e0
Number of functions	1
Number of terminals	23
Maximum output current	4 A
Package body material	PLASTIC/EPOXY
Encapsulate equivalent code	SIP23,50
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	12 V
Certification status	Not Qualified
Maximum supply current (Isup)	36 mA
Maximum supply voltage (Vsup)	13.8 V
Minimum supply voltage (Vsup)	10.2 V
Nominal supply voltage (Vsup)	12 V
surface mount	YES
technology	BIPOLAR
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	2.54 mm
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED

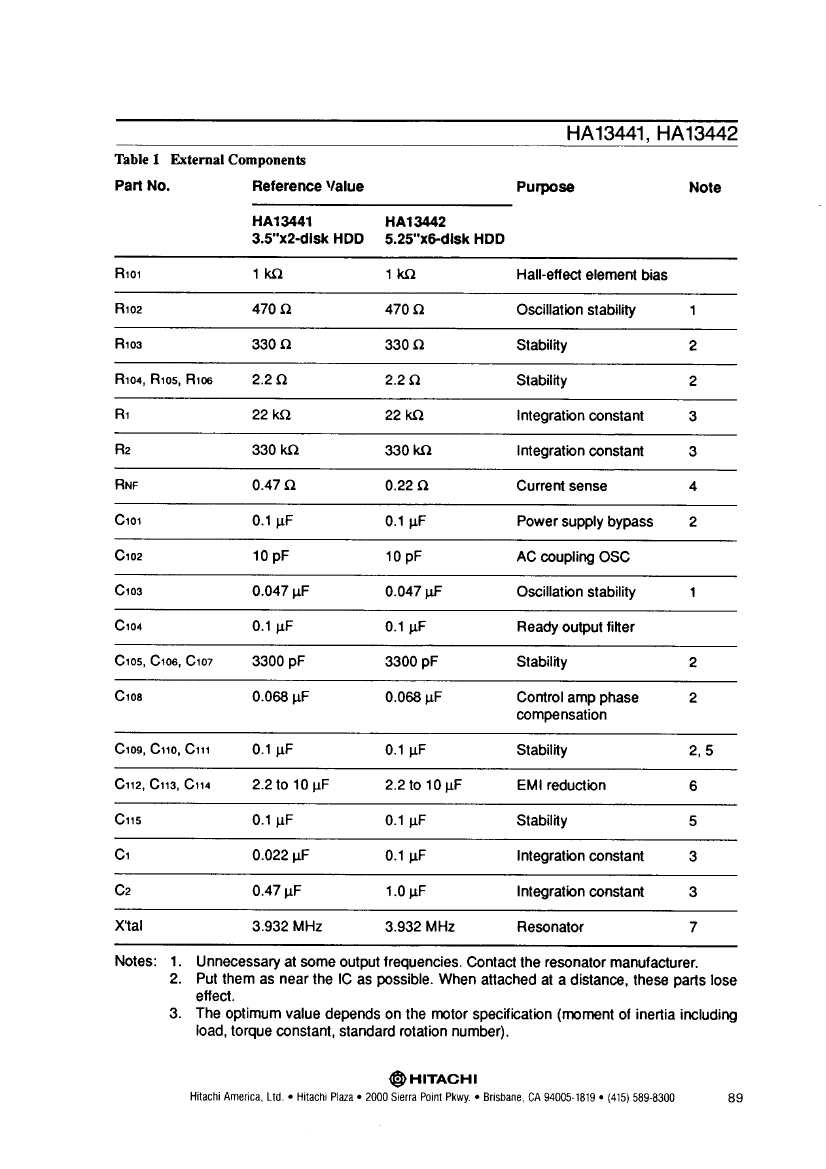

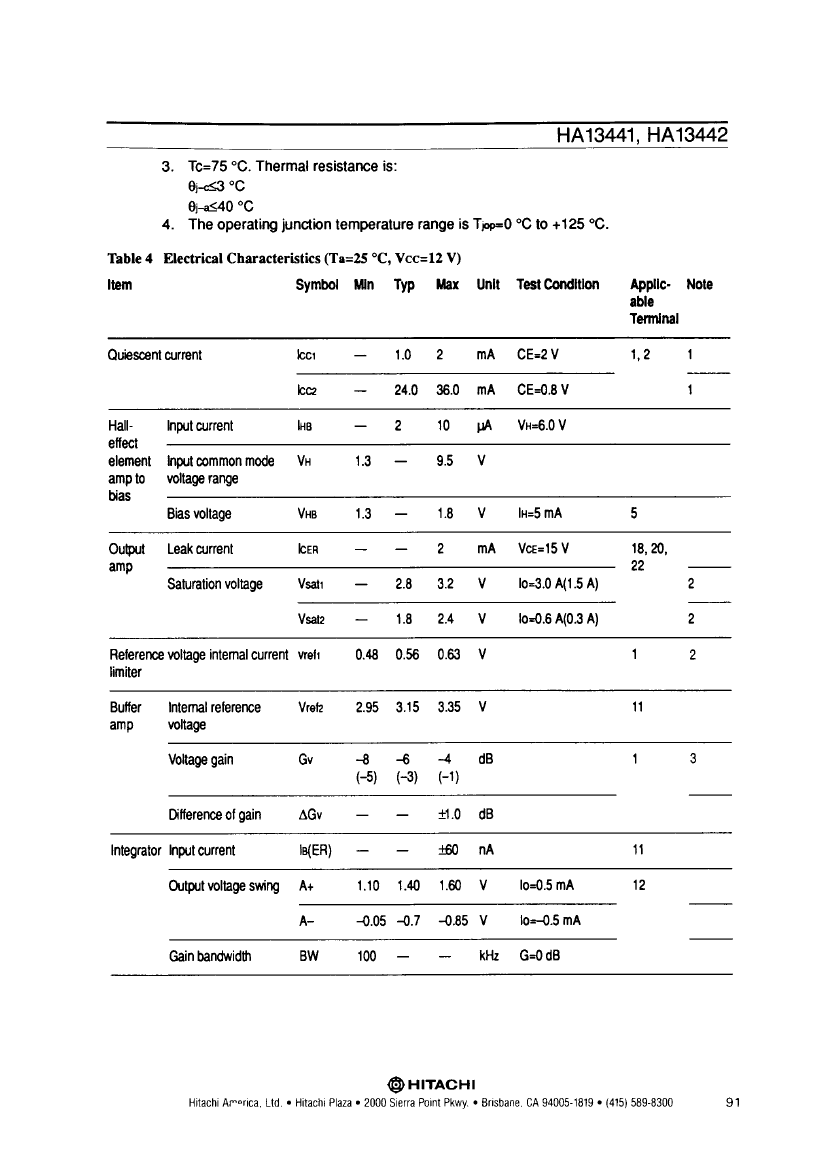

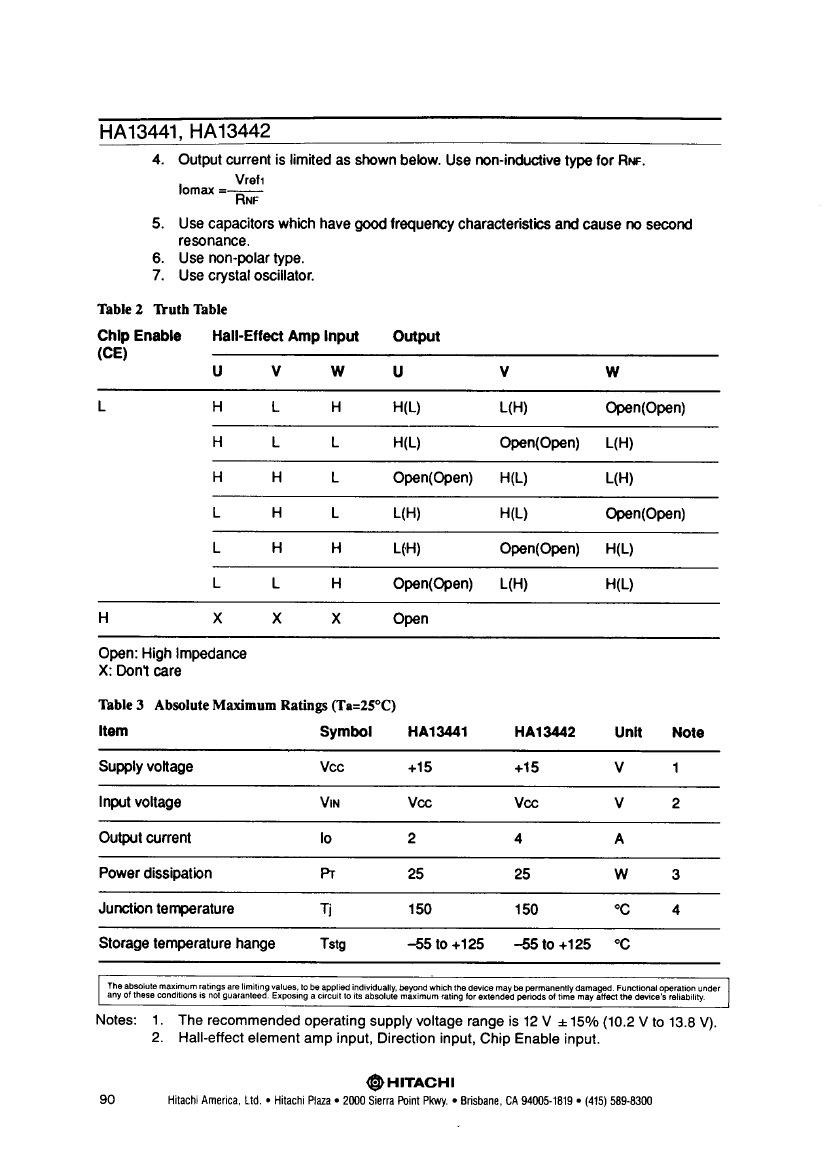

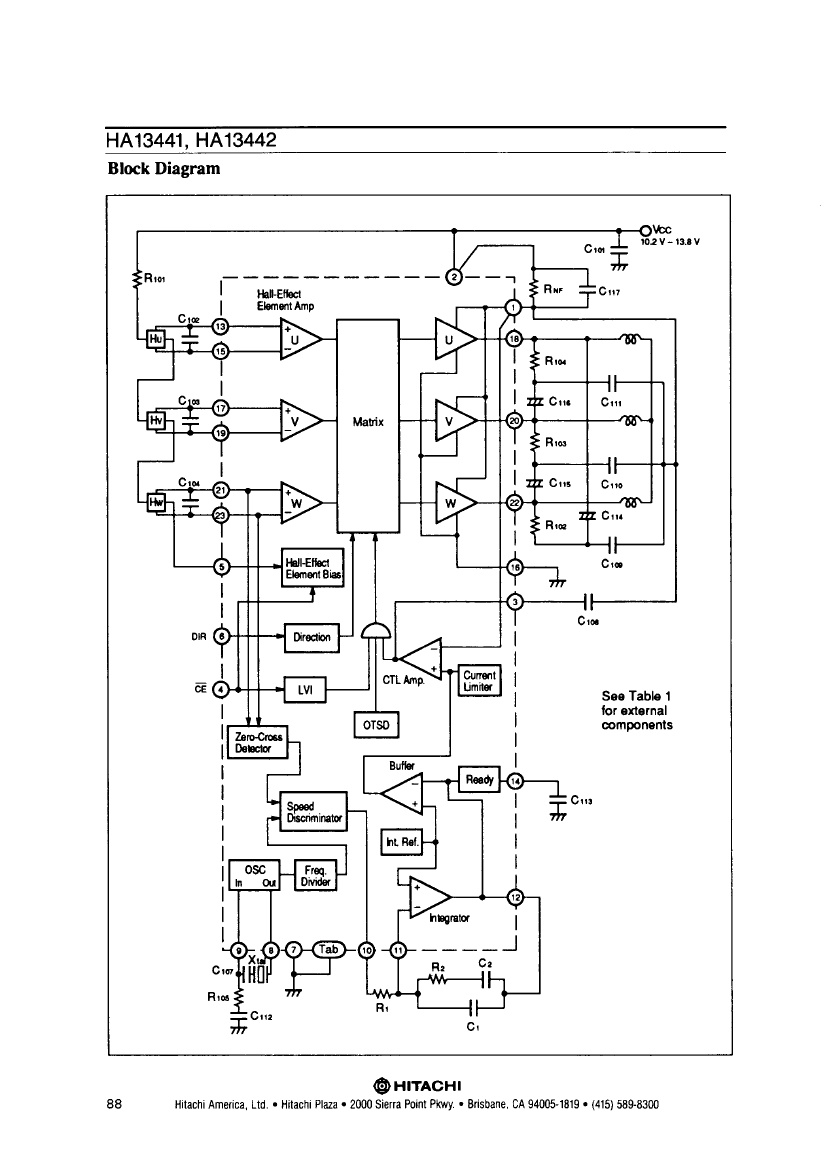

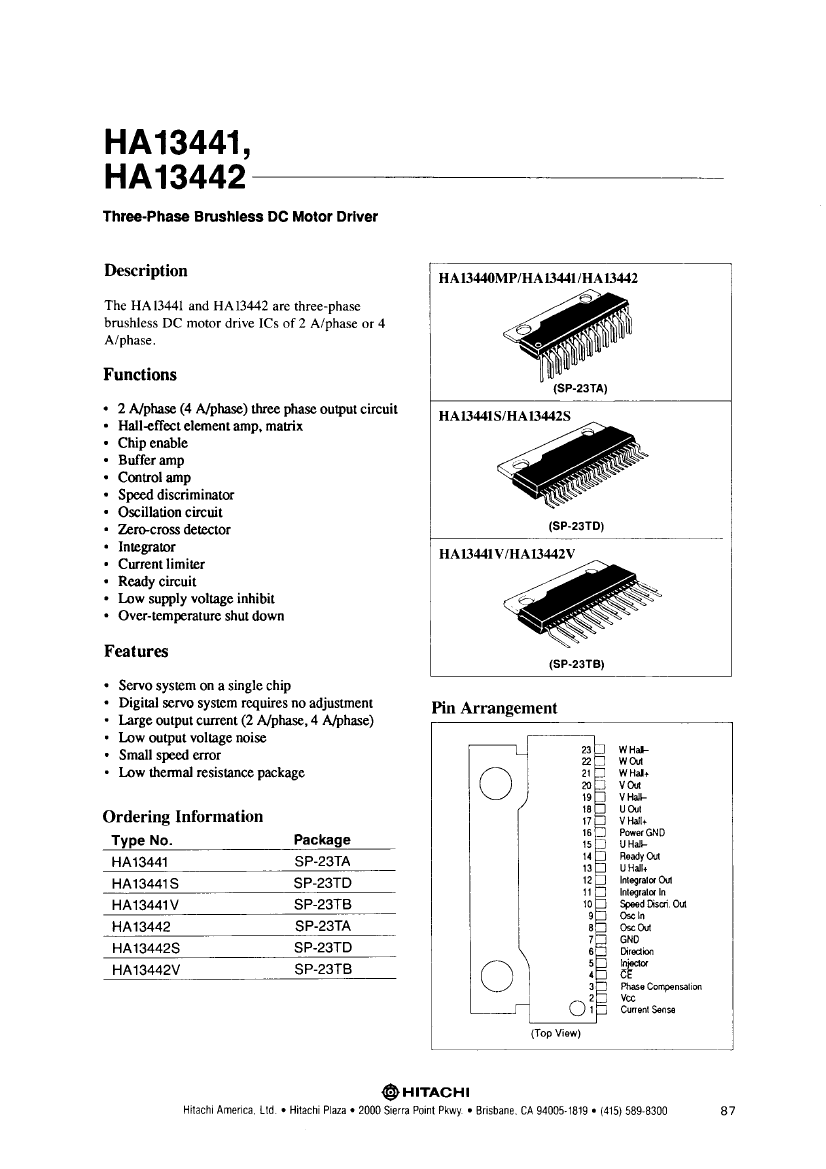

Preview

Download Datasheet

View All

HA13442S Related Products

	HA13442S	HA13441	HA13441S	HA13441V	HA13442	HA1344SV
Description	BRUSHLESS DC MOTOR CONTROLLER, 2 A, PSFM23	BRUSHLESS DC MOTOR CONTROLLER, 2 A, PSFM23	BRUSHLESS DC MOTOR CONTROLLER, 2 A, PSFM23	BRUSHLESS DC MOTOR CONTROLLER, 2 A, PZFM23	BRUSHLESS DC MOTOR CONTROLLER, 2 A, PSFM23	BRUSHLESS DC MOTOR CONTROLLER, 2 A, PSFM23
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	-
Maker	Hitachi （Renesas ）	Hitachi （Renesas ）	Hitachi （Renesas ）	Hitachi （Renesas ）	Hitachi （Renesas ）	-
package instruction	, SIP23,50	ZIP, ZIP23H,.09,.6TB	, SIP23,50	ZIP, ZIP23,.09	ZIP, ZIP15H,.1,.8TB	-
Reach Compliance Code	unknow	unknow	unknow	unknow	unknow	-
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	-
Analog Integrated Circuits - Other Types	BRUSHLESS DC MOTOR CONTROLLER	BRUSHLESS DC MOTOR CONTROLLER	BRUSHLESS DC MOTOR CONTROLLER	BRUSHLESS DC MOTOR CONTROLLER	BRUSHLESS DC MOTOR CONTROLLER	-
JESD-30 code	R-PSFM-G23	R-PZFM-T23	R-PSFM-G23	R-PZFM-T23	R-PZFM-T23	-
JESD-609 code	e0	e0	e0	e0	e0	-
Number of functions	1	1	1	1	1	-
Number of terminals	23	23	23	23	23	-
Maximum output current	4 A	2 A	2 A	2 A	4 A	-
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	-
Encapsulate equivalent code	SIP23,50	ZIP23H,.09,.6TB	SIP23,50	ZIP23,.09	ZIP15H,.1,.8TB	-
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	-
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-
power supply	12 V	12 V	12 V	12 V	12 V	-
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-
Maximum supply current (Isup)	36 mA	36 mA	36 mA	36 mA	36 mA	-
Maximum supply voltage (Vsup)	13.8 V	13.8 V	13.8 V	13.8 V	13.8 V	-
Minimum supply voltage (Vsup)	10.2 V	10.2 V	10.2 V	10.2 V	10.2 V	-
Nominal supply voltage (Vsup)	12 V	12 V	12 V	12 V	12 V	-
surface mount	YES	NO	YES	NO	NO	-
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	-
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-
Terminal form	GULL WING	THROUGH-HOLE	GULL WING	THROUGH-HOLE	THROUGH-HOLE	-
Terminal pitch	2.54 mm	1.27 mm	2.54 mm	1.27 mm	1.27 mm	-
Terminal location	SINGLE	ZIG-ZAG	SINGLE	ZIG-ZAG	ZIG-ZAG	-
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-
