61082-142620LF datasheet, PDF - EEWORLD Datasheet

61082-142620LF: DescriptionBergStak® 0.80mm Pitch, Receptacle, Vertical, Double Row, 140 Positions.; CategoryThe connector The connector; File Size2MB，7 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric View All

61082-142620LF Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	61082-142620LF	-	-	View	Buy Now

BergStak® 0.80mm Pitch, Receptacle, Vertical, Double Row, 140 Positions.

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1613875188
package instruction	LEAD FREE
Contacts	140
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	8.68
Board mount options	PEG
body width	0.236 inch
subject depth	0.146 inch
body length	2.433 inch
Body/casing type	RECEPTACLE
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Tin (Sn)
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	50 mΩ
Contact style	BELLOWED TYPE
DIN compliance	NO
Dielectric withstand voltage	707VAC V
Durability	100 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	0.9 N
Insulation resistance	1000000000 Ω
Insulator color	NATURAL
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.032 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	4.8 mm
Plating thickness	FLASH inch
polarization key	POLARIZED HOUSING
Rated current (signal)	0.8 A
Guideline	UL
Terminal pitch	0.8 mm
Termination type	SURFACE MOUNT
Total number of contacts	140
UL Flammability Code	94V-0
Evacuation force-minimum value	0.1 N

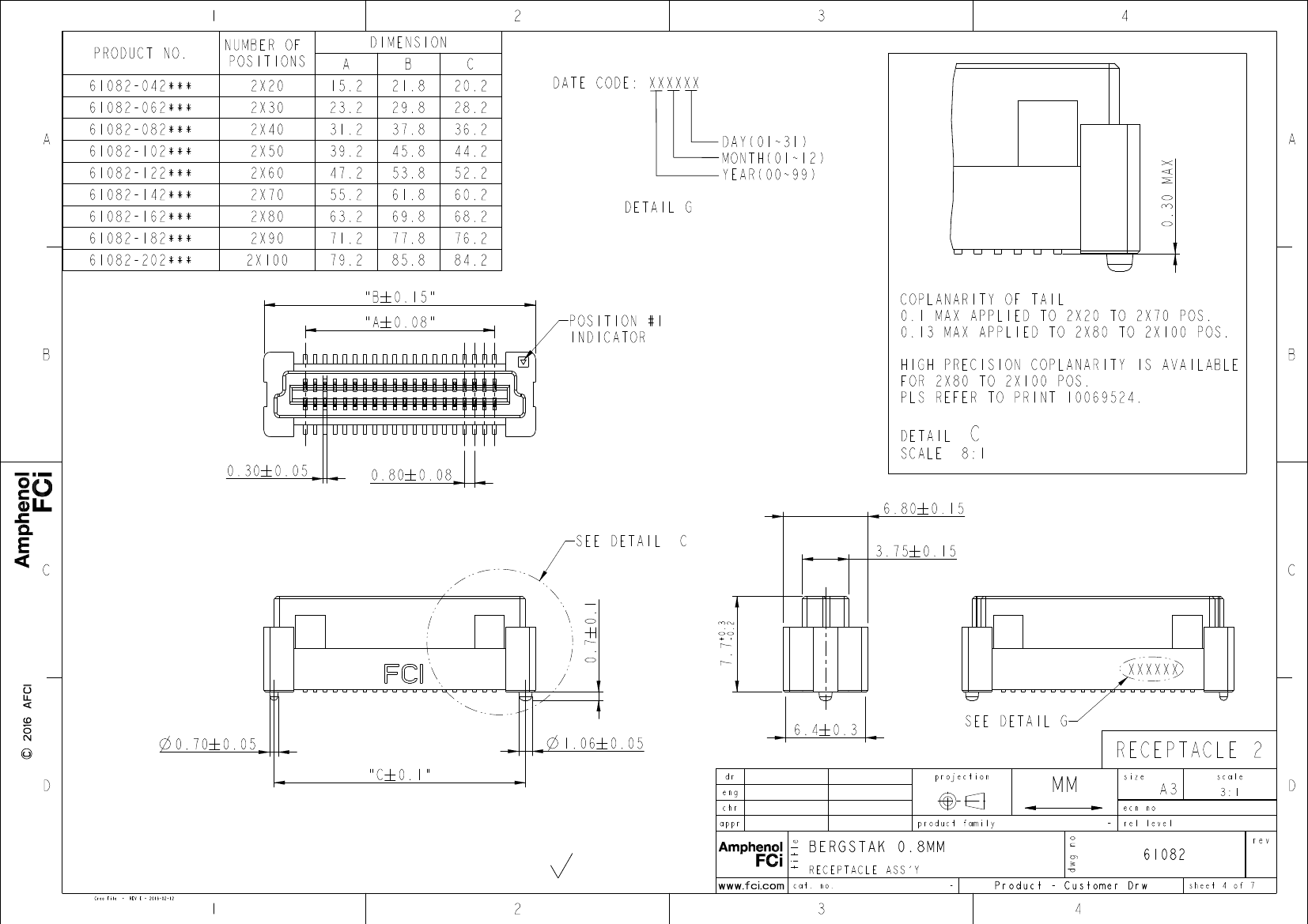

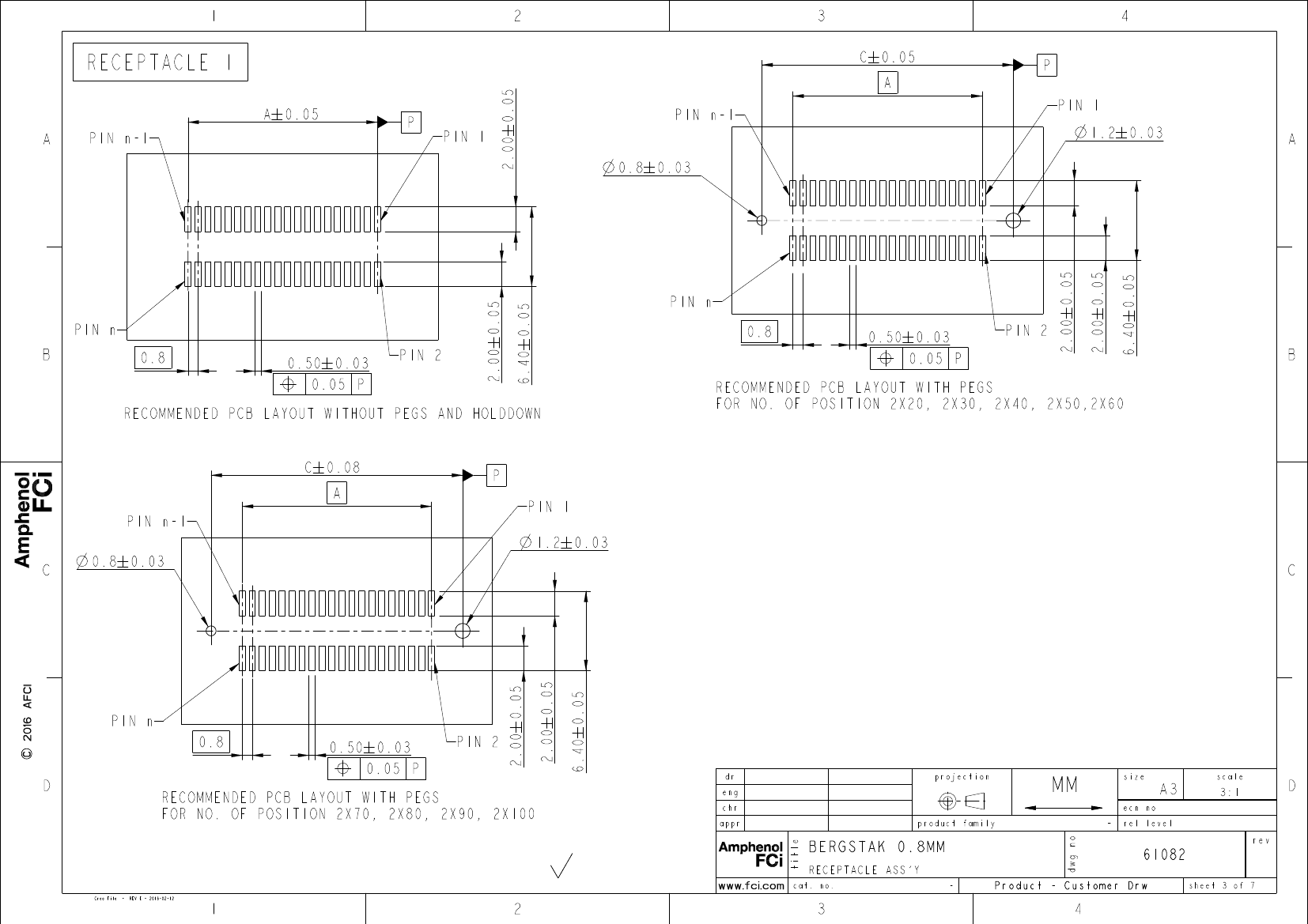

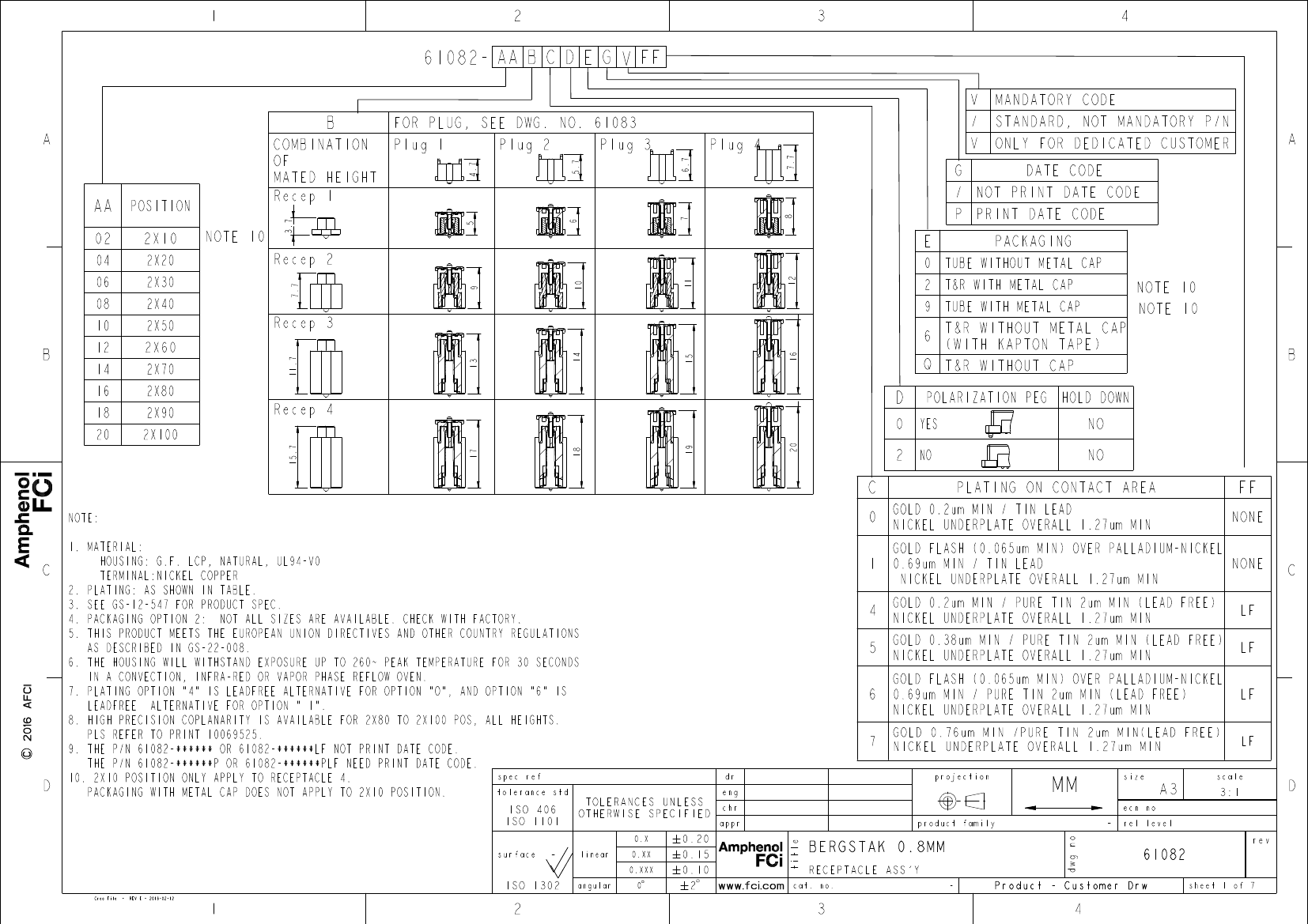

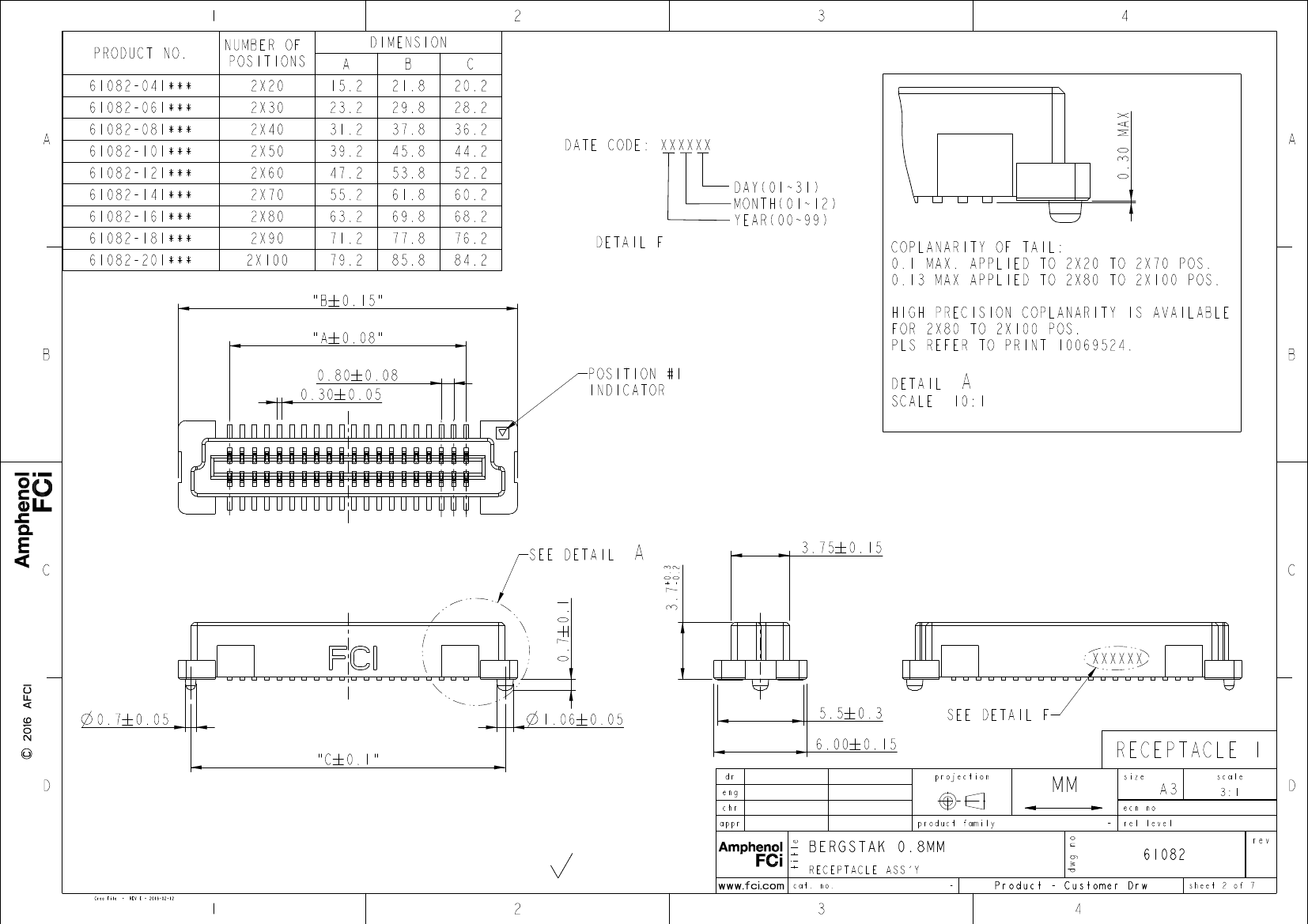

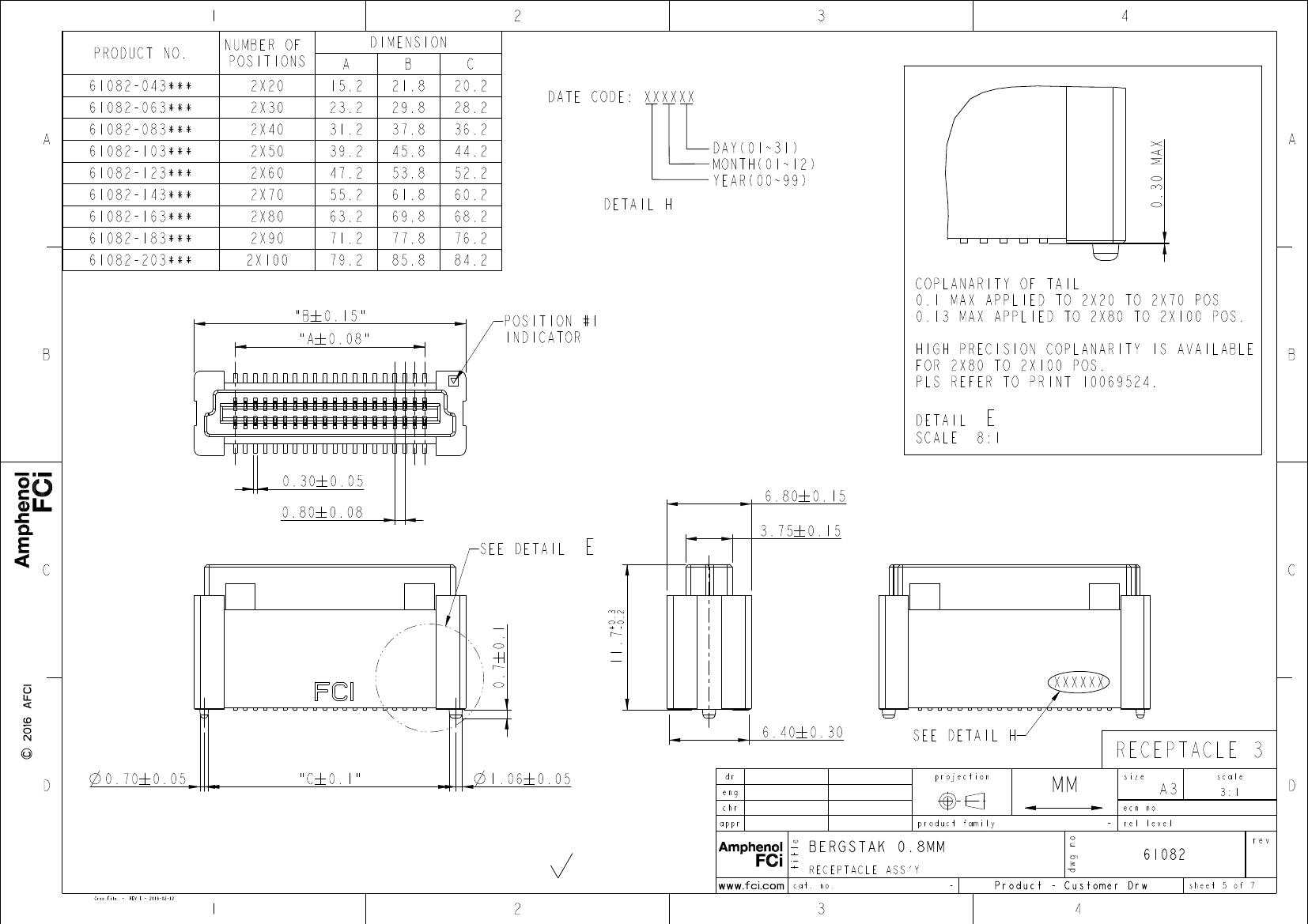

Matthew Cheong

Bob Gu

Tim Yao

2009/06/10

2017/04/14

ELX-N-26378-1

Released

PDS: Rev :AG

STATUS:Released

Printed: Apr 14, 2017
