609-10400-2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 609-10400-2

609-10400-2: DescriptionBoard Connector, 10 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Press Fit Terminal, Blue Insulator, Receptacle; CategoryThe connector The connector; File Size81KB，1 Pages; ManufacturerThomas & Betts Corporation; Websitehttp://www.tnb.com/

Download Datasheet Parametric View All

609-10400-2 Overview

Board Connector, 10 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Press Fit Terminal, Blue Insulator, Receptacle

609-10400-2 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	FLEX-FIT, POLARIZED
Board mount options	HOLE .099-.111
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	BLUE
insulator material	PHENOLIC
MIL compliance	NO
Manufacturer's serial number	609
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	30u inch
polarization key	CTR W/GUIDE SLOTS
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal pitch	2.54 mm
Termination type	PRESS FIT
Total number of contacts	10
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

IDC Systems

Headers

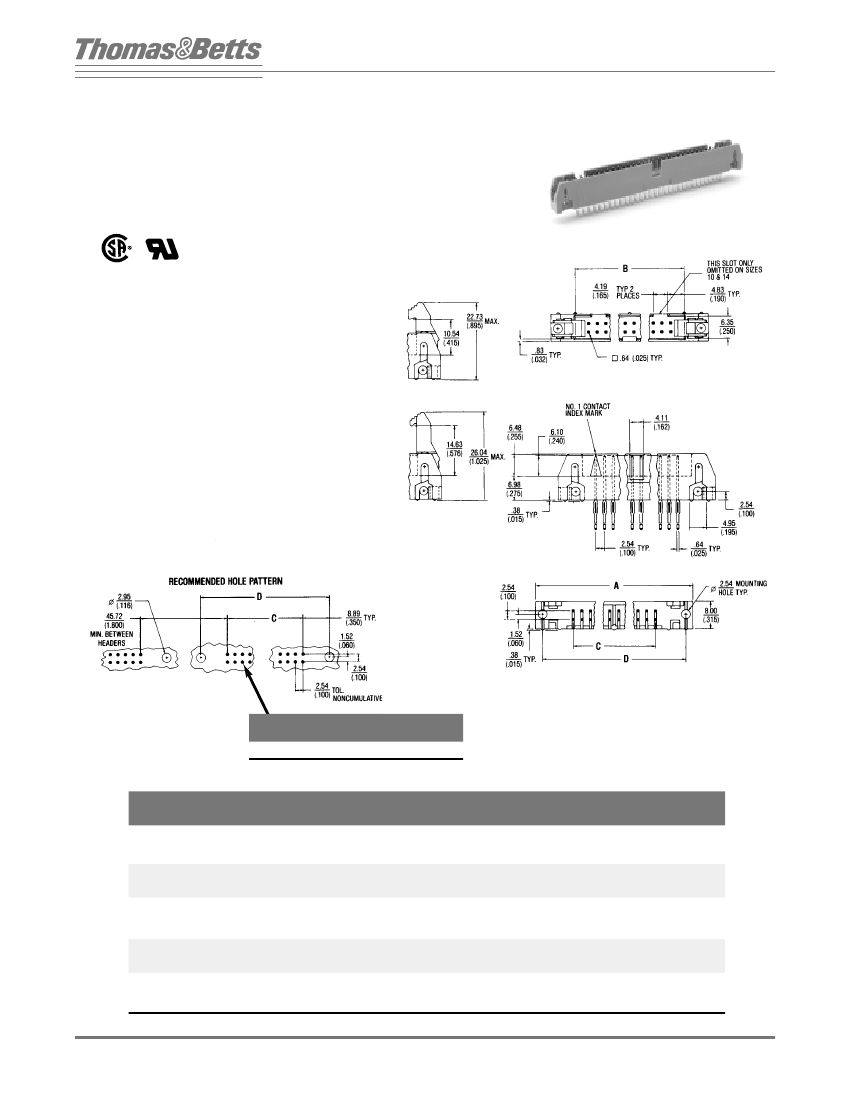

FLEX-FIT™ COMPLIANT

CONTACT HEADERS WITH

RETAINER/EJECTOR

OPTIONS

.100" x .100" CENTERS

LR92984

E60980

STYLE 1 CAT # 609-0004E

LATCH USED W/O STRAIN RELIEF

HYSICAL

ROPERTIES

NSULATION

ATERIAL

Glass filled thermoplastic

rated UL 94V-0

OLOR

Blue

ONTACT

ATERIAL

Phosphor bronze with 30µ

inches min. gold over 50µ inches min. nickel in

contact zone; tin/lead over nickel in termination area.

PCB T

HICKNESS

CCOMODATED

.062" - .125"

LECTRICAL

ROPERTIES

URRENT

ATING

1 Amp

NSULATION

ESISTANCE

>1 x 10

Ohms @ 500 VDC

IELECTRIC

TRENGTH

>1000 VRMS @ sea level

STYLE 2 CAT # 609-0004ES

LATCH USED WITH STRAIN RELIEF

NVIRONMENTAL

ROPERTIES

EMPERATURE

ATING

-55˚C TO 125°C

ATING

ONNECTORS

EMALE

SOCKETS

See pages 9-13

PPLICATION

OOLING

889-H7XX (XX = # positions)

HOLE DIA. ±.08 (±.003)

AFTER PLATING

1.02 (.040)

TYPE OF CONTACT

Flex-Fit™

• Press fit with or without ejector latches in place.

• Ejector/latches can be post mounted.

Ordering Information

STANDARD

W/O EJECTOR

609-10400-2

609-14400-2

609-16400-2

609-20400-2

609-26400-2

609-34400-2

609-40400-2

609-50400-2

609-60400-2

WITH STYLE 1

EJECTOR

609-10410-2

609-14410-2

609-16410-2

609-20410-2

609-26410-2

609-34410-2

609-40410-2

609-50410-2

609-60410-2

WITH STYLE 2

EJECTOR

609-10420-2

609-14420-2

609-16420-2

609-20420-2

609-26420-2

609-34420-2

609-40420-2

609-50420-2

609-60420-2

NO.

OF POS.

32.00 (1.260)

37.08 (1.460)

39.62 (1.560)

44.70 (1.760)

52.32 (2.060)

62.48 (2.460)

70.10 (2.760)

82.80 (3.260)

95.50 (3.760)

DIMENSIONS IN MM (INCHES)

10.16 (.400)

15.24 (.600)

17.78 (.700)

22.86 (.900)

30.48 (1.200)

40.64 (1.600)

48.26 (1.900)

60.96 (2.400)

73.66 (2.900)

78.74 (3.100)

27.94 (1.100)

33.02 (1.300)

35.56 (1.440)

40.64 (1.600)

48.26 (1.900)

58.42 (2.300)

66.04 (2.600)

78.74 (3.100)

91.44 (3.600)

96.52 (3.800)

17.53 (.690)

22.61 (.890)

25.15 (.990)

30.23 (1.190)

37.85 (1.490)

48.01 (1.890)

55.63 (2.190)

68.33 (2.690)

81.03 (3.190)

609-64400-2 609-64410-2

609-64420-2

*Latching Ears can be ordered separately.

100.58 (3.960) 86.11 (3.390)

Thomas & Betts Electronics/OEM Division Tel: 901-252-5000 Fax: 901-252-1312

Dimensions shown are for reference only. Dimensions are in millimeters (inches).
