74VHCT541T

Description
AHCT/VHCT/VT SERIES, 8-BIT DRIVER, TRUE OUTPUT, PDSO20, TSSOP-20
Categorylogic    logic
File Size269KB,7 Pages
ManufacturerSTMicroelectronics
Websitehttp://www.st.com/
Download Datasheet Parametric Compare View All

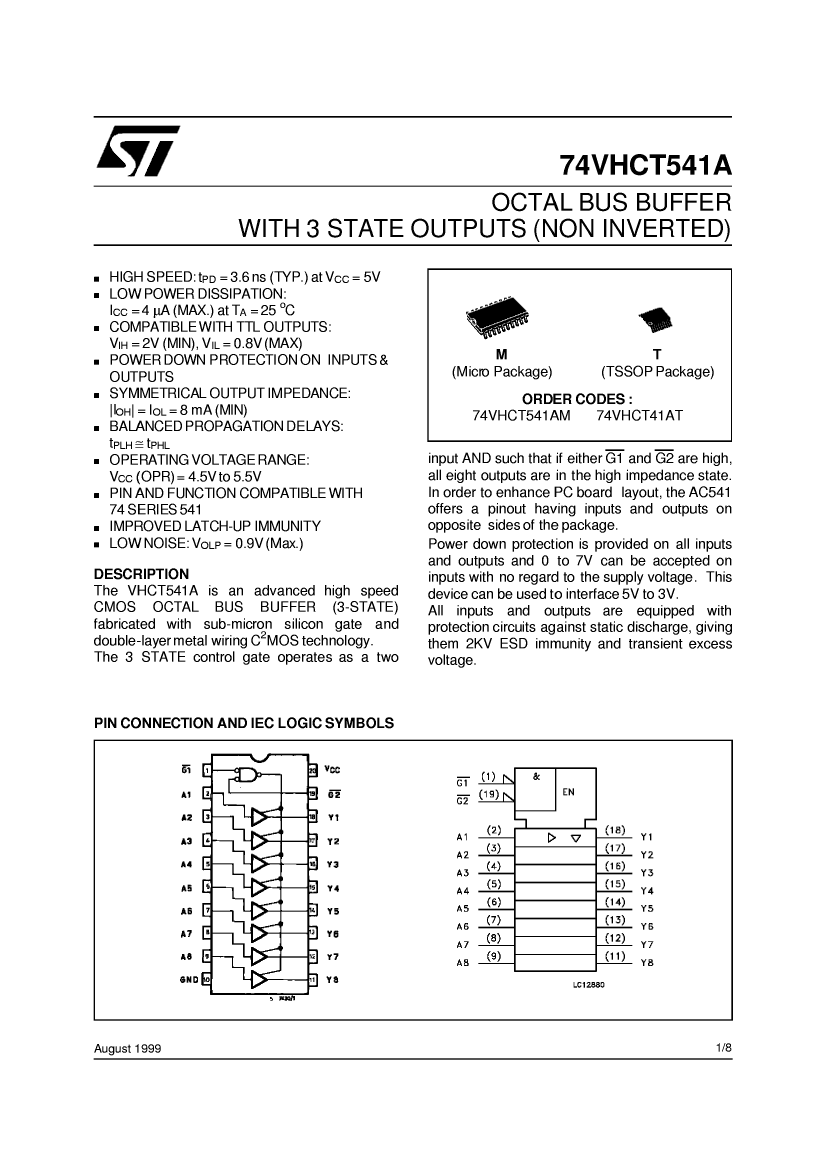

74VHCT541T Overview

AHCT/VHCT/VT SERIES, 8-BIT DRIVER, TRUE OUTPUT, PDSO20, TSSOP-20

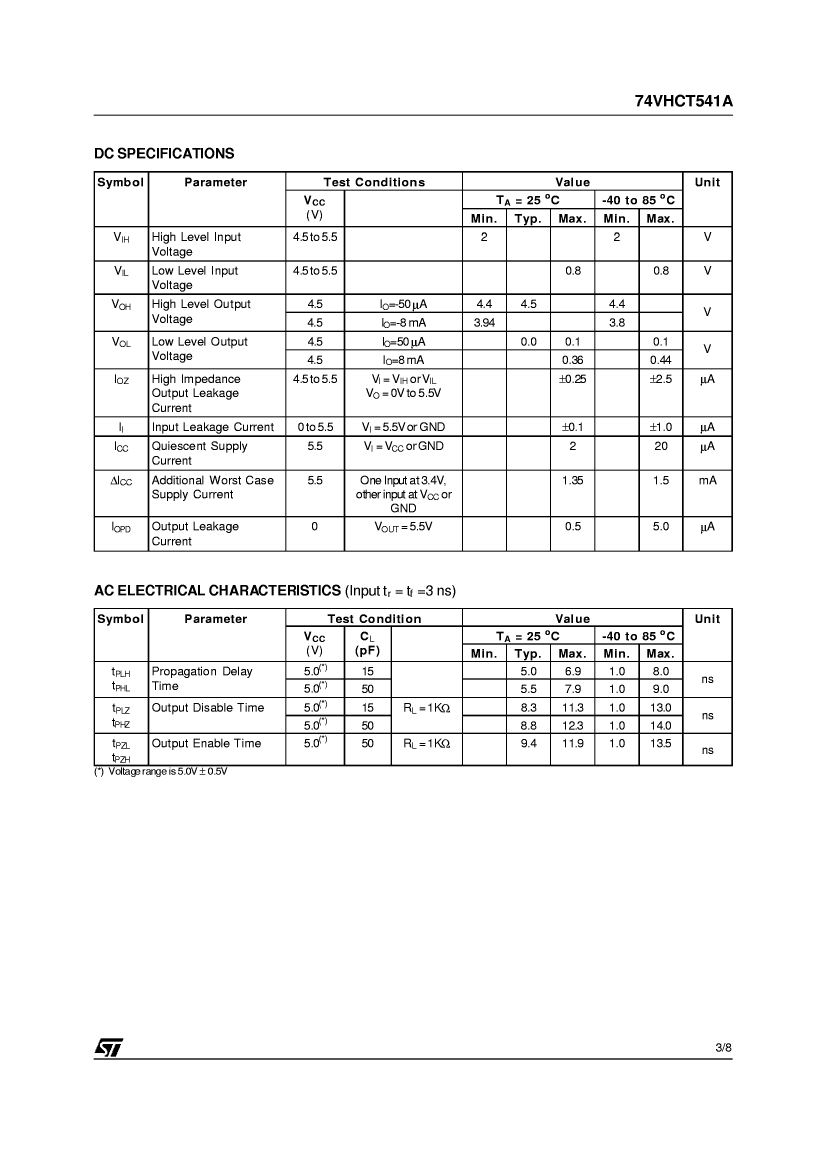

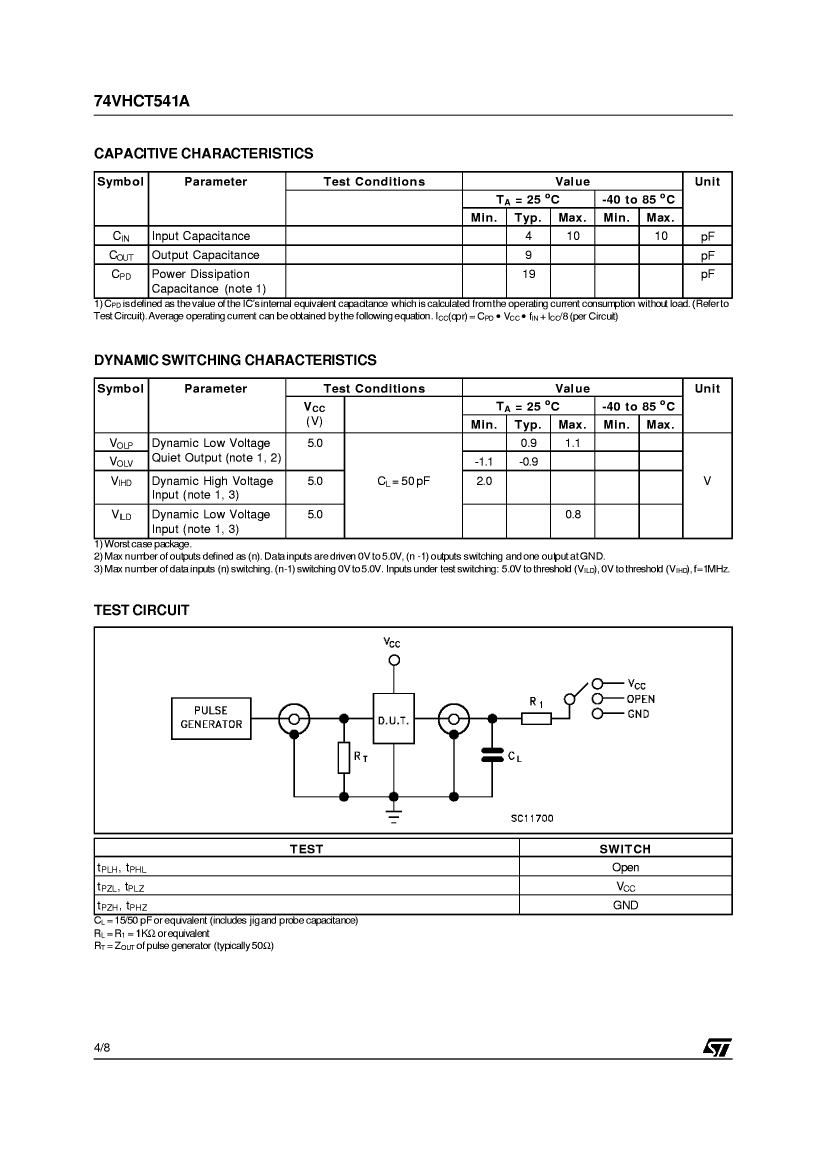

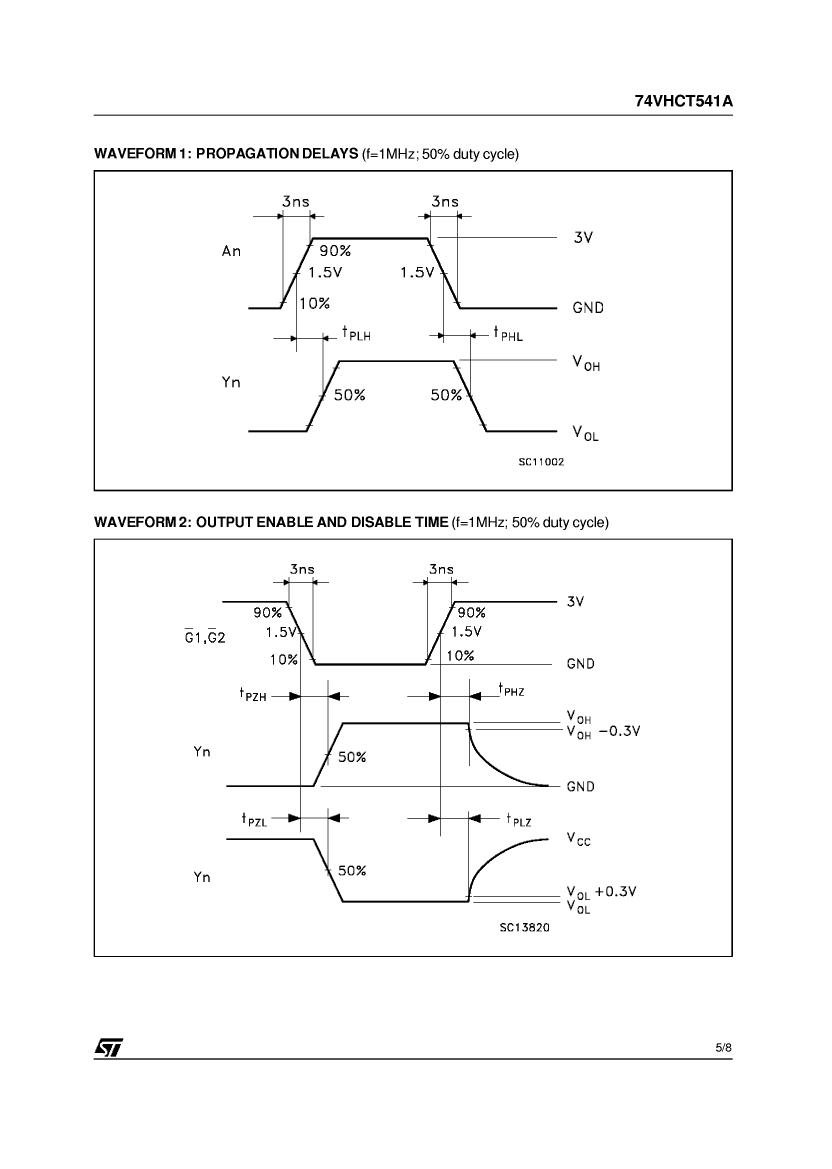

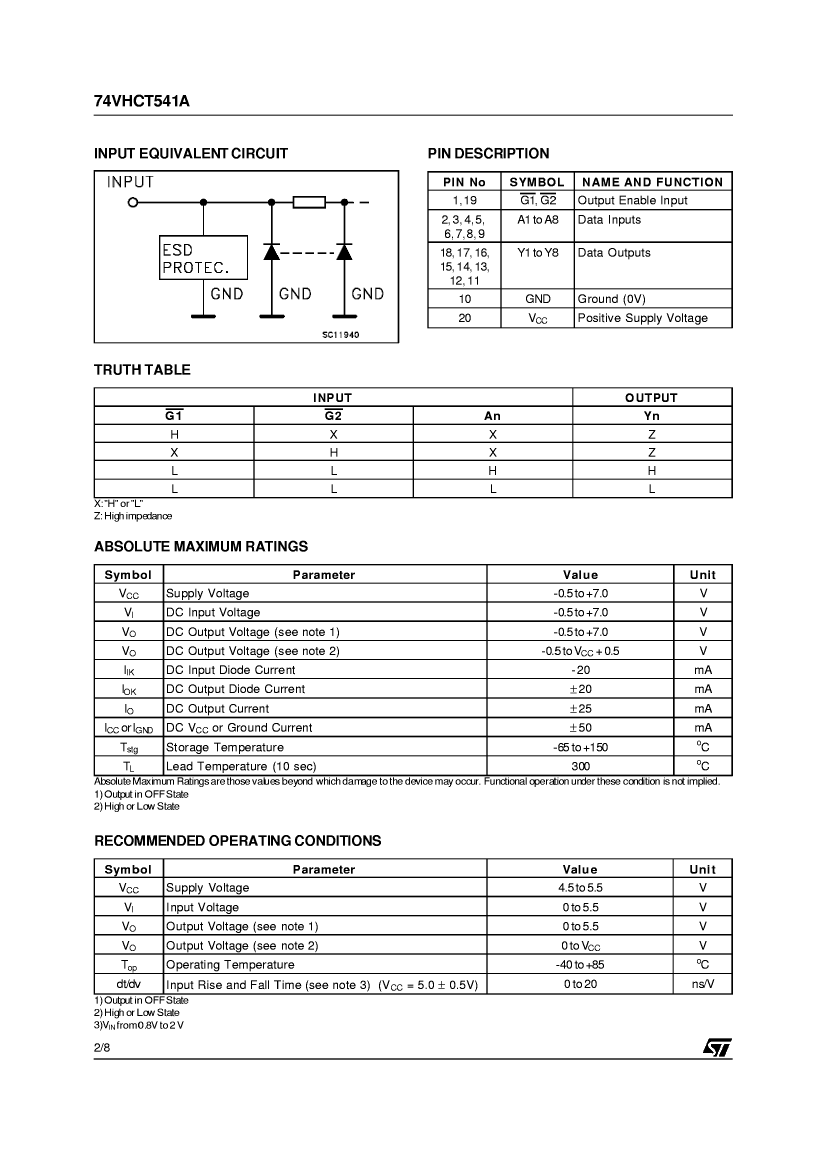

74VHCT541T Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
Parts packaging codeTSSOP
package instructionSOP, TSSOP20,.25
Contacts20
Reach Compliance Codenot_compliant
Control typeENABLE LOW
seriesAHCT/VHCT/VT
JESD-30 codeR-PDSO-G20
JESD-609 codee0
Load capacitance (CL)50 pF
Logic integrated circuit typeBUS DRIVER
MaximumI(ol)0.008 A
Number of digits8
Number of functions1
Number of ports2
Number of terminals20
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Output characteristics3-STATE
Output polarityTRUE
Package body materialPLASTIC/EPOXY
encapsulated codeSOP
Encapsulate equivalent codeTSSOP20,.25
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Peak Reflow Temperature (Celsius)NOT SPECIFIED
power supply5 V
Prop。Delay @ Nom-Sup9 ns
propagation delay (tpd)9 ns
Certification statusNot Qualified
Maximum supply voltage (Vsup)5.5 V
Minimum supply voltage (Vsup)4.5 V
Nominal supply voltage (Vsup)5 V
surface mountYES
technologyCMOS
Temperature levelINDUSTRIAL
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formGULL WING
Terminal pitch0.635 mm
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
Base Number Matches1

74VHCT541T Related Products

74VHCT541T 74VHCT541M
Description AHCT/VHCT/VT SERIES, 8-BIT DRIVER, TRUE OUTPUT, PDSO20, TSSOP-20 AHCT/VHCT/VT SERIES, 8-BIT DRIVER, TRUE OUTPUT, PDSO20, SOP-20
Is it lead-free? Contains lead Contains lead
Is it Rohs certified? incompatible incompatible
Parts packaging code TSSOP SOIC
package instruction SOP, TSSOP20,.25 SOP, SOP20,.4
Contacts 20 20
Reach Compliance Code not_compliant not_compliant
Control type ENABLE LOW ENABLE LOW
series AHCT/VHCT/VT AHCT/VHCT/VT
JESD-30 code R-PDSO-G20 R-PDSO-G20
JESD-609 code e0 e0
Load capacitance (CL) 50 pF 50 pF
Logic integrated circuit type BUS DRIVER BUS DRIVER
MaximumI(ol) 0.008 A 0.008 A
Number of digits 8 8
Number of functions 1 1
Number of ports 2 2
Number of terminals 20 20
Maximum operating temperature 85 °C 85 °C
Minimum operating temperature -40 °C -40 °C
Output characteristics 3-STATE 3-STATE
Output polarity TRUE TRUE
Package body material PLASTIC/EPOXY PLASTIC/EPOXY
encapsulated code SOP SOP
Encapsulate equivalent code TSSOP20,.25 SOP20,.4
Package shape RECTANGULAR RECTANGULAR
Package form SMALL OUTLINE SMALL OUTLINE
Peak Reflow Temperature (Celsius) NOT SPECIFIED NOT SPECIFIED
power supply 5 V 5 V
Prop。Delay @ Nom-Sup 9 ns 9 ns
propagation delay (tpd) 9 ns 9 ns
Certification status Not Qualified Not Qualified
Maximum supply voltage (Vsup) 5.5 V 5.5 V
Minimum supply voltage (Vsup) 4.5 V 4.5 V
Nominal supply voltage (Vsup) 5 V 5 V
surface mount YES YES
technology CMOS CMOS
Temperature level INDUSTRIAL INDUSTRIAL
Terminal surface Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb)
Terminal form GULL WING GULL WING
Terminal pitch 0.635 mm 1.27 mm
Terminal location DUAL DUAL
Maximum time at peak reflow temperature NOT SPECIFIED NOT SPECIFIED
Base Number Matches 1 1
