BL79L06 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> BL79L06

BL79L06: DescriptionNegative Linear Voltage Regulator; VO (V): -6V; IO Typ (mA): 100mA; VI Max (V): -35V; VDO Typ (V): 1.3V; PTOT (mW): 800mW; Package: SOT-89; CategoryPower/power management The power supply circuit; File Size311KB，10 Pages; ManufacturerGalaxy Microelectronics

Download Datasheet Parametric Compare View All

BL79L06 Overview

Negative Linear Voltage Regulator; VO (V): -6V; IO Typ (mA): 100mA; VI Max (V): -35V; VDO Typ (V): 1.3V; PTOT (mW): 800mW; Package: SOT-89

BL79L06 Parametric

Parameter Name	Attribute value
Parts packaging code	SOT-89
package instruction	,
Contacts	3
Reach Compliance Code	unknown
Regulator type	FIXED NEGATIVE SINGLE OUTPUT STANDARD REGULATOR
Base Number Matches	1
category
VO (V)	-6
IO (mA) typ.	800
VI (V) max.	-35
VDO (V) typ.	1.3
Iq (mA) typ.	2
PD (mW)	800
AEC Qualified	NO
Maximum operating temperature	150
Minimum operating temperature	0
MSL level	3
Is it lead-free?	Yes
Comply with Reach	Yes
RoHS compliant	Yes
ECCN code	EAR99
Package Outlines	SOT-89

Preview

Download Datasheet

View All

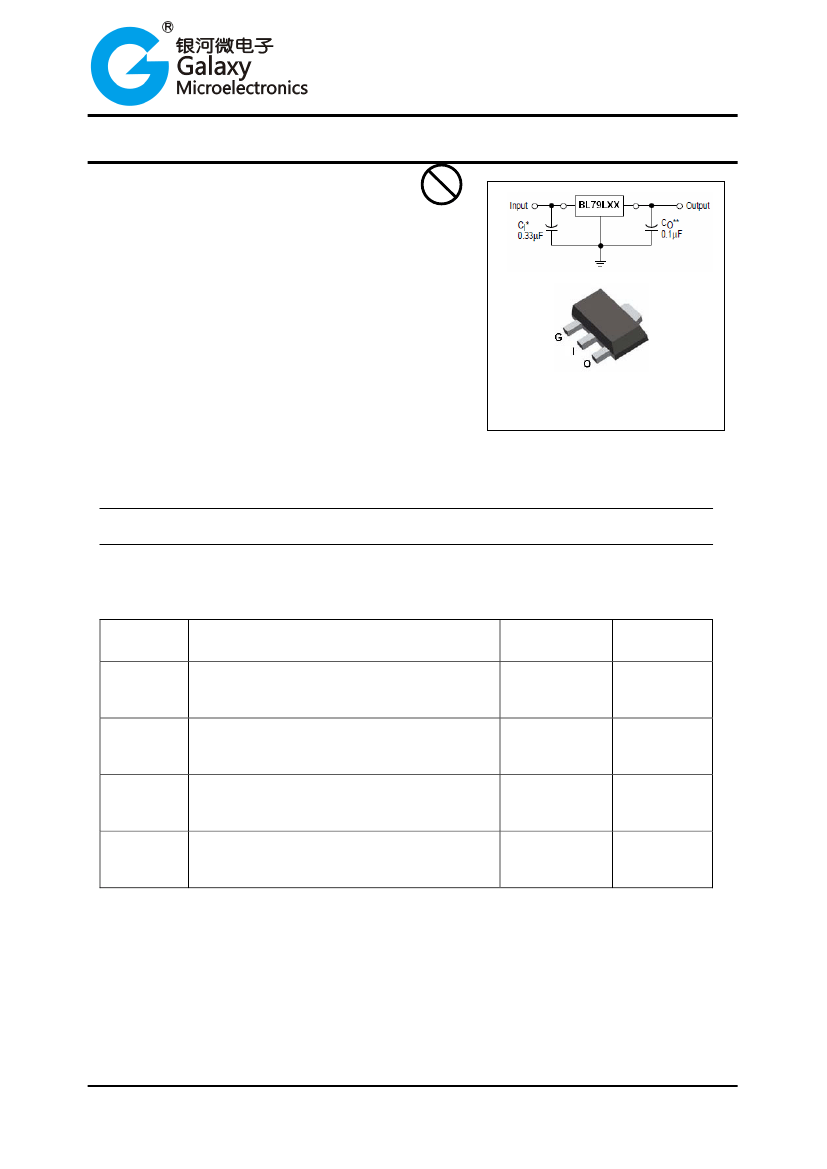

Production specification

Three-terminal voltage regulator

FEATURES

Some kinds output voltage series

BL79LXX

Lead-free

Superior ripple rejection ratio for audio frequency

Large maximum power dissipation: 800 mW

Over current and over temperature protection

APPLICATIONS

Three-terminal Negative Fixed Voltage Regulators

SOT-89

ORDERING INFORMATION

Type No.

BL79LXX

Marking

79LXX

Package Code

SOT-89

MAXIMUM RATING

operating temperature range applies unless otherwise specified

Symbol

Parameter

Input voltage

Value

-35

Units

Power dissipation

NOTE1

800

NOTE2

Topr

Operating ambient temperature

0 to +150

℃

stg

Junction and Storage Temperature

-65 to +150

℃

Notes: 1. T

≤

25°C, If T

> 25°C, derate by 6.4 mW/℃

2. 15 mm

∗

25 mm

∗0.7

mm glass epoxy board, Ta

≤

25℃

E110

Rev.A

www.gmesemi.com

BL79L06 Related Products

	BL79L06	BL79L12	BL79L05	BL79L15	BL79L08	BL79L09	BL79L10
Description	Negative Linear Voltage Regulator; VO (V): -6V; IO Typ (mA): 100mA; VI Max (V): -35V; VDO Typ (V): 1.3V; PTOT (mW): 800mW; Package: SOT-89	Negative Linear Voltage Regulator; VO (V): -12V; IO Typ (mA): 100mA; VI Max (V): -35V; VDO Typ (V): 1.3V; PTOT (mW): 800mW; Package: SOT-89	Negative Linear Voltage Regulator; VO (V): -5V; IO Typ (mA): 100mA; VI Max (V): -35V; VDO Typ (V): 1.3V; PTOT (mW): 800mW; Package: SOT-89	Negative Linear Voltage Regulator, Transistor, -15V, 800mA, -35V, 1.3V, 2.6mA, 800mW	Negative Linear Voltage Regulator, Transistor, -8V, 800mA, -35V, 1.3V, 2mA, 800mW	Negative Linear Voltage Regulator, Transistor, -9V, 800mA, -35V, 1.3V, 2.6mA, 800mW	Negative Linear Voltage Regulator, Transistor, -10V, 800mA, -35V, 1.3V, 2.6mA, 800mW
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Regulator type	FIXED NEGATIVE SINGLE OUTPUT STANDARD REGULATOR	FIXED NEGATIVE SINGLE OUTPUT STANDARD REGULATOR	FIXED NEGATIVE SINGLE OUTPUT STANDARD REGULATOR	FIXED NEGATIVE SINGLE OUTPUT STANDARD REGULATOR	FIXED NEGATIVE SINGLE OUTPUT STANDARD REGULATOR	FIXED NEGATIVE SINGLE OUTPUT STANDARD REGULATOR	FIXED NEGATIVE SINGLE OUTPUT STANDARD REGULATOR
VO (V)	-6	-12	-5	-15	-8	-9	-10
IO (mA) typ.	800	800	800	800	800	800	800
VI (V) max.	-35	-35	-35	-35	-35	-35	-35
VDO (V) typ.	1.3	1.3	1.3	1.3	1.3	1.3	1.3
Iq (mA) typ.	2	2.6	2	2.6	2	2.6	2.6
PD (mW)	800	800	800	800	800	800	800
AEC Qualified	NO	NO	NO	NO	NO	NO	NO
Maximum operating temperature	150	150	150	150	150	150	150
MSL level	3	3	3	3	3	3	3
Is it lead-free?	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Comply with Reach	Yes	Yes	Yes	Yes	Yes	Yes	Yes
RoHS compliant	Yes	Yes	Yes	Yes	Yes	Yes	Yes
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Package Outlines	SOT-89	SOT-89	SOT-89	SOT-89	SOT-89	SOT-89	SOT-89
Parts packaging code	SOT-89	SOT-89	SOT-89	-	SOT-89	SOT-89	-
Contacts	3	3	3	-	3	3	-
Maker	-	-	-	Galaxy Microelectronics	Galaxy Microelectronics	Galaxy Microelectronics	Galaxy Microelectronics
