TERMINATION

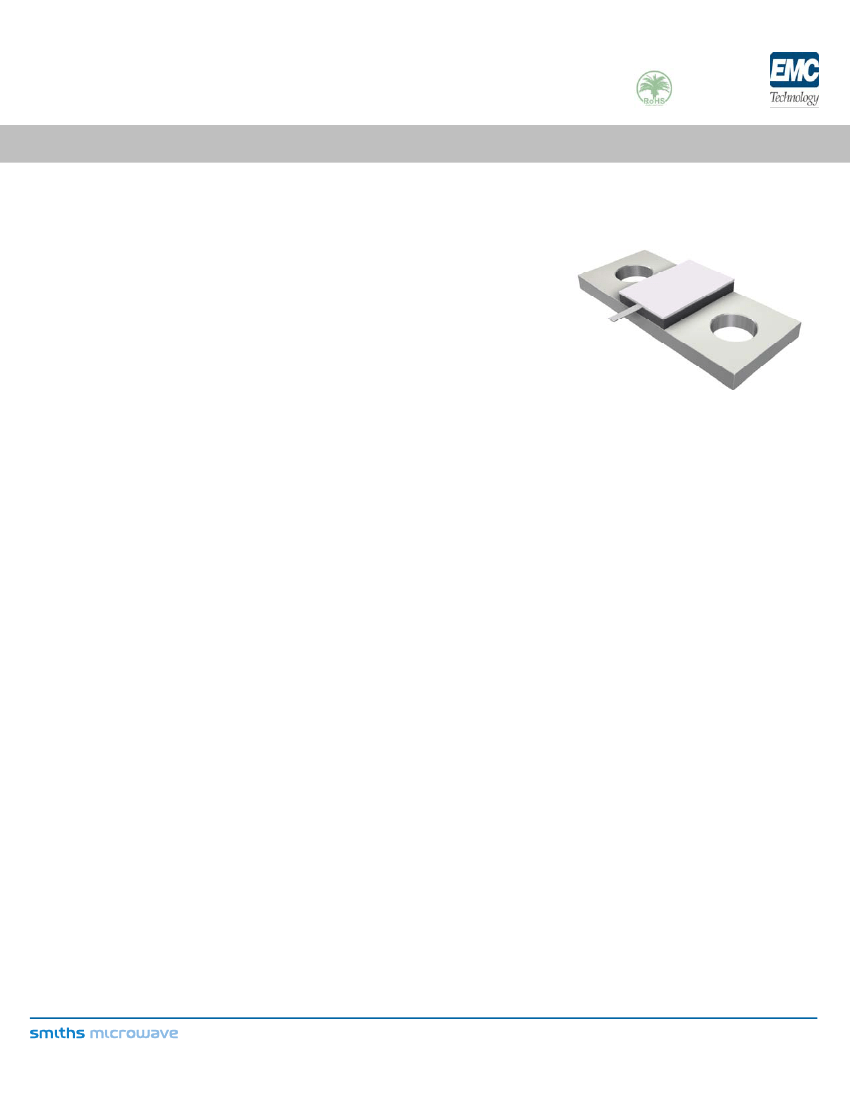

FLANGE MOUNT 150 WATT
DATA SHEET
FEATURES
Tab Launch
High Power
Integrated Heat Sink
Low VSWR
Easy Installation
PART SERIES: 32A7172F
APPLICATIONS
Mobile Networks
Broadcast
High Power Amplifiers
Isolators
Military
Instrumentation
SHEET 1 OF 2
Dwg 32A7127F
EN 13-3517
Revision-
GENERAL DESCRIPTION
EMC Technology offers the widest selection of flange mount terminations worldwide.
High power flange components offer excellent performance and the convenience of
bolt on installation.
ORDERING INFORMATION
Part Identifier:
32A7172F
SPECIFICATIONS
1.0 ELECTRICAL
Nominal Impedance:
Frequency Range:
VSWR:
Input Power CW:
Peak Power:
DC Resistance:
50 ohms
DC - 2.2 GHz
DC - 2.0 GHz 1.15:1 Max
2.0 - 2.2 GHz 1.20:1 Max
150 Watts @ 100°C heat sink, derated linearly to zero power and 150°C
1500 Watts (based on 10us pulse width and 1% duty cycle)
50
Ω
±5%
2.0 ENVIRONMENTAL
Operating Temperature:
Non-operating Temperature:
Temperature Coefficient:
-55˚C to +150˚C
-65˚C to +150˚C
+/-200 PPM /
˚C
max
3.0 MARKING
Unit Marking:
Logo and Part Number, legibility and permanency per MIL-STD-130
4.0 QUALITY ASSURANCE
Visual and Mechanical Inspection:
DC Resistance Check:
Data Retention:
Per 824W107
100% DC Resistance Check
Standard
5.0 PACKAGING
Standard Packaging:
Tray Packaging
Form 423F101
Rev-
Cage Codes: 24602 / 2Y194
Specifications are Subject to Change Without Notice
www.emc-rflabs.com • +1 772-286-9300
AS 9100, ISO 9001 and 14001 Certified
TERMINATION
FLANGE MOUNT 150 WATT
DATA SHEET
PART SERIES: 32A7172F
SHEET 2 OF 2
Dwg 32A7127F
EN 13-3517
Revision-
6.0 MECHANICAL
Substrate Material:
Resistive Film:
Cover Material:
Tab Material:
Tab Finish:
Flange Material:
Flange Finish
Metric Dimensions:
Aluminum Nitride
Thin Film
Alumina
Beryllium Copper
Silver
Copper
Nickel
Provided for reference only
100%
RATED
POWER
50%
SAFE OPERATING AREA
0%
-55
0
75
100
125
150
TEMPERATURE IN °C
0.870
[22.10 mm]
0.155
[3.94 mm]
0.560
[14.22 mm]
0.250
[6.35 mm]
0.135
[3.43 mm]
MAX
0.062
[1.57 mm]
2X 0.188
[4.76 mm]
0.375
[9.53 mm]
0.125
[3.18 mm]
MIN
2X Ø0.160
[Ø4.06 mm]
THRU
0.420
[10.67 mm]
0.030
[0.76 mm]
0.003±0.002
[0.08 mm]
0.102
[2.59 mm]
Unless Otherwise Specified:
TOLERANCE: X.XX = ± 0.02
X.XXX = ± 0.010
Form 423F101
Rev-
Cage Codes: 24602 / 2Y194
Specifications are Subject to Change Without Notice
www.emc-rflabs.com • +1 772-286-9300
AS 9100, ISO 9001 and 14001 Certified
