74VHC4051CW datasheet, PDF - EEWORLD Datasheet

74VHC4051CW: DescriptionSingle-Ended Multiplexer, 1 Func, 8 Channel, CMOS, DIE; CategoryAnalog mixed-signal IC The signal circuit; File Size183KB，11 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

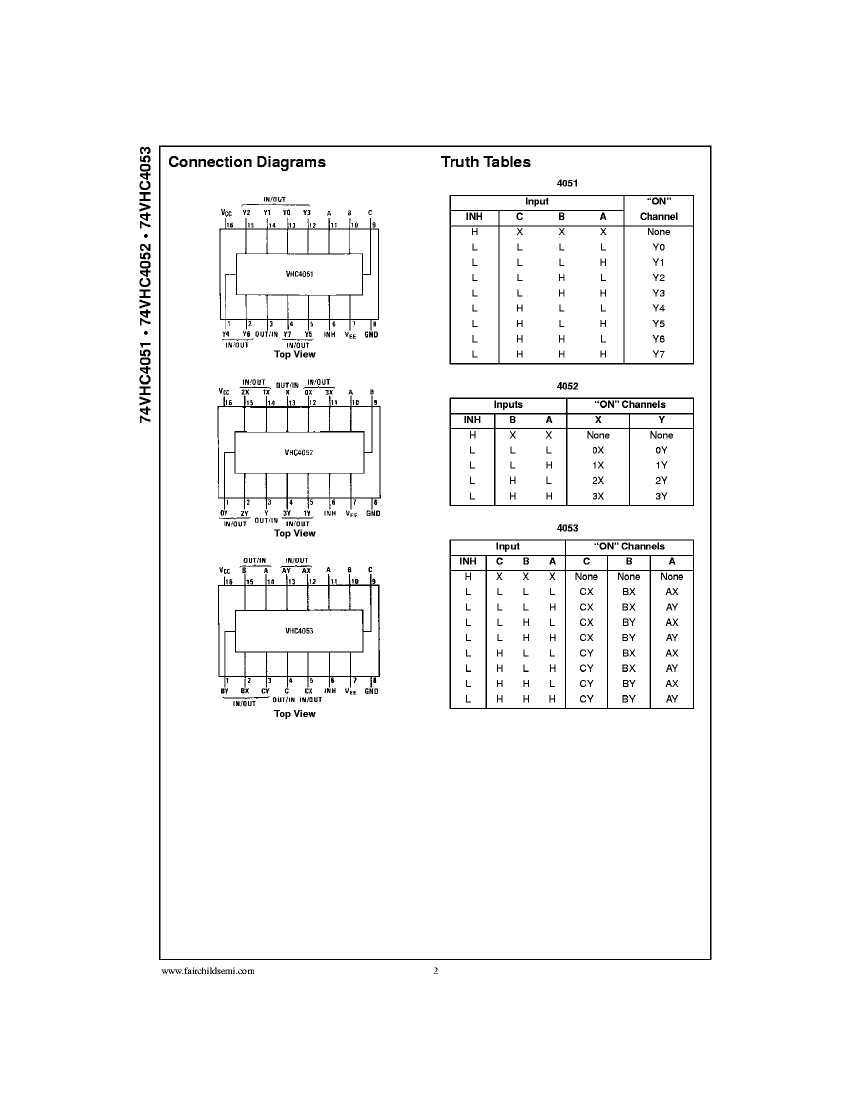

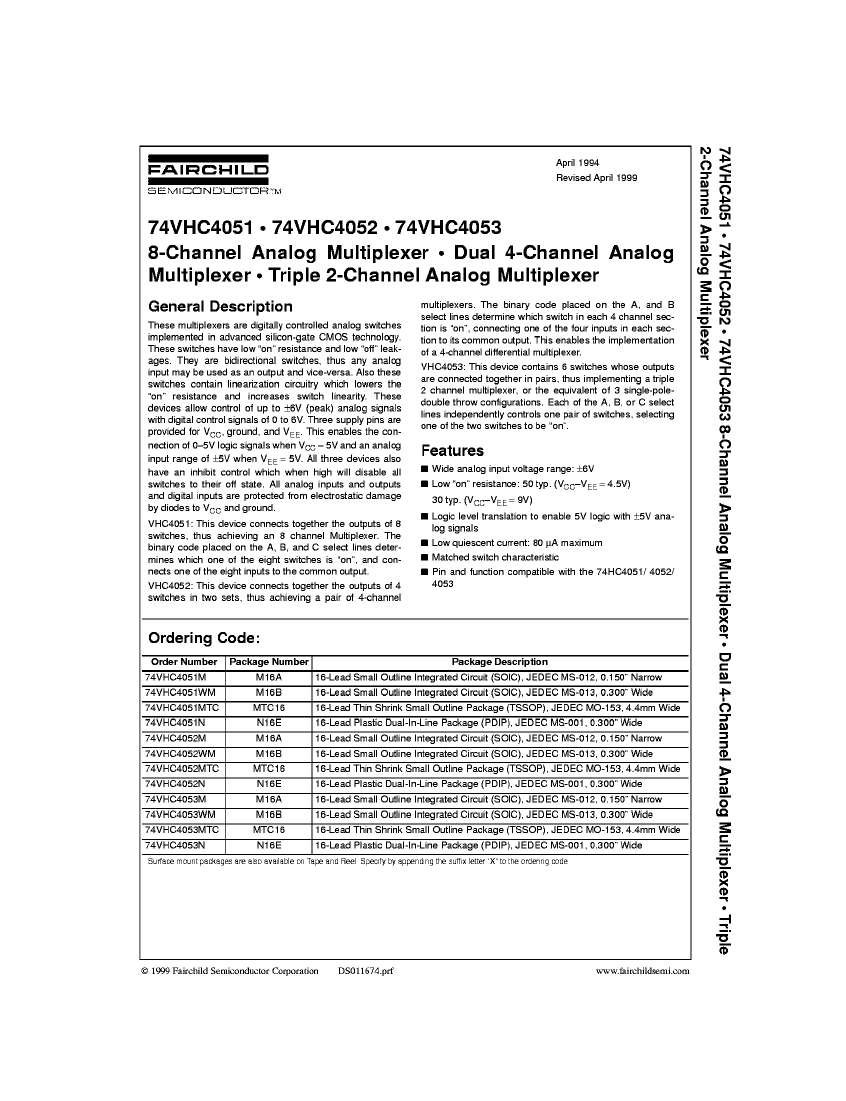

74VHC4051CW Overview

Single-Ended Multiplexer, 1 Func, 8 Channel, CMOS, DIE

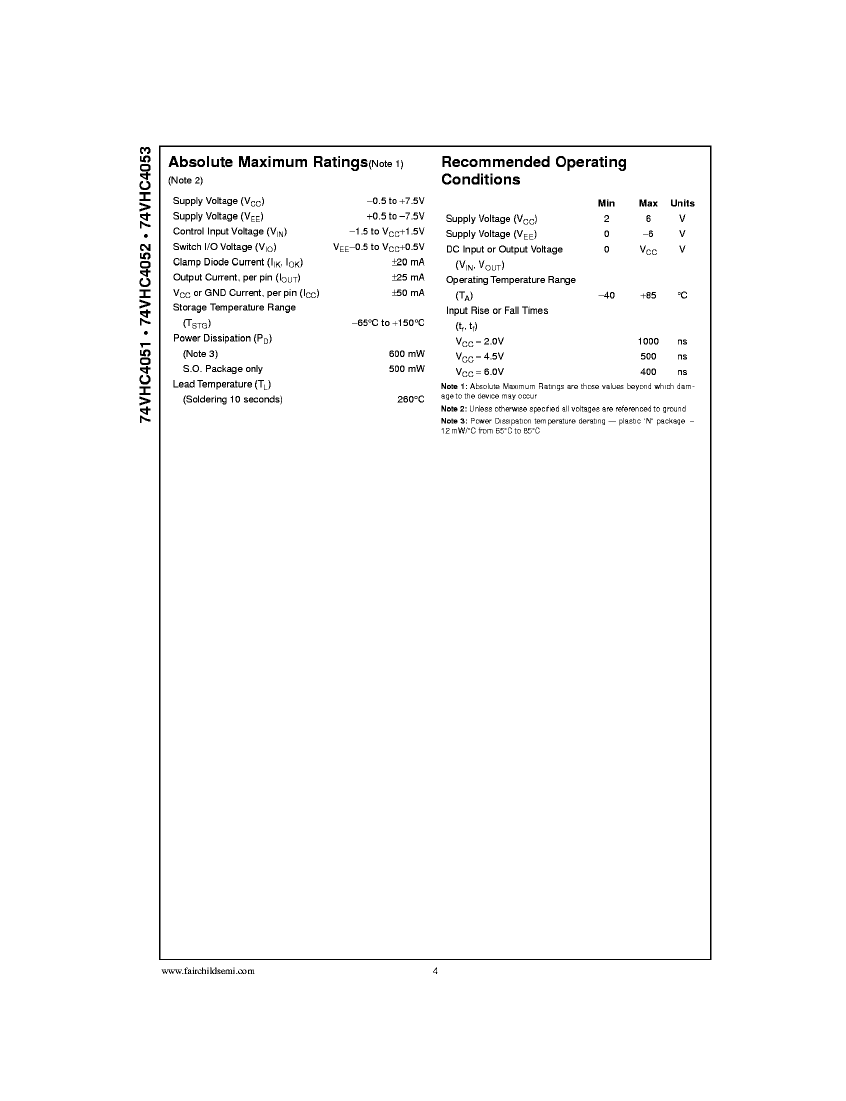

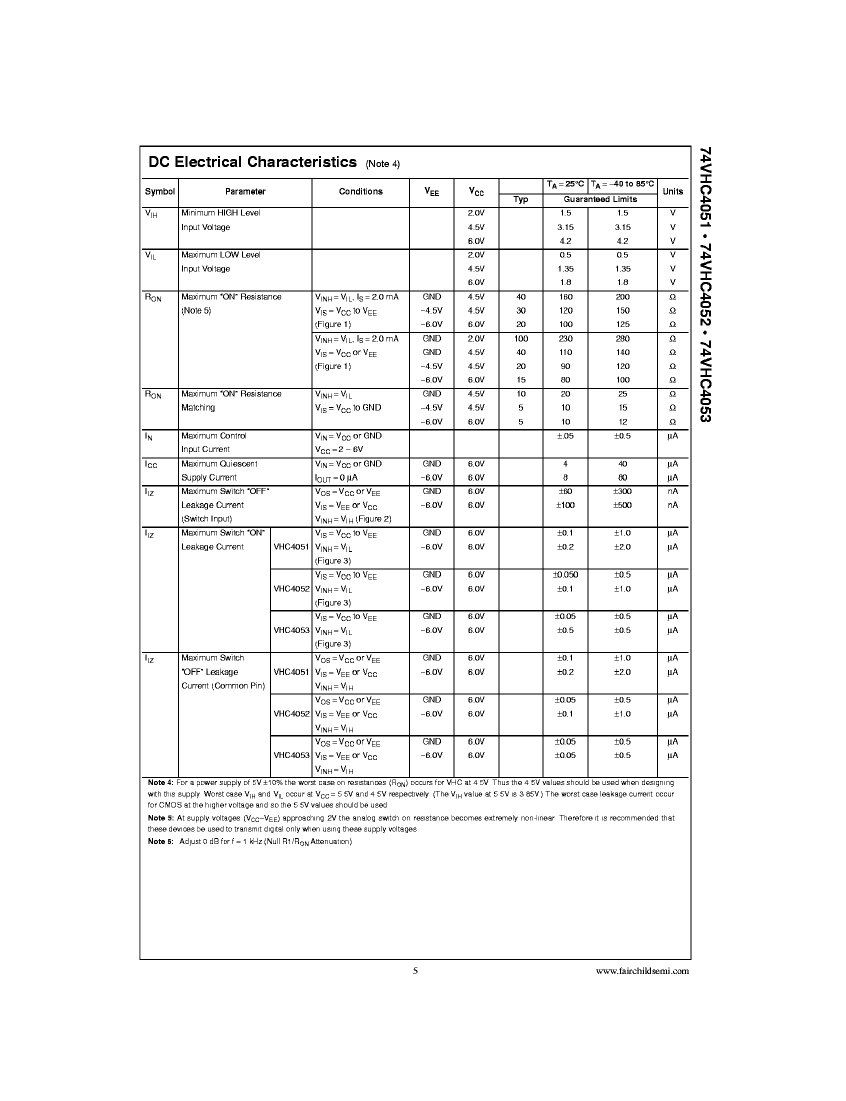

Parameter Name	Attribute value
Parts packaging code	DIE
package instruction	DIE,
Contacts	16
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	SINGLE-ENDED MULTIPLEXER
JESD-30 code	R-XUUC-N16
Maximum negative supply voltage (Vsup)	-6 V
Negative supply voltage minimum (Vsup)
Nominal Negative Supply Voltage (Vsup)	-4.5 V
Number of channels	8
Number of functions	1
Number of terminals	16
Nominal off-state isolation	42 dB
On-state resistance matching specifications	5 Ω
Maximum on-state resistance (Ron)	120 Ω
Package body material	UNSPECIFIED
encapsulated code	DIE
Package shape	RECTANGULAR
Package form	UNCASED CHIP
Certification status	Not Qualified
Maximum supply voltage (Vsup)	6 V
Minimum supply voltage (Vsup)	2 V
Nominal supply voltage (Vsup)	4.5 V
surface mount	YES
technology	CMOS
Terminal form	NO LEAD
Terminal location	UPPER
Base Number Matches	1

	74VHC4051CW	74VHC4052CW	74VHC4053CW
Description	Single-Ended Multiplexer, 1 Func, 8 Channel, CMOS, DIE	Differential Multiplexer, 1 Func, 4 Channel, CMOS, DIE	SPST, 3 Func, 2 Channel, CMOS
package instruction	DIE,	DIE,	DIE,
Reach Compliance Code	unknown	unknown	unknown
Analog Integrated Circuits - Other Types	SINGLE-ENDED MULTIPLEXER	DIFFERENTIAL MULTIPLEXER	SPST
JESD-30 code	R-XUUC-N16	R-XUUC-N16	X-XUUC-N16
Maximum negative supply voltage (Vsup)	-6 V	-6 V	-6 V
Nominal Negative Supply Voltage (Vsup)	-4.5 V	-4.5 V	-4.5 V
Number of channels	8	4	2
Number of functions	1	1	3
Number of terminals	16	16	16
Nominal off-state isolation	42 dB	42 dB	42 dB
On-state resistance matching specifications	5 Ω	5 Ω	20 Ω
Maximum on-state resistance (Ron)	120 Ω	120 Ω	230 Ω
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
encapsulated code	DIE	DIE	DIE
Package shape	RECTANGULAR	RECTANGULAR	UNSPECIFIED
Package form	UNCASED CHIP	UNCASED CHIP	UNCASED CHIP
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	6 V	6 V	6 V
Minimum supply voltage (Vsup)	2 V	2 V	2 V
Nominal supply voltage (Vsup)	4.5 V	4.5 V	4.5 V
surface mount	YES	YES	YES
technology	CMOS	CMOS	CMOS
Terminal form	NO LEAD	NO LEAD	NO LEAD
Terminal location	UPPER	UPPER	UPPER
Parts packaging code	DIE	DIE	-
Contacts	16	16	-
Base Number Matches	1	1	-
