7.2TDLSJ6.3 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> Circuit protection> 7.2TDLSJ6.3

7.2TDLSJ6.3: DescriptionElectric Fuse, 6.3A, 7200VAC, 40000A (IR), Inline/holder,; CategoryCircuit protection Circuit protection; File Size56KB，1 Pages; ManufacturerCDE [ CORNELL DUBILIER ELECTRONICS ]

Download Datasheet Parametric View All

7.2TDLSJ6.3 Overview

Electric Fuse, 6.3A, 7200VAC, 40000A (IR), Inline/holder,

7.2TDLSJ6.3 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
body height	292 mm
Body length or diameter	54 mm
Circuit protection type	ELECTRIC FUSE
Joule integral nominal	48 J
Installation features	INLINE/HOLDER
physical size	54mm x 292mm
Rated breaking capacity	40000 A
Rated current	6.3 A
Rated voltage (AC)	7200 V
Guideline	DIN 43625; IEC; VDE
surface mount	NO
Terminal shape	END CAP
Base Number Matches	1

Preview

Download Datasheet

View All

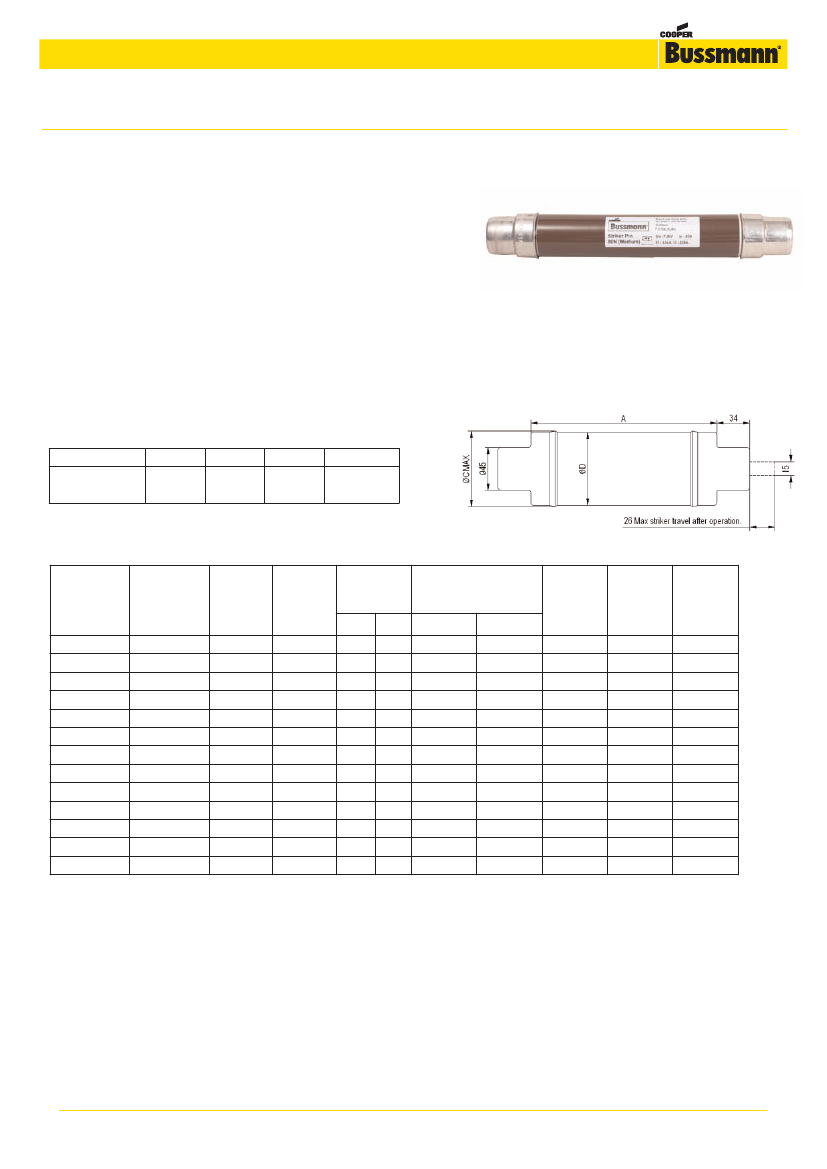

Medium Voltage DIN Fuses

7.2 kV - T Range Fuse-Links

7.2 kV, Current Limiting Back-Up Fuse-Links, 6.3A to 160A

Specifications

Description:

A range of medium voltage DIN Fuses, complete with

striker, suitable for transformer protection. The fuses can be used even

when there is no secondary LV protection, provided they are used with

fuse switches fitted with instantaneous striker tripping.

Ratings:

Volts: 3.0kV - 7.2kV

Amps: 6.3A - 160A

Breaking Capacity: 40 kA

Agency Information:

Comply with DIN Dimensional standard DIN 43625, VDE 0670 part 4

and with IEC 60282-1 (2005)

Suitable for indoor and outdoor use.

Dimensions (mm):

Fuse Reference

TDLSJ

TFLSJ

Weight (Kg)

1.63

3.1

292

Table of ratings:

Part Number

7.2TDLSJ6.3

7.2TDLSJ10

7.2TDLSJ16

7.2TDLSJ20

7.2TDLSJ25

7.2TDLSJ40

7.2TDLSJ50

7.2TDLSJ63

7.2TFLSJ80

7.2TFLSJ100

7.2TFLSJ125

7.2TFLSJ160

7.2TDLSJ31.5

Current Rating

In (A)

6.3

31.5

100

125

160

Breaking

Capacity

I1 (kA)

Minimum

Breaking

Capacity

I3 (A)

100

143

180

264

338

375

525

114

Cold

Resistance &

Watts Loss in

Free Air

205

mΩ

Joule Integral (I2t)

Minimum Pre-

Arcing

Maximum

Operating

Length

292

Diameter

Weight

99.7

65.1

48.9

32.6

26.0

16.0

12.9

8.14

6.01

4.65

3.60

2.73

4.8 X 101

2.5 X 102

5.5 X 102

9.7 X 102

5.7 X 102

2.0 X 102

3.2 X 102

8.0 X 102

5.0 X 103

9.1 X 103

1.5 X 104

3.0 X 104

8.9 X102

6.5 X 103

2.7 X 103

8.2 X 103

1.1 X 104

8.0 X 103

1.0 X 104

2.2 X 104

3.2 X 104

7.5 X 104

6.5 X 104

1.1 X 105

1.7 X 105

3.1 X 105

1.63

3.1

For product datasheets, visit www.cooperbussmann.com
