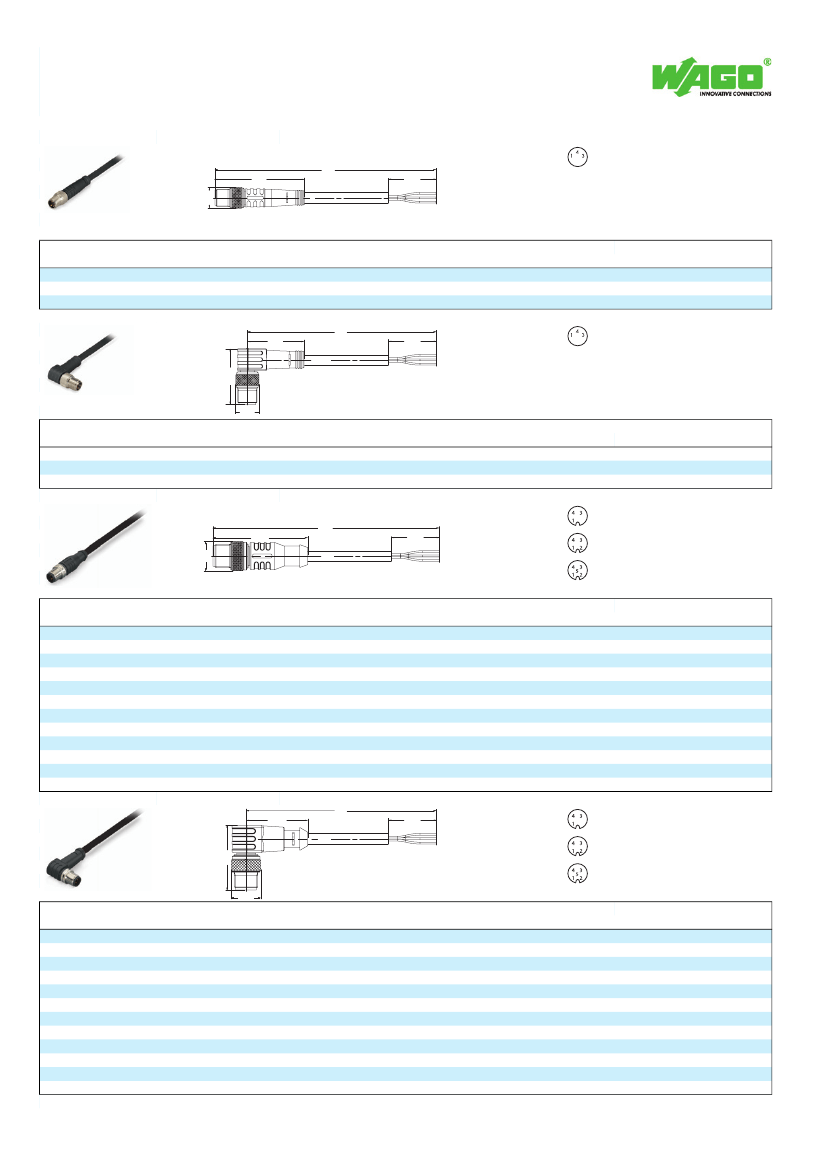

WAGO-I/O-SYSTEM 756
Sensor/actuator cables, with one end of cable fitted
M8 Plug
M8 Plug
3 pole
Pin 1 - 4: 0.25 mm²
1 brown (+)
3 blue (-)
4 black (S)
L*)
41,3
ø 9,6
20±2
(mm)
M8 Sensor/actuator cables, with one end of cable fitted
3-pole
M8 plug, straight, one free cable end, 1.5 m
M8 plug, straight, one free cable end, 5 m
M8 plug, straight, one free cable end, 10 m
M8 Plug
L*)
23,5
20±2
Cable Ø
4.1 mm ± 0.2
4.1 mm ± 0.2
4.1 mm ± 0.2
3 pole
Item No.
756-5111/030-015
756-5111/030-050
756-5111/030-100
Pack. Unit
10
10
10
M8 Plug
Pin 1 - 4: 0.25 mm²
1 brown (+)
3 blue (-)
4 black (S)
23,2
(mm)
ø 9,6
M8 Sensor/actuator cables, with one end of cable fitted
3-pole
M8 plug, right angle, one free cable end, 1.5 m
M8 plug, right angle, one free cable end, 5 m
M8 plug, right angle, one free cable end, 10 m
M12 Plug
L*)
48,5
ø15
20±2
Cable Ø
4.1 mm ± 0.2
4.1 mm ± 0.2
4.1 mm ± 0.2
3 pole
Item No.
756-5112/030-015
756-5112/030-050
756-5112/030-100
Pack. Unit
10
10
10
M12 Plug
Pin 1 - 5: 0.34 mm²
1
2
3
4
5
brown (+)
white (Ö)
blue (-)
black (S)
gray
4 pole
5 pole
(mm)
M12 Sensor/actuator cables, with one end of cable fitted
3-pole
M12 plug, straight, one free cable end, 1.5 m
M12 plug, straight, one free cable end, 5 m
M12 plug, straight, one free cable end, 10 m
M12 plug, straight, one free cable end, 1.5 m
M12 plug, straight, one free cable end, 5 m
M12 plug, straight, one free cable end, 10 m
M12 plug, straight, one free cable end, 1.5 m
M12 plug, straight, one free cable end, 5 m
M12 plug, straight, one free cable end, 10 m
M12 plug, straight, one free cable end, 1.5 m
M12 plug, straight, one free cable end, 5 m
M12 plug, straight, one free cable end, 10 m
M12 Plug
L*)
31,5
20±2
Cable Ø
4.3 mm ± 0.2
4.3 mm ± 0.2
4.3 mm ± 0.2
4.7 mm ± 0.2
4.7 mm ± 0.2
4.7 mm ± 0.2
5.0 mm ± 0.2
5.0 mm ± 0.2
5.0 mm ± 0.2
6.5 mm ± 0.2
6.5 mm ± 0.2
6.5 mm ± 0.2
3 pole
Item No.
756-5311/030-015
756-5311/030-050
756-5311/030-100
756-5311/040-015
756-5311/040-050
756-5311/040-100
756-5311/050-015
756-5311/050-050
756-5311/050-100
756-5311/060-015
756-5311/060-050
756-5311/060-100
Pack. Unit
10
10
10
10
10
10
10
10
10
10
10
10
4-pole
5-pole
5-pole, shielded
M12 Plug
Pin 1 - 5: 0.34 mm²
1
2
3
4
5
brown (+)
white (Ö)
blue (-)
black (S)
gray
4 pole
33
(mm)
5 pole
ø15
M12 Sensor/actuator cables, with one end of cable fitted
3-pole
M12 plug, right angle, one free cable end, 1.5 m
M12 plug, right angle, one free cable end, 5 m
M12 plug, right angle, one free cable end, 10 m
M12 plug, right angle, one free cable end, 1.5 m
M12 plug, right angle, one free cable end, 5 m
M12 plug, right angle, one free cable end, 10 m
M12 plug, right angle, one free cable end, 1.5 m
M12 plug, right angle, one free cable end, 5 m
M12 plug, right angle, one free cable end, 10 m
M12 plug, right angle, one free cable end, 1.5 m
M12 plug, right angle, one free cable end, 5 m
M12 plug, right angle, one free cable end, 10 m
Cable Ø
4.3 mm ± 0.2
4.3 mm ± 0.2
4.3 mm ± 0.2
4.7 mm ± 0.2
4.7 mm ± 0.2
4.7 mm ± 0.2
5.0 mm ± 0.2
5.0 mm ± 0.2
5.0 mm ± 0.2
6.5 mm ± 0.2
6.5 mm ± 0.2
6.5 mm ± 0.2
Item No.
756-5312/030-015
756-5312/030-050
756-5312/030-100
756-5312/040-015
756-5312/040-050
756-5312/040-100
756-5312/050-015
756-5312/050-050
756-5312/050-100
756-5312/060-015
756-5312/060-050
756-5312/060-100
Pack. Unit
10
10
10
10
10
10
10
10
10
10
10
10
4-pole
5-pole
5-pole, shielded
* Cable length
Custom cable lengths upon request
