78097-037 datasheet, PDF - EEWORLD Datasheet

78097-037: DescriptionTelecom and Datacom Connector, 6 Contact(s), Male, Right Angle, Solder Terminal, Locking Mech, Receptacle; CategoryThe connector The connector; File Size85KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

78097-037 Overview

Telecom and Datacom Connector, 6 Contact(s), Male, Right Angle, Solder Terminal, Locking Mech, Receptacle

Parameter Name	Attribute value
Reach Compliance Code	compliant
Other features	LOW PROFILE, SHROUDED
body width	0.536 inch
subject depth	0.954 inch
body length	0.705 inch
Body/casing type	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD (30)
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	35 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Durability	1000 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulator color	GRAY
insulator material	POLYCARBONATE
JESD-609 code	e4
MIL compliance	NO
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation option 1	LOCKING MECH
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	3
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL, CSA
reliability	COMMERCIAL
Shell material	POLYCARBONATE
Terminal length	0.2 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	6
UL Flammability Code	94V-0
Base Number Matches	1

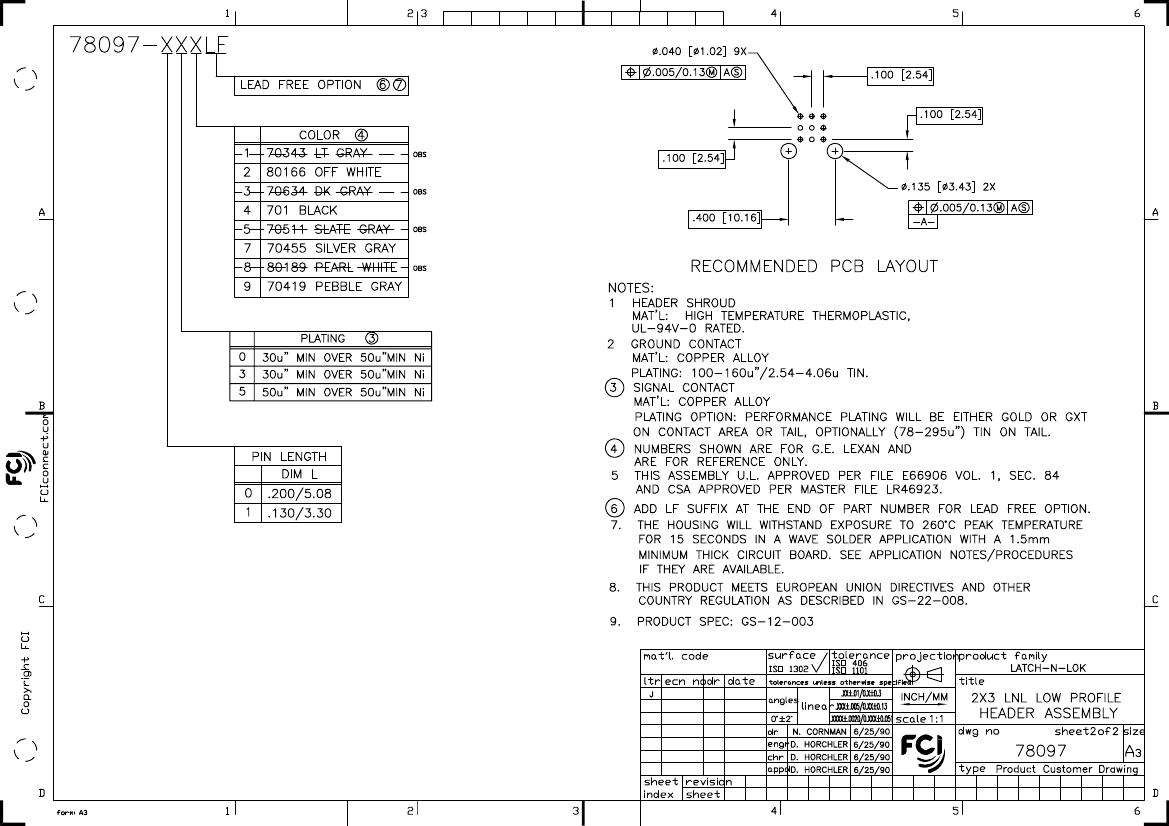

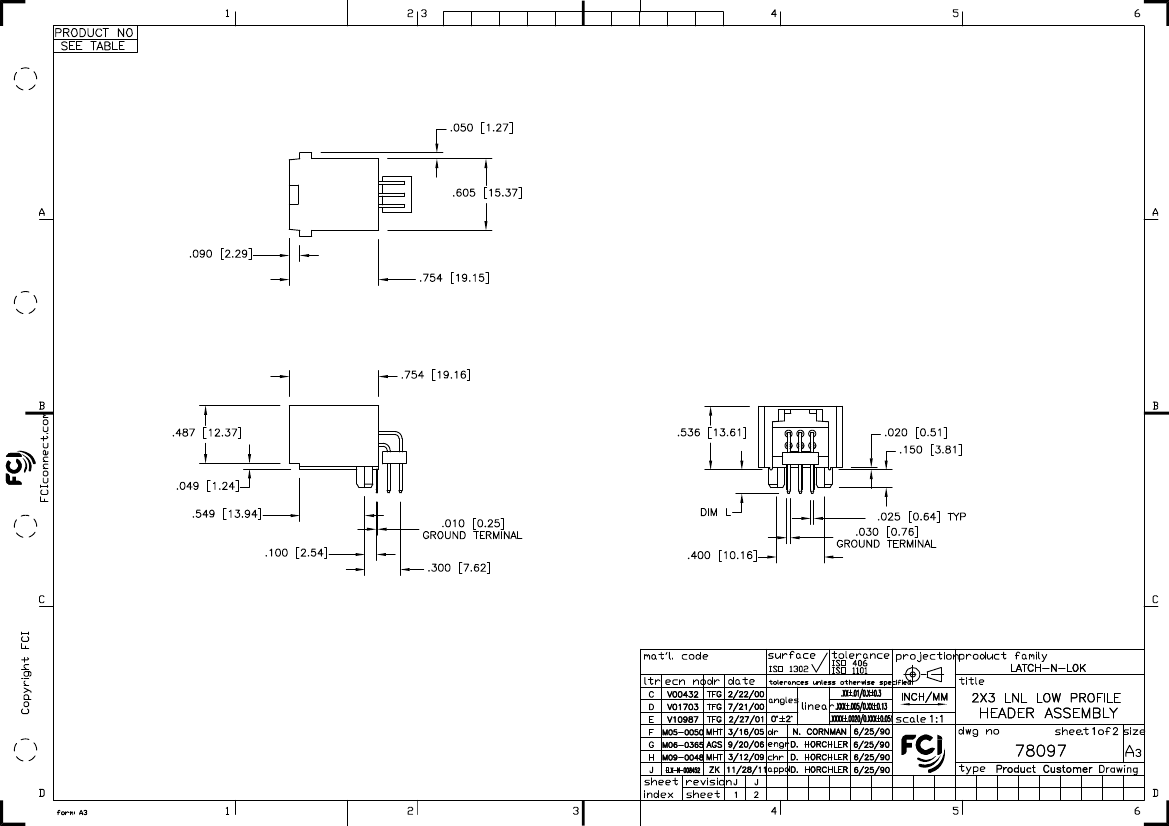

PDS: Rev :J

STATUS:Released

Printed: Dec 27, 2011
