8300-0-15-15-47-14-10-0 datasheet, PDF

Datasheet> All Categories > The connector> terminals> 8300-0-15-15-47-14-10-0

8300-0-15-15-47-14-10-0: DescriptionPCB Terminal; CategoryThe connector terminals; File Size95KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric Compare View All

8300-0-15-15-47-14-10-0 Overview

PCB Terminal

8300-0-15-15-47-14-10-0 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Manufacturer's serial number	8300
terminal gender	FEMALE
Terminal and terminal strip types	PCB TERMINAL
Base Number Matches	1

Preview

Download Datasheet

View All

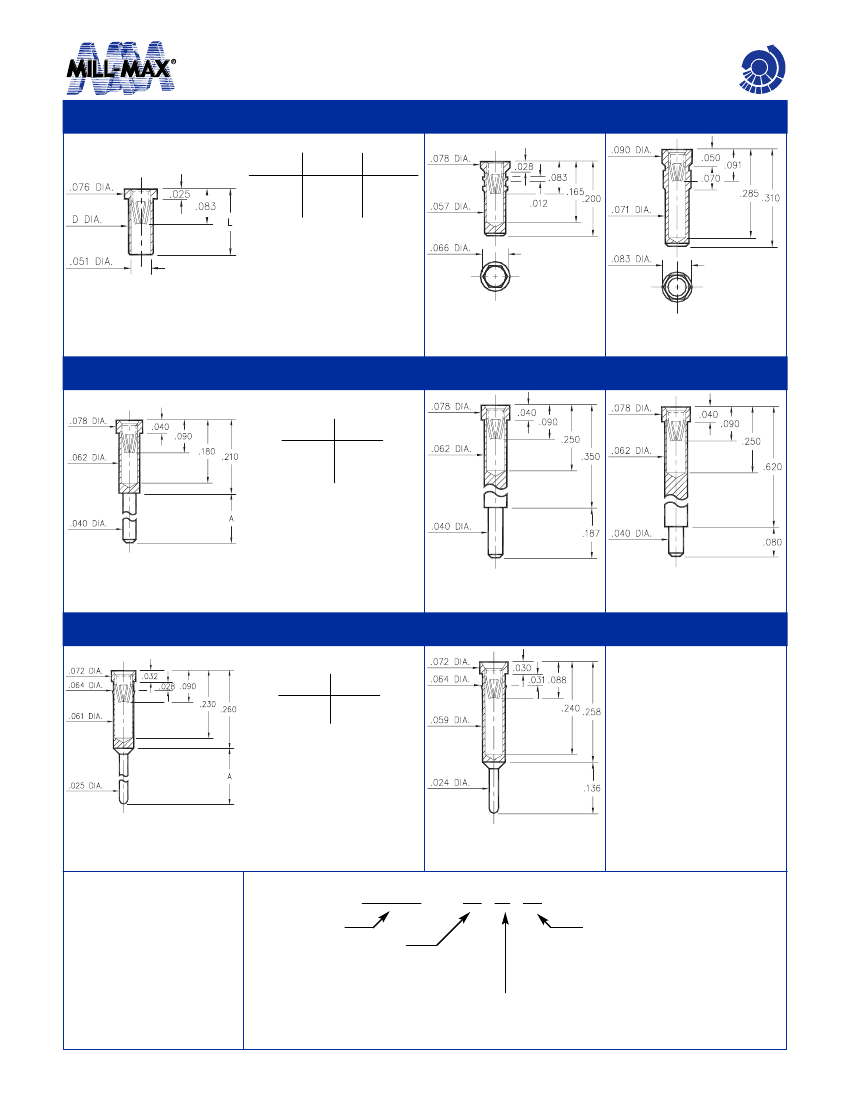

PIN RECEPTACLES

for .025” - .037” diameter pins

and .025” square pins

CHI

PINS

0305

Basic Part

Number

Length

Dia.

0279

0305-0

0305-1

0305-2

.095

.105

.155

.056

.058

0330

0305-X-15-XX-47-XX-10-0

Solder mount in .059/.061

mounting hole

0279-0-15-XX-47-XX-10-0

Hex press-fit in .062

plated thru hole

0330-0-15-XX-47-XX-10-0

Hex press-fit in .079

plated thru hole

0300/8300

Basic Part

Number

Length

0301

0300-1

0300-2

8300-0

.110

.187

.140

0309

X300-X-15-XX-47-XX-10-0

Solder mount in .042 min.

mounting hole

0301-1-15-XX-47-XX-10-0

Solder mount in .042 min.

mounting hole

0309-2-15-XX-47-XX-10-0

Solder mount in .042 min.

mounting hole

0399

Basic Part

Number

Length

1304

0399-0

0399-1

.230

.180

0399-X-15-XX-47-XX-04-0

Press-fit in .061 mounting hole

1304-0-15-XX-47-XX-04-0

Press-fit in .061 mounting hole

SPECIFICATIONS

SHELL MATERIAL:

Brass Alloy 360, 1/2 Hard

CONTACT MATERIAL:

Beryllium Copper Alloy 172, HT

DIMENSION IN INCHES

TOLERANCES ON:

LENGTHS:

±.005

DIAMETERS: ±.002

ANGLES:

± 2°

ORDER CODE: XXXX - X - 15 - XX - 47 - XX -XX - 0

BASIC PART #

SPECIFY SHELL FINISH:

200µ"

TIN/LEAD OVER

NICKEL

10µ"

GOLD OVER

NICKEL

CONTACT

#47

CONTACT (DATA ON PAGE 211)

SPECIFY CONTACT FINISH:

200µ"

TIN/LEAD OVER

NICKEL

10µ"

GOLD OVER

NICKEL

30µ"

GOLD OVER

NICKEL

w w w. m i l l - m a x . c o m

146

516-922-6000

8300-0-15-15-47-14-10-0 Related Products

	8300-0-15-15-47-14-10-0	0301-1-15-01-47-14-10-0	8300-0-15-01-47-14-10-0
Description	PCB Terminal	PCB Terminal	PCB Terminal
Is it lead-free?	Lead free	Contains lead	Contains lead
Is it Rohs certified?	conform to	incompatible	incompatible
Reach Compliance Code	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99
Manufacturer's serial number	8300	0301	8300
terminal gender	FEMALE	FEMALE	FEMALE
Terminal and terminal strip types	PCB TERMINAL	PCB TERMINAL	PCB TERMINAL
Base Number Matches	1	1	-
Maker	-	Mill-Max	Mill-Max
