8579-0-15-01-2180-10-0

Description
PCB Terminal
CategoryThe connector    terminals
File Size91KB,1 Pages
ManufacturerMill-Max
Websitehttps://www.mill-max.com
Download Datasheet Parametric View All

8579-0-15-01-2180-10-0 Overview

PCB Terminal

8579-0-15-01-2180-10-0 Parametric

Parameter NameAttribute value
Reach Compliance Codecompliant
ECCN codeEAR99
Manufacturer's serial number8579
terminal genderFEMALE
Terminal and terminal strip typesPCB TERMINAL
Base Number Matches1

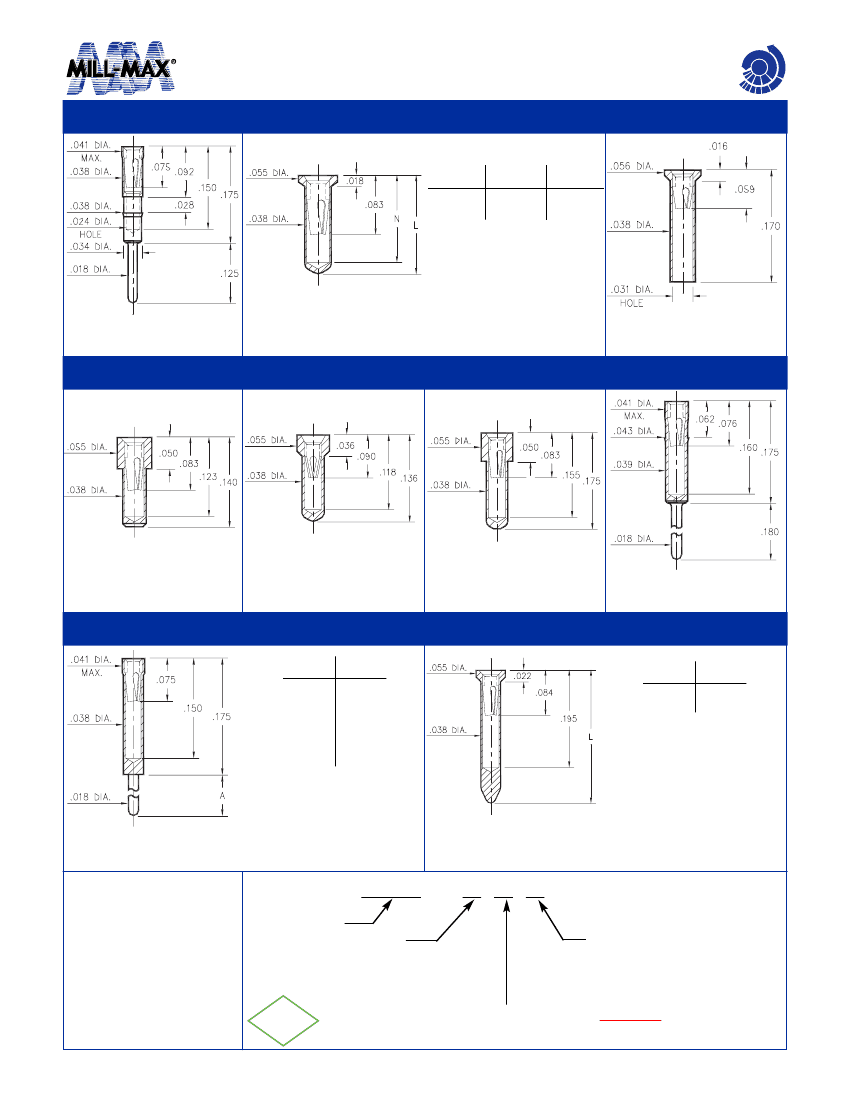

PIN RECEPTACLES
for .015” - .022” diameter pins
(see specific contact range on page 206)
PR
E
CI
M
ON
S
I
CHI
A
PINS
NE
D
0467
0552
Basic Part
Number
Length
L
Depth
N
5522
0552-1
0552-2
.136
.170
.120
.150
0467-0-15-XX-21-XX-04-0
Press-fit in .037 mounting hole
0552-X-15-XX-X1-XX-10-0
Solder mount in .040 min.
mounting hole
5522-0-15-XX-09-XX-10-0
Solder mount in .040 min.
mounting hole
0569
6023
6214
2086
0569-0-15-XX-X1-XX-10-0
Solder mount in .040 min
mounting hole
6023-0-15-XX-21-XX-10-0
Solder mount in .040 min
mounting hole
6214-0-15-XX-21-XX-10-0
Solder mount in .040 min
mounting hole
2086-0-15-XX-21-XX-04-0
Press-fit in .040 mounting hole
0461
Basic Part
Number
Length
A
8579
0461-0
0461-1
0461-2
0461-3
0461-4
0461-5
.400
.275
.180
.125
.060
.440
Basic Part
Number
Length
L
8579-0
8579-1
.234
.295
0461-X-15-XX-X1-XX-04-0
Solder mount in .020 min.
mounting hole
8579-0-15-XX-X1-XX-10-0
Solder mount in .040 min
mounting hole
SPECIFICATIONS
SHELL MATERIAL:
Brass Alloy 360, 1/2 Hard
CONTACT MATERIAL:
Beryllium Copper Alloy 172, HT
DIMENSION IN INCHES
TOLERANCES ON:
LENGTHS:
±.005
DIAMETERS: ±.002
ANGLES:
± 2°
ORDER CODE: XXXX - X - 15 - XX - XX - XX - XX - 0
BASIC PART #
SPECIFY SHELL FINISH:
01
200μ” TIN/LEAD OVER NICKEL
80
200μ” TIN OVER NICKEL
15
10μ” GOLD OVER NICKEL
SPECIFY CONTACT FINISH:
02
100μ” TIN/LEAD OVER NICKEL
84
100μ” TIN OVER NICKEL
27
30μ” GOLD OVER NICKEL
SELECT CONTACT
#09, #11 or #21
CONTACT (DATA ON PAGE 206)
