86566630064 Overview

Connector Accessory

86566630064 Parametric

Parameter NameAttribute value
Reach Compliance Codeunknown
ECCN codeEAR99
Connector bracket typeCONNECTOR ACCESSORY
Base Number Matches1
1
2
3
4

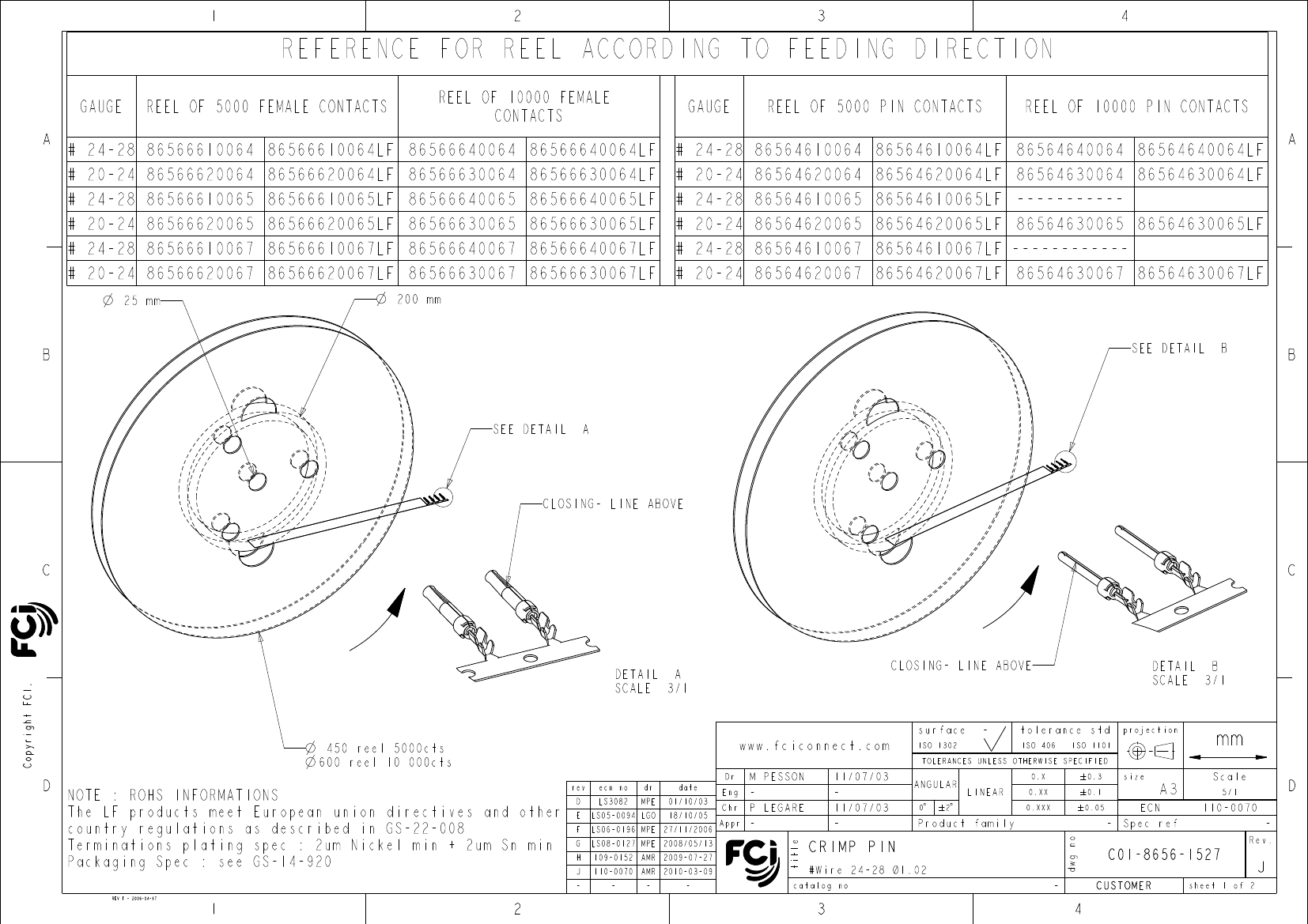

REFERENCE FOR REEL ACCORDING TO FEEDING DIRECTION
GAUGE
A
REEL OF 5000 FEMALE CONTACTS
REEL OF 10000 FEMALE
CONTACTS
GAUGE
REEL OF 5000 PIN CONTACTS
REEL OF 10000 PIN CONTACTS
A
# 24-28 86566610064 86566610064LF 86566640064 86566640064LF
# 20-24 86566620064 86566620064LF 86566630064 86566630064LF
# 24-28 86566610065 86566610065LF 86566640065 86566640065LF
# 20-24 86566620065 86566620065LF 86566630065 86566630065LF
# 24-28 86566610067 86566610067LF 86566640067 86566640067LF
# 20-24 86566620067 86566620067LF 86566630067 86566630067LF
25 mm
200 mm
# 24-28 86564610064 86564610064LF 86564640064 86564640064LF
# 20-24 86564620064 86564620064LF 86564630064 86564630064LF
# 24-28 86564610065 86564610065LF -----------
# 20-24 86564620065 86564620065LF 86564630065 86564630065LF
# 24-28 86564610067 86564610067LF ------------
# 20-24 86564620067 86564620067LF 86564630067 86564630067LF
B
SEE DETAIL
B
B
SEE DETAIL
A
CLOSING- LINE ABOVE
C
C
Copyright FCI.
DETAIL A
SCALE 3/1
CLOSING- LINE ABOVE
DETAIL B
SCALE 3/1
surface
-
tolerance std
ISO 406
ISO 1101
projection
450 reel 5000cts
600 reel 10 000cts
www.fciconnect.com
Dr
ISO 1302
mm
Scale
5/1
TOLERANCES UNLESS OTHERWISE SPECIFIED
D
M PESSON
-
P LEGARE
-
title
11/07/03
-
11/07/03
-
dwg no
NOTE : ROHS INFORMATIONS
The LF products meet European union directives and other
country regulations as described in GS-22-008
Terminations plating spec : 2um Nickel min + 2um Sn min
Packaging Spec : see GS-14-920
REV F - 2006-04-17
rev
D
E
F
G
H
J
-
ecn no
LS3082
dr
MPE
date
01/10/03
18/10/05
Eng
Chr
Appr
ANGULAR
0
2
0.X
0.3
0.1
0.05
size
LINEAR
0.XX
0.XXX
A3
ECN
- Spec ref
D
-
Rev.
LS05-0094 LGO
I10-0070
LS06-0196 MPE 27/11/2006
LS08-0127 MPE 2008/05/13
I09-0152
I10-0070
-
AMR 2009-07-27
AMR 2010-03-09
-
-
Product family

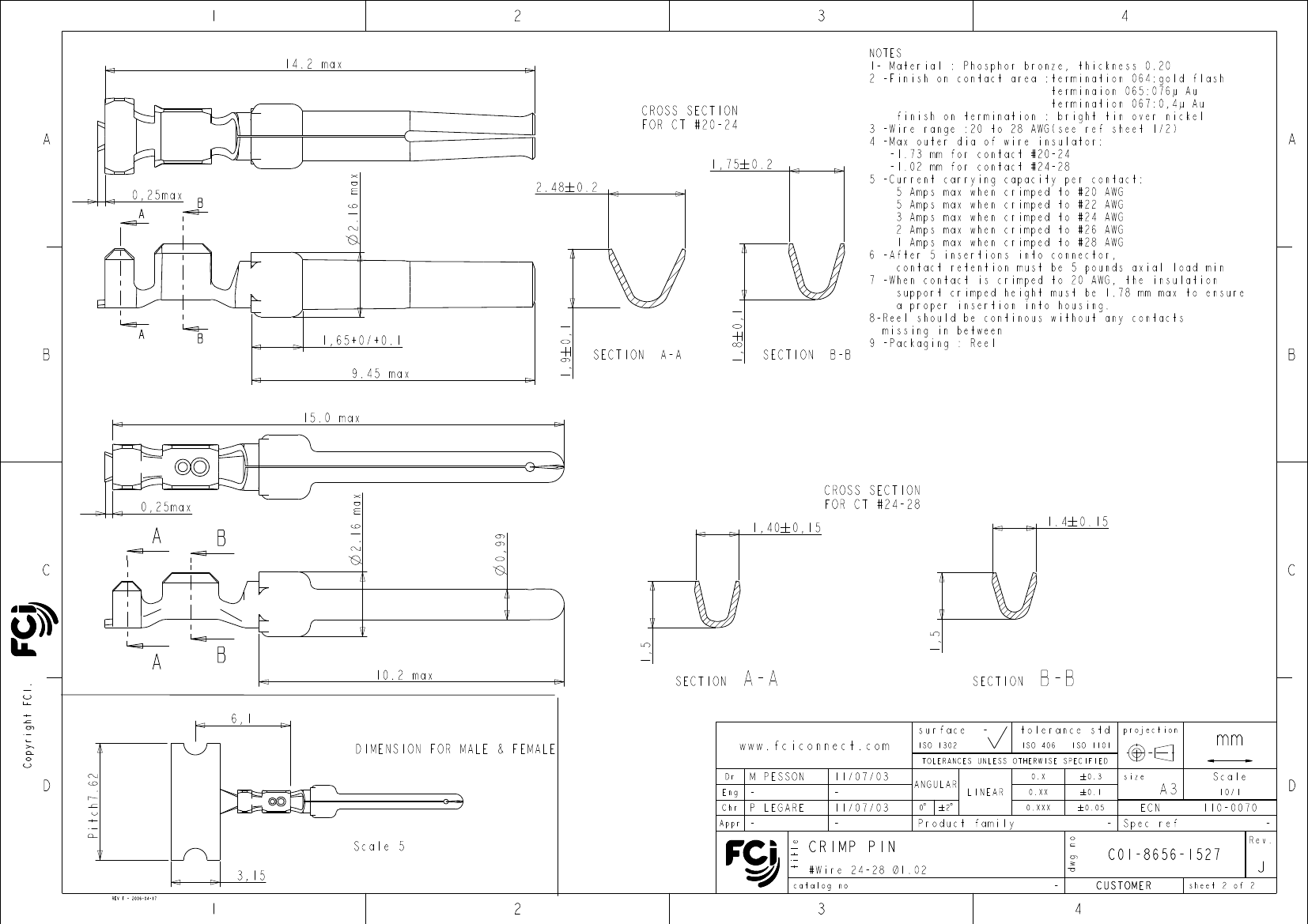

CRIMP PIN
#Wire 24-28 Ø1.02
-
C01-8656-1527
CUSTOMER
sheet
1 of 2
J
catalog no
1
2
3
PDM: Rev:J
STATUS:
Released
4
Printed: Apr 24, 2010
.
