8-151-W datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> terminals> 8-151-W

8-151-W: DescriptionBarrier Strip Terminal Block, 50A, 2 Row(s), 1 Deck(s); CategoryThe connector terminals; File Size50KB，1 Pages; ManufacturerCinch Connectivity Solutions

Download Datasheet Parametric Compare View All

8-151-W Overview

Barrier Strip Terminal Block, 50A, 2 Row(s), 1 Deck(s)

8-151-W Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	PHENOLIC, 94V-1
Fastening method	SOLDER
Manufacturer's serial number	151
Number of layers	1
Rows	2
Number of channels	8
Rated current	50 A
Rated voltage	250 V
safety certificate	UL; CSA
Terminal and terminal strip types	BARRIER STRIP TERMINAL BLOCK
Wire gauge	8 AWG
Base Number Matches	1

Preview

Download Datasheet

View All

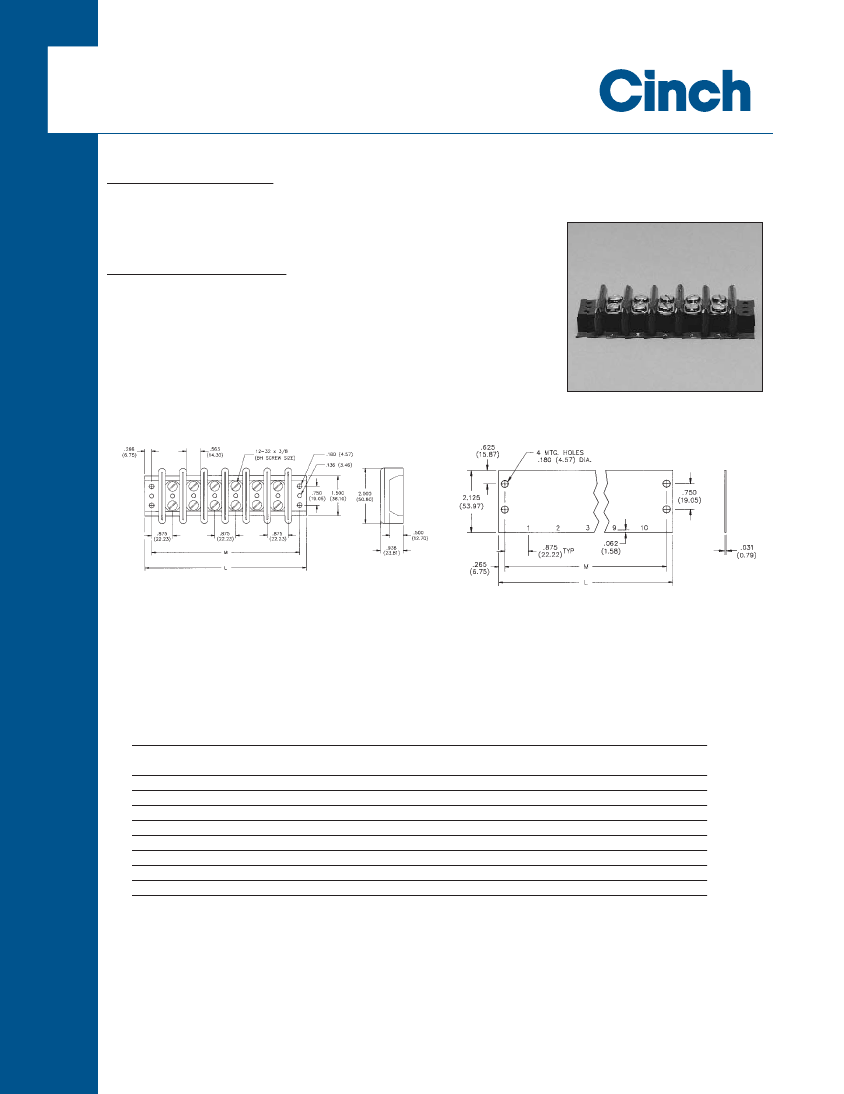

Barrier Blocks

Series 151

.875 Density, 12-32 x 3/8"

BH Screw, Open Bottom,

Double Row

Electrical Characteristics

Voltage Rating:

250 Volts maximum

Current Rating:

50 Amps maximum

Maximum Watts Per Terminal:

12,500

Mechanical Characteristics

Maximum Wire Size:

Recommended Tightening Torque:

40 lb.-in.

Dimensions

Ordering Information

No. of

Terminals

Catalog No.

1-151

2-151

3-151

4-151

5-151

6-151

7-151

8-151

“M”

Dim. (in)

1.750

2.625

3.500

4.375

5.250

6.125

7.000

7.875

“L”

Dim. (in)

2.282

3.157

4.032

4.907

5.782

6.657

7.532

8.407

Marker Strip

Catalog No.

N/A

MS-2-151

MS-3-151

MS-4-151

MS-5-151

MS-6-151

MS-7-151

MS-8-151

Solder Terminals can be ordered separately.

Terminal Type

“W”

Catalog No.

W-151

Marketed exclusively through distribution.

Call Toll Free: 1 (800) 323-9612

2-18
