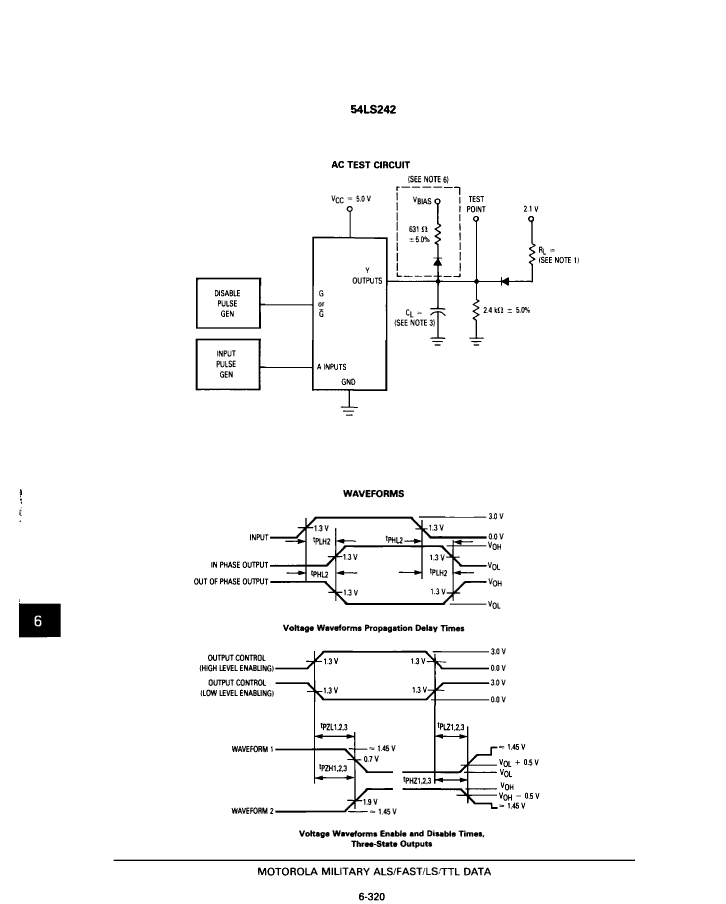

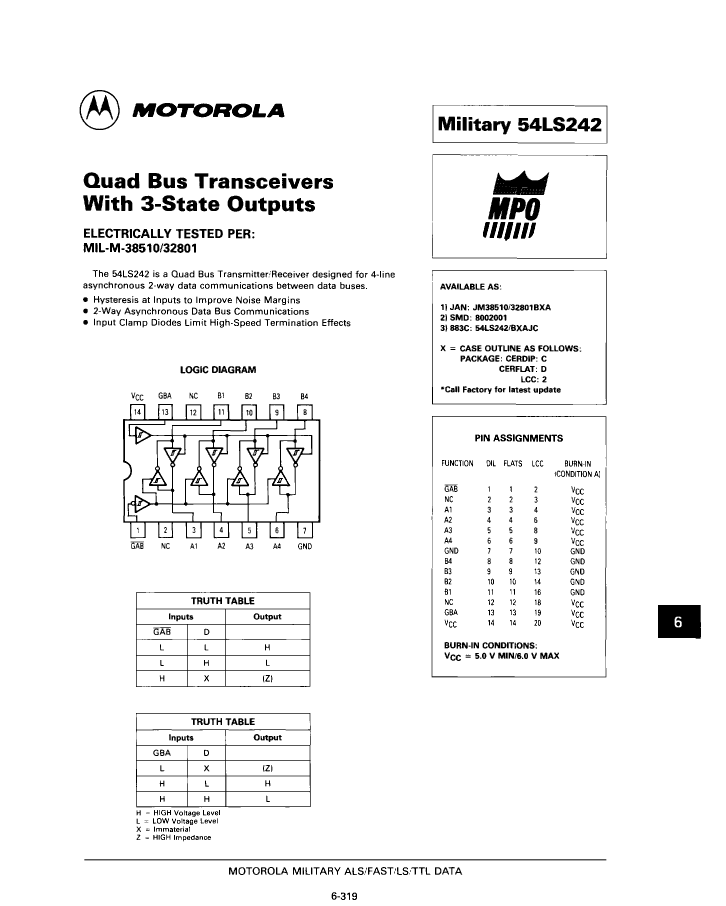

LS SERIES, 4-BIT TRANSCEIVER, INVERTED OUTPUT
| Parameter Name | Attribute value |
| package instruction | , |
| Reach Compliance Code | unknown |
| ECCN code | 3A001.A.2.C |
| Other features | WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION |
| series | LS |
| Logic integrated circuit type | BUS TRANSCEIVER |
| Number of digits | 4 |
| Number of functions | 1 |
| Number of ports | 2 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Output characteristics | 3-STATE |
| Output polarity | INVERTED |

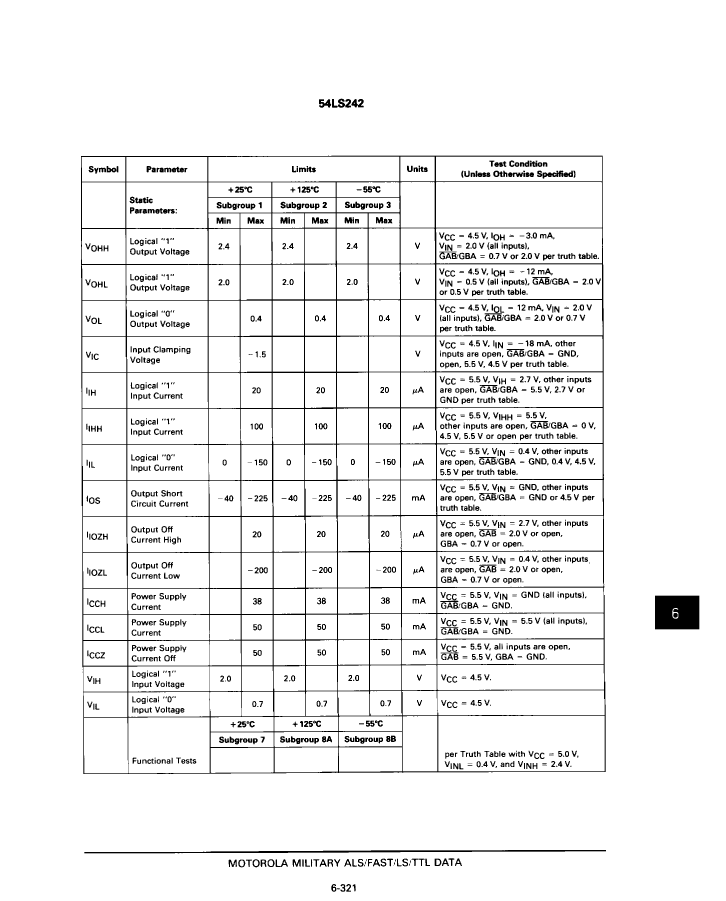

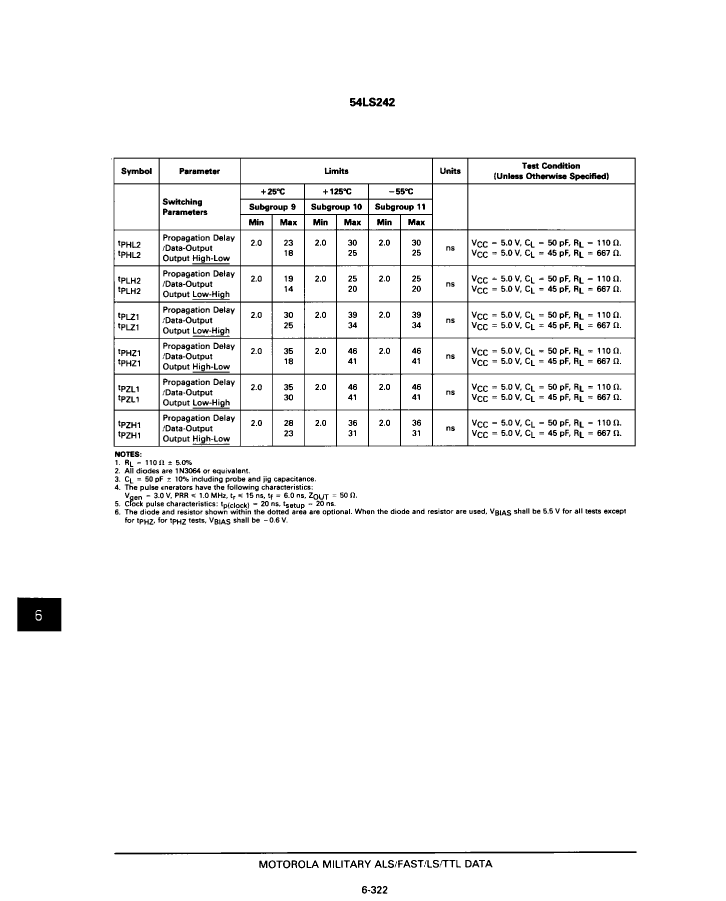

| propagation delay (tpd) | 30 ns |
| Certification status | Not Qualified |
| Maximum supply voltage (Vsup) | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V |
| technology | TTL |
| Temperature level | MILITARY |
| Base Number Matches | 1 |
| 8002001 | 54LS242/B2AJC | JM38510/32801BCA | 442SA2TCDN | JM38510/32801B2A | |
|---|---|---|---|---|---|
| Description | LS SERIES, 4-BIT TRANSCEIVER, INVERTED OUTPUT | LS SERIES, 4-BIT TRANSCEIVER, INVERTED OUTPUT, CQCC20, CERAMIC, LCC-20 | Bus Transceiver, LS Series, 1-Func, 4-Bit, Inverted Output, TTL, CDIP14, CERDIP-14 | Linear Motion 1/4 Watt Composition Slide Controls | Bus Transceiver, LS Series, 1-Func, 4-Bit, Inverted Output, TTL, CQCC20, CERAMIC, LCC-20 |
| package instruction | , | QCCN, LCC20,.35SQ | DIP, | - | QCCN, |
| Reach Compliance Code | unknown | unknown | unknown | - | unknown |
| Other features | WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION | WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION | WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION | - | WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION |
| series | LS | LS | LS | - | LS |
| Logic integrated circuit type | BUS TRANSCEIVER | BUS TRANSCEIVER | BUS TRANSCEIVER | - | BUS TRANSCEIVER |
| Number of digits | 4 | 4 | 4 | - | 4 |
| Number of functions | 1 | 1 | 1 | - | 1 |
| Number of ports | 2 | 2 | 2 | - | 2 |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C | - | 125 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C | - | -55 °C |
| Output characteristics | 3-STATE | 3-STATE | 3-STATE | - | 3-STATE |
| Output polarity | INVERTED | INVERTED | INVERTED | - | INVERTED |
| propagation delay (tpd) | 30 ns | 30 ns | 30 ns | - | 30 ns |
| Certification status | Not Qualified | Not Qualified | Not Qualified | - | Not Qualified |
| Maximum supply voltage (Vsup) | 5.5 V | 5.5 V | 5.5 V | - | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V | 4.5 V | 4.5 V | - | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V | - | 5 V |
| technology | TTL | TTL | TTL | - | TTL |
| Temperature level | MILITARY | MILITARY | MILITARY | - | MILITARY |
| JESD-30 code | - | S-CQCC-N20 | R-GDIP-T14 | - | S-CQCC-N20 |
| length | - | 8.89 mm | 19.495 mm | - | 8.89 mm |
| Number of terminals | - | 20 | 14 | - | 20 |
| Package body material | - | CERAMIC, METAL-SEALED COFIRED | CERAMIC, GLASS-SEALED | - | CERAMIC, METAL-SEALED COFIRED |
| encapsulated code | - | QCCN | DIP | - | QCCN |
| Package shape | - | SQUARE | RECTANGULAR | - | SQUARE |
| Package form | - | CHIP CARRIER | IN-LINE | - | CHIP CARRIER |
| Maximum seat height | - | 1.9 mm | 5.08 mm | - | 1.9 mm |
| surface mount | - | YES | NO | - | YES |
| Terminal form | - | NO LEAD | THROUGH-HOLE | - | NO LEAD |
| Terminal pitch | - | 1.27 mm | 2.54 mm | - | 1.27 mm |
| Terminal location | - | QUAD | DUAL | - | QUAD |
| width | - | 8.89 mm | 7.62 mm | - | 8.89 mm |
