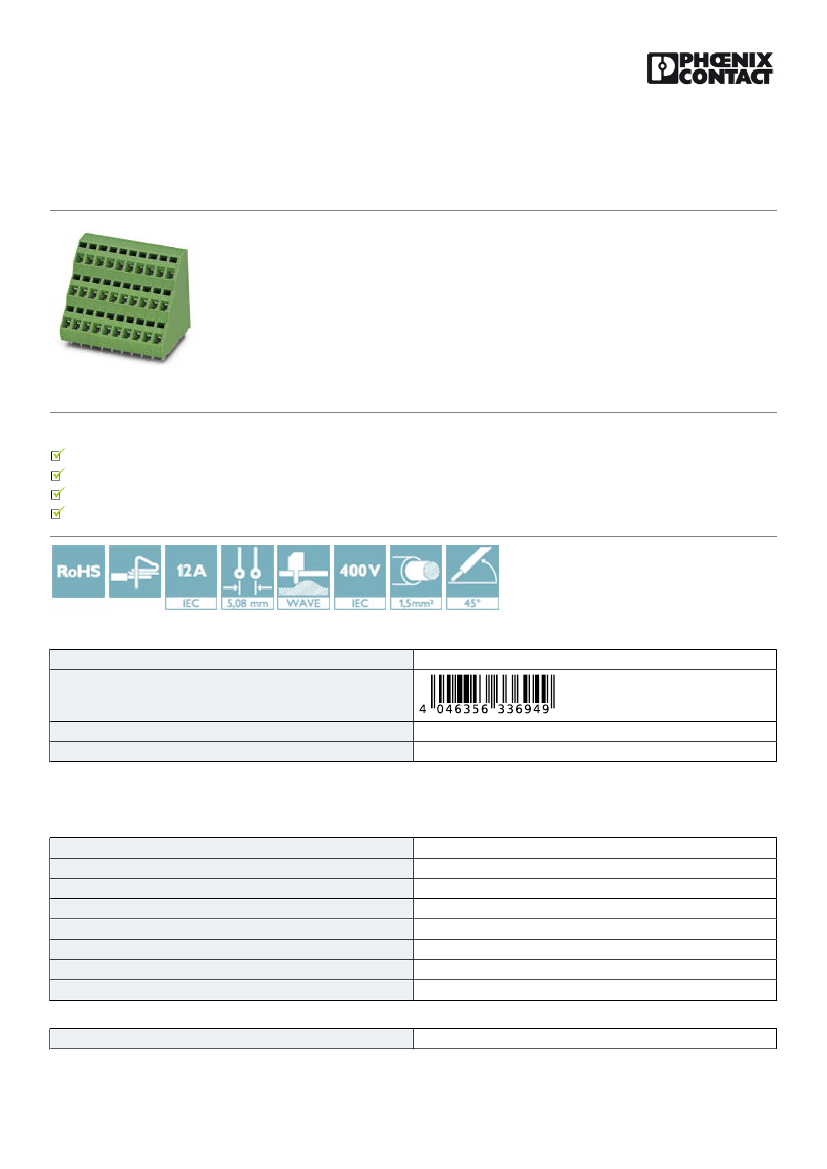

PCB terminal block - ZFK3DSA 1,5-5,08-24 BU - 1756388
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
PCB terminal block, nominal current: 12 A, nom. voltage: 400 V, pitch: 5.08 mm, number of positions: 24,
connection method: Spring-cage connection, mounting: Wave soldering, conductor/PCB connection direction:
45 °, color: blue
The figure shows an 10-position
version
Your advantages
Defined contact force ensures that contact remains stable over the long term
Clamping space opened by means of fixed screwdriver enables convenient conductor connection
Conductor connection on several levels enables higher contact density
The latching on the side enables various numbers of positions to be combined
Key Commercial Data
Packing unit
GTIN
GTIN
Custom tariff number
4046356336949
85369010
1
Technical data
Item properties
Brief article description
Range of articles
Pitch
Number of positions
Connection method
Mounting type
Pin layout
Number of levels
PCB terminal block
ZFK3DS(A) 1,5
5.08 mm
24
Spring-cage connection
Wave soldering
Linear pinning
3
Electrical parameters
Rated current
12 A
01/16/2019 Page 1 / 5
https://www.phoenixcontact.com/in/products/1756388
PCB terminal block - ZFK3DSA 1,5-5,08-24 BU - 1756388
Technical data
Electrical parameters
Rated insulation voltage (III/2)
Rated surge voltage (III/2)
400 V
4 kV
Connection capacity
Conductor cross section solid
Conductor cross section flexible
Conductor cross section AWG / kcmil
Conductor cross section flexible, with ferrule without plastic sleeve
Conductor cross section, flexible, with ferrule, with plastic sleeve
Stripping length
0.2 mm² ... 2.5 mm²
0.2 mm² ... 1.5 mm²
24 ... 14
0.25 mm² ... 1.5 mm²
0.25 mm² ... 1.5 mm²
7.5 mm
Material data - contact
Note
Contact material
Surface characteristics
Metal surface terminal point (top layer)
Metal surface soldering area (top layer)
WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/
JEDEC JESD 201
Cu alloy
hot-dip tin-plated
Tin (10 - 16 µm Sn)
Tin (10 - 16 µm Sn)
Material data - housing
Insulating material
Insulating material group
CTI according to IEC 60112
Flammability rating according to UL 94
Glow wire flammability index GWFI according to EN 60695-2-12
Glow wire ignition temperature GWIT according to EN 60695-2-13
Temperature for the ball pressure test according to EN 60695-10-2
PA
I
600
V0
850
775
125 °C
Dimensions for the product
Length [ l ]
Pitch
Height (without solder pin)
Solder pin [P]
Pin dimensions
Dimension a
32.2 mm
5.08 mm
37 mm
3.4 mm
0.7 x 1 mm
116.84 mm
Dimensions for PCB design
Hole diameter
1.3 mm
Packaging information
Type of packaging
Pieces per package
Denomination packing units
packed in cardboard
10
Pcs.
Ambient conditions
01/16/2019 Page 2 / 5
https://www.phoenixcontact.com/in/products/1756388
PCB terminal block - ZFK3DSA 1,5-5,08-24 BU - 1756388
Technical data
Ambient conditions
Ambient temperature (storage/transport)
Ambient temperature (assembly)
Ambient temperature (operation)
-40 °C ... 70 °C
-5 °C ... 100 °C
-40 °C
Electrical tests
Rated current
Rated insulation voltage (III/2)
Rated surge voltage (III/2)
12 A
400 V
4 kV
Air clearances and creepage distances
Insulating material group
Voltage
Rated insulation voltage (III/3)
Rated insulation voltage (III/2)
Rated insulation voltage (II/2)
Rated surge voltage (III/3)
Rated surge voltage (III/2)
Rated surge voltage (II/2)
I
250 V
250 V
400 V
630 V
4 kV
4 kV
4 kV
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
EN-VDE
CSA
V0
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
eCl@ss 9.0
27141111
27141109
27141190
27261100
27261100
27440401
27440401
27440401
ETIM
ETIM 3.0
ETIM 4.0
EC001121
EC002643
01/16/2019 Page 3 / 5
https://www.phoenixcontact.com/in/products/1756388
PCB terminal block - ZFK3DSA 1,5-5,08-24 BU - 1756388
Classifications
ETIM
ETIM 5.0
ETIM 6.0
EC002643
EC002643
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211801
39121432
39121432
39121432
39121432
Approvals
Approvals
Approvals
CSA / EAC / cULus Recognized
Ex Approvals
Approval details
CSA
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
D
300 V
10 A
28-12
http://www.csagroup.org/services-industries/product-listing/
B
300 V
10 A
28-12
13631
EAC
D
300 V
10 A
26-12
B.01742
cULus Recognized
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm E60425-19941110
B
250 V
10 A
26-12
01/16/2019 Page 4 / 5
https://www.phoenixcontact.com/in/products/1756388
Phoenix Contact 2019 © - all rights reserved
http://www.phoenixcontact.com
01/16/2019 Page 5 / 5
