855011AGLF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 855011AGLF

855011AGLF: DescriptionLow Skew Clock Driver, 855011 Series, 2 True Output(s), 0 Inverted Output(s), PDSO8, 3 MM X 3 MM, 0.95 MM HEIGHT, ROHS COMPLIANT, MO-187, TSSOP-8; Categorylogic logic; File Size201KB，10 Pages; ManufacturerIDT (Integrated Device Technology); Environmental Compliance

Download Datasheet Parametric Compare View All

855011AGLF Overview

Low Skew Clock Driver, 855011 Series, 2 True Output(s), 0 Inverted Output(s), PDSO8, 3 MM X 3 MM, 0.95 MM HEIGHT, ROHS COMPLIANT, MO-187, TSSOP-8

855011AGLF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Parts packaging code	TSSOP
package instruction	3 MM X 3 MM, 0.95 MM HEIGHT, ROHS COMPLIANT, MO-187, TSSOP-8
Contacts	8
Reach Compliance Code	compliant
series	855011
Input adjustment	DIFFERENTIAL
JESD-30 code	S-PDSO-G8
JESD-609 code	e3
length	3 mm
Logic integrated circuit type	LOW SKEW CLOCK DRIVER
Number of functions	1
Number of inverted outputs
Number of terminals	8
Actual output times	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	TSSOP
Package shape	SQUARE
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum seat height	1.1 mm
Maximum supply voltage (Vsup)	3.8 V
Minimum supply voltage (Vsup)	2.375 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
Temperature level	INDUSTRIAL
Terminal surface	MATTE TIN
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	30
width	3 mm
Base Number Matches	1

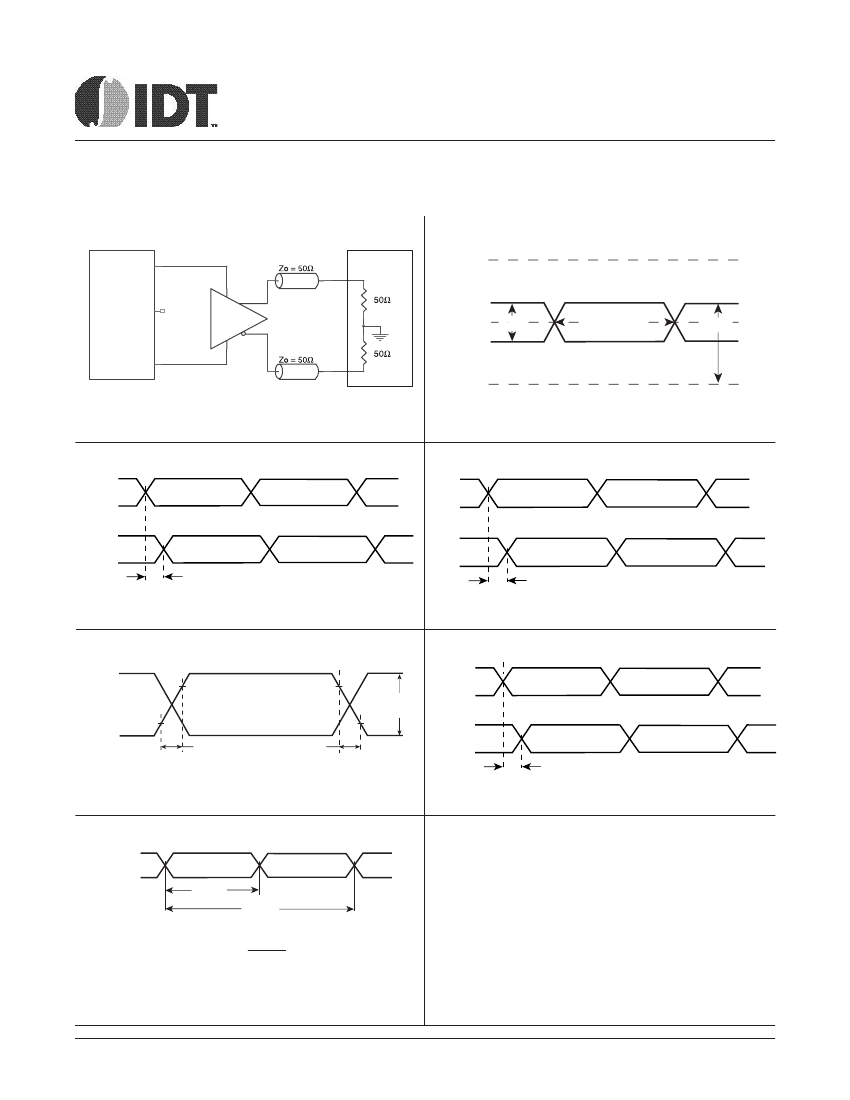

Preview

Download Datasheet

View All

PRELIMINARY

ICS855011

KEW

, 1-

-2

IFFERENTIAL

-2.5V/3.3V CML F

ANOUT

UFFER

ENERAL

ESCRIPTION

The ICS855011 is a low skew, high perfor-

mance 1-to-2 Differential-to-2.5V/3.3V CML

HiPerClockS™

Fa n o u t B u f f e r a n d a m e m b e r o f t h e

HiPerClockS ™ family of High Perfor mance

Clock Solutions from IDT. The ICS855011

is characterized to operate from either a 2.5V or a

3.3V power supply. Guaranteed output and par t-to-

part skew characteristics make the ICS855011 ideal

for those clock distribution applications demanding

well defined perfor mance and repeatability.

EATURES

•

Two differential 2.5V/3.3V CML outputs

•

One differential PCLK, nPCLK input pair

•

PCLK, nPCLK pair can accept the following

differential input levels: LVPECL, LVDS, CML, SSTL

•

Output frequency: >3GHz

•

Translates any single ended input signal to 3.3V

LVPECL levels with resistor bias on nPCLK input

•

Output skew: 5ps (typical)

•

Part-to-part skew: TBD

•

Propagation delay: 242ps (typical)

•

Operating voltage supply range:

= 2.375V to 3.8V, V

= 0V

•

-40°C to 85°C ambient operating temperature

•

Available in both standard (RoHS5) and lead-free (RoHS 6)

packages

ICS

LOCK

IAGRAM

PCLK

nPCLK

nQ0

nQ1

SSIGNMENT

nQ0

nQ1

Vcc

PCLK

nPCLK

ICS855011

8-Lead TSSOP

3mm x 3mm x 0.95mm package body

G Package

Top View

The Preliminary Information presented herein represents a product in pre-production. The noted characteristics are based on initial product

characterization and/or qualification. Integrated Device Technology, Incorporated (IDT) reserves the right to change any circuitry or specifica-

tions without notice.

855011AG

REV. A JANUARY 16, 2008
