Printview: plug; with strain relief housing; 5-pole; for cable diameter 6.5 - 10.5 mm - Item No.: 890-115
.
plug; with strain relief housing; 5-pole; for cable diameter 6.5 -
10.5 mm
Item No.: 890-115
.
plug; with strain relief housing; 5-pole; for cable diameter 6.5 - 10.5 mm
.
Marking
.
Business data
Supplier
Item no.
GTIN / EAN
Content
Order amount
Customer item number
.
Notes
WAGO
890-115
4045454232924
1
50
Note:All connectors for fixed installations (snap-in versions for lighting fixtures, devices or all types of PCBs and
distribution cabinets) are factory-equipped with locking levers to ensure plugs and sockets are securely locked.
Additional locking levers are only required for “flying leads” (plug/socket).All WINSTA® components are 100%
protected against mismating in terms of:a.) plugging different number of polesb.) plugging when turned by 180°c.)
plugging when laterally staggeredd.) plugging one poleNote on Continuous Service Temperature:-35 °C … +85
°CPVC cable for temperatures 70 °C (including halogen-free)Insulating parts for temperatures 105 °CMating cycles:
100, with resistive load IN = 16 A, tested (1.5 mm2/AWG 16)
Technical data
Miscellaneous
No. of poles
Pin spacing
Total number of connection points
Total number of potentials
Potential marking
5
4.4 mm / 0.173 in %
5
5
N ⏚ 1 2 3
WAGO Kontakttechnik GmbH & Co. KG
1
Printview: plug; with strain relief housing; 5-pole; for cable diameter 6.5 - 10.5 mm - Item No.: 890-115
Technical data
Color
Coding
Rated voltage (III / 3) [V]
Rated surge voltage (III / 3) [kV]
Nominal current [A]
Mating cycles
Connection technology
Number of connection points
Actuation type
Nominal cross section
Solid sizes
solid, directly pluggable
stranded, connectable
Fine-stranded wires
Fine-stranded wires with insulated ferrule
Fine-stranded wires with uninsulated ferrule
black
A
400 [V]
6 [kV]
13 [A]
200, without resistive load
Push-in CAGE CLAMP®
1
Betätigungswerkzeug
1.5 mm² / 16 AWG
0.25 … 1.5 mm² / 22 … 16 AWG
0.75 … 1.5 mm² / 20 … 16 AWG
0.25 … 1 mm² / 22 … 18 AWG
0.25 … 1.5 mm² / 22 … 16 AWG
0.25 … 0.75 mm² / 22 … 20 AWG
0.25 … 1 mm² / 22 … 18 AWG
min. fine-stranded with insulated ferrule, push-in terminati 0.75 mm² / 20 AWG
Strip length
Mating force of a plug-in connection
Unmating force of a plug-in connection
Retention force of a plug-in connection
Insulating material
Flammability rating per UL 94
Clamping spring material
Contact material
Processing temperature
Fire load [MJ]
Weight [g]

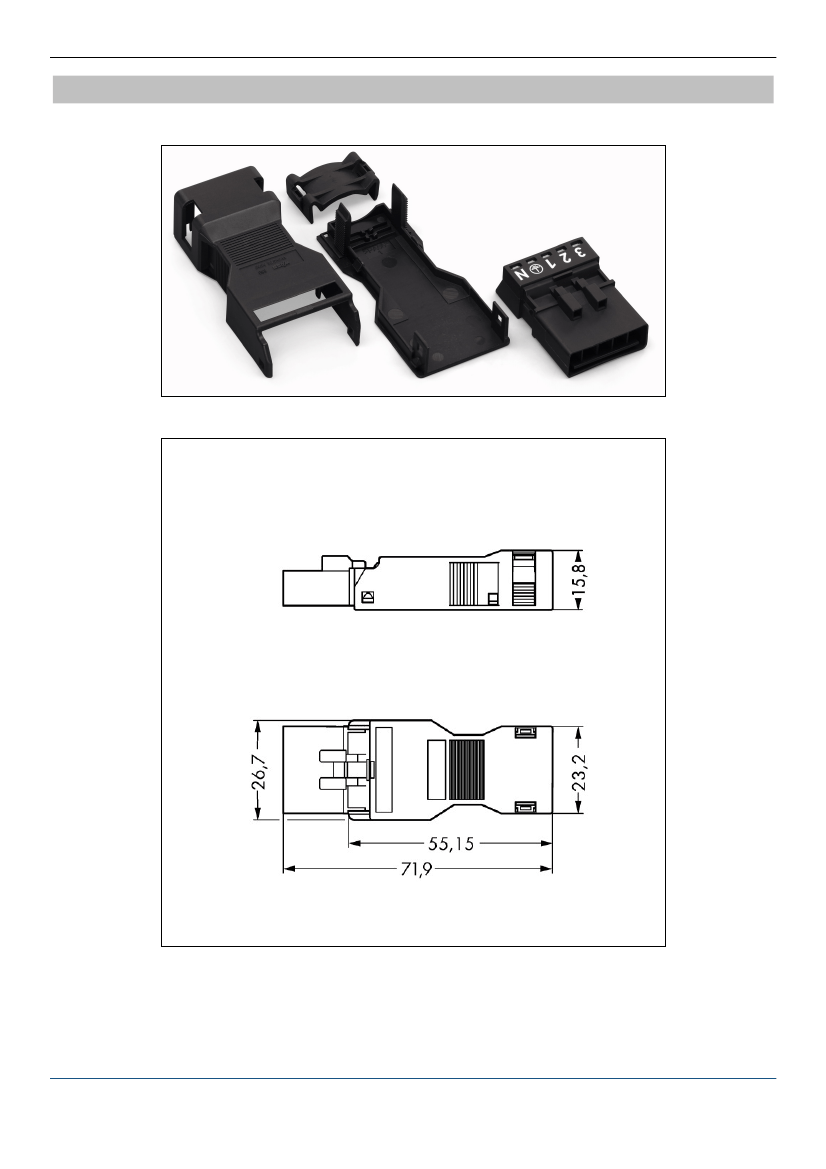

Width
Height
Length
Marking
9 mm / 0.35 in
approx. 20 … 70 N (depending on pole number)
when unlocked: approx. 20 … 70 N (depending on pole
number)
when locked: > 80N
Polyamide 66 (PA 66)
V0
Chrome nickel spring steel (CrNi)
Copper or copper alloy, surface-treated
-5°C ... +40°C
0.298 [MJ]
11.57 [g]
26.7 mm / 1.051 in
15.8 mm / 0.622 in
71.9 mm / 2.831 in
N Erdung 1 2 3
