8055H: DescriptionInside DC Block, 10MHz Min, 18000MHz Max, 0.5dB Insertion Loss-Max, ROHS COMPLIANT PACKAGE; CategoryWireless rf/communication Radio frequency and microwave; File Size35KB，1 Pages; ManufacturerCobham PLC

Download Datasheet Parametric Compare View All

8055H Overview

Inside DC Block, 10MHz Min, 18000MHz Max, 0.5dB Insertion Loss-Max, ROHS COMPLIANT PACKAGE

8055H Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	SMA-F; SMA-M
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum DC voltage	200 V
Maximum insertion loss	0.5 dB
JESD-609 code	e4
Maximum operating frequency	18000 MHz
Minimum operating frequency	10 MHz
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
RF/Microwave Device Types	INSIDE DC BLOCK
Terminal surface	GOLD
Maximum voltage standing wave ratio	1.35
Base Number Matches	1

Preview

Download Datasheet

View All

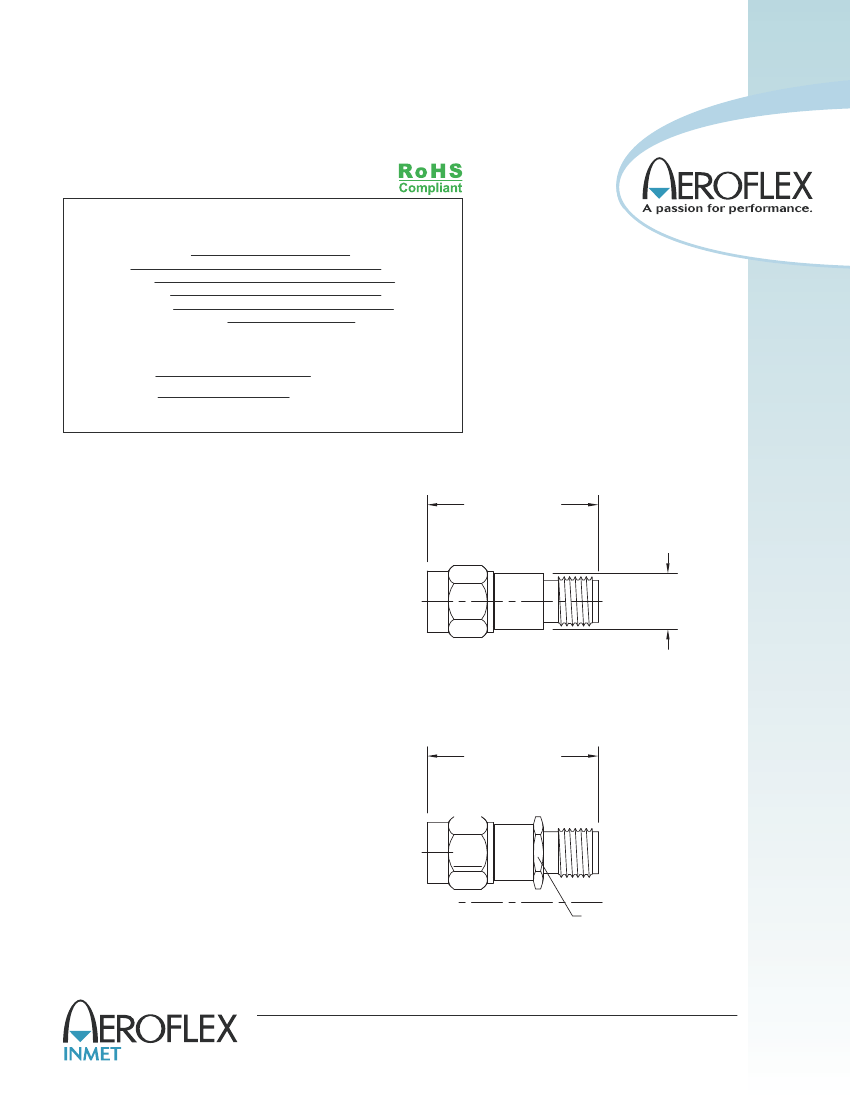

DC BLOCKS

SMA, 10 MHZ - 18 GHz, Inner Only

SPECIFICATIONS:

Models: 8055, 8055H

Electrical:

Frequency Range

VSWR

Impedance

Insertion Loss

Voltage Rating

Operating Temp. Range

10 MHz - 18 GHz

1.35:1 Max.

50 Ohms

0.5 dB Max.

200 Volts

-65°C to +125°C

Mechanical:

Connectors

Mates with MIL

-STD-348

Passivated Stainless Steel

Gold Plated Beryllium Copper

Conductors

Model Number:

8055

Male / Female Connectors

.855 ±.020

[21.72 ±0.51]

Ø.28

[7.1]

Model Number:

8055H

Male / Female Connectors

.855 ±.020

[21.72 ±0.51]

5/16 [7.9] Hex

Note: Dimensions in Brackets are Expressed in Millimeters and are for Reference Only.

Design specifications are subject to change without notice.

Contact factory for technical specifications before purchasing or use.

8055: REV G

Aeroflex / Inmet, Inc.

• 300 Dino Drive, Ann Arbor, MI 48103 • U.S.A.

888-244-6638 or 734-426-5553 • FAX: 734-426-5557

www.aeroflex.com/inmet • inmetsales@aeroflex.com

8055H Related Products

	8055H
Description	Inside DC Block, 10MHz Min, 18000MHz Max, 0.5dB Insertion Loss-Max, ROHS COMPLIANT PACKAGE
Reach Compliance Code	unknown
Other features	SMA-F; SMA-M
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum DC voltage	200 V
Maximum insertion loss	0.5 dB
JESD-609 code	e4
Maximum operating frequency	18000 MHz
Minimum operating frequency	10 MHz
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
RF/Microwave Device Types	INSIDE DC BLOCK
Terminal surface	GOLD
Maximum voltage standing wave ratio	1.35
Base Number Matches	1
