844H90T13E-XY

Description
Base Station/Broadcast Transmission Antenna
CategoryWireless rf/communication    Radio frequency and microwave
File Size1MB,1 Pages
ManufacturerCommScope Inc
Download Datasheet Parametric Compare View All

844H90T13E-XY Overview

Base Station/Broadcast Transmission Antenna

844H90T13E-XY Parametric

Parameter NameAttribute value
Reach Compliance Codeunknown
RF/Microwave Device TypesBASE STATION/BROADCAST TRANSMISSION ANTENNA
Base Number Matches1
DB844H90(E)-XY
dB Director®
12 dBd, 90°, Directional Log Periodic Antenna
Model Number
Termination
Frequency Range
Gain
VSWR
Beamwidth
(3dB from max)
Front to Back Ratio
Polarization
Max. Input Power
Application
Weight
Wind Area
Wind Load
Max. Wind Speed
Material
DB844H90-XY
Type N-Female
806-960 MHz
12 dBd (14.1 dBi)
< 1.5:1
Horizontal:
Vertical:
90° ± 5°
15° ± 1°
DB844H90E-XY
7/16 DIN
> 40 dB
90°
Vertical
500 Watts
Cellular, ESMR
10 lbs (4.5 kg)
2 ft² (0.19 m²)
80 lbf (356N) 35.9 kp (at 100 mph)
125 mph (200 km/h)
Radiators:
Back Panel:
Radome:
Mounting Hdw:
Normal: Gray
DB380 pipe mount kit (max. 3.5" OD),
included.
DB5083
Fully protected by metal and ABS.
All metal parts grounded.
59" x 10" x 15" (150 x 25 x 38 cm)
29 lbs (13 kg)
Brass
Pass. Aluminum
ABS
Galvanized Steel
Color
Mounting
Downtilt Brackets
(Optional)
Weather Protection
Lightning Protection
Packing Size
Shipping Weight

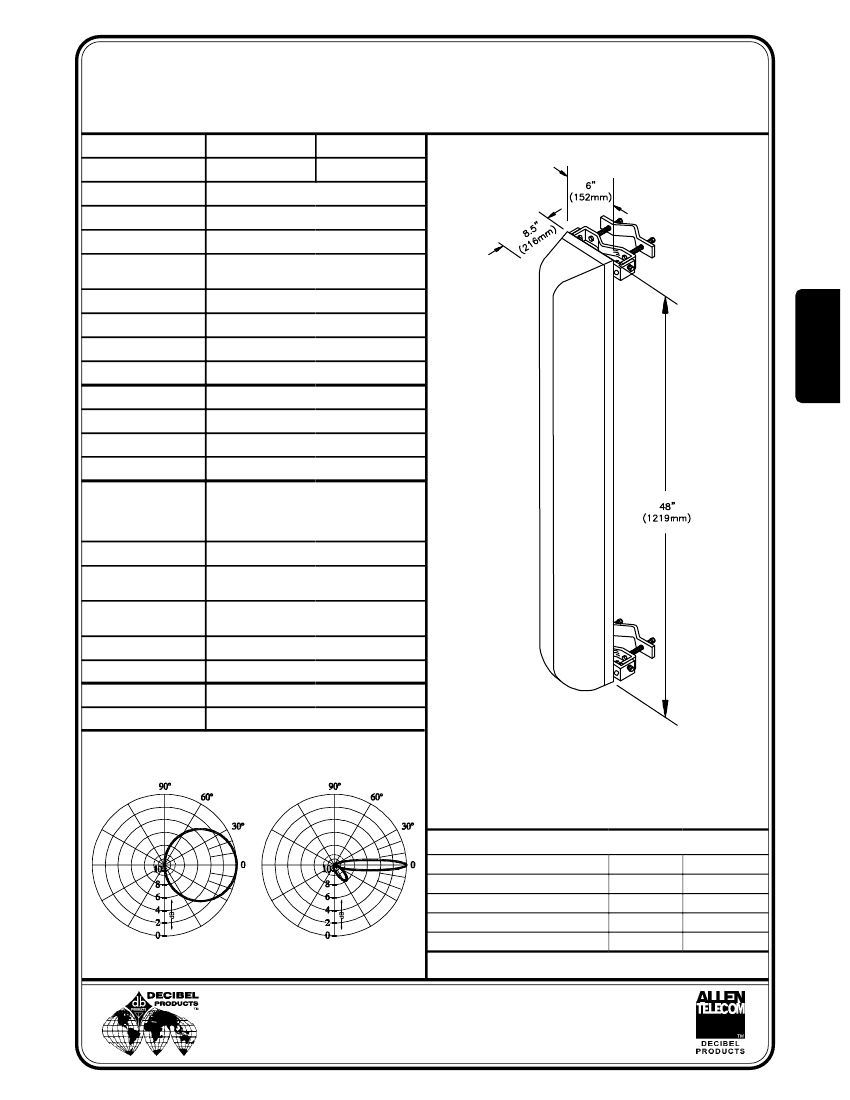

Antenna Patterns
12 dBd (14.1 dBi) Gain Directional Log
Periodic Antenna with 90° horizontal
3 dB beamwidth for 806-960 MHz.
Electrical Downtilt (T) Option
Model Number
844H90T6(E)-XY
844H90T8(E)-XY
844H90T11(- or E)XY
844H90T13(- or E)XY
Downtilt
11°
13°
Gain
11.5 dBd
11.3 dBd
11.1 dBd
11 dBd
099089-001-L 8/99
Horizontal
Vertical
Specifications are for reference only.
DECIBEL
Allen Telecom Inc.
PRODUCTS
A Division of
8635 Stemmons Freeway • P. O. Box 569610 • Dallas, Texas 75356-9610
214 / 631-0310 • Fax: 214 / 631-4706

844H90T13E-XY Related Products

844H90T13E-XY 844H90T6E-XY 844H90T8-XY 844H90T6-XY 844H90T8E-XY 844H90T13-XY 844H90T11-XY 844H90T11E-XY
Description Base Station/Broadcast Transmission Antenna Base Station/Broadcast Transmission Antenna Base Station/Broadcast Transmission Antenna Base Station/Broadcast Transmission Antenna Base Station/Broadcast Transmission Antenna Base Station/Broadcast Transmission Antenna Base Station/Broadcast Transmission Antenna Base Station/Broadcast Transmission Antenna
Reach Compliance Code unknown unknown unknown unknown unknown unknown unknown unknown
RF/Microwave Device Types BASE STATION/BROADCAST TRANSMISSION ANTENNA BASE STATION/BROADCAST TRANSMISSION ANTENNA BASE STATION/BROADCAST TRANSMISSION ANTENNA BASE STATION/BROADCAST TRANSMISSION ANTENNA BASE STATION/BROADCAST TRANSMISSION ANTENNA BASE STATION/BROADCAST TRANSMISSION ANTENNA BASE STATION/BROADCAST TRANSMISSION ANTENNA BASE STATION/BROADCAST TRANSMISSION ANTENNA
Base Number Matches 1 1 1 1 1 1 1 -
Maker - CommScope Inc CommScope Inc CommScope Inc CommScope Inc - CommScope Inc CommScope Inc
