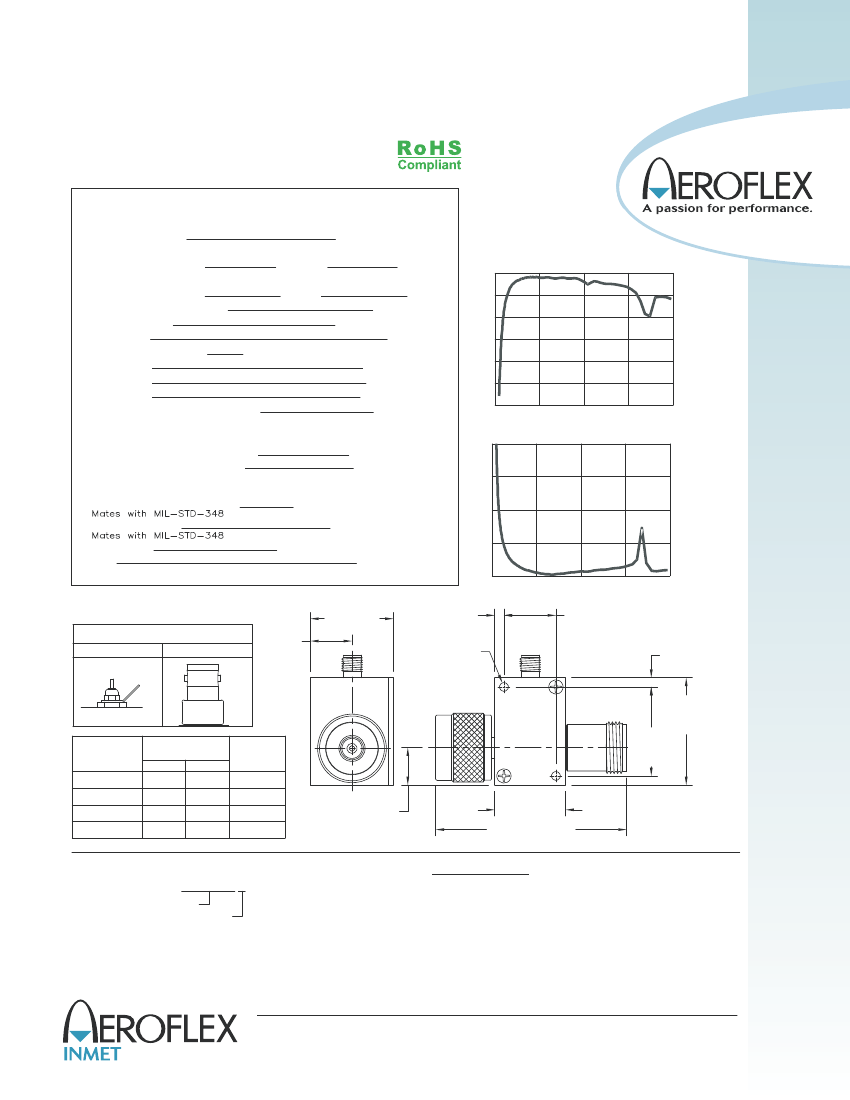

BIAS TEES
Type N, 500 MHz - 2.5 GHz, 100 Volts / 7 Amps
SPECIFICATIONS:
Models: 8820NMFX-02, 8820NFFX-02, 8820NMMX-02, 8820NFMX-02
Electrical:
Frequency Range
500 MHz - 2.5 GHz
Insertion Loss
Typical
Maximum
500 MHz - 2.5 GHz
0.25 dB
0.50 dB
VSWR
Typical
Maximum
1.25:1
1.40:1
500 MHz - 2.5 GHz
> 20dB Typ.
Isolation (RF to Bias Port)
3dB Bandwidth
100 MHz - 3.7 GHz
Impedance
50 Ohms
Bias-Path Resistance
0.008 Ohms Typ., 0.010 0hms Max.
DC Voltage
100 VDC Max.
7 Amps Max.
DC Current
RF Power
50 Watts Max.
See Graph
Current Rating vs Temperature

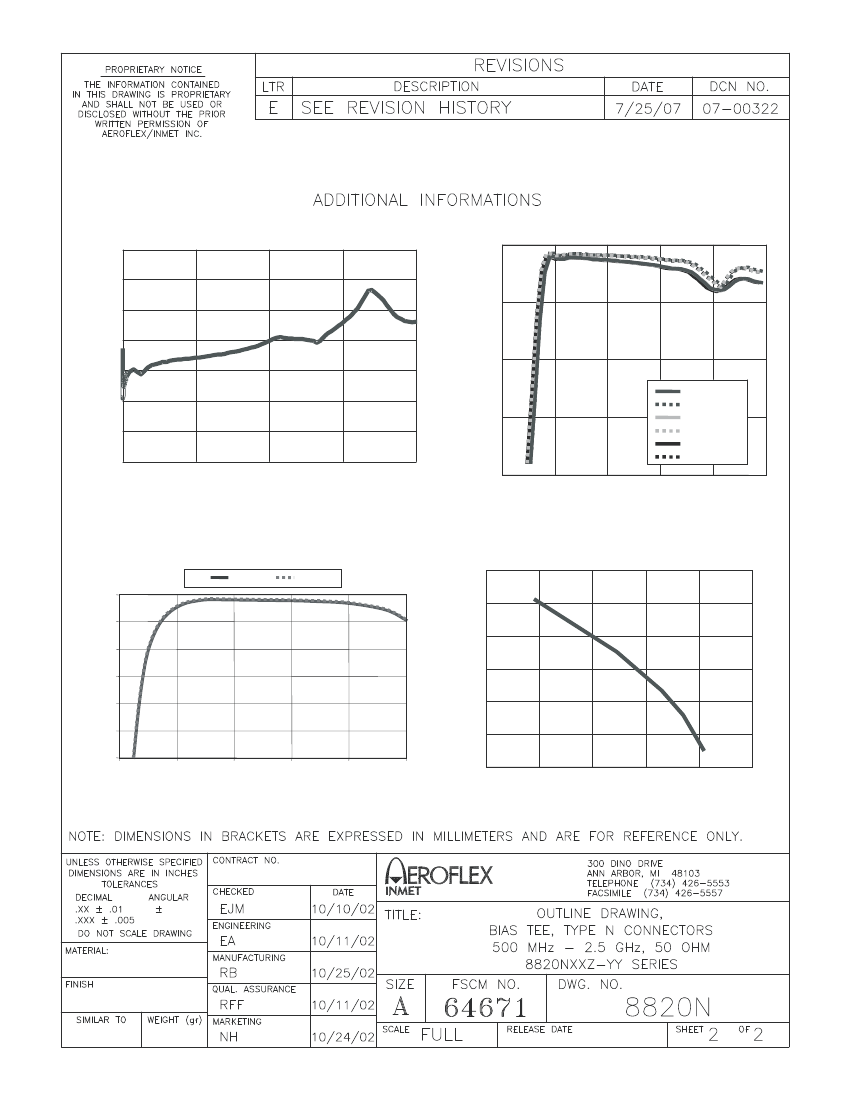

Typical performance from
100 MHz - 3.7 GHz
INSERTION LOSS vs. FREQUENCY
0
-0.5
Insertion Loss (dB)
-1
-1.5
-2
-2.5
-3
0
1
2
Frequency (GHz)
3
4
Operating Temperature Range
Storage Temperature Range
Type N & SMA Connectors
BNC Connectors
Conductors
Body
Environmental
VSWR vs. FREQUENCY
-55°C to +105°C
-60°C to +90°C
VSWR
5
4
Mechanical:
Passivated Stainless Steel
Nickel Plated Brass
Gold Plated Beryllium Copper
Aluminum with
Chemical Conversion Coating
3
2
1
0
1
2
Frequency (GHz)
3
4
DC Input Connector Options
Solder Post, X=1
.50
[1
2.70]
BNC Female, X=3
1.00
[25.40]
1 [2.79]
. 10
2X Ø. 06±.006
1
[Ø2.69±0. 5]
1
THRU
AC + DC
Port
.625 [15.87]
DC Input
(SMA Female Conn.)
Option X = 2
1
. 10
[2.79]
AC Port
1.29
[32.77
1.070
[27 8]
1
.
Model
Numbers
8820NMFX-YY
Connector
Configuration Port
AC + DC
AC
Overall
Length
Max.
Female
2.35 [59.69]
8820NFFX-YY
Female Female
2.40 [60.96]
Male
2.30 [58.42]
8820NMMX-YY
Male
Male
8820NFMX-YY
Female
.45 [1
1.43]
.85 [21.59]
Overall Length
Male
2.35 [59.69]
HOW TO ORDER:
Model Number:
8820NZZX-02
Base Number
DC ConnectorType
1 = Solder Post
2 = SMA Female Conn.
3 = BNC Female Conn.
Ordering Examples:
Model Number:
8820NFF2-02
500 MHz - 2.5 GHz, Type N Fem/Fem
SMA Female DC ConnectorType
Model Number:
8820NMF1-02
500 MHz - 2.5 GHz, Type N Male/Fem
Solder Post DC ConnectorType
Note: Dimensions in Brackets are Expressed in Millimeters and are for Reference Only.
Design specifications are subject to change without notice.
Contact factory for technical specifications before purchasing or use.
8820N: REV E
Aeroflex / Inmet, Inc.
• 300 Dino Drive, Ann Arbor, MI 48103 • U.S.A.
888-244-6638 or 734-426-5553 •FAX: 734-426-5557
www.aeroflex.com/inmet • inmetsales@aeroflex.com
