80.0MHZCFPV-45: DescriptionVCXO, CLOCK, 80 MHz, HCMOS OUTPUT, ROHS COMPLIANT, HERMETIC SEALED, CERAMIC, SMD, 6 PIN; CategoryPassive components oscillator; File Size465KB，2 Pages; ManufacturerIQD Frequency Products; Environmental Compliance

Download Datasheet Parametric Compare View All

80.0MHZCFPV-45 Overview

VCXO, CLOCK, 80 MHz, HCMOS OUTPUT, ROHS COMPLIANT, HERMETIC SEALED, CERAMIC, SMD, 6 PIN

80.0MHZCFPV-45 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
Other features	TRI-STATE; ENABLE/DISABLE FUNCTION; BULK; TAPE AND REEL
Maximum control voltage	3.3 V
Minimum control voltage
maximum descent time	10 ns
Frequency Adjustment - Mechanical	NO
Frequency offset/pull rate	100 ppm
frequency stability	100%
linearity	10%
Installation features	SURFACE MOUNT
Nominal operating frequency	80 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	HCMOS
Output load	15 pF
physical size	7.0mm x 5.0mm x 1.7mm
longest rise time	10 ns
Maximum supply voltage	3.6 V
Minimum supply voltage	3 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	40/60 %
Base Number Matches	1

Preview

Download Datasheet

View All

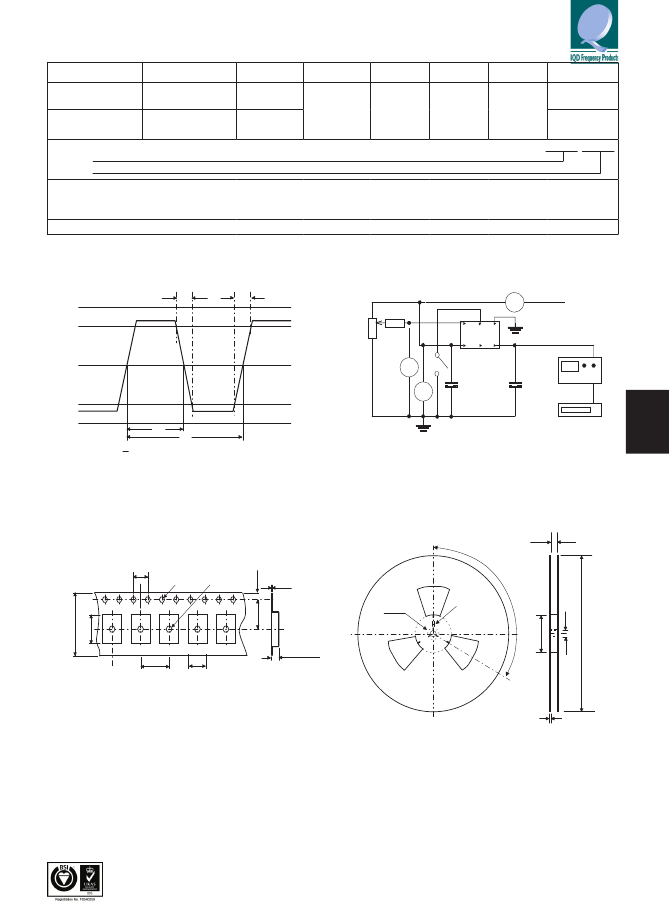

CFPV-45, -46 SMD VCXOs

ISSUE 6 ; 1 NOVEMbEr 2008 - roHS 2002/95/EC

Description

Outline (mm)

7.0 ±0.15

5.0±0.15

▪

VCXOs

A range of surface mount voltage controlled oscillators

(VCXOs) in a hermetically sealed ceramic package

7 x 5mm

Package Outline

Frequency ranges

1.5 to 80MHz (CFPV-45)

1.5 to 51.84MHz (CFPV-46)

Tri-state HCMOS

Drive Capability: 15pF max

±100ppm (inclusive of frequency tolerance, ageing, shock

and vibration)

1

6

2

5

5.08

3

4

1.4

Pad Connections

1. Voltage Control

2. Enable / Disable

3. Ground

4. Output

5. N/C

6. +Vs

Solder pad layout

2.54

2.0

4.2

1.8

1.7max

Output Compatibility & Load

Frequency Stabilities

5.08

Operating Temperature range

0 to 70°C

–40 to 85°C

–55 to 125°C

Logic ‘1’ (>2.5V) to pad 2 enables oscillator output

Logic ‘0’ (<0.5V) to pad 2 disables oscillator output; when

disabled the oscillator output goes to the high impedance

state

No connection pad 2 enables oscillator output

3.3V CFPV-45

5.0V CFPV-46

1.65V±1.65V (CFPV-45)

2.5V±2.0V (CFPV-46)

±100ppm min APR

Positive < ±10%

50k

W

min

>10kHz (@-3dB, Vc=2.5V)

20ps max @ 1sigma

Operable Temperature range

Environmental Specification

▪

Shock: MIL-STD-202, Method 213, Cond. E

Vibration: MIL-STD-883, Method 2007, Cond. A

Model Number + Frequency

Bulk or Tape & Reel

Frequency + Model Number

▪

Marking Includes

Packaging

Minimum Order Information required

Storage Temperature range

Tri-state Operation

Supply Voltage

Voltage Control (pad 1)

Pullability

Linearity

Input Impedance (voltage control, pad 1)

Modulation bandwidth

Phase Jitter

IQD Frequency Products Ltd, Station Road, Crewkerne, Somerset TA18 8AR, United Kingdom

Tel: +44 (1460) 270200; Fax: +44 (1460) 72578;

Email: info@iqdfrequencyproducts.com Web: www.iqdfrequencyproducts.com
