89016-912LF datasheet, PDF - EEWORLD Datasheet

89016-912LF: DescriptionBoard Connector, 240 Contact(s), 5 Row(s), Female, Right Angle, Solder Terminal, Receptacle, LEAD FREE; CategoryThe connector The connector; File Size133KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

89016-912LF Overview

Board Connector, 240 Contact(s), 5 Row(s), Female, Right Angle, Solder Terminal, Receptacle, LEAD FREE

Parameter Name	Attribute value
package instruction	LEAD FREE
Reach Compliance Code	compliant
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	TIN (315)
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	89016
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	5
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	240
UL Flammability Code	94V-0
Base Number Matches	1

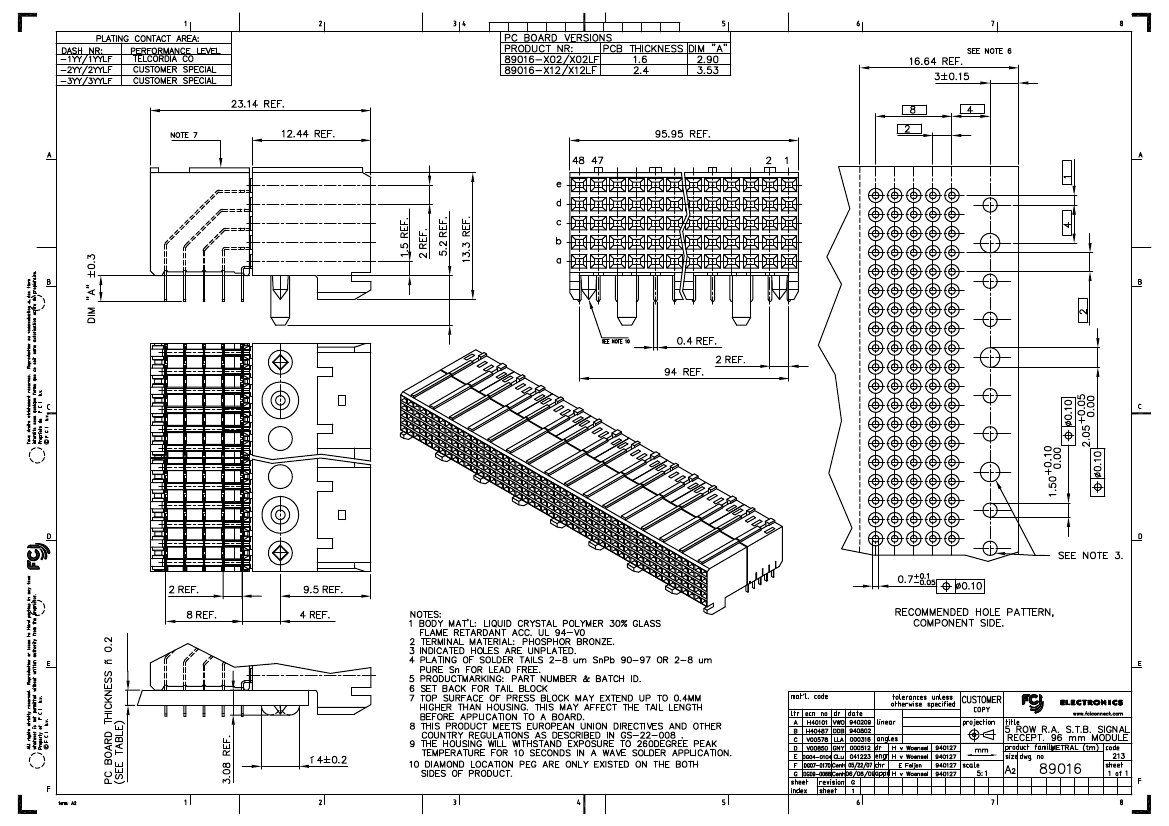

PDM: Rev:G

STATUS:

Released

Printed: Aug 16, 2009

	89016-912LF	89016-902LF	89016-902	89016-912
Description	Board Connector, 240 Contact(s), 5 Row(s), Female, Right Angle, Solder Terminal, Receptacle, LEAD FREE	Board Connector, 240 Contact(s), 5 Row(s), Female, Right Angle, Solder Terminal, Receptacle, LEAD FREE	Board Connector, 240 Contact(s), 5 Row(s), Female, Right Angle, 0.079 inch Pitch, Solder Terminal, Natural Insulator, Receptacle	Board Connector, 240 Contact(s), 5 Row(s), Female, Right Angle, 0.079 inch Pitch, Solder Terminal, Natural Insulator, Receptacle
Reach Compliance Code	compliant	compliant	compliant	compliant
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact completed and terminated	TIN (315)	TIN (315)	TIN LEAD (315)	TIN LEAD (315)
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
JESD-609 code	e3	e3	e0	e0
MIL compliance	NO	NO	NO	NO
Manufacturer's serial number	89016	89016	89016	89016
Mixed contacts	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	5	5	5	5
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2 mm	2 mm	2 mm	2 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	240	240	240	240
UL Flammability Code	94V-0	94V-0	94V-0	94V-0
Base Number Matches	1	1	1	1
