86094647113745E1LF datasheet, PDF

Datasheet> All Categories > The connector> The connector> 86094647113745E1LF

86094647113745E1LF: DescriptionDIN Right Angle Header Solder-to-Board Style C 64 ways, Class III; CategoryThe connector The connector; File Size81KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

86094647113745E1LF Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	86094647113745E1LF	-	-	View	Buy Now

86094647113745E1LF Overview

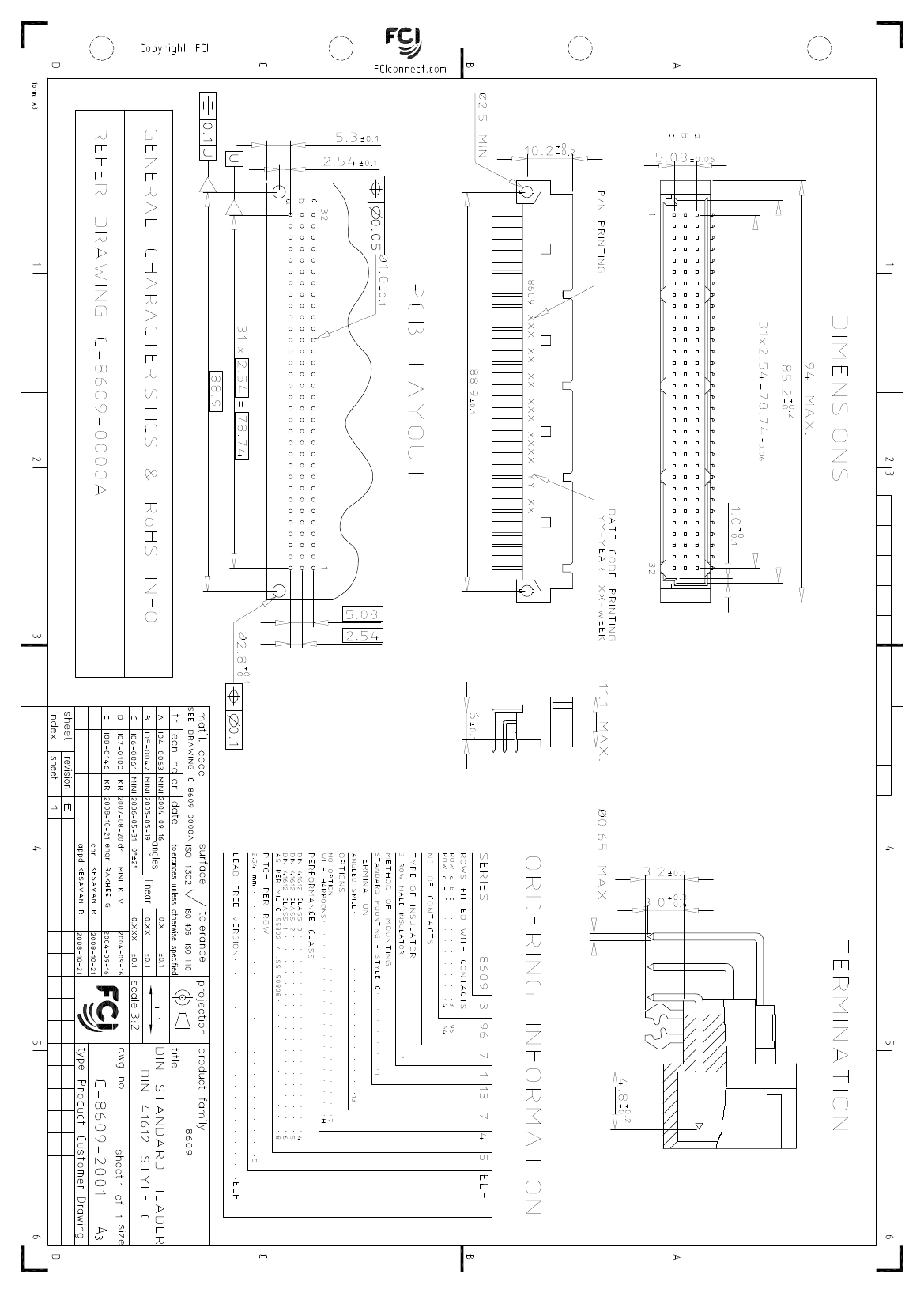

DIN Right Angle Header Solder-to-Board Style C 64 ways, Class III

86094647113745E1LF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	2143449613
package instruction	LEAD FREE
Contacts	64
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	7.9
Other features	STANDARD: DIN 41612
Board mount options	SPLIT BOARD LOCK
body width	0.437 inch
body length	3.7 inch
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	YES
Durability	50 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	0.94 N
Insulation resistance	1000000000000 Ω
Insulator color	GRAY
insulator material	POLYESTER
MIL compliance	NO
Plug contact pitch	0.1 inch
Match contact row spacing	0.2 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Loaded row name	A,C
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.08 mm
Rated current (signal)	2 A
Guideline	DIN; UL
Terminal length	0.108 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	64
UL Flammability Code	94V-0
Evacuation force-minimum value	0.15 N

Preview

Download Datasheet

View All

PDM: Rev:E

STATUS:

Released

Printed: May 14, 2011

86094647113745E1LF Related Products

	86094647113745E1LF	86093967113H45105E1	86094647113765E1LF	86094647113H45000E1	86093967113H55576E1	86093967113745E1LF	86093967113765E1LF
Description	DIN Right Angle Header Solder-to-Board Style C 64 ways, Class III	Board Euro Connector, 96 Contact(s), 3 Row(s), Male, Right Angle, Solder Terminal	Din Headers and Receptacles, Backplane connectors, Right Angle Header Solder-to-Board Style C64 ways, Class I	Board Euro Connector, 64 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal	Board Euro Connector, 96 Contact(s), 3 Row(s), Male, Right Angle, Solder Terminal	DIN Right Angle Header Solder-to-Board Style C 64 ways, Class III	Board Euro Connector, 96 Contact(s), 3 Row(s), Male, Right Angle, Solder Terminal, LEAD FREE
Reach Compliance Code	compliant	unknown	compliant	unknown	unknown	compliant	compliant
Connector type	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE
DIN compliance	YES	YES	YES	YES	YES	YES	YES
Filter function	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	3	2	2	3	3	3
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	64	96	64	64	96	96	96
Is it Rohs certified?	conform to	-	conform to	-	-	conform to	conform to
package instruction	LEAD FREE	-	LEAD FREE	-	-	LEAD FREE	LEAD FREE
Contact to complete cooperation	NOT SPECIFIED	-	NOT SPECIFIED	-	-	NOT SPECIFIED	NOT SPECIFIED
Contact material	NOT SPECIFIED	-	NOT SPECIFIED	-	-	NOT SPECIFIED	NOT SPECIFIED
